Plan 17524LV
Stylish Shingled Cottage
Heated S.F.
3,267
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 17524LV

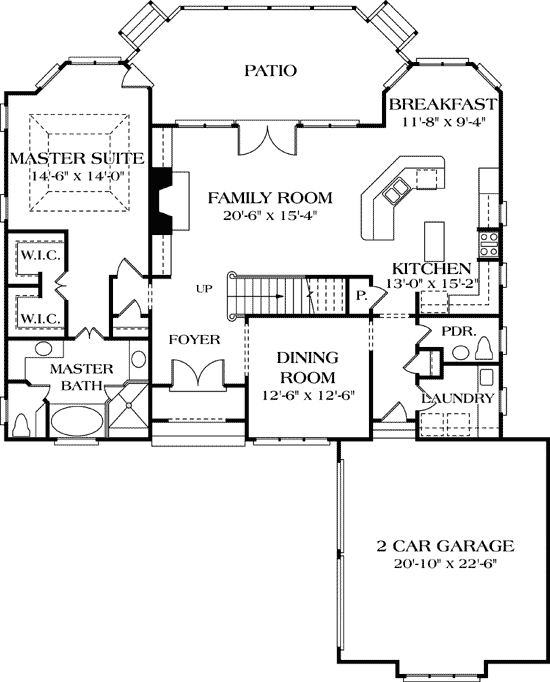

Main Level
slide image 0

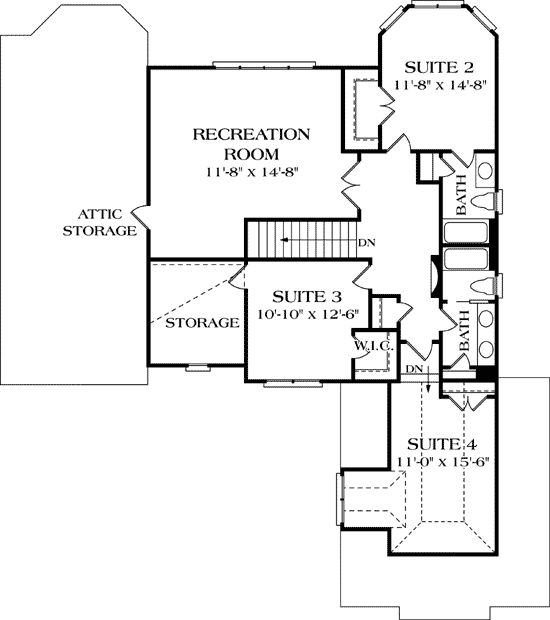

2nd Floor
slide image 1

Plan 17524LV

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

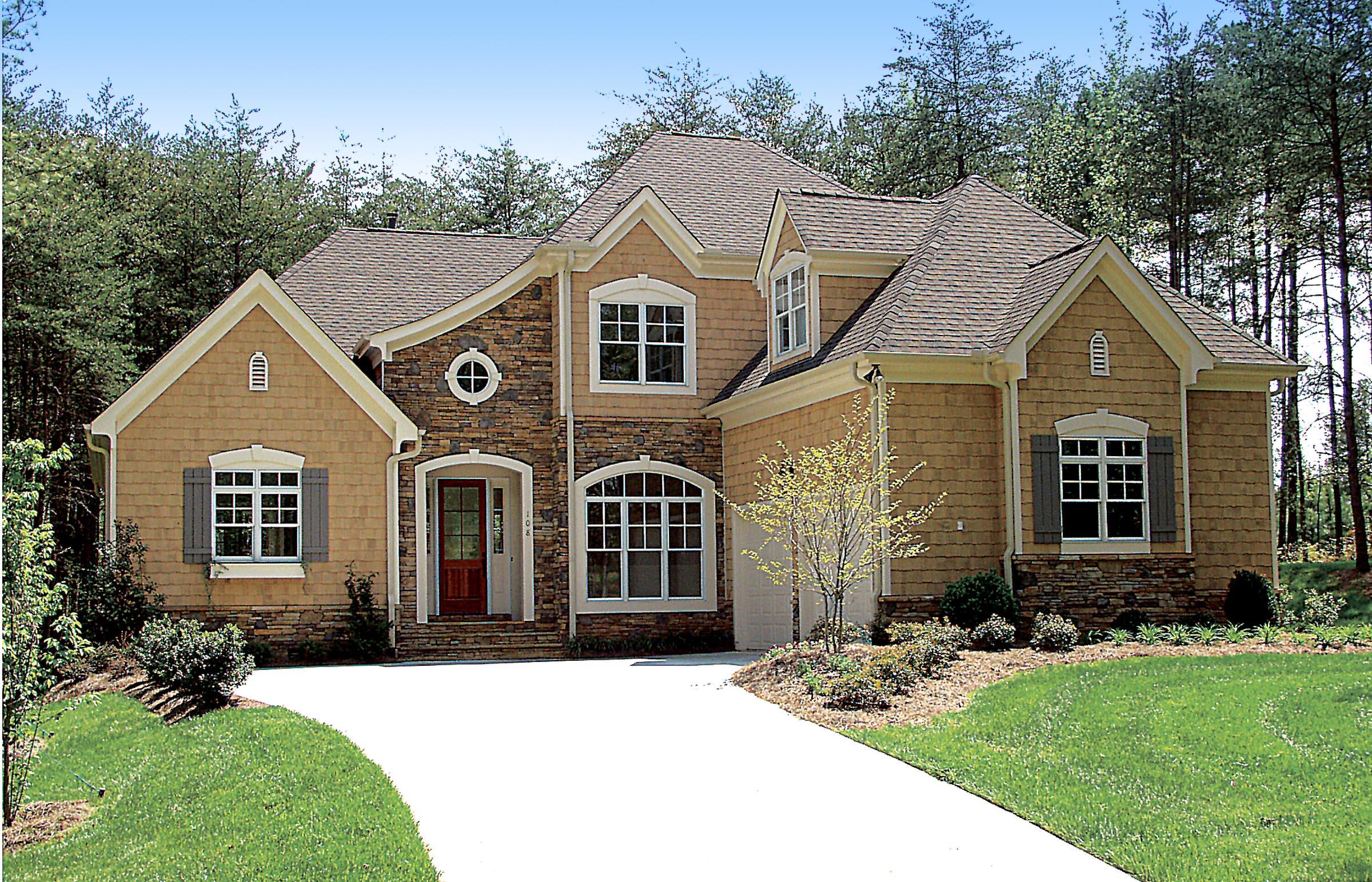

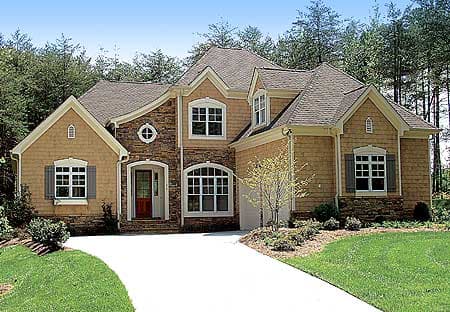

  • Varied roof lines, a courtyard-style garage and arched window detailing contribute to the pleasant ambiance of this shingle-clad cottage.

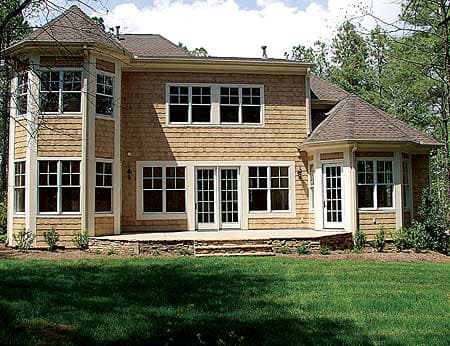

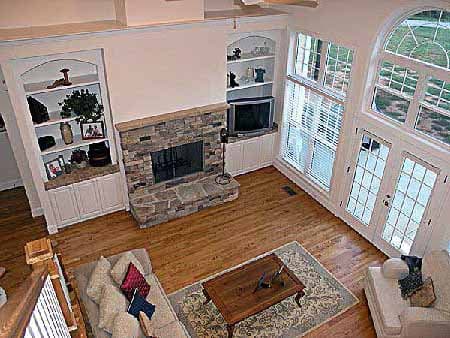

  • Double doors within an arch open to the foyer, from which one can turn to the formal dining room on one side or proceed to the open living area ahead. From the two-story fireplaced family room, elegant French doors topped by transoms and a half-round window access a spacious patio in back.

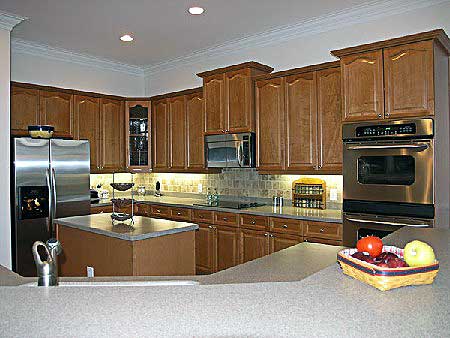

  • Completing the living area are a bayed breakfast area and a generously sized kitchen with a pantry closet and both a central work island and an angled island with double sinks and an eating bar.

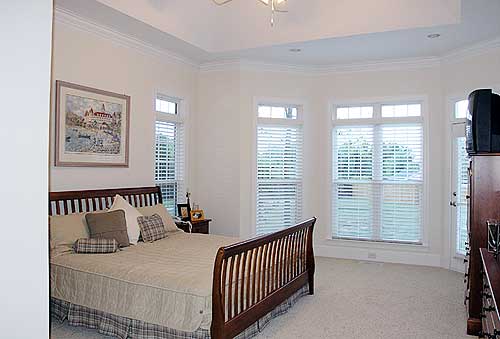

  • Set in its own wing, the master suite has a tray ceiling and a sitting area in the bedroom. The suite also contains twin walk-in closets and an opulent bath with his and her vanities, a garden tub and a separate shower.
  • Upstairs, you'll find a game room and three suites plus plenty of storage.
  • Related Plan: Need something smaller? See house plan 1766LV (2,443 sq. ft.) and get a two-story family room and a sunken bonus room for future expansion.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area
