Plan 68499VR
Super-sized Garage with Workshop and RV garage
Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
4- 7
Floor Plan

Plan 68499VR

Main Level
slide image 0

Plan 68499VR

1-800-854-7852

1-262-521-4596

Main Level

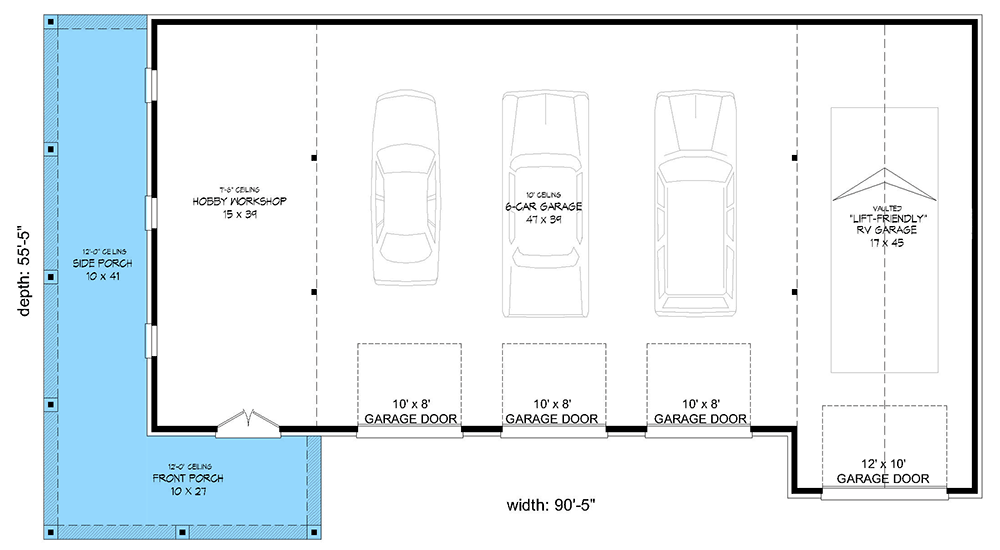

floor plan image Main Level
Plan Details
  • Designed with lots of space in mind, this super-sized garage comes with a wrap-around porch and lots of stone and brick.
  • Three spacious garage bays are flanked by a huge workshop area on one side and a vaulted lift-friendly RV garage on the other.
  • This garage will work well for those who have large lots.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

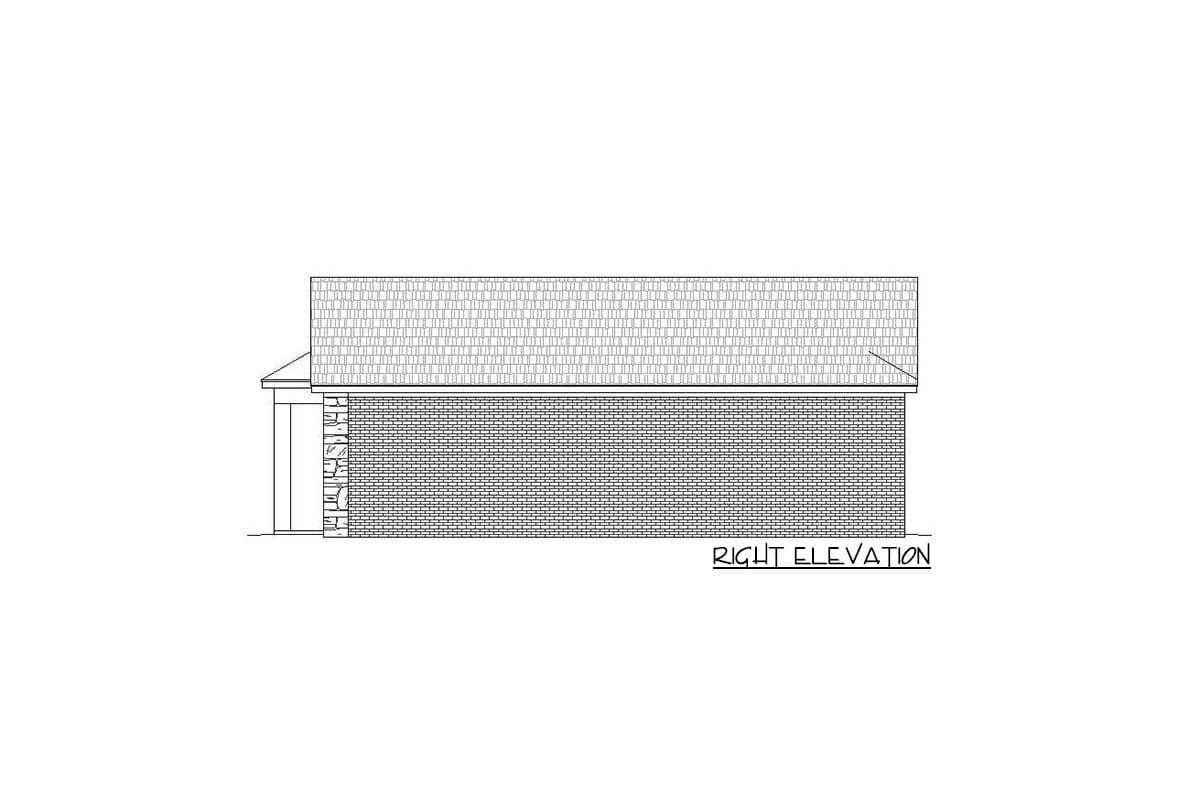

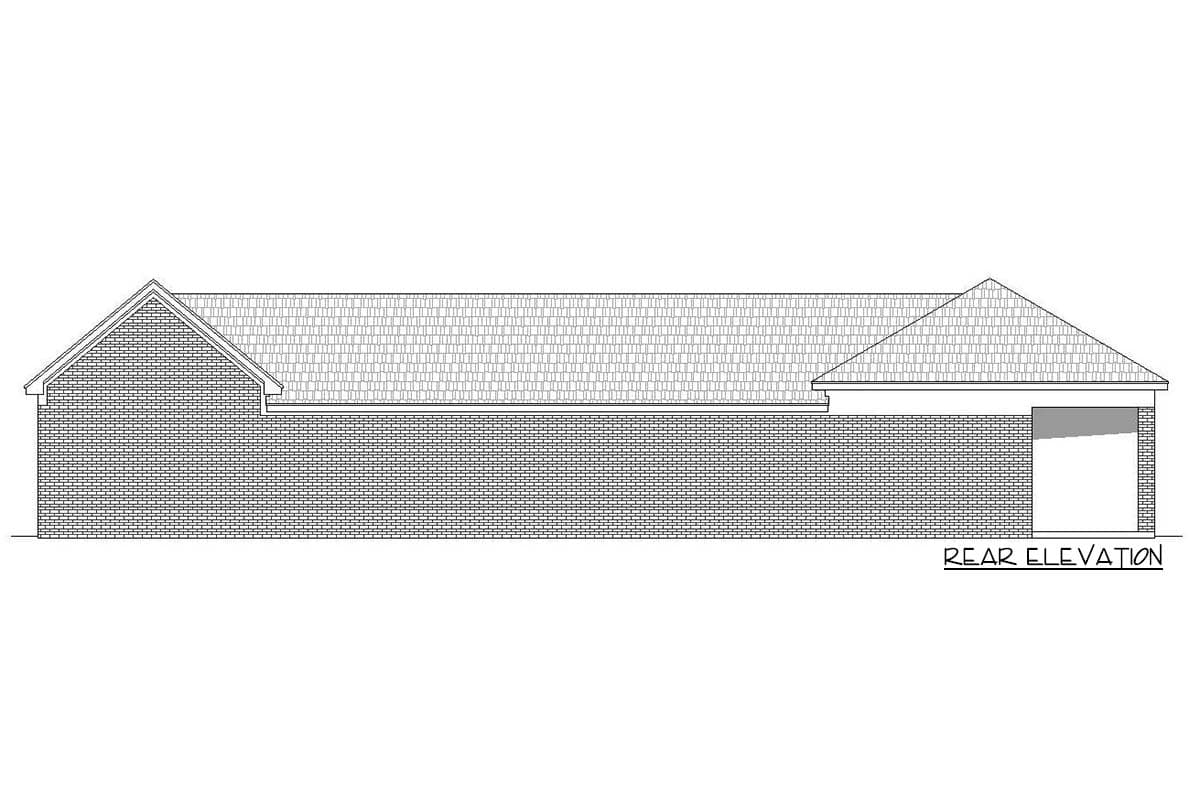

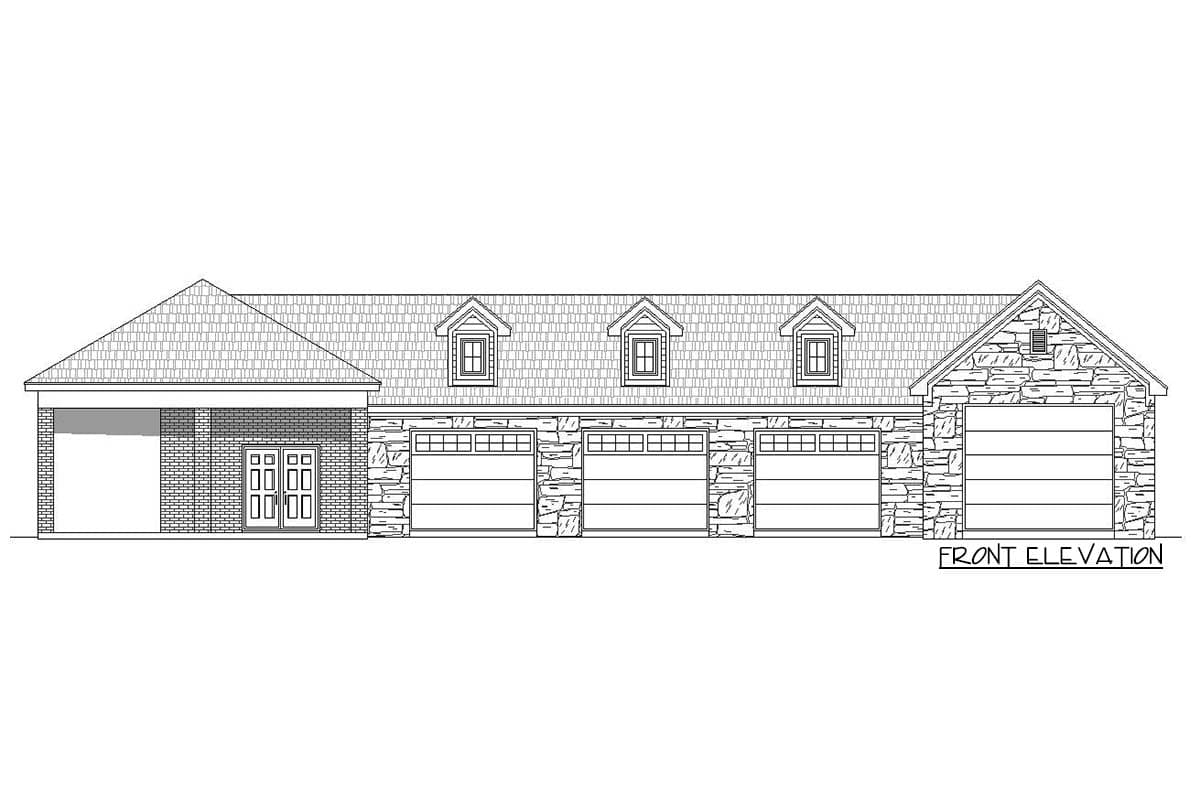

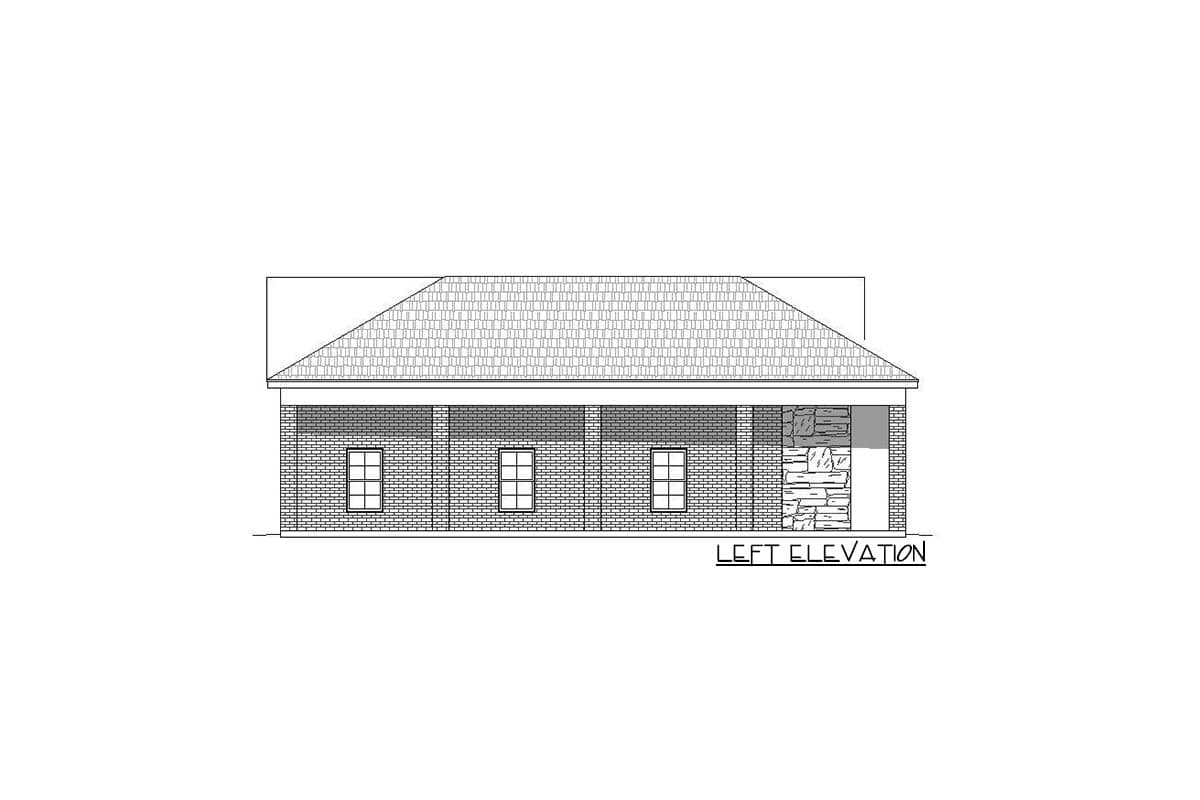

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Combined

677 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 5"

Depth

55' 5"

Max Ridge Height

20' 3"

Garage

Type

Detached, RV Garage

Area

3114 sq. ft.

Count

4, 5, 6, or 7 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Hill Country

Traditional

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Porch, Combined

677 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

90' 5"

Depth

55' 5"

Max Ridge Height

20' 3"

Garage

Type

Detached, RV Garage

Area

3114 sq. ft.

Count

4, 5, 6, or 7 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Hill Country

Traditional

Special Features

Workshop
