Plan 66073WE
Mediterranean House Plan with Guest Cabana
Heated S.F.
3,650
Beds
3 - 4
Baths
4
Stories
1
Cars
3

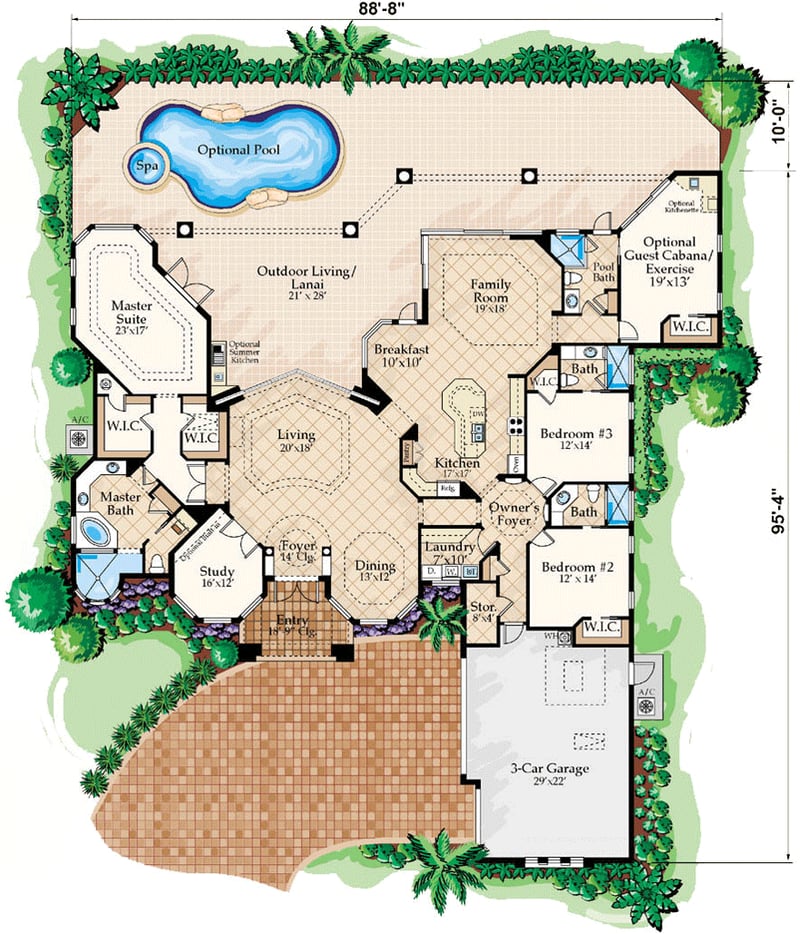

Floor Plan

Plan 66073WE

Main Level
slide image 0

Plan 66073WE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This home plan speaks for itself with a symmetrical fa'ade and clean, sophisticated curb appeal. The living room, dining room, and foyer flow together seamlessly, creating an open and airy formal living space with an abundance of natural light.
  • The master suite is unique in form and graced with elegant coffered ceilings. His and her walk-in closets and open master bath with Jacuzzi tub and large walk-in shower complete the owner's suite.
  • The family room, kitchen and dinette are designed for the comfort of the family with a large functional kitchen hosting an oversized island suitable for several bar stools and plenty of extra prep space.
  • This house plan is unique in the sense that, in addition to the three bedrooms and three baths, it also has a large cabana suite with optional kitchenette, perfect for in-laws or guests.
  • Please note that the Guest Cabana is included in the total heated square footage.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,650 sq. ft.

1st Floor

3,650 sq. ft.

Entry

145 sq. ft.

Lanai

915 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

88' 8"

Depth

95' 4"

Max Ridge Height

26' 1"

Garage

Type

Attached

Area

698 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

Coffered

9' 0''

Bedroom 2

Flat

10' 0''

Dining Room

Coffered

10' 11''

Living Room

Coffered

10' 10''

Kitchen

Flat

12' 0''

Study

Flat

12' 0''

Dinette

Flat

12' 0''

Lanai

Flat

10' 0''

Foyer

Coffered

11' 10''

Master Bath

Flat

10' 0''

Family Room

Coffered

10' 11''

Bedroom 3

Flat

10' 0''

Entry

Flat

18' 9''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown
