Plan 80809PM
Tall and Narrow
Heated S.F.
1,377
Beds
3
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 80809PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80809PM

1-800-854-7852

1-262-521-4596

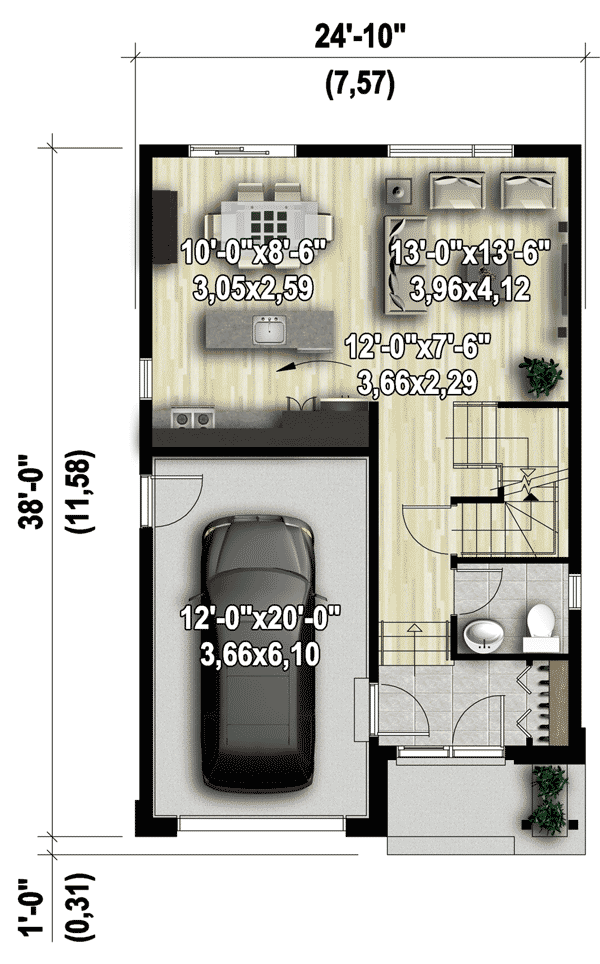

Main Level
floor plan image Main Level

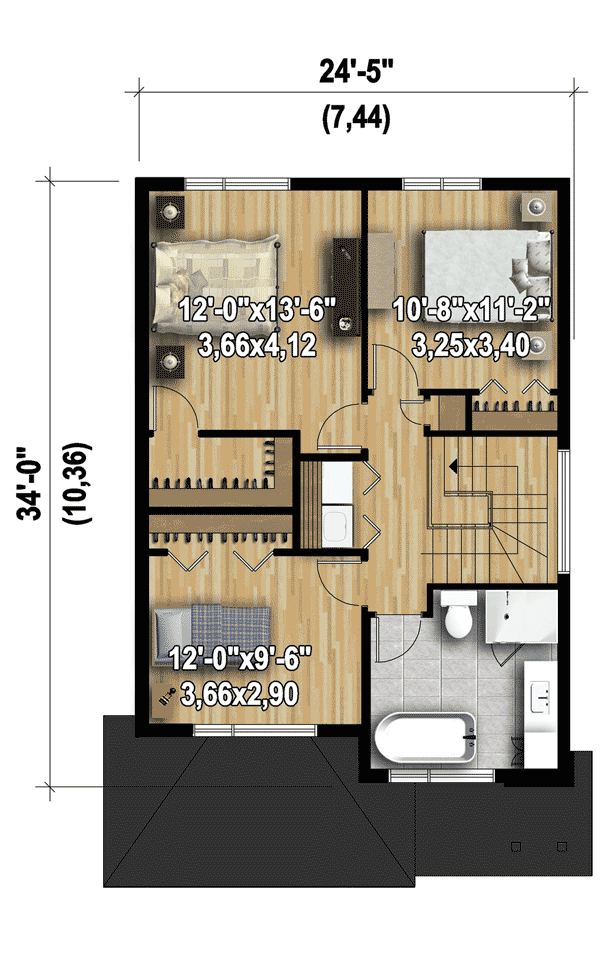

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Two stories high and less than 25' wide, this Contemporary house plan will fit well on a narrow lot.
  • A sunken foyer is just three steps from the open concept main living area.
  • Sliding glass doors in the dining area take you out to the back yard.
  • Add a deck or patio as your lot allows.
  • On the upper floor, the master suite gets a walk-in closet.
  • The hall bathroom and laundry closet serve all three bedrooms.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,377 sq. ft.

1st Floor

601 sq. ft.

2nd Floor

776 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 10"

Depth

38' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

268 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

7' 8"

First Floor

8' 2"

Second Floor

8' 2"

Garage

12' 0''

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,377 sq. ft.

1st Floor

601 sq. ft.

2nd Floor

776 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 10"

Depth

38' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

268 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

7' 8"

First Floor

8' 2"

Second Floor

8' 2"

Garage

12' 0''

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Special Features

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric
