Plan 9534RW

The Wow Factor!

Heated S.F.

7,563

Beds

4

Baths

3.5+

Stories

2

Cars

4

Floor Plan

Main Level

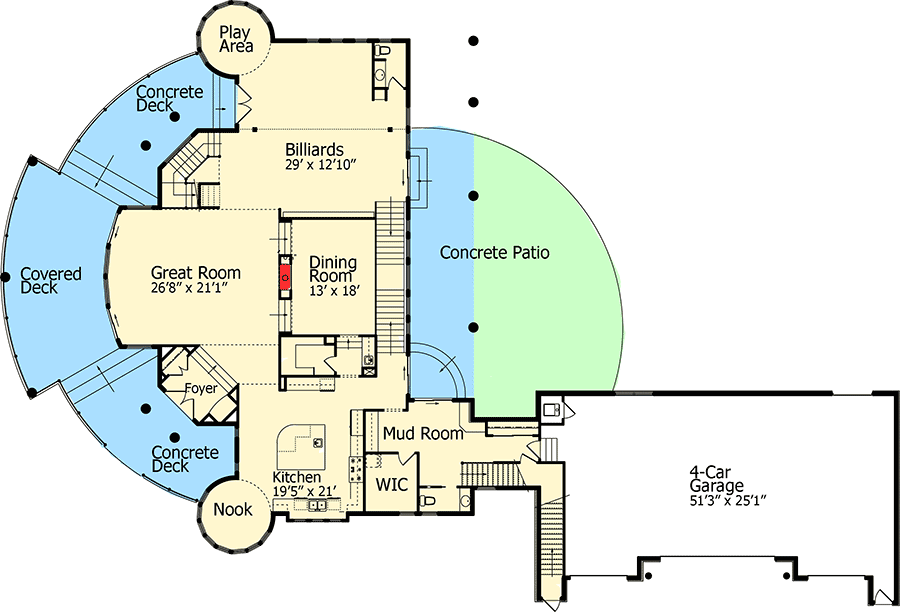

floor plan image Main Level

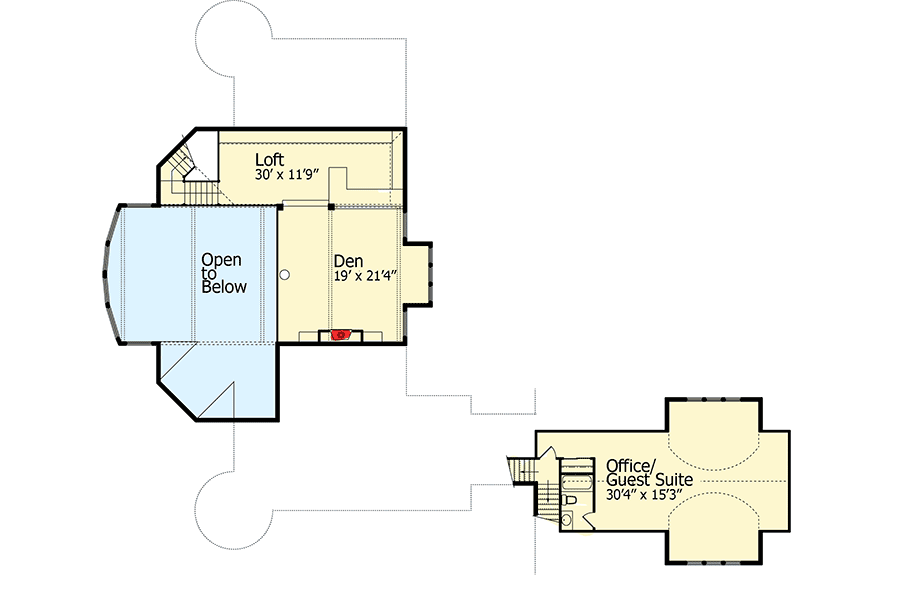

2nd Floor

floor plan image 2nd Floor

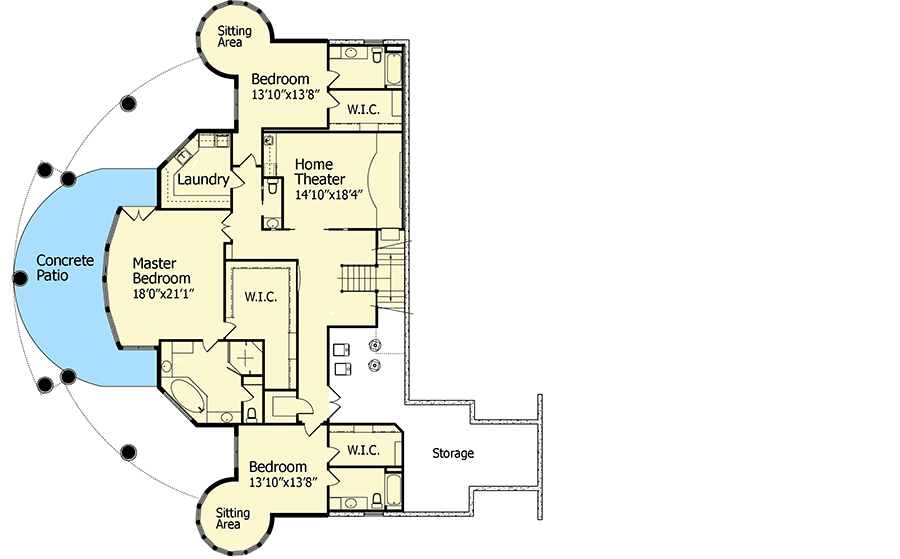

Basement

floor plan image Basement

Plan Details

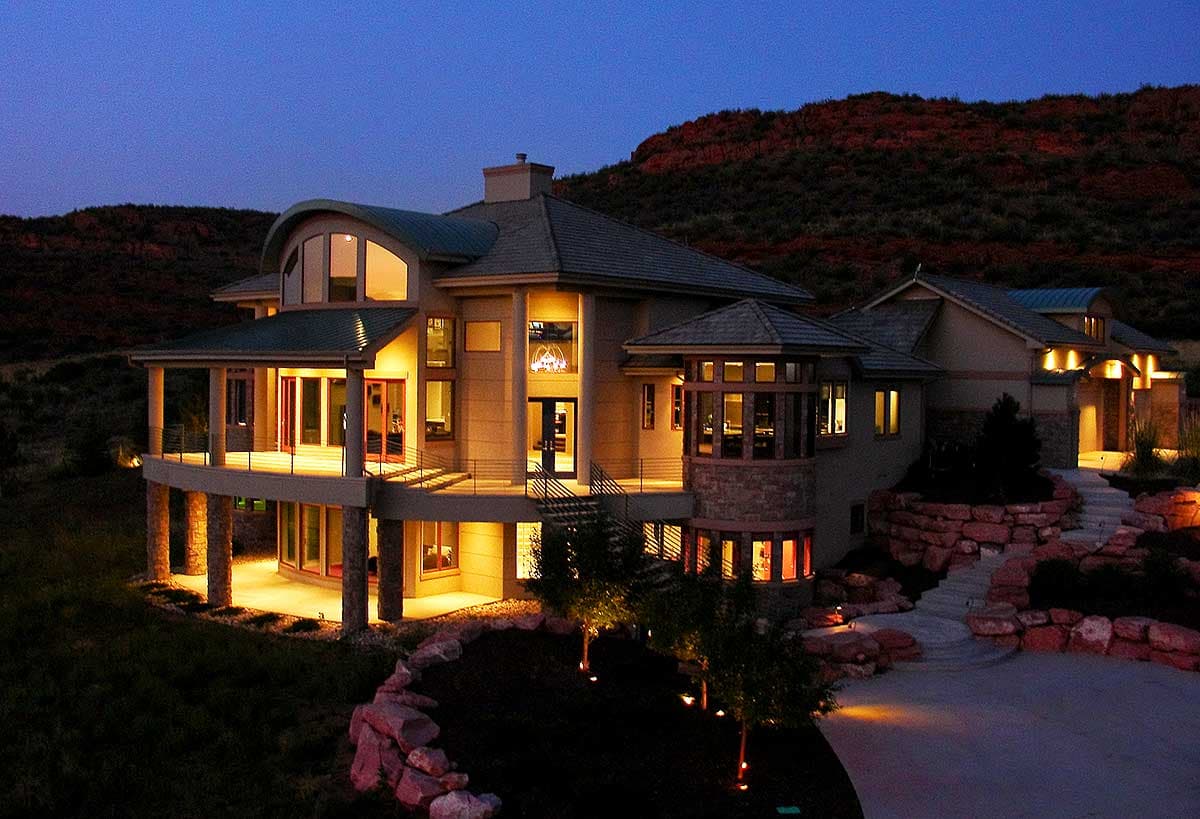

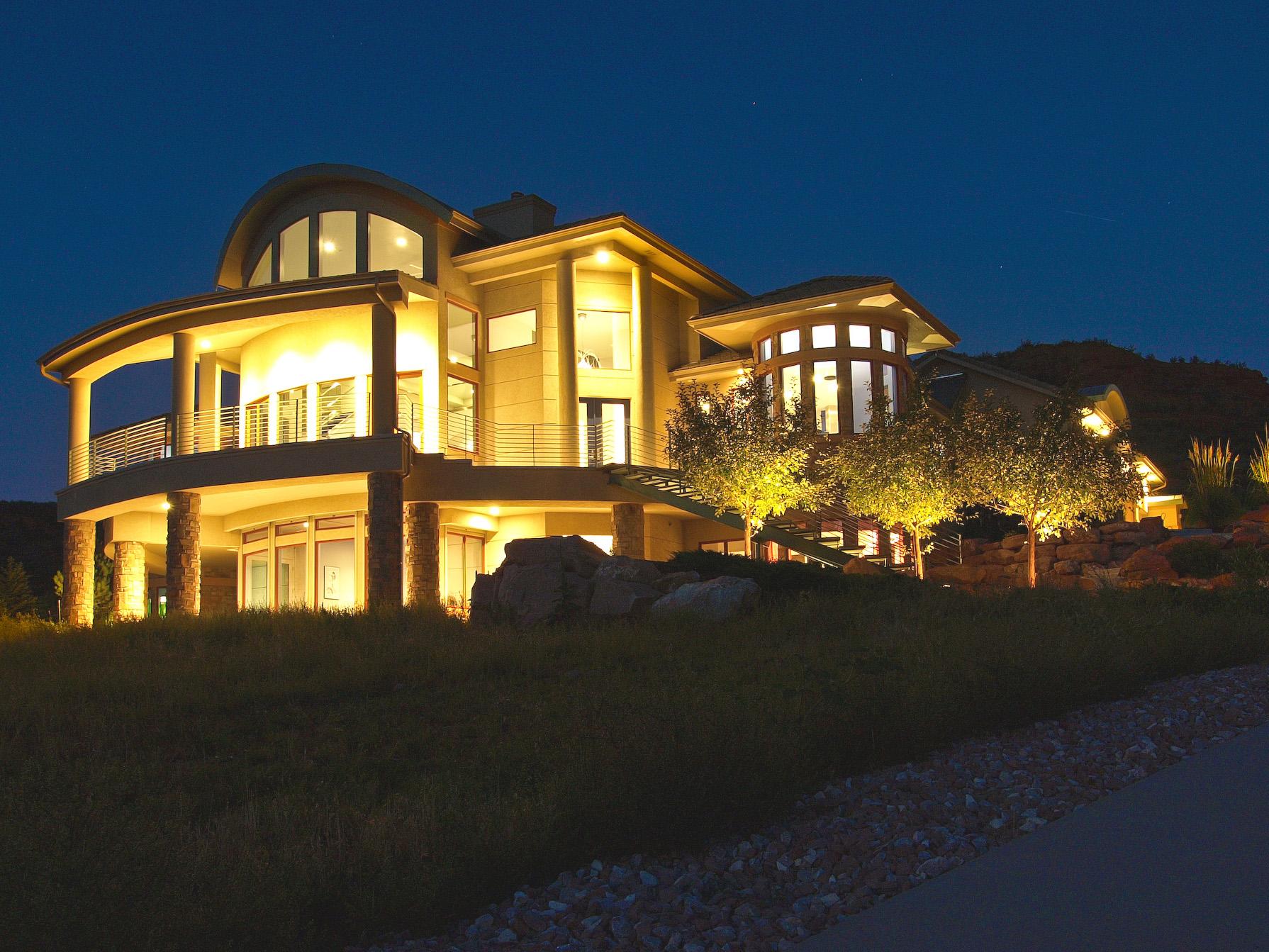

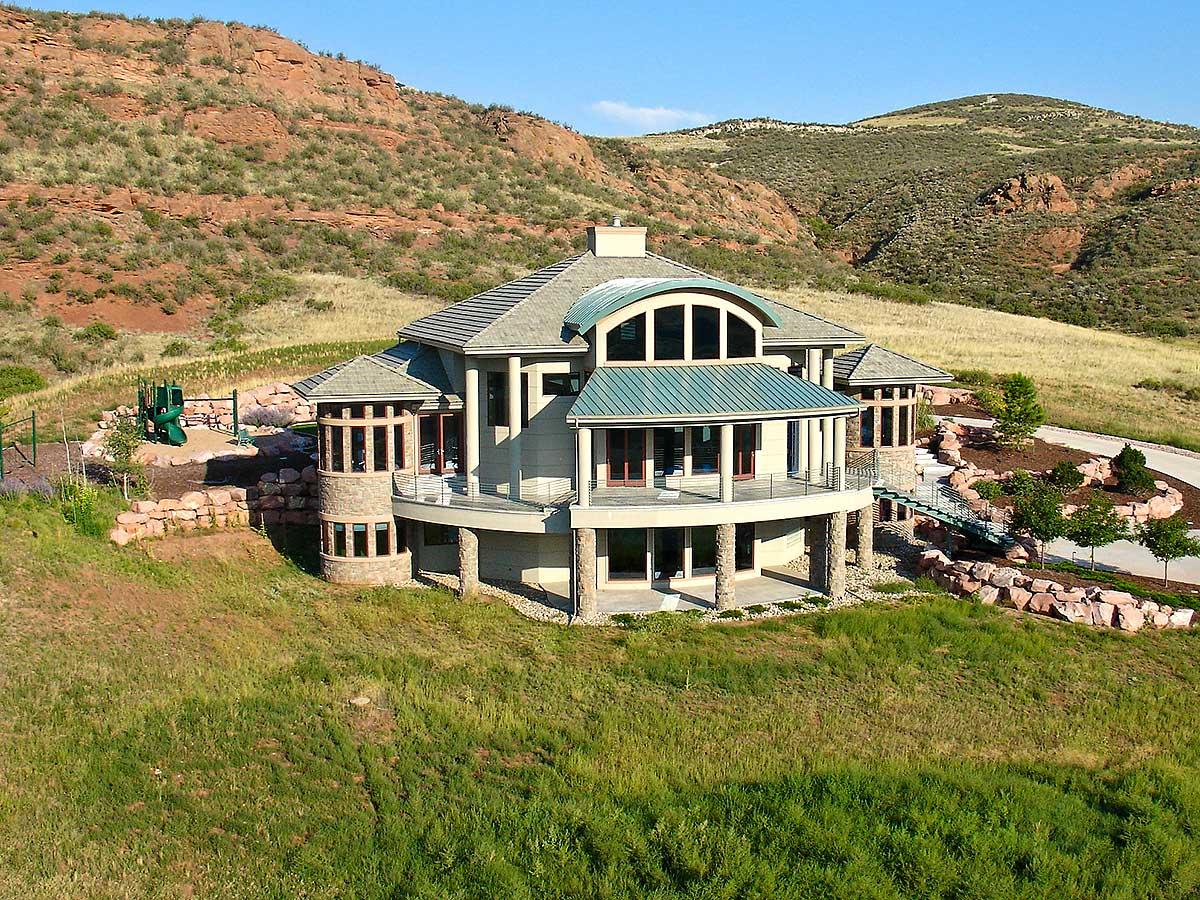

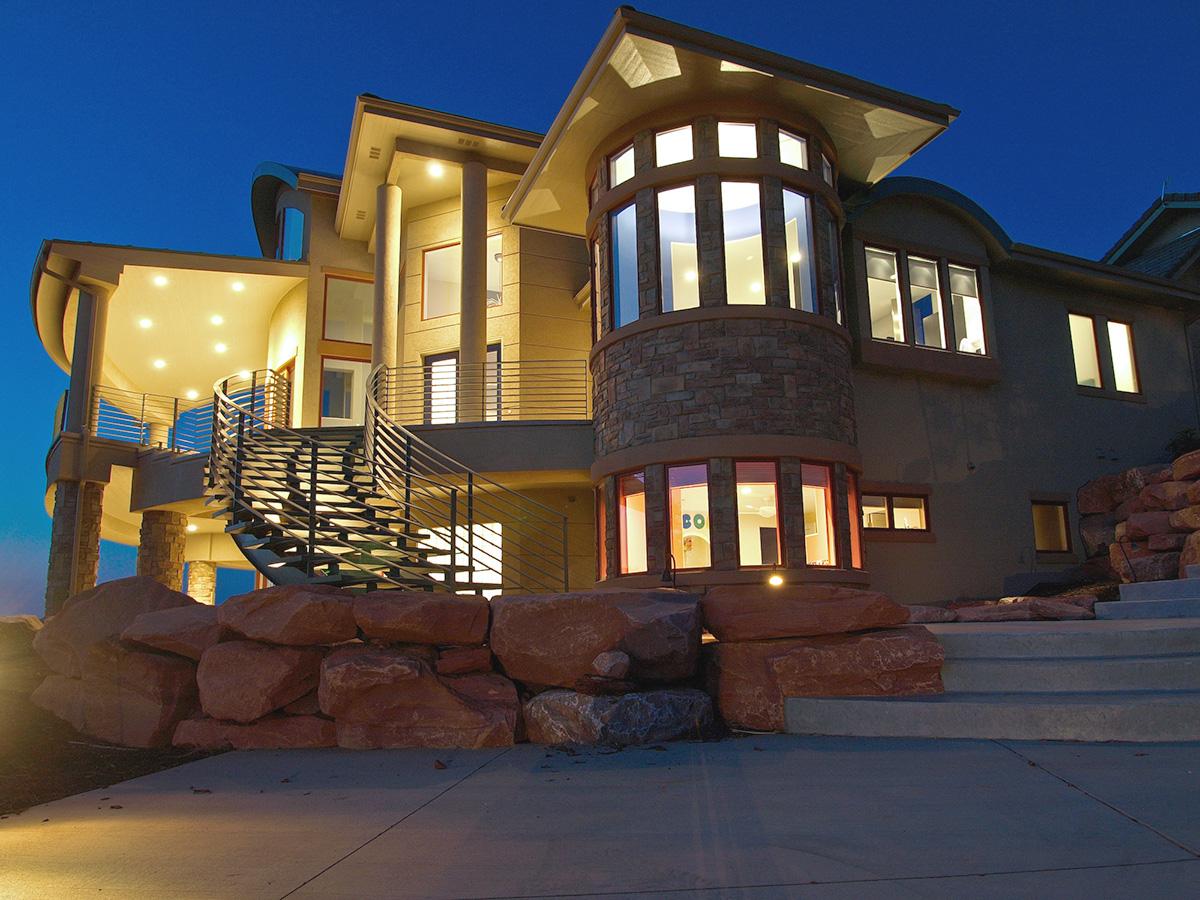

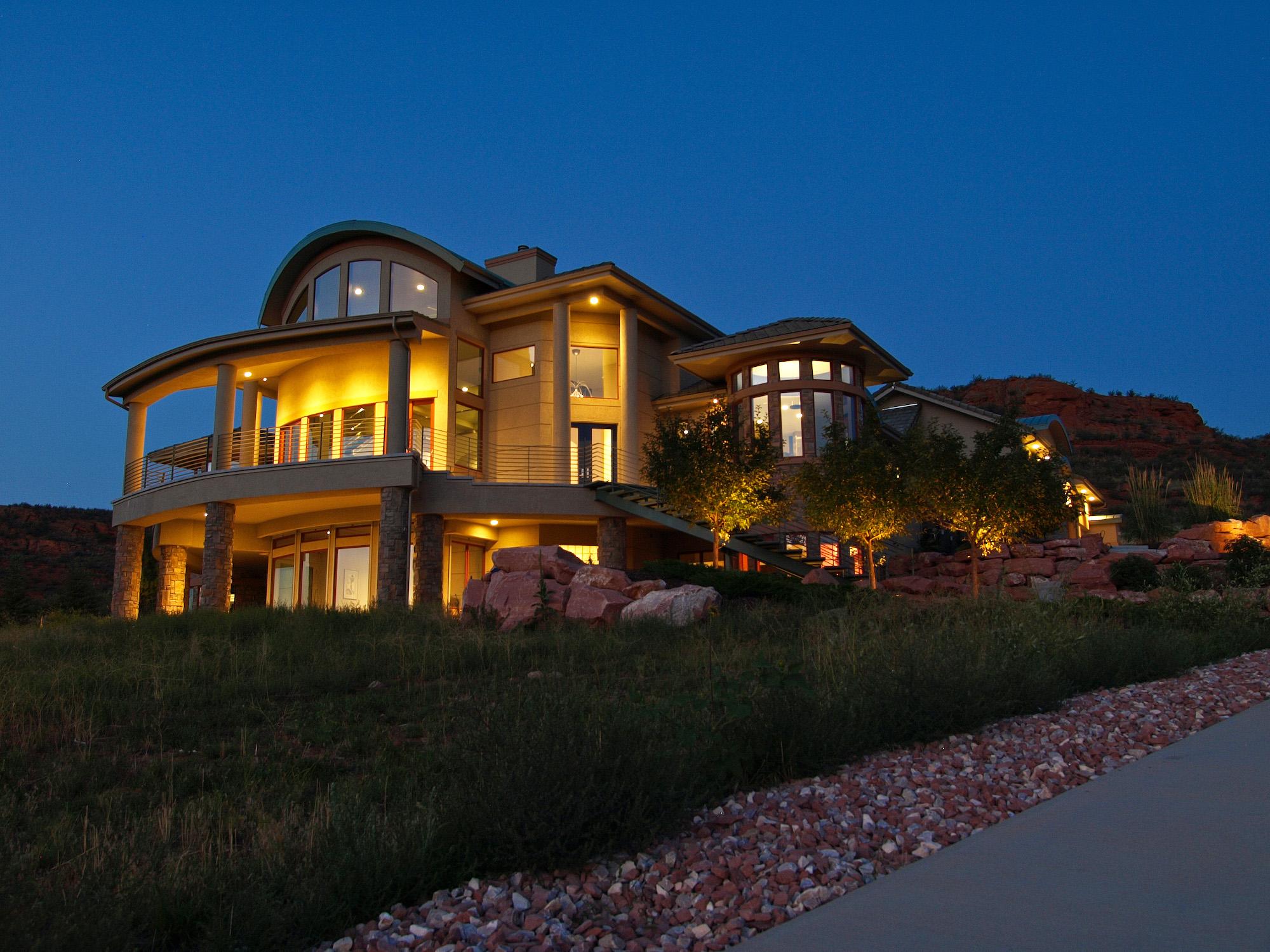

Curves and dramatic lines combine to give this luxury home plan a unique style that will wow everyone who sees it.

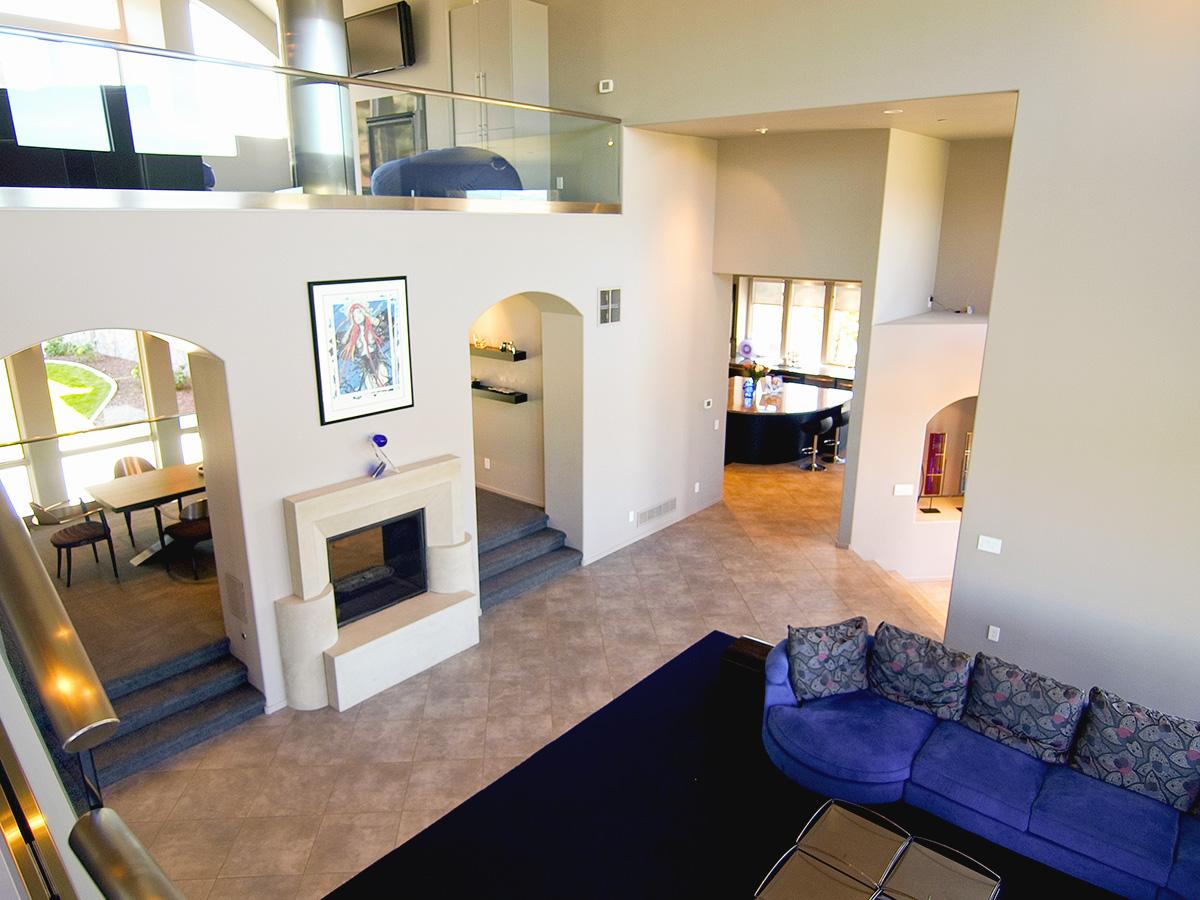

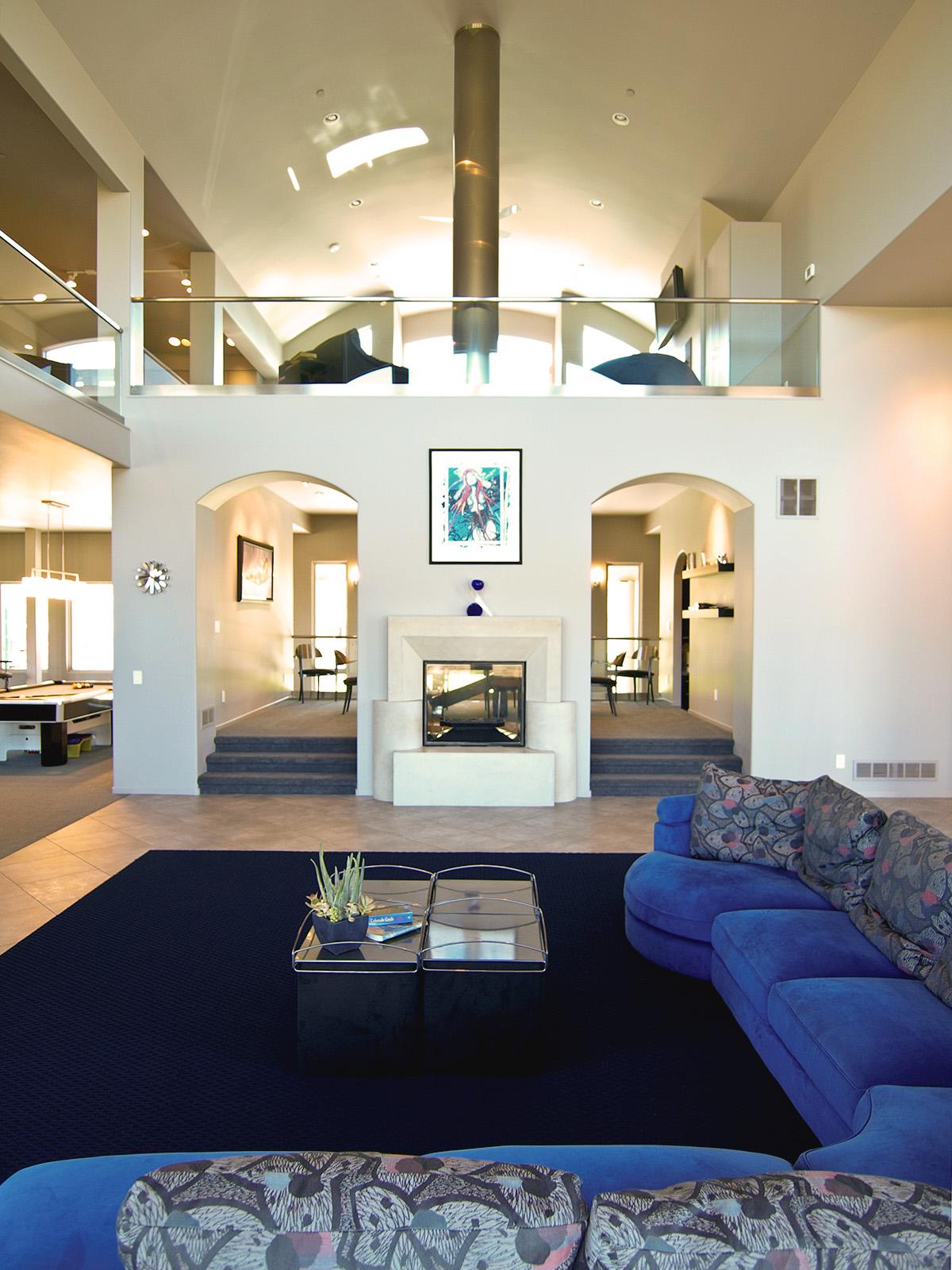

The vaulted great room with a two-sided fireplace has sweeping views of the covered deck through a wall of glass. On the other side, step up to the formal dining room that shares the fireplace.

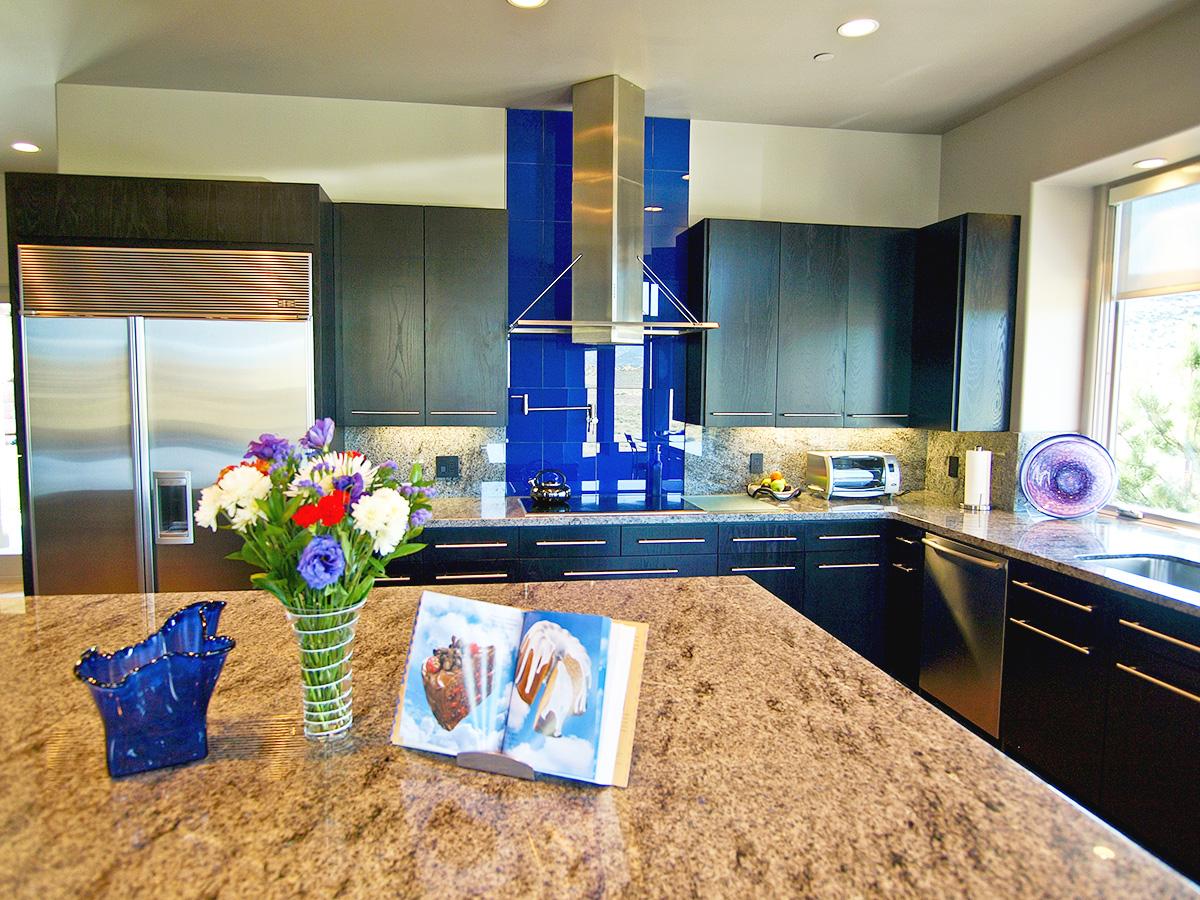

The kitchen with its massive island also has a rounded alcove breakfast nook.

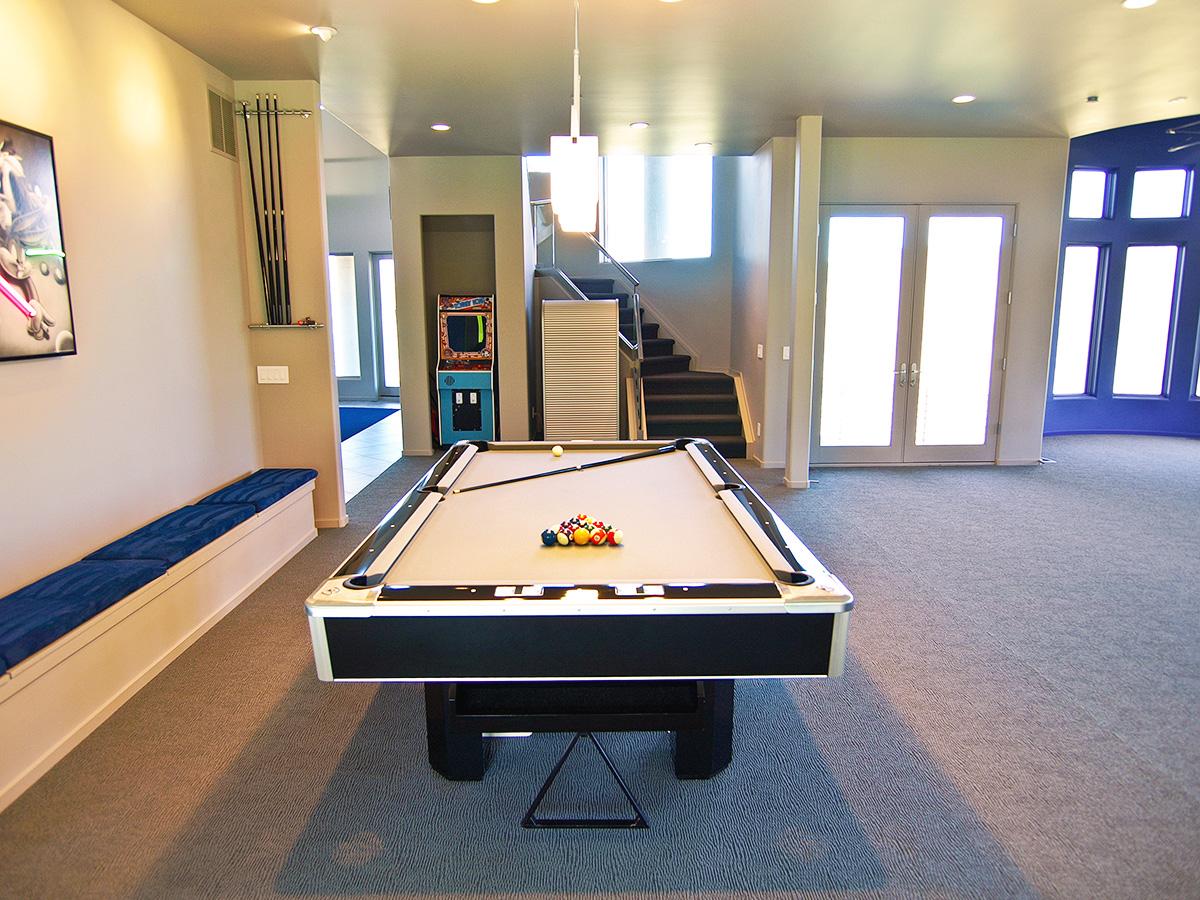

Send the crowd in to the billiards room with a play area set in a rounded alcove.

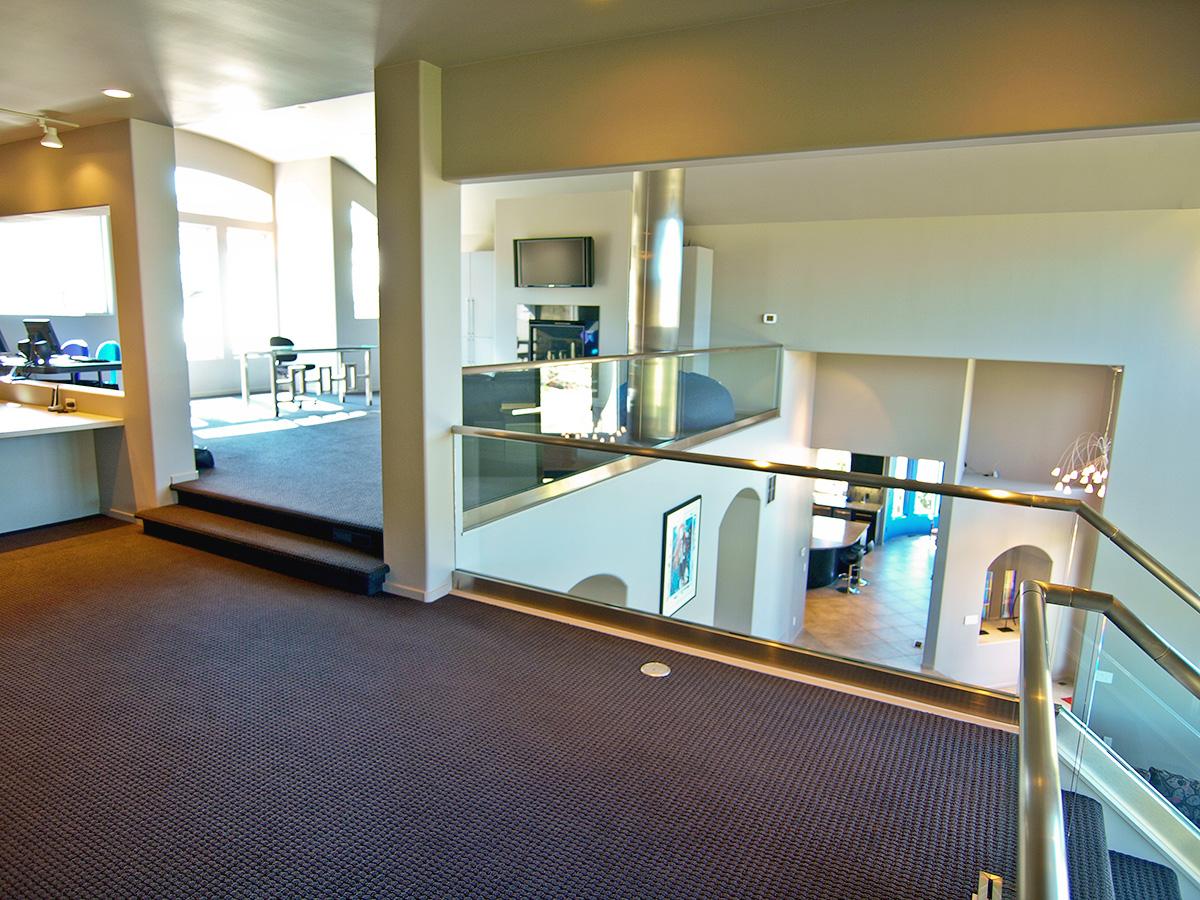

On the second floor of the home, you will find a loft and den area with fireplace.
Over the garage, a guest bedroom with its own bath could become an in-law suite.
This space is included in the second floor square footage of 1,606.
All the bedrooms lie on the lower level with the master suite enjoying the best view thru a huge curved window. The other two bedrooms each have a rounded alcove sitting area, huge walk-in closet and their own private bath.

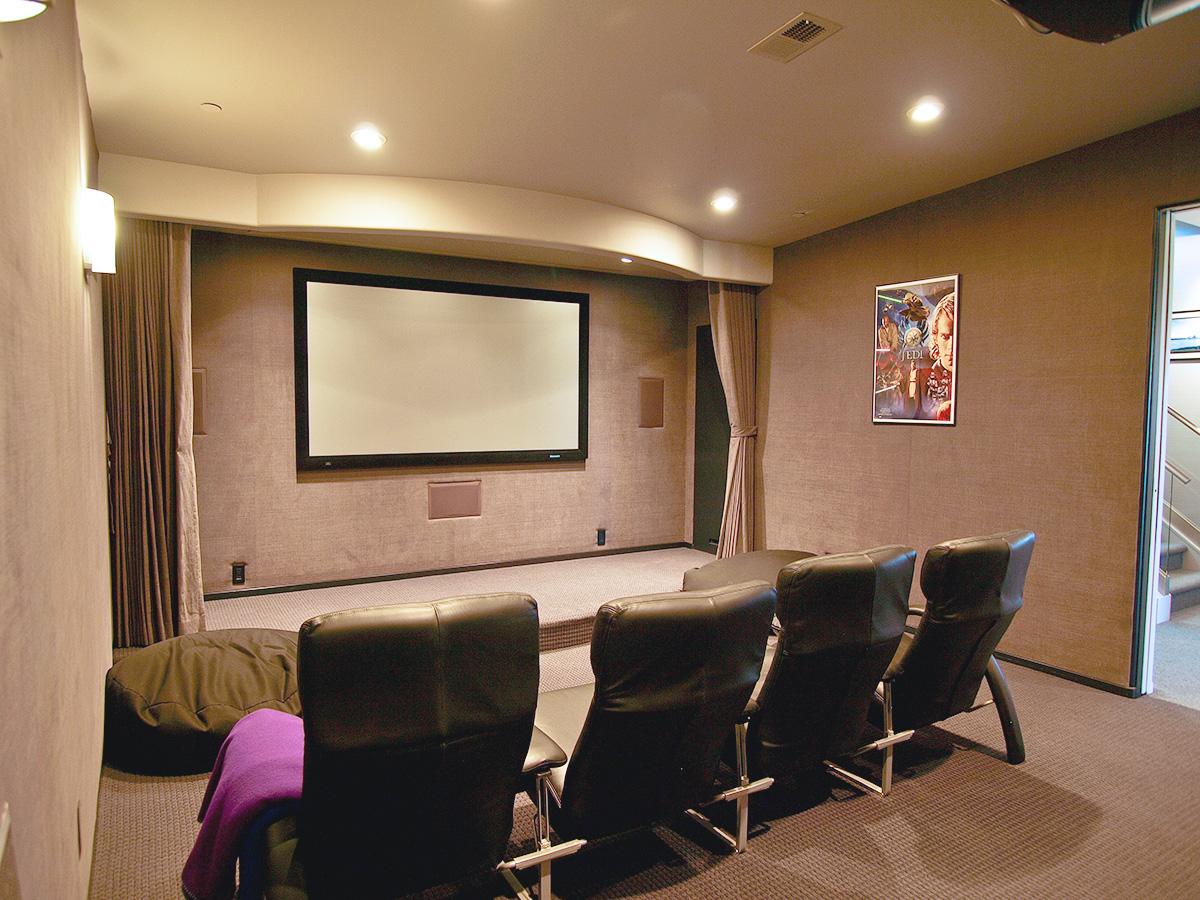

A home theater on this level has a wet bar and fridge to complete your enjoyment.

What's Included

Cover Page
4 Elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

7,563 sq. ft.

Lower Level

2,717 sq. ft.

1st Floor

3,240 sq. ft.

2nd Floor

1,606 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

93' 3"

Depth

139' 9"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

2986 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Lower Level

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Two Story Great Room

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

7,563 sq. ft.

Lower Level

2,717 sq. ft.

1st Floor

3,240 sq. ft.

2nd Floor

1,606 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

93' 3"

Depth

139' 9"

Max Ridge Height

29' 3"

Garage

Type

Attached

Area

2986 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Lower Level

Laundry - Main Level

Master Suite - 2nd Floor

Master Suite - Sitting Area

Two Story Great Room

Plan Collections

Premium Collection
