Plan 33228ZR
Thoughtful Single-Story 3-Bedroom House Plan
Heated S.F.
2,138
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 33228ZR

Main Level
slide image 0

Plan 33228ZR

1-800-854-7852

1-262-521-4596

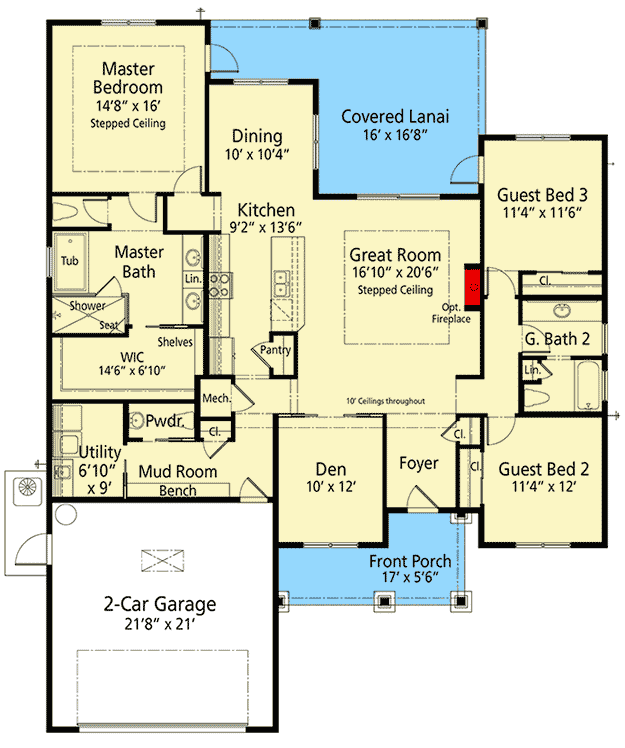

Main Level
floor plan image Main Level
Plan Details
  • Everything you need is on one floor in this thoughtful 3-bedroom home plan, which features a board-and-batten exterior with shake and metal accents, a welcoming front porch, and a 2-car garage.
  • Through the airy foyer, you'll find a spacious great room with an inviting fireplace and lovely stepped ceiling. A quiet den in the front of the home is ideal for work or relaxation.
  • The adjacent kitchen and dining area boast a large breakfast bar and convenient pantry. A large covered lanai makes outdoor entertaining a breeze.
  • Retreat to your private master suite, which includes an elegant stepped ceiling, access to the lanai, a 5-piece bath with an oversized shower, and a generously sized walk-in closet. On the opposite side of the home, two additional bedrooms share a full bath.
  • Related Plan: Get an alternate exterior with house plan 33227ZR.
What's Included
  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,138 sq. ft.

1st Floor

2,138 sq. ft.

Porch, Front

122 sq. ft.

Porch, Rear

321 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 8"

Depth

68' 2"

Max Ridge Height

21' 8"

Garage

Type

Attached

Area

486 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Den

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,138 sq. ft.

1st Floor

2,138 sq. ft.

Porch, Front

122 sq. ft.

Porch, Rear

321 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 8"

Depth

68' 2"

Max Ridge Height

21' 8"

Garage

Type

Attached

Area

486 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Den

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
