Plan 17544LV

Thoughtful Space

Heated S.F.

6,622

Beds

5

Baths

5.5+

Stories

2

Cars

3

Floor Plan

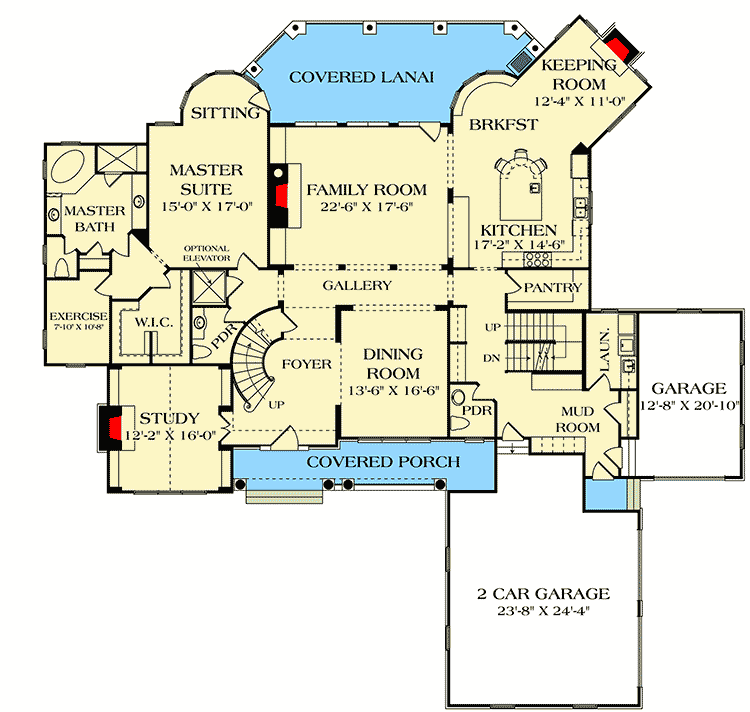

Main Level

floor plan image Main Level

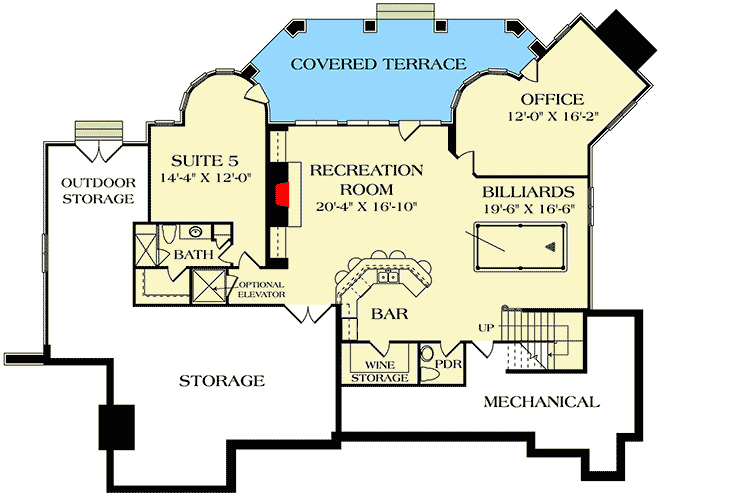

Lower Level

floor plan image Lower Level

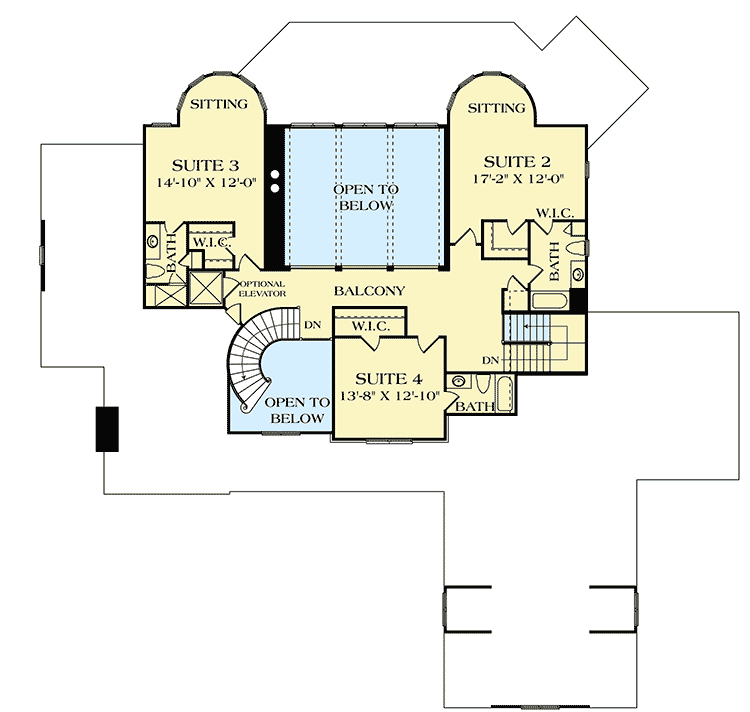

Second Level

floor plan image Second Level

Plan Details

This stone and shake cottage features a large front porch and covered lanais to the rear, inviting rocking chairs and cool breezes.
Rear turrets house the breakfast nook, sitting areas in the sleeping quarters, and a thoughtful space in the home office.

What's Included

Dimensioned and detailed Foundation plan (type as listed on home plan description)
Dimensioned and detailed floor plans
Framing plans
Complete front, side and rear elevations
Roof plan
Typical building sections (as deemed necessary for construction)
Typical foundation details, wall sections, and cornice details necessary for construction
Separate electrical plan (may be shown on floor plans in some cases)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

6,622 sq. ft.

Lower Level

1,850 sq. ft.

1st Floor

3,211 sq. ft.

2nd Floor

1,561 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

3

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

88' 9"

Depth

88' 5"

Garage

Type

Attached

Area

1008 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Multiple Stairs

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

6,622 sq. ft.

Lower Level

1,850 sq. ft.

1st Floor

3,211 sq. ft.

2nd Floor

1,561 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

3

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

88' 9"

Depth

88' 5"

Garage

Type

Attached

Area

1008 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Special Features

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Multiple Stairs

Plan Collections

Premium Collection
