Plan 35513GH
Three Bedroom Carriage House or Mountain Home Plan - 2758 Sq Ft
Heated S.F.
2,758
Beds
3
Baths
3
Stories
2
Cars
3
Floor Plan

Plan 35513GH

Main Level
slide image 0
Basement
slide image 1

Plan 35513GH

1-800-854-7852

1-262-521-4596

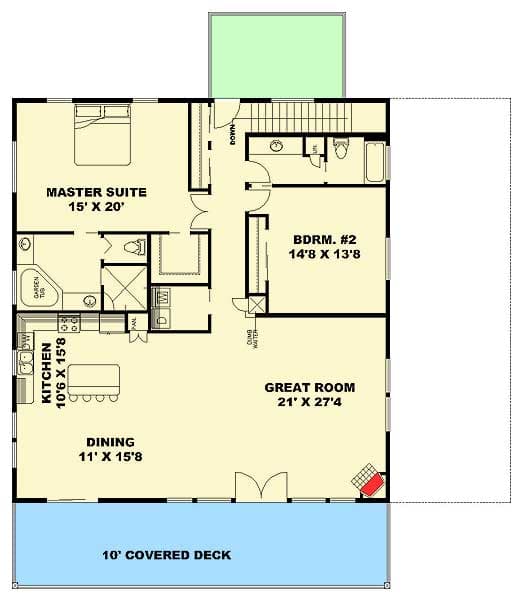

Main Level
floor plan image Main Level
Basement
floor plan image Basement
Plan Details
  • The ground floor of this Mountain house plan holds a bedroom and bathroom suite that could be rented as a studio apartment or work as an in-law suite.
  • The covered porch leads to a foyer that serves both the upstairs and downstairs.
  • On the main upstairs floor, there are two bedrooms and a huge open living area.
  • Double doors take you out to a spacious deck or use the sliding glass doors in the dining area.
  • There is also a back porch.
  • Related Plans: Get a man-cave version with house plan 35245GH (1,901 sq. ft.), 35361GH (1,320 sq. ft.), 35396GH (1,999 sq. ft.), 35401GH (1,660 sq. ft.), 35485GH (2,025 sq. ft.) and 35490GH (2,030 sq. ft.).
What's Included

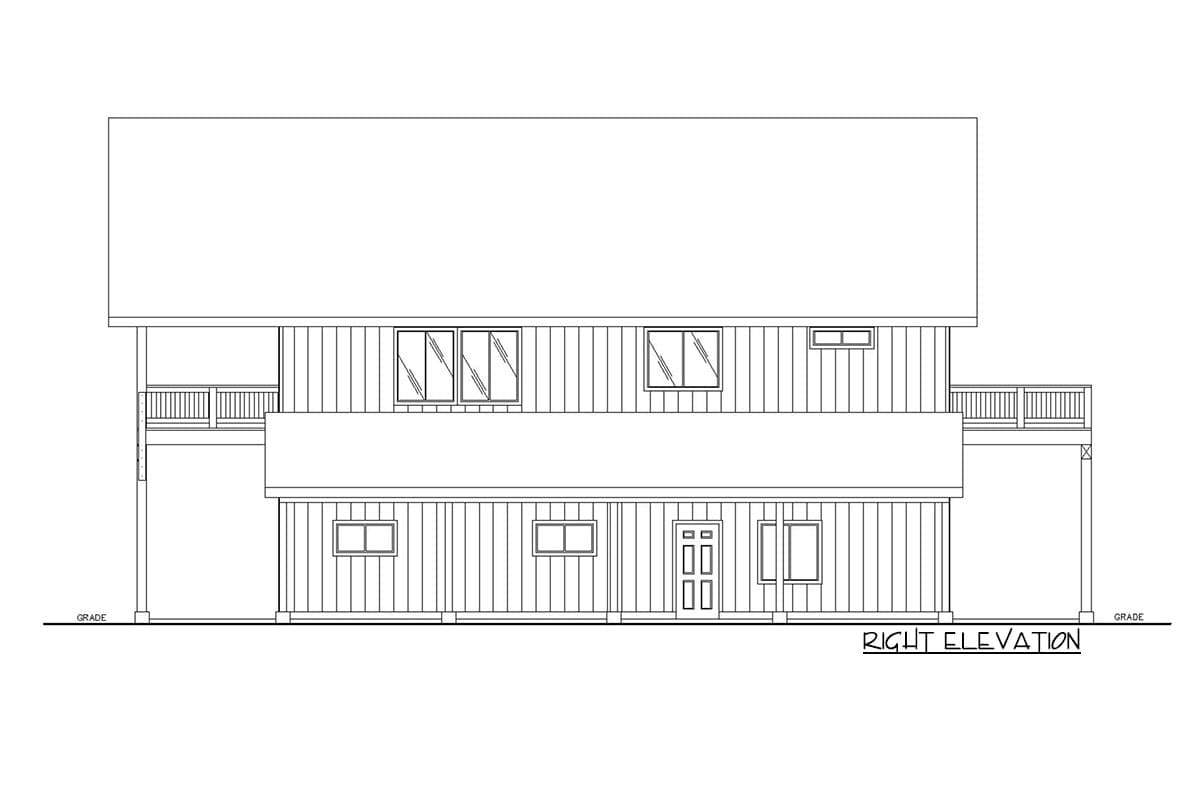

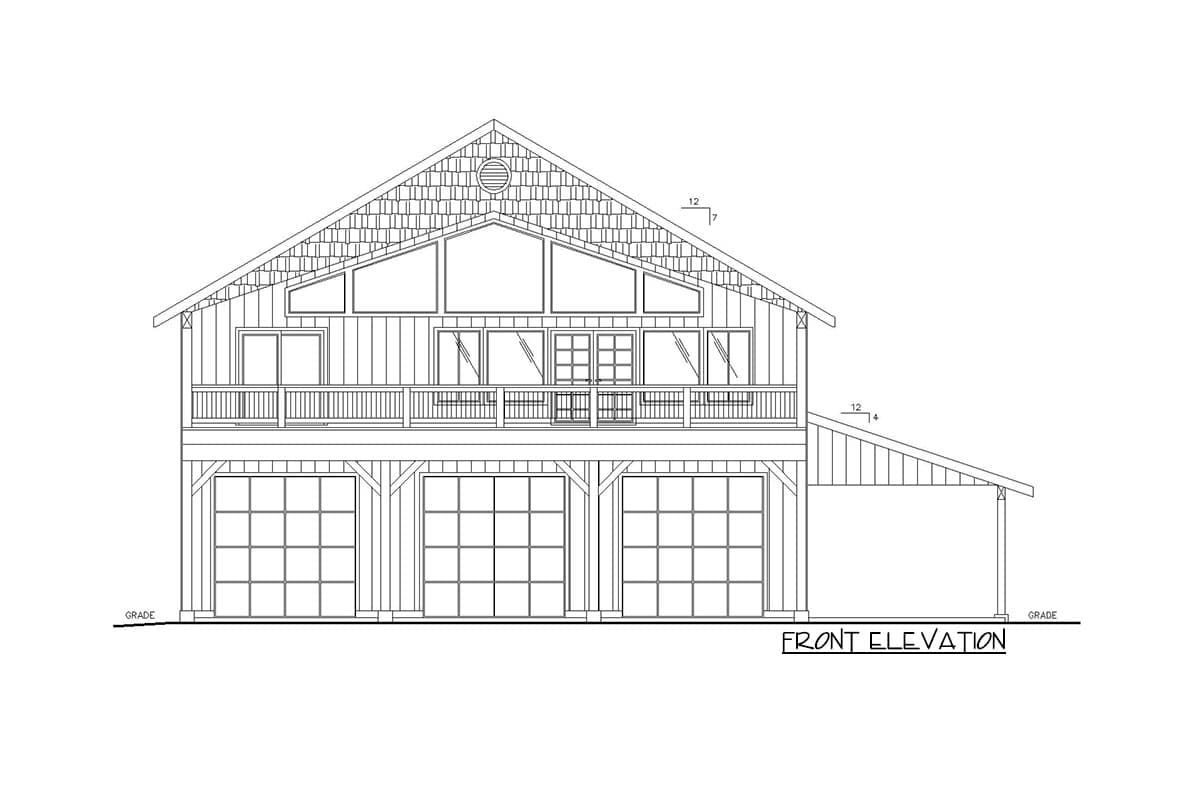

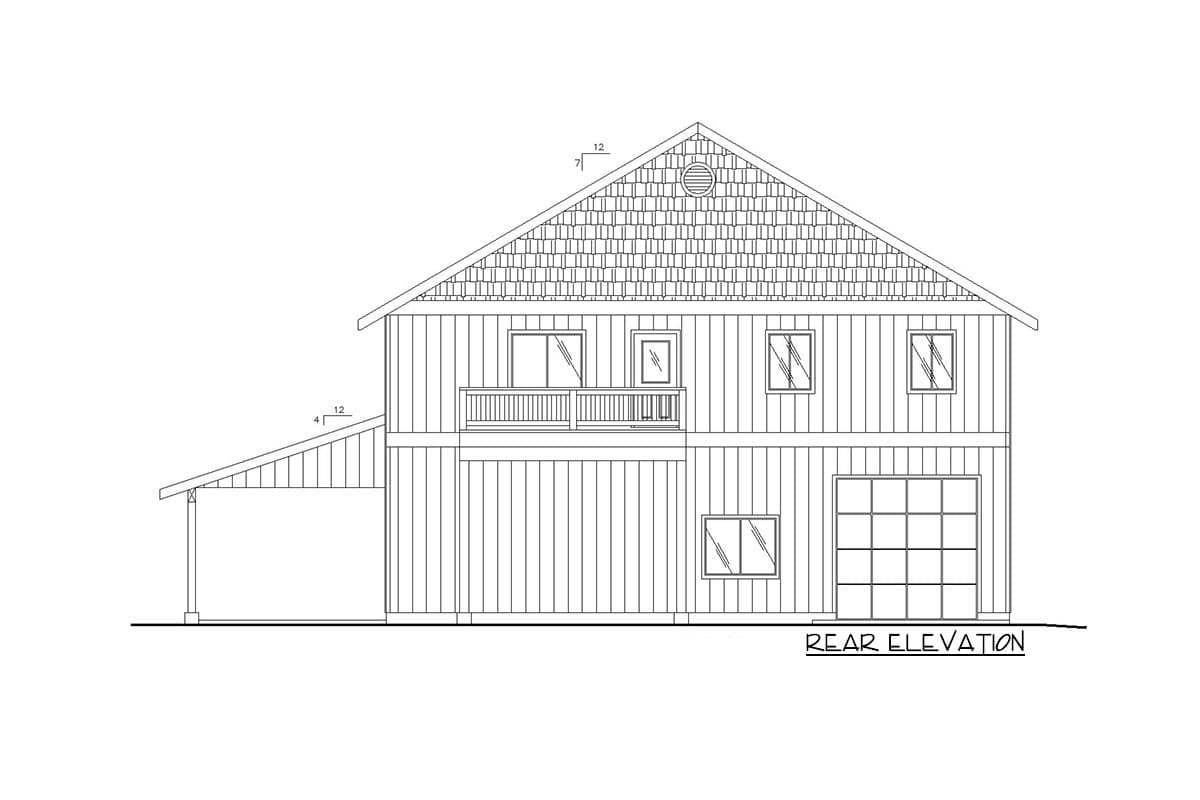

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,758 sq. ft.

Lower Level

690 sq. ft.

1st Floor

2,068 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

44' 0"

Max Ridge Height

35' 7"

Garage

Type

Drive Under

Area

1378 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Garage level

12' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Mountain

Northwest

Rustic

Vacation

Special Features

Bedrooms - Clustered

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Plan Collections

Metric

Square Footage Breakdown

Total Heated Area

2,758 sq. ft.

Lower Level

690 sq. ft.

1st Floor

2,068 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

44' 0"

Max Ridge Height

35' 7"

Garage

Type

Drive Under

Area

1378 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Garage level

12' 0''

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Mountain

Northwest

Rustic

Vacation

Special Features

Bedrooms - Clustered

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Mudroom

Plan Collections

Metric
