Plan 52258WM
Three Bedroom Cottage House Plan - 1288 Sq Ft
Heated S.F.
1,288
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 52258WM

Main Level
slide image 0

Plan 52258WM

1-800-854-7852

1-262-521-4596

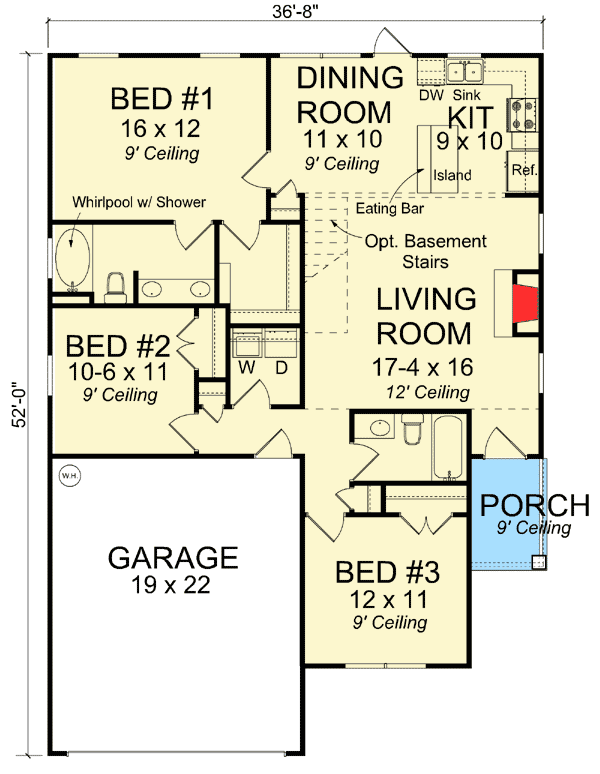

Main Level
floor plan image Main Level
Plan Details
  • A big open living area makes this cottage house plan feel larger than it is.
  • The efficient kitchen comes with an island that has an eating bar for grabbing a quick meal or snack.
  • The living room fireplace can be seen from the dining room and kitchen, giving you a cozy feel.
  • In the back of the house, the master bedroom is by far the largest so you have a comfortable retreat.
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,288 sq. ft.

1st Floor

1,288 sq. ft.

Porch, Front

37 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 8"

Depth

52' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

422 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cape Cod

Cottage

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,288 sq. ft.

1st Floor

1,288 sq. ft.

Porch, Front

37 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 8"

Depth

52' 0"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

422 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cape Cod

Cottage

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
