Plan 64417SC
Three Bedrooms and a Den
Heated S.F.
1,651
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 64417SC

Main Level
slide image 0
2nd Floor
slide image 1

Plan 64417SC

1-800-854-7852

1-262-521-4596

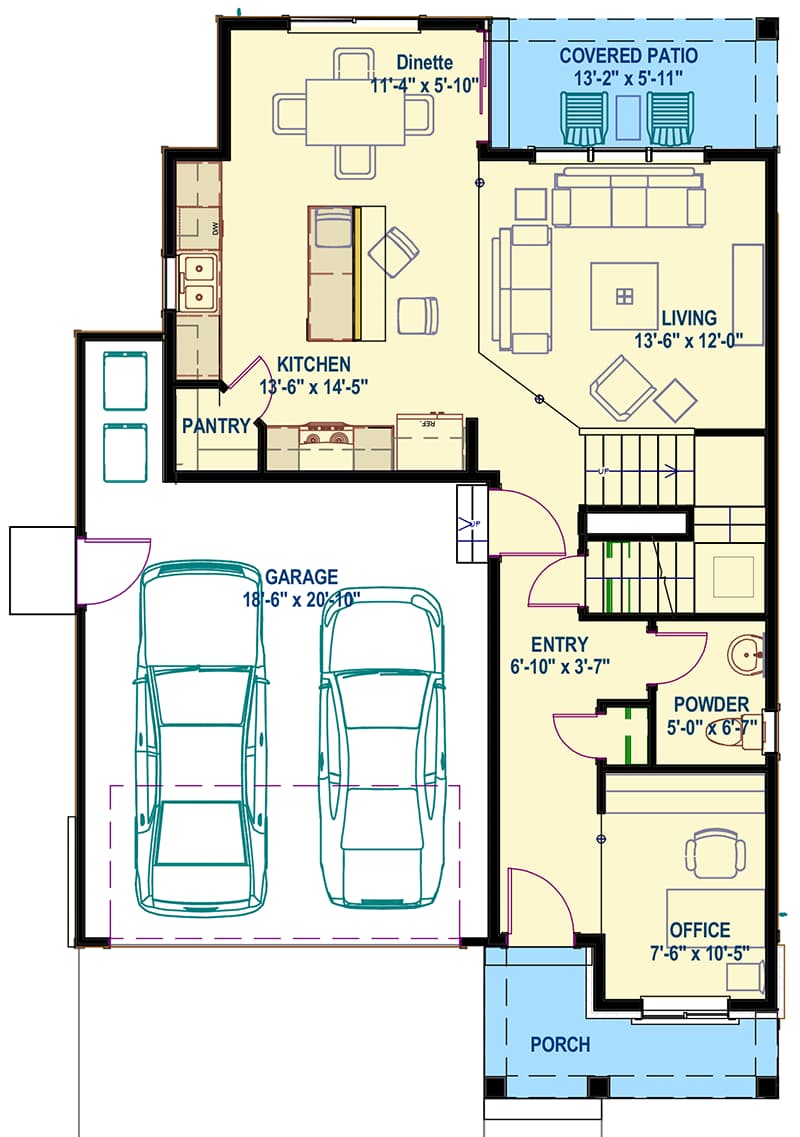

Main Level
floor plan image Main Level

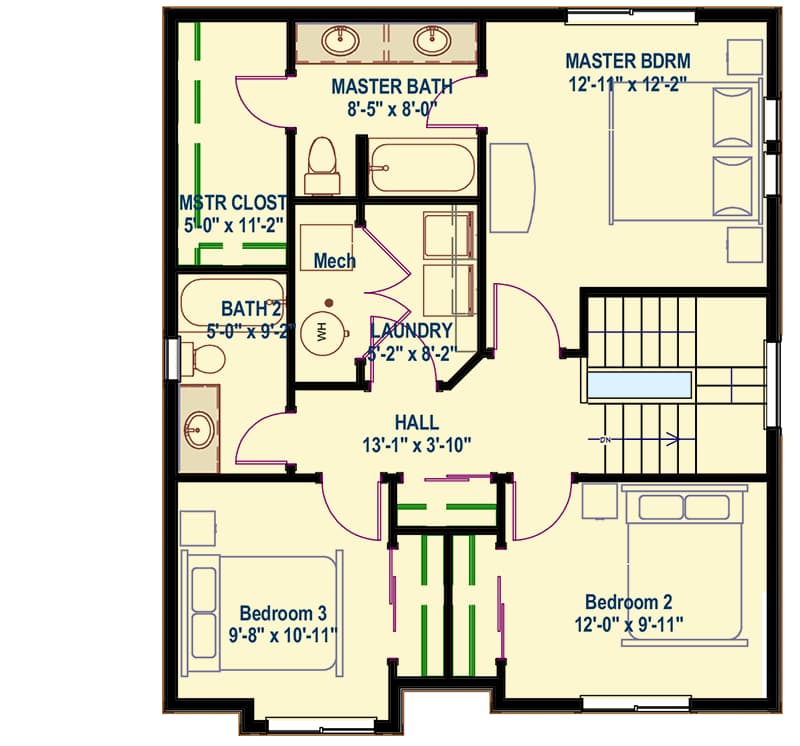

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Coming in at 32' wide, this Northwest house plan has a compact footprint for a narrow lot.
  • There's a comfortable home office off the foyer with a front facing window.
  • Further back, the heart of the home is the large living area that combines the living room, dinette and kitchen.
  • A kitchen island and walk-in pantry give you extra storage and counter space.
  • On the upper floor, three bedrooms share a second floor laundry room.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.
What's Included
What's Included
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,651 sq. ft.

1st Floor

812 sq. ft.

2nd Floor

838 sq. ft.

Porch, Front

56 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

49' 5"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

399 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Bungalow

Craftsman

Northwest

Special Features

Den

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Home Office
