Plan 42240WM
Three Bedrooms or Four
Heated S.F.
1,364
Beds
3
Baths
2
Stories
1
Cars
2

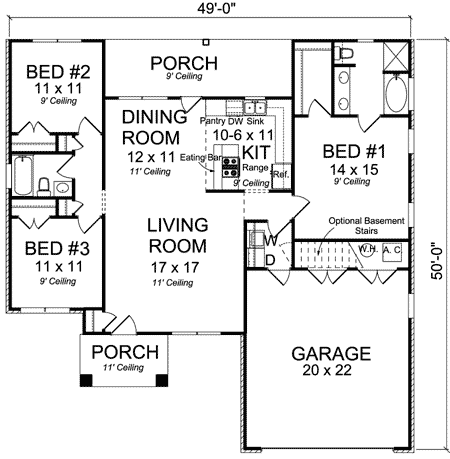

Floor Plan

Plan 42240WM

Main Level
slide image 0

Plan 42240WM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This house plan comes in both this 3 bedroom version and a 4 bedroom one (house plan 42241DB).
  • At 1,364 sq. ft., this house plan is cost-effective to build. It uses simplified construction while maintaining architectural integrity.
  • Note the lack of hallways. This was designed with a minimal amount of wasted space.
  • This open concept house plan gives you an open living room, dining room and kitchen arrangement. The result is a home that feels larger than it is.
  • A split bedroom layout maximizes privacy. Turn Bed 4 into a study if you like.
  • A simplified roofline still provides optimum architectural style and impact.
  • Related Plan: For a larger 4 bedroom version, see house plan 42241DB.
What's Included
  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us
