Plan 22397DR
Three Level Contemporary House Plan - 1015 Sq Ft
Heated S.F.
1,015
Beds
3
Baths
1.5
Stories
2-3
Cars
1
Floor Plan

Plan 22397DR

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 22397DR

https://www.architecturaldesigns.com

1-800-854-7852

1-262-521-4596

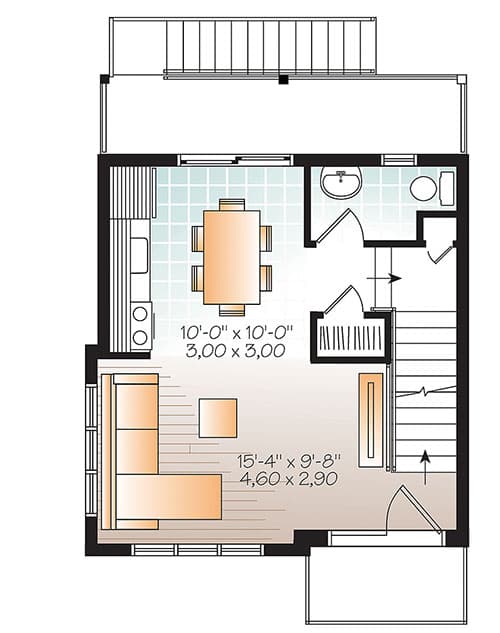

Main Level
floor plan image Main Level

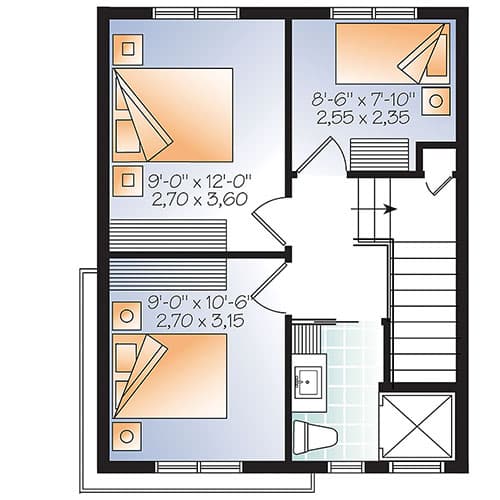

2nd Floor
floor plan image 2nd Floor

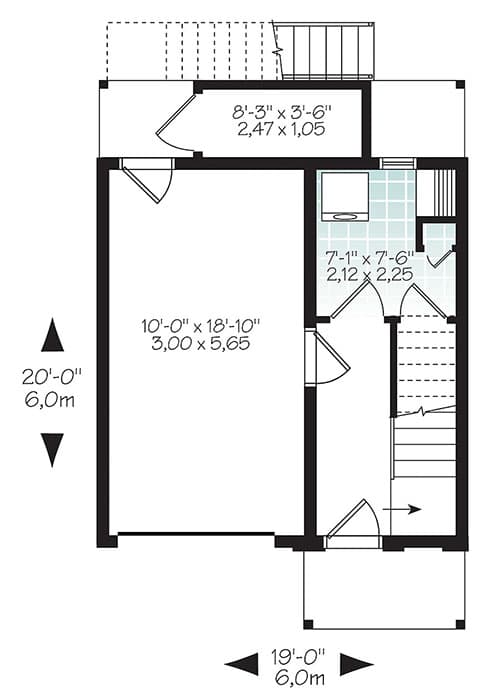

Lower Level
floor plan image Lower Level
Plan Details
  • The use of mixed materials on the exterior of this Contemporary house plan really boosts the curb appeal.
  • Modest in size, the home stacks each level in cube fashion.
  • Enter through the garage level where stairs in the foyer bring you up to the living area on the second floor.
  • Here you have a compact kitchen, a dining area and living room with balcony where you can step out for a breath of fresh air.
  • Or step out on the rear deck through sliders in the dining area.
  • The top level is for the bedrooms and there are three of them plus a hall bathroom with a big shower.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,015 sq. ft.

Lower Level

165 sq. ft.

1st Floor

394 sq. ft.

2nd Floor

456 sq. ft.

3rd Floor

456 sq. ft.

Porch, Rear

76 sq. ft.

Balcony / Veranda

33 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

19' 0"

Depth

24' 0"

Max Ridge Height

28' 1"

Garage

Type

Drive Under, Attached

Area

215 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Square Footage Breakdown

Total Heated Area

1,015 sq. ft.

Lower Level

165 sq. ft.

1st Floor

394 sq. ft.

2nd Floor

456 sq. ft.

3rd Floor

456 sq. ft.

Porch, Rear

76 sq. ft.

Balcony / Veranda

33 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

19' 0"

Depth

24' 0"

Max Ridge Height

28' 1"

Garage

Type

Drive Under, Attached

Area

215 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style
