Plan 23742JD
Three Level Shingle Style House Plan
Heated S.F.
4,107
Beds
4
Baths
4.5
Stories
2
Cars
3
Floor Plan

Plan 23742JD

Main Level
slide image 0
Second Level
slide image 1
Lower Level
slide image 2

Plan 23742JD

1-800-854-7852

1-262-521-4596

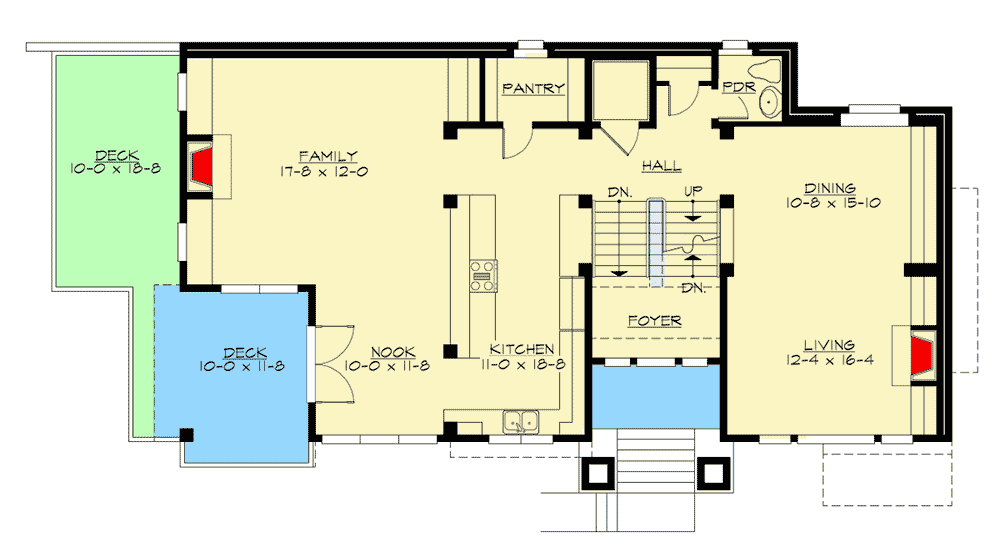

Main Level
floor plan image Main Level

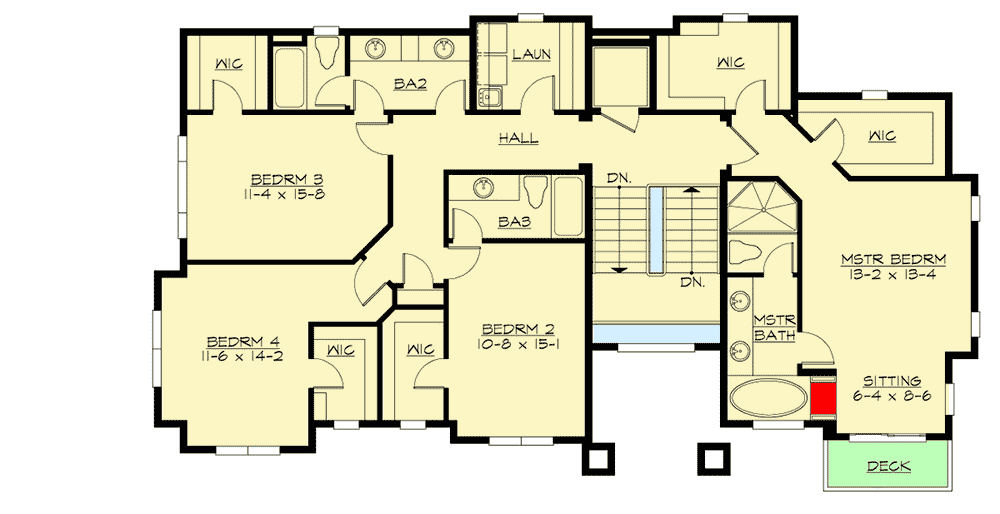

Second Level
floor plan image Second Level

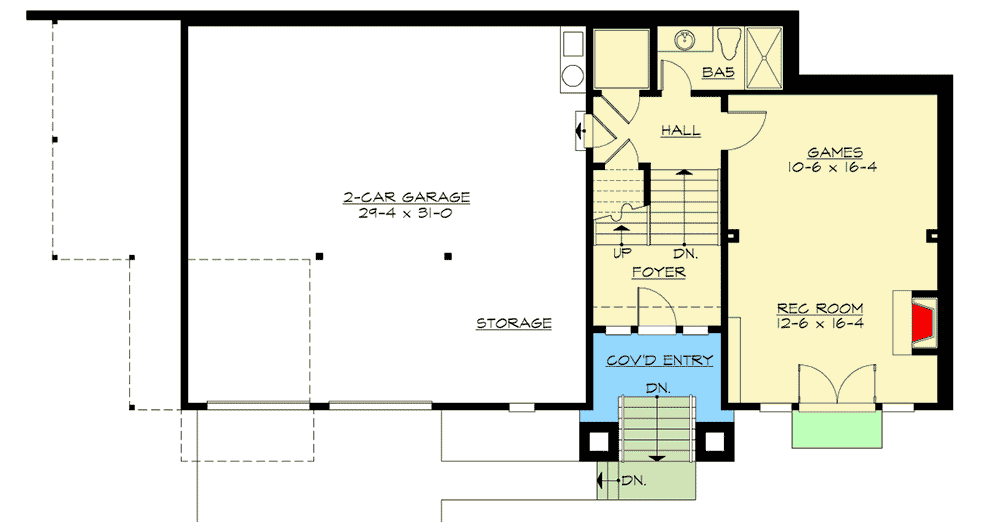

Lower Level
floor plan image Lower Level
Plan Details
  • Designed for a lot that slopes to the front, this Shingle Style house plan offers a three car drive-under garage and living space on three levels, with a residential elevator to whisk you from floor to floor.
  • The ground level holds a huge rec room/games area with a full bathroom nearby and a large foyer.
  • Head up to the main floor where you have formal and informal areas complete with built-ins and fireplaces.
  • Two columns anchor the kitchen island that faces the family room fireplace.
  • You can relax on the open deck or the covered porch.
  • The top floor is huge and features four large bedrooms, each with a walk-in closet (two for the master suite).
  • The upper floor laundry room is a delightful convenience.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,107 sq. ft.

Lower Level

760 sq. ft.

1st Floor

1,623 sq. ft.

2nd Floor

1,721 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

34' 0"

Max Ridge Height

24' 4"

Garage

Type

Drive Under

Area

979 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Northwest

Shingle

Special Features

Butler Walk-in Pantry

Elevator

Game/Rec Room

Laundry - Upstairs

Master Suite - 2nd Floor

Master Suite - Sitting Area
