Plan 666273RAF

Three-Story Contemporary Home Plan with Two-Master Suites and Open Loft - 4125 Sq Ft

Heated S.F.

4,125

Beds

5

Baths

4.5+

Stories

3

Cars

2

Floor Plan

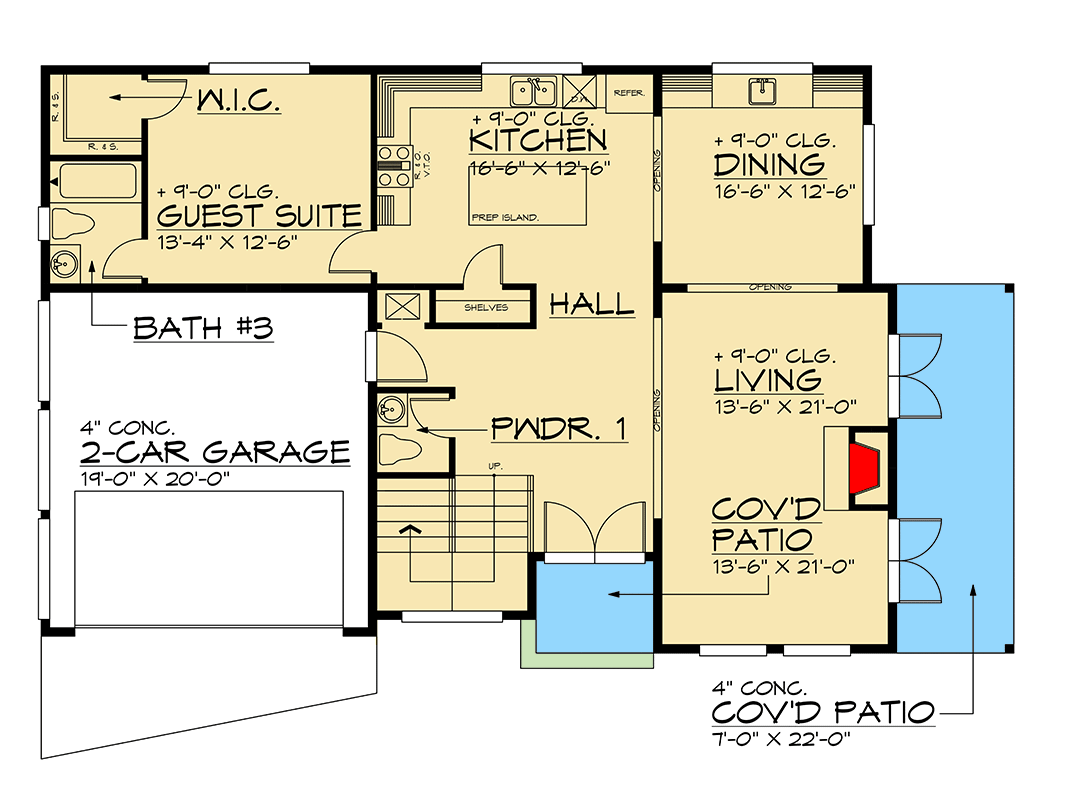

Main Level

floor plan image Main Level

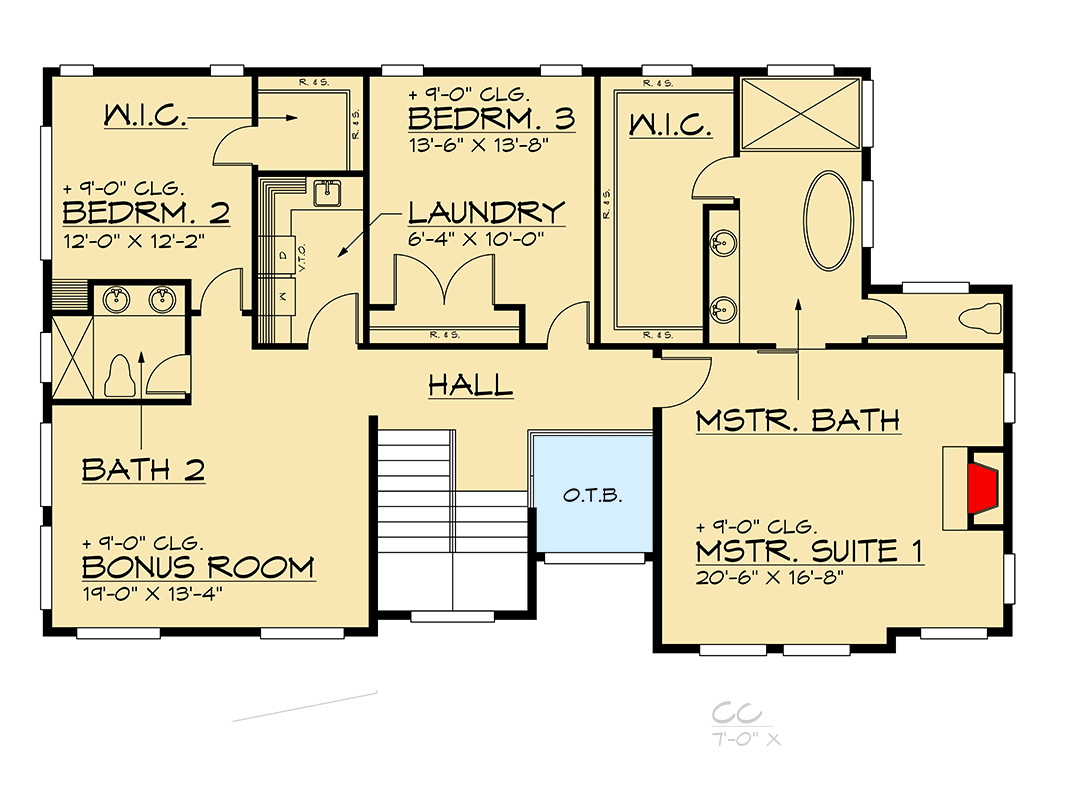

Second Level

floor plan image Second Level

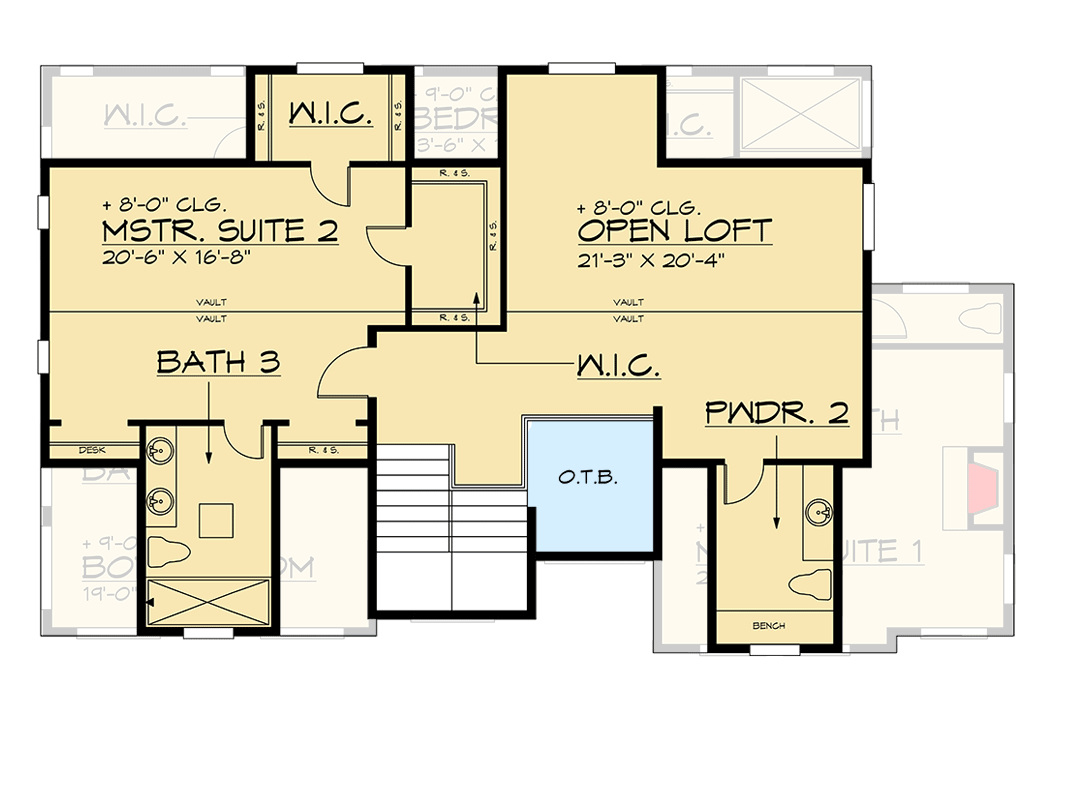

Third Level

floor plan image Third Level

Plan Details

This 5 bed, 4+ bath contemporary home plan gives you 4,125 square feet of heated living and 2-car front garage (420 sq. ft.).
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Cover Sheet with plan info
General Notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans
Elevations
Building Cross Section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

What's Not Included

Architectural or Engineering Stamp - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings - handled locally when required
Electrical Drawings - handled locally when required
Energy Calculations - handled locally when required
Foundation and Framing plans - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,125 sq. ft.

1st Floor

1,268 sq. ft.

2nd Floor

1,688 sq. ft.

3rd Floor

1,169 sq. ft.

Porch, Front

38 sq. ft.

Covered Patio

80 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

35' 0"

Max Ridge Height

34' 6"

Garage

Type

Attached

Area

420 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

8' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - 2nd Floor

Two Master Suites

Plan Collections
