Plan 57102HA
Timeless Exterior
Heated S.F.
3,888
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 57102HA

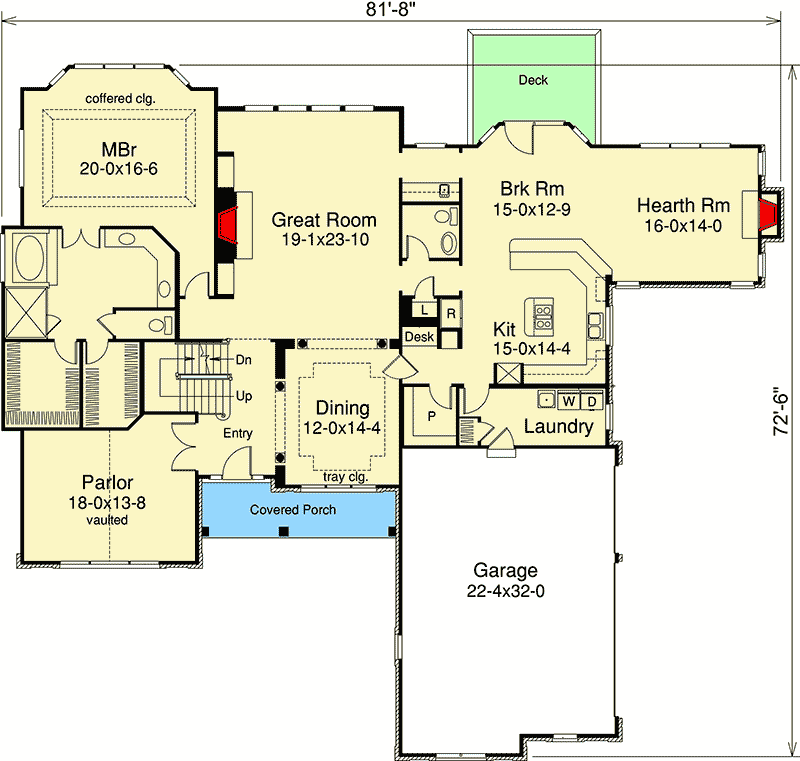

Main Level
slide image 0

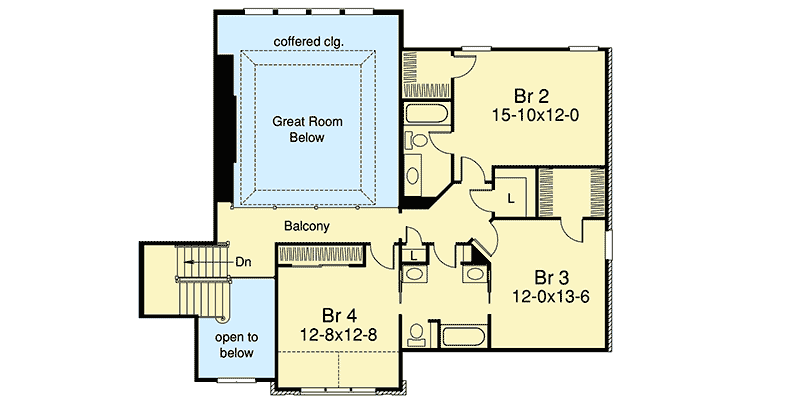

2nd Floor
slide image 1

Plan 57102HA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Detailed brickwork surrounding the arched windows and quoined corners create a timeless exterior
  • Two-story great room has a large fireplace, flanking bookshelves, massive window wall and balcony overlook
  • The state-of-the-art kitchen has an island cooktop, built-in oven/microwave oven, large pantry, menu desk and opens to the breakfast and hearth rooms
  • A coffered ceiling, bay window, two walk-in closets and a huge bath adorn the master bedroom.
What's Included
  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

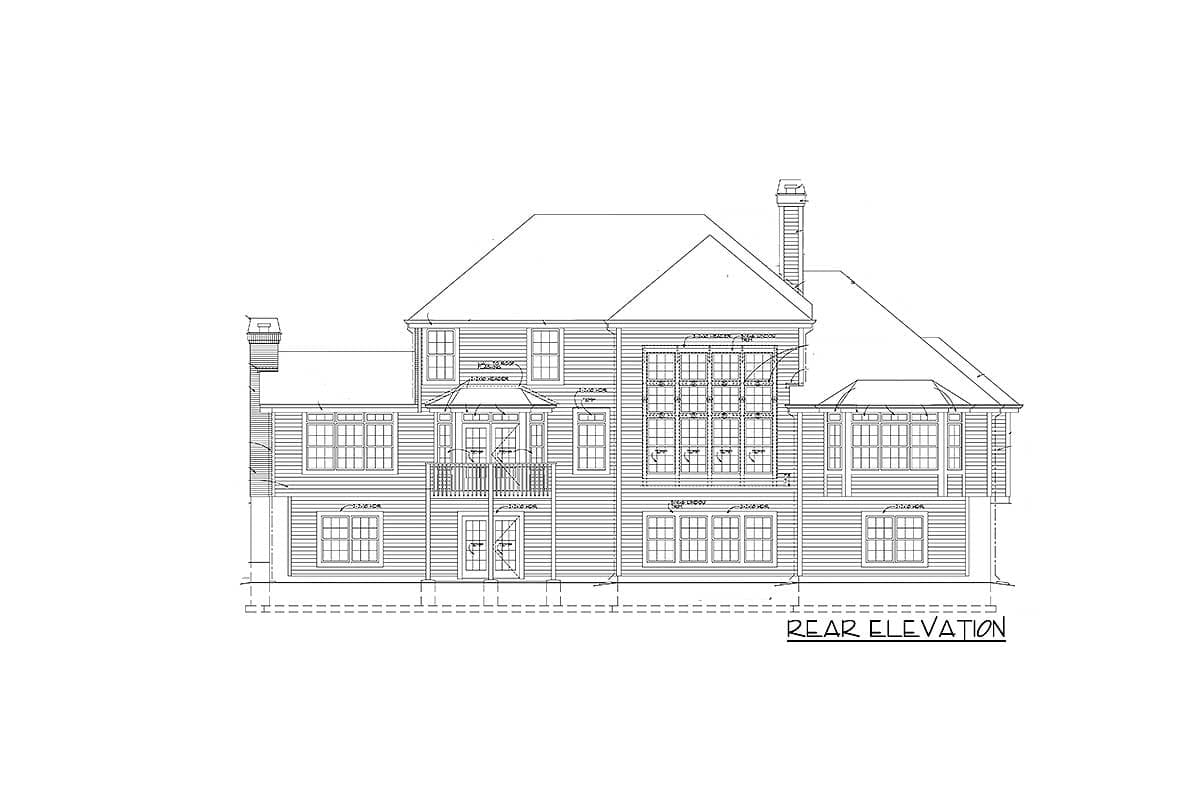

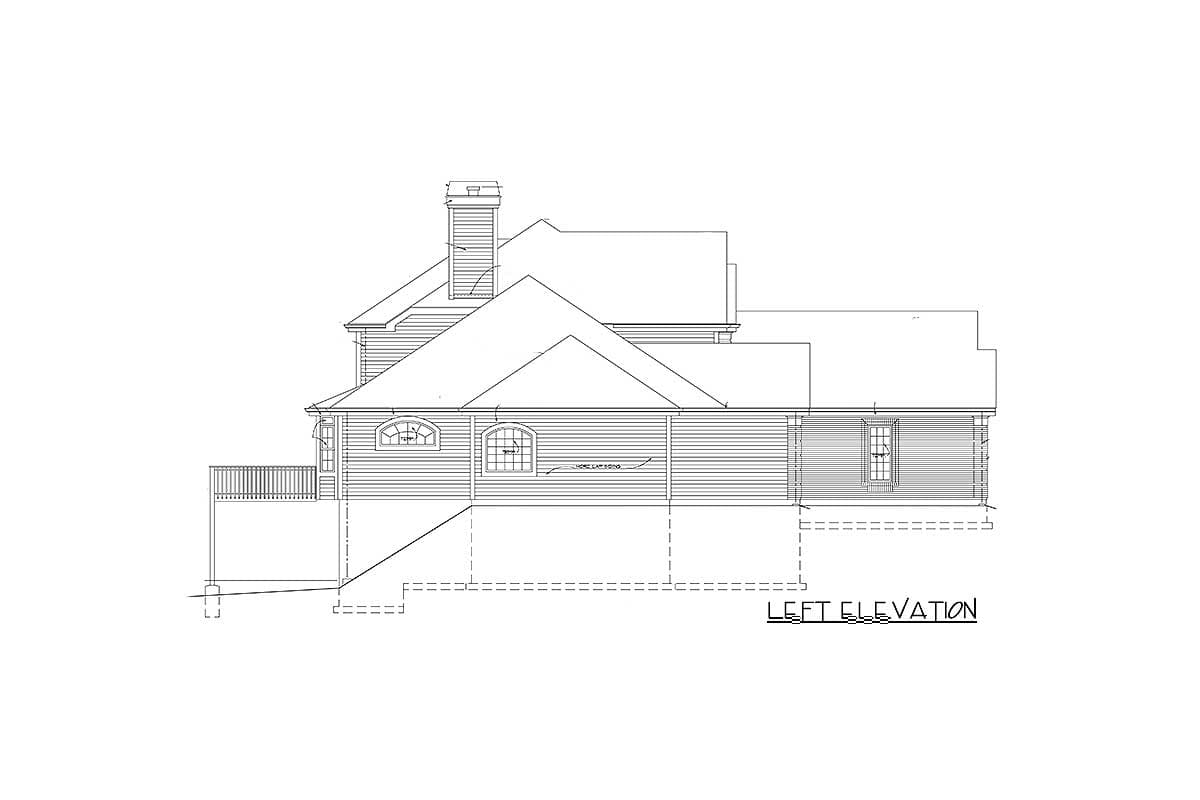

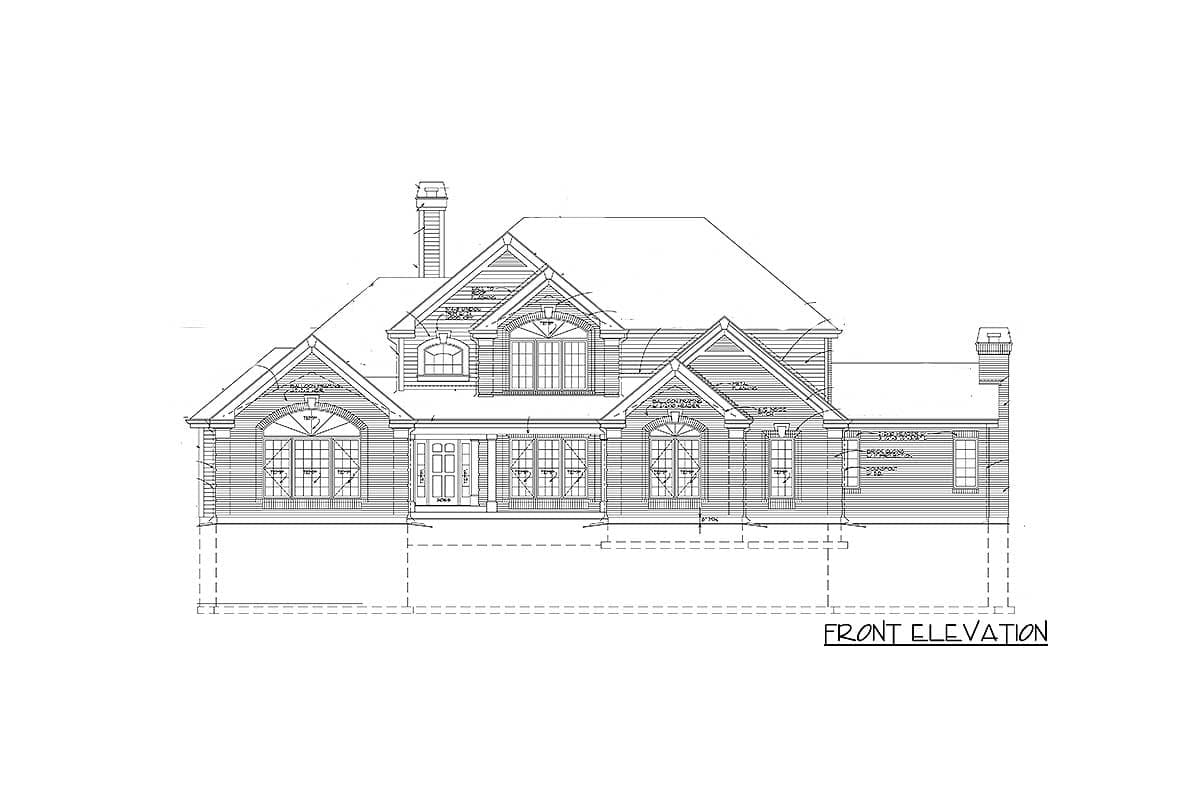

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,888 sq. ft.

1st Floor

2,793 sq. ft.

2nd Floor

1,095 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 8"

Depth

72' 6"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

700 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

European

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,888 sq. ft.

1st Floor

2,793 sq. ft.

2nd Floor

1,095 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 8"

Depth

72' 6"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

700 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

European

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery
