Plan 89823AH
Timeless Tuscan With Courtyard
Heated S.F.
2,067
Beds
2
Baths
2
Stories
1
Cars
3

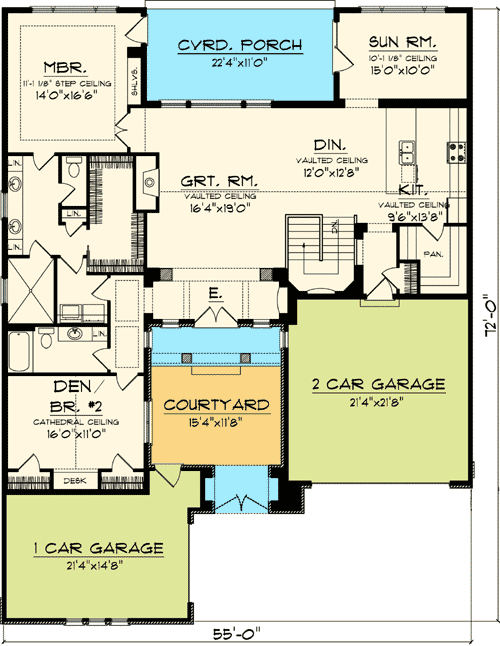

Floor Plan

Plan 89823AH

Main Level
slide image 0

Plan 89823AH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • Inspired by the timeless feel of a Tuscan villa, this 2 or 3 bedroom home plan is a modern take on a winning concept. It features a private courtyard off accessed by the garage and gated covered entry.

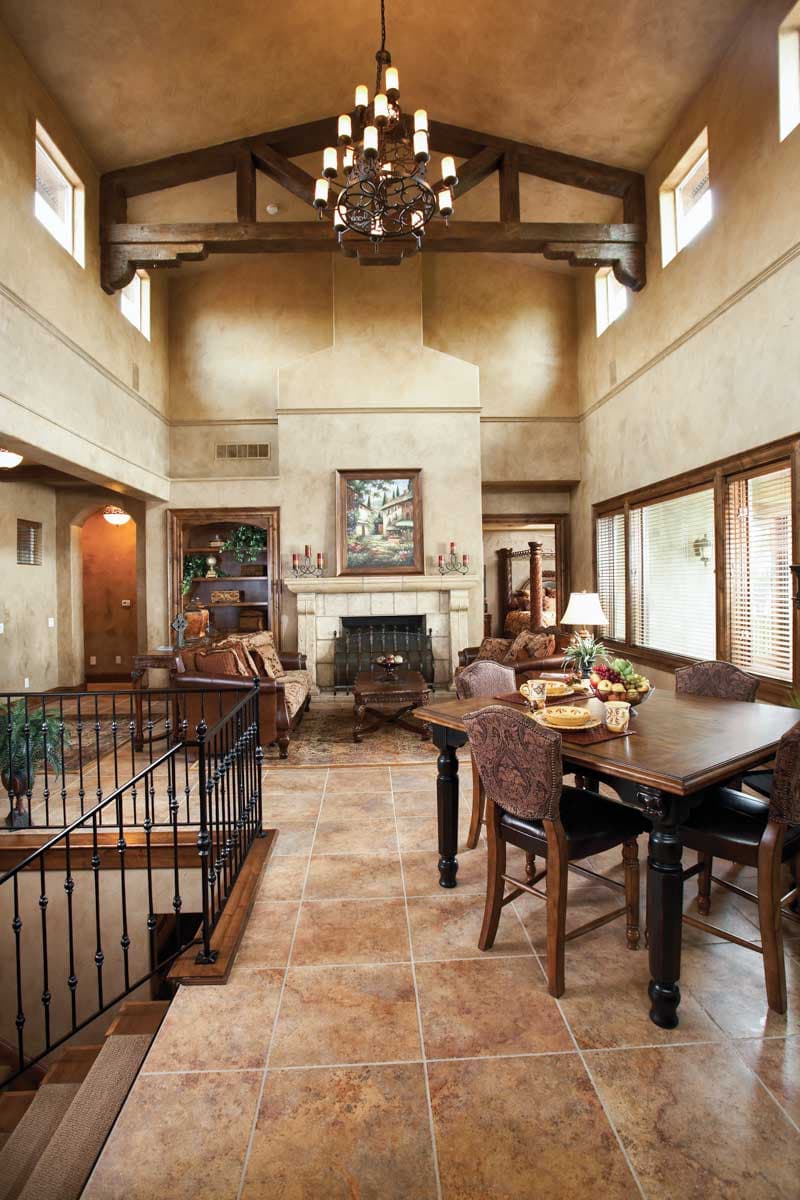

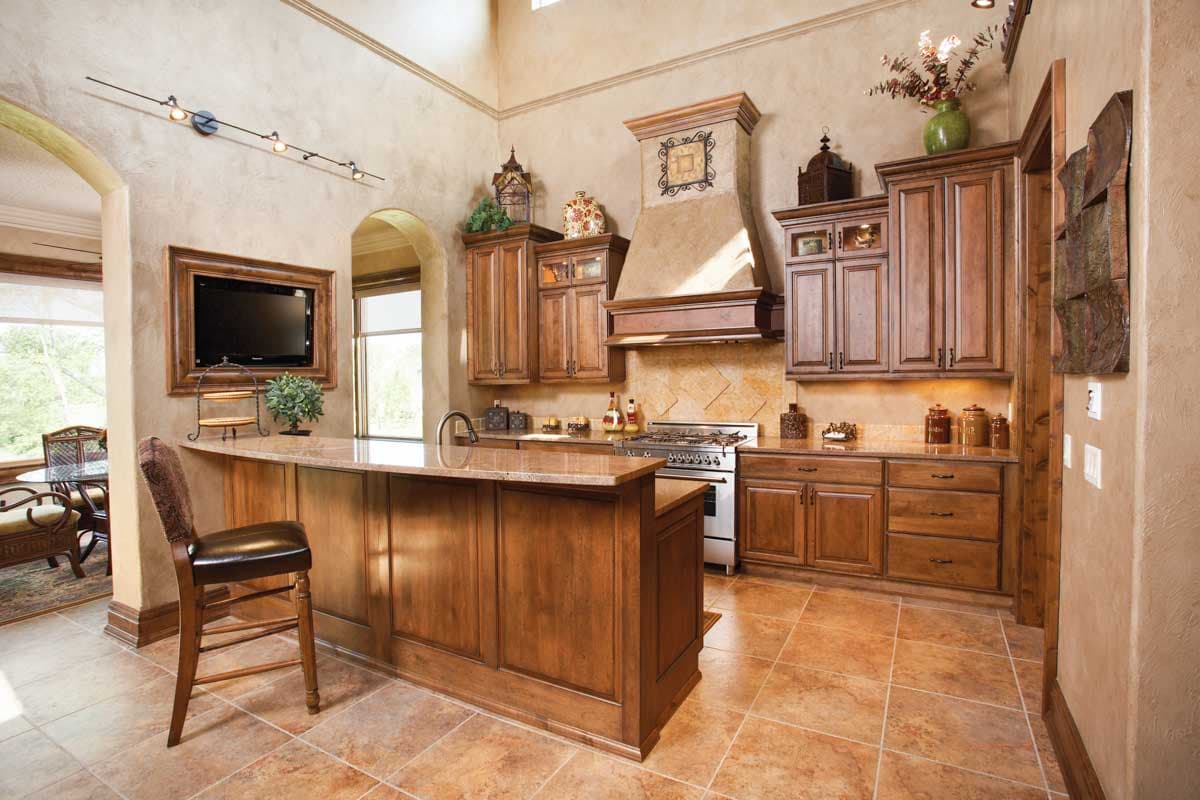

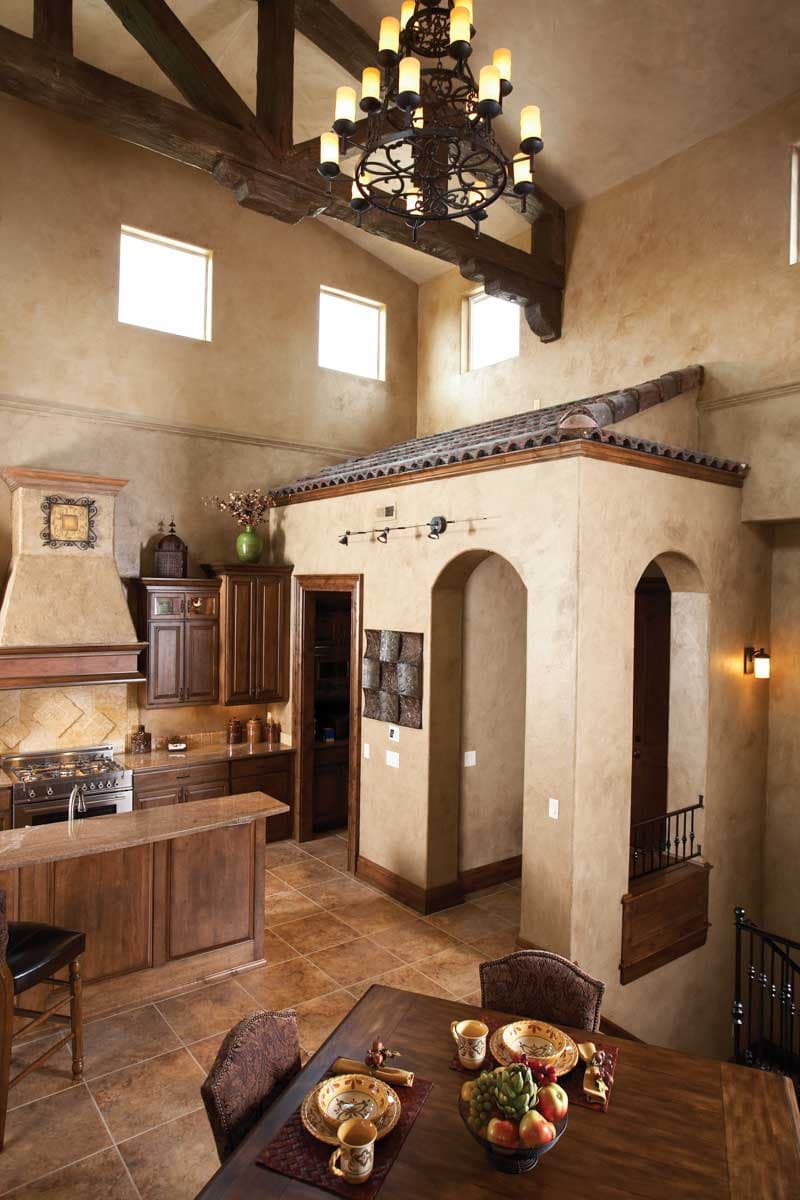

  • Heavily beamed vaulted ceilings allow natural light to warm the entire living area. The kitchen flows seamlessly into the dining and living rooms creating a comfortable living space that's large enough for family gatherings.

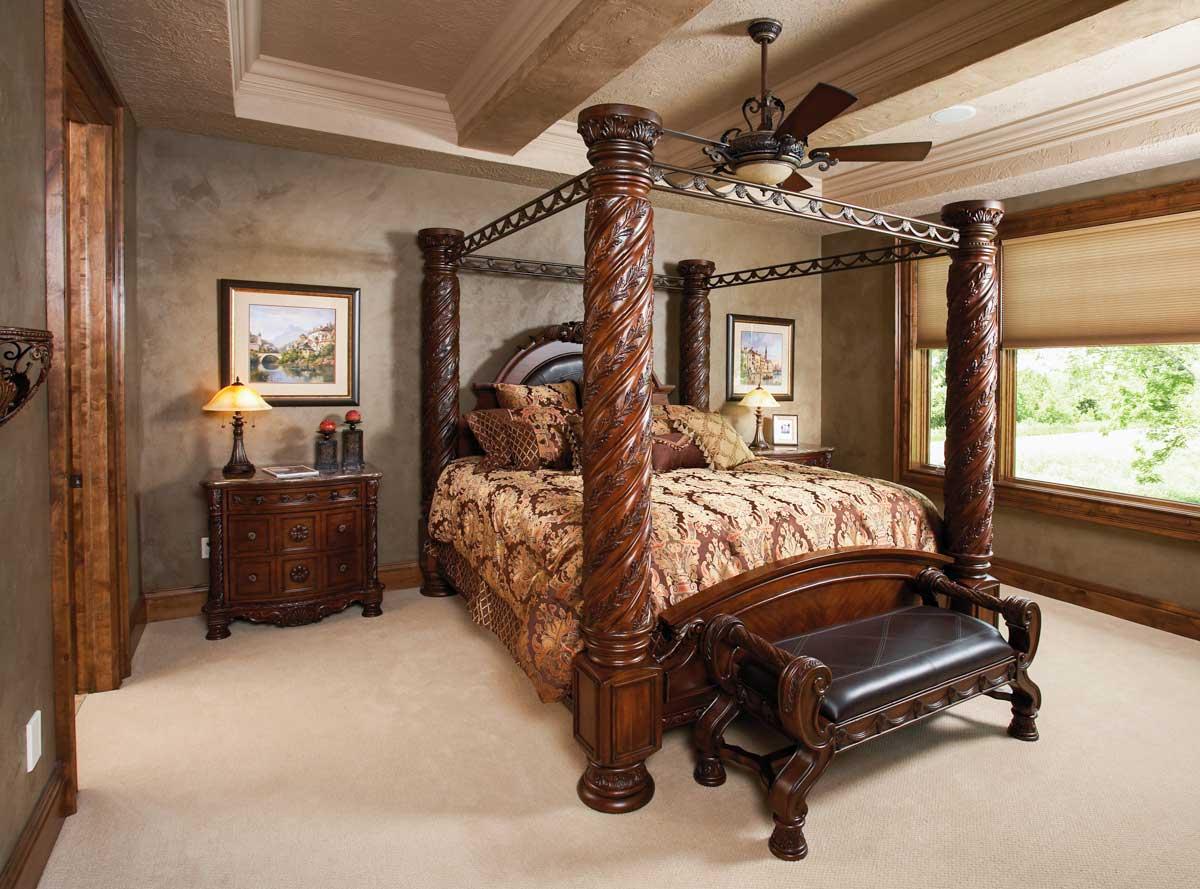

  • The master suite lies to the back of the home and includes a spacious walk-in closet and dual sinks and access to the back covered porch.

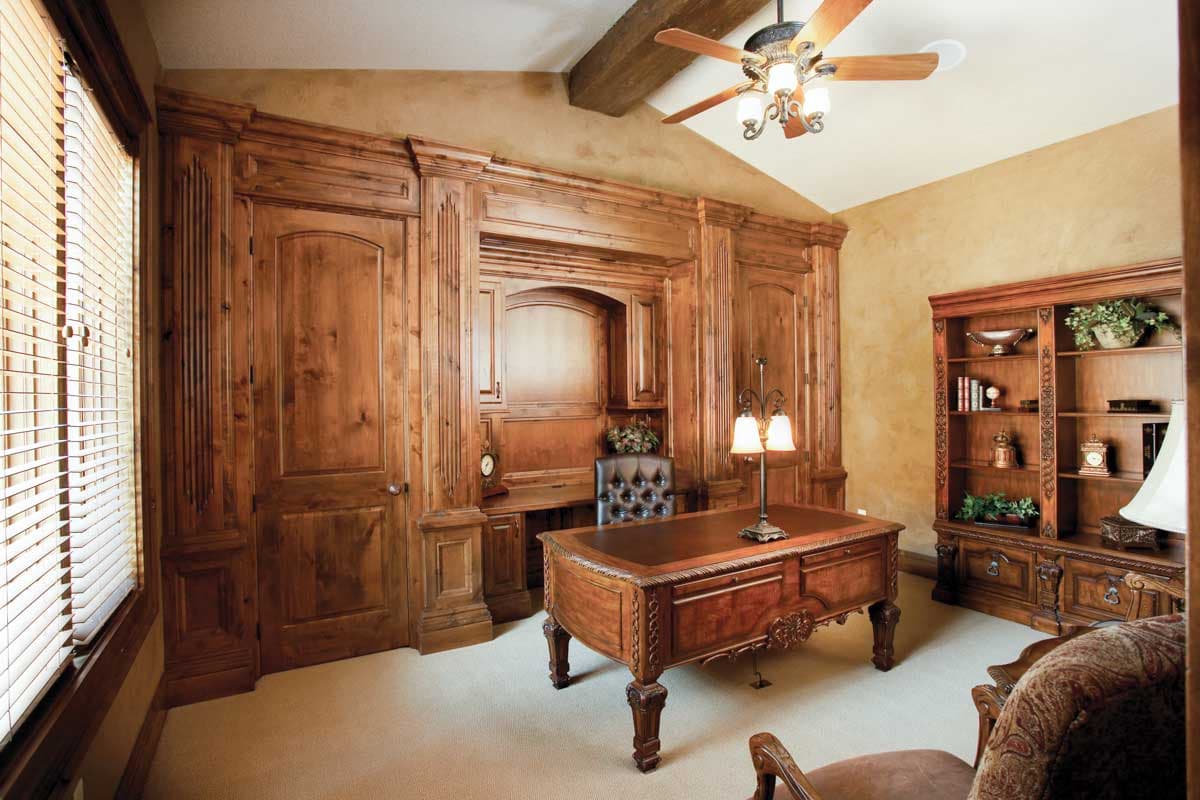

  • The second bedroom is found directly in front of the master with laundry access shared by both rooms in between. And the third bedroom could be used as a den.
  • The sunroom lies across the home and has covered porch access and is steps away from the kitchen.
  • A three-stall, split-load garage completes the home.
  • Related Plan: Get a finished walkout basement with two more bedrooms with house plan 890118AH.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,067 sq. ft.

1st Floor

2,067 sq. ft.

Porch, Rear

242 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

72' 0"

Max Ridge Height

26' 9"

Garage

Type

Attached

Area

832 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

European

Spanish

Tuscan

Special Features

Butler Walk-in Pantry

Courtyard

Den

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Sunroom
