Name: Plan 62705DJ: Tiny House or Vacation Getaway
SKU: 62705DJ
Price: 699.0 USD
Availability: InStock

Plan 62705DJ

Tiny House or Vacation Getaway

Heated S.F.

535

Beds

Baths

Stories

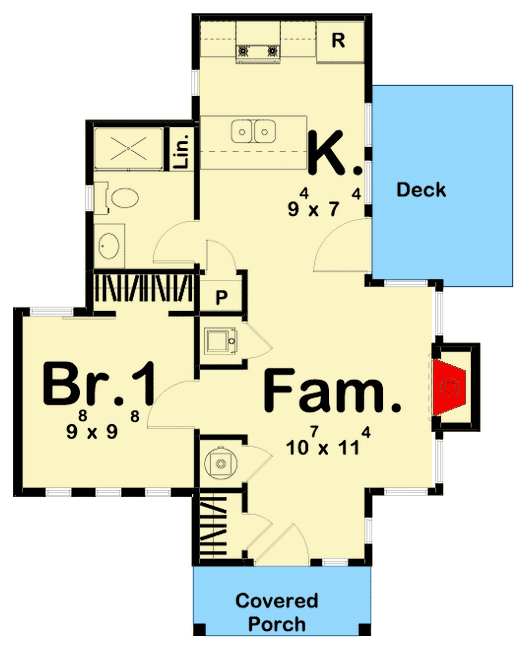

Floor Plan

Main Level

Plan Details

If you're looking to live the Tiny House lifestyle then this compact house plan may fit the bill.
The open layout makes the home feel larger to give you the most for the square footage.
Only 26' wide, the home adapts well to a narrow lot.

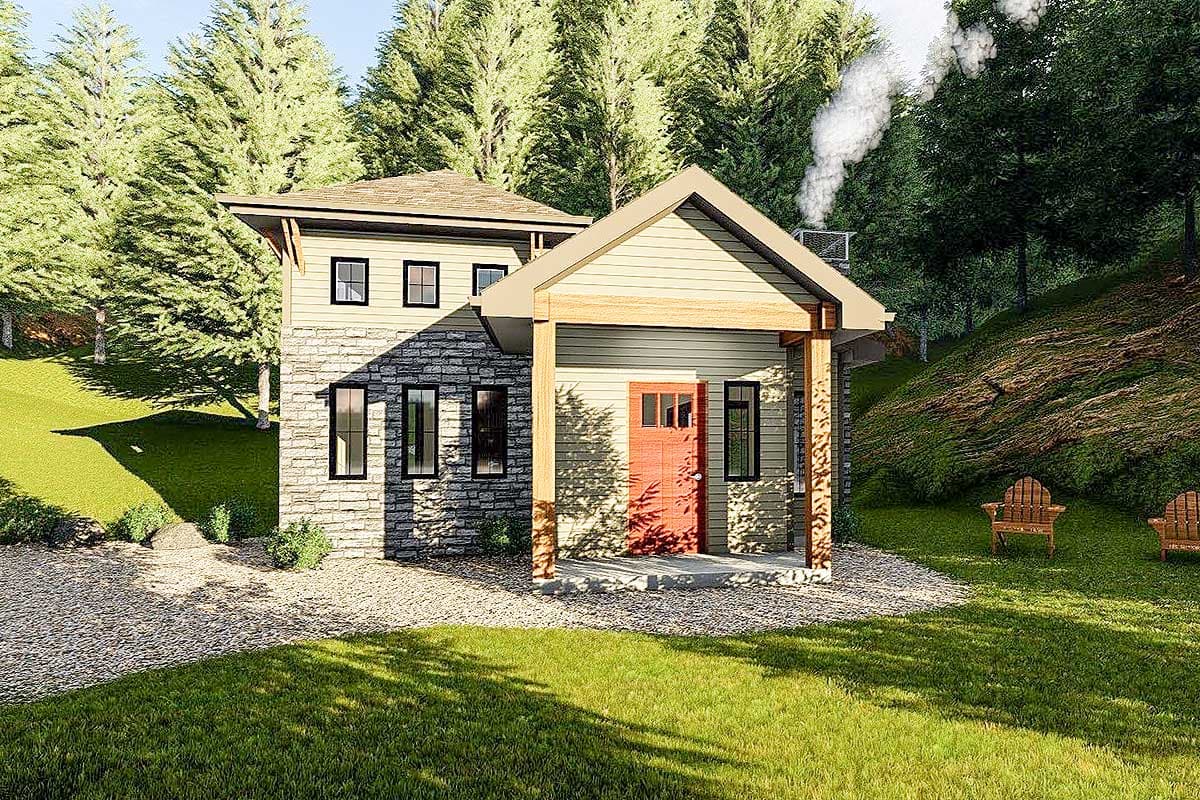

A covered porch in front shelters you from the sun and rain.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
