Plan 530019UKD
Tiny Mountain House Plan
Heated S.F.
1,013
Beds
1
Baths
1.5
Stories
1

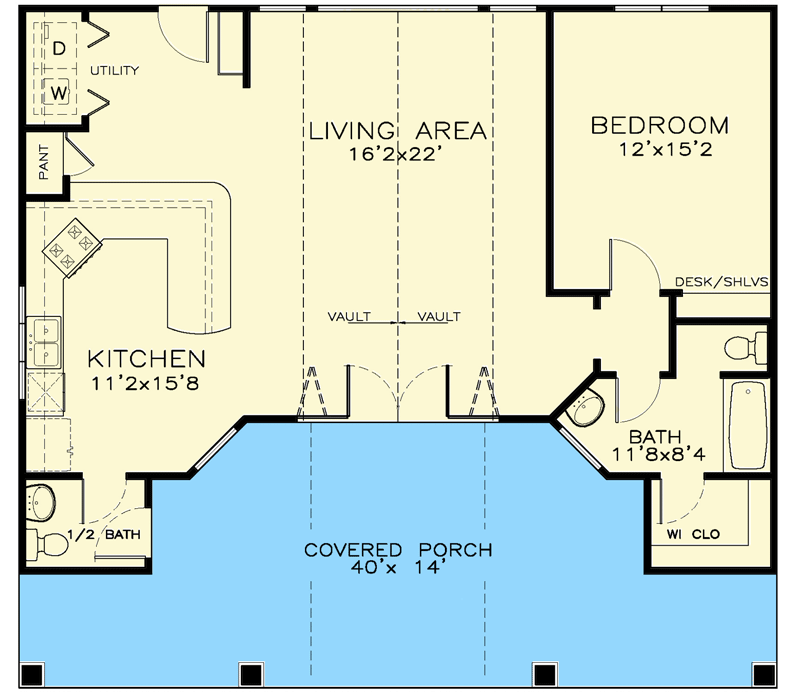

Floor Plan

Plan 530019UKD

Main Level
slide image 0

Plan 530019UKD

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This house can function as guest quarters or give you tiny house living and comes in a smaller version.
  • Enjoy the open floor plan with the kitchen open to the vaulted living area. French doors open to the covered porch and the walls to either side of the doors collapse giving you a great indoor-outdoor flow.
  • The bedroom has convenient access to the bath with walk-in closet.
  • Related Plans: Downsize with house plan 530014UKD (701 sq. ft.) and get an alternate exterior with house plan 530020UKD.
What's Included
  • Title Sheet - Isometric of Front Elevation
  • Foundation Plan ‐ shows the foundation plan and details. ¼” = 1’-0
  • Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house. ¼” = 1’-0 scale
  • Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches. ¼” = 1’-0
  • Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.
  • Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.
  • Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers. Roof Framing Plan - provides guideline for rafters, ridges, hip framing
  • Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.
  • Notes & Details ‐ per IRC 2015
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,013 sq. ft.

1st Floor

1,013 sq. ft.

Covered Patio

427 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Max Ridge Height

20' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Pool House

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

1,013 sq. ft.

1st Floor

1,013 sq. ft.

Covered Patio

427 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

36' 0"

Max Ridge Height

20' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Country

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Pool House

Tiny Home House Plans
