Plan 72674DA
Townhome Plan with Guest Apartment
Heated S.F.
2,250
Beds
3 - 4
Baths
3 - 4
Stories
2
Cars
2
Floor Plan

Plan 72674DA

Main Level
slide image 0
2nd Floor
slide image 1
Optional
slide image 2

Plan 72674DA

1-800-854-7852

1-262-521-4596

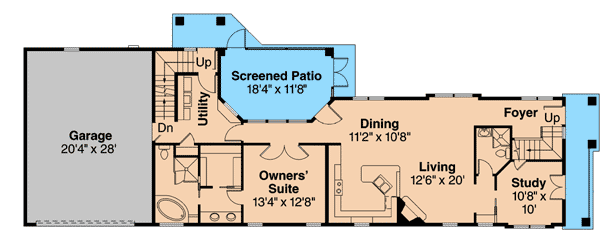

Main Level
floor plan image Main Level

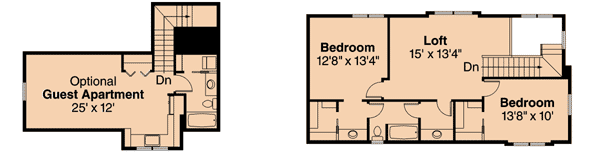

2nd Floor
floor plan image 2nd Floor
Optional
floor plan image Optional
Plan Details
  • This mid-size town home plan has a wealth of options making it a flexible home plan to work with. A front porch spanning the entire front facade can easily accommodate a porch swing or a suite of outdoor furniture. Two sets of front-facing doors - the entry door leading into the foyer and atrium doors leading into the flex room - is a nice feature of the home.
  • Isolated and on the ground floor, the owners' suite allows single-floor living for the primary owners. While somewhat compact, the bathroom there has both a tub and a separate shower, and the walk-in closet is roomy.
  • Upstairs you'll find the additional bedrooms plus a loft.
  • Long-term guests will love the optional guest apartment that extends over the garage.
  • The great room is designed with two possible layouts. In both, the kitchen is open to the great room. One provides a little more separation and the other has a truer great room feel.
  • Utilities are near the kitchen, and a door in the dining area opens out onto a large screened patio.
  • The primary roof pitch is 8:12.
  • Related Plan: Eliminate the guest apartment with house plans 72694DA (2,062 sq. ft.) and 72693DA (2,062 sq. ft.).
