Plan 62980DJ
Traditional 2-Car Garage with Single Garage Door and Storage Above
Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
2
Floor Plan

Plan 62980DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 62980DJ

1-800-854-7852

1-262-521-4596

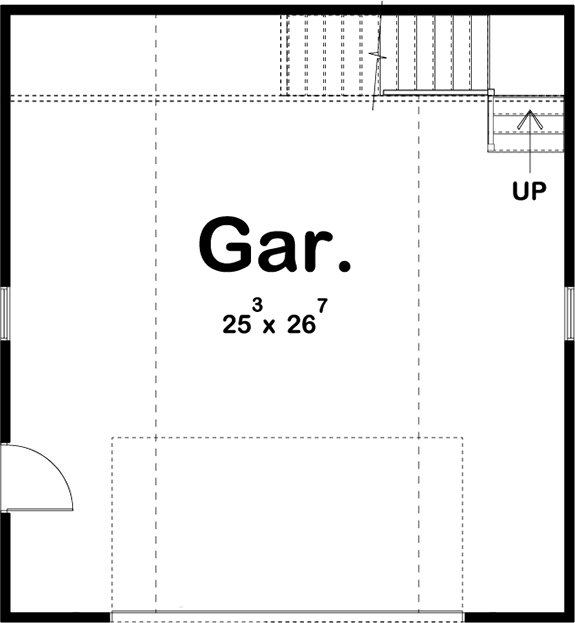

Main Level
floor plan image Main Level

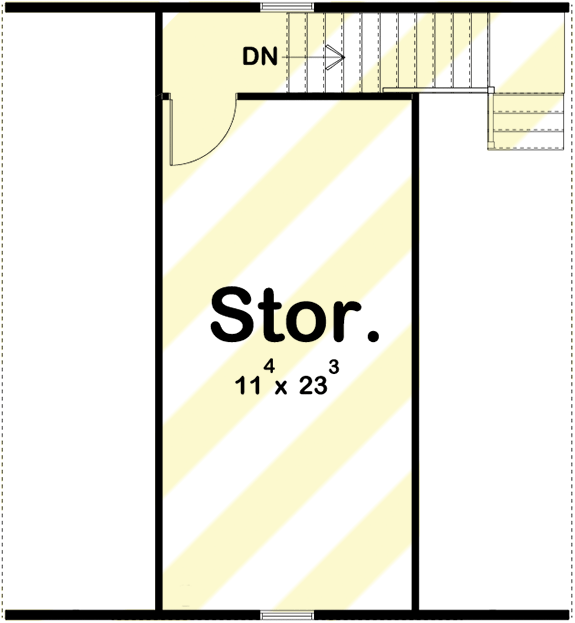

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A single garage door opens to this traditional 2-car detached garage plan.
  • Stairs running along the back and up the right side take you to a large storage area above.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

26' 0"

Depth

28' 0"

Max Ridge Height

21' 5"

Garage

Type

Detached

Area

1039 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Special Features

Bonus Room

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

26' 0"

Depth

28' 0"

Max Ridge Height

21' 5"

Garage

Type

Detached

Area

1039 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Special Features

Bonus Room
