Traditional 3-Bed Cottage House Plan with Open-Concept Living Space - 1507 Sq Ft
Heated S.F.
1,507
Beds
3
Baths
2
Stories
1
Cars
2
Tour
Floor Plan

Plan 623479DJ

Main Level
slide image 0

Plan 623479DJ

1-800-854-7852

1-262-521-4596

Main Level

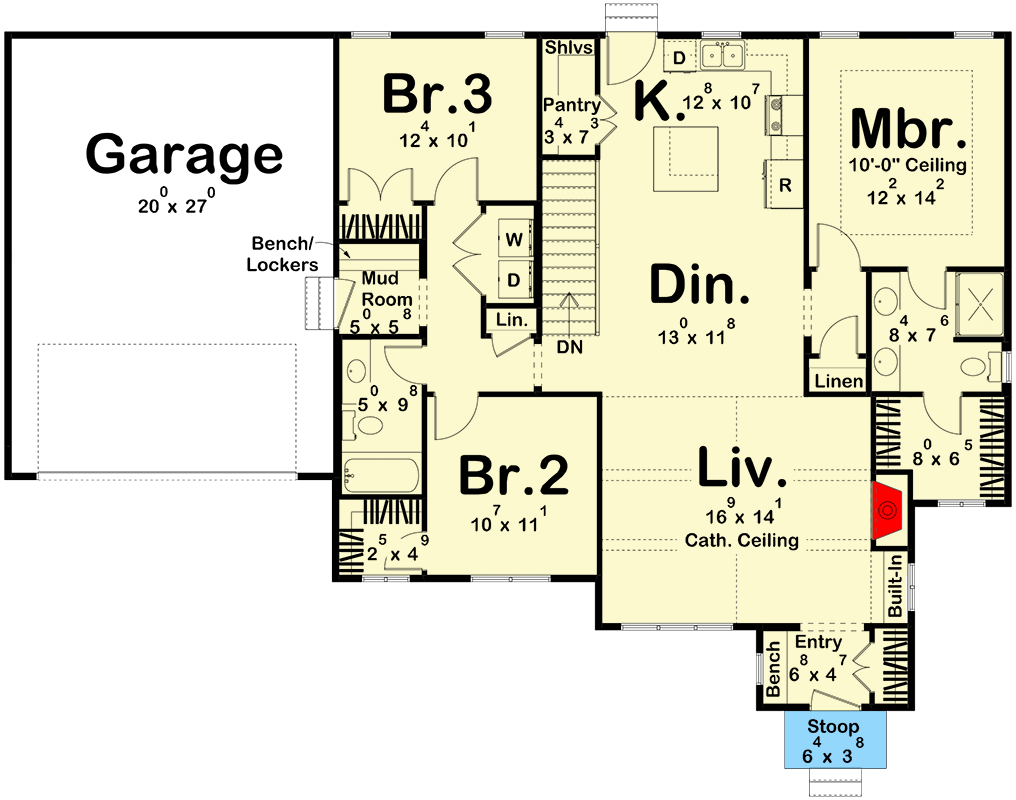

floor plan image Main Level
Plan Details
  • This cottage-style home features 3 bedrooms, 2 baths, and a 2-car garage. An open floor plan unites a cathedral-ceiling living room with a cozy fireplace, a dining area, and a kitchen.
  • The master suite offers a private ensuite and a spacious walk-in closet.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us
