Plan 59546ND
Traditional 3 Bed House Plan Under 1900 Square Feet - Architectural Designs
Heated S.F.
1,894
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 59546ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59546ND

1-800-854-7852

1-262-521-4596

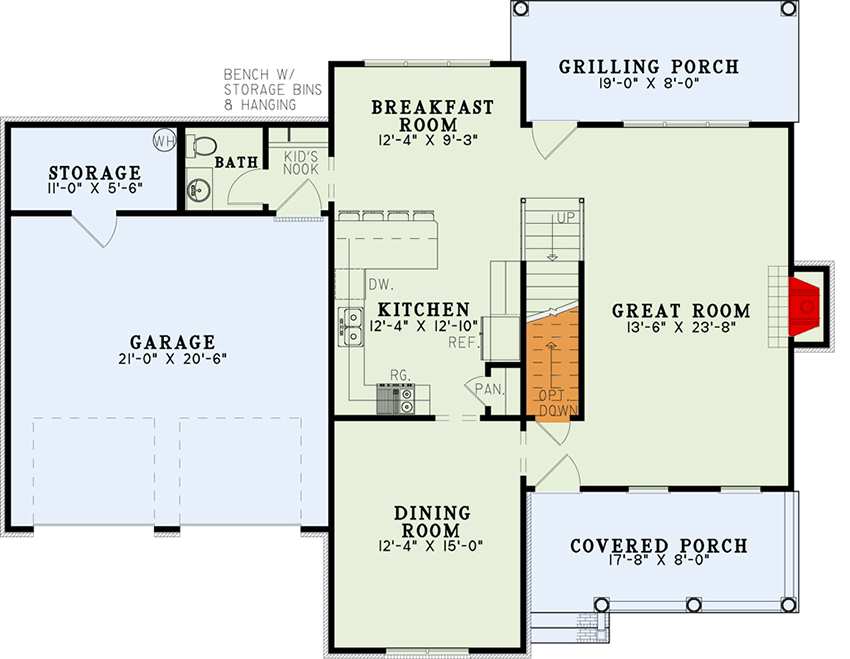

Main Level
floor plan image Main Level

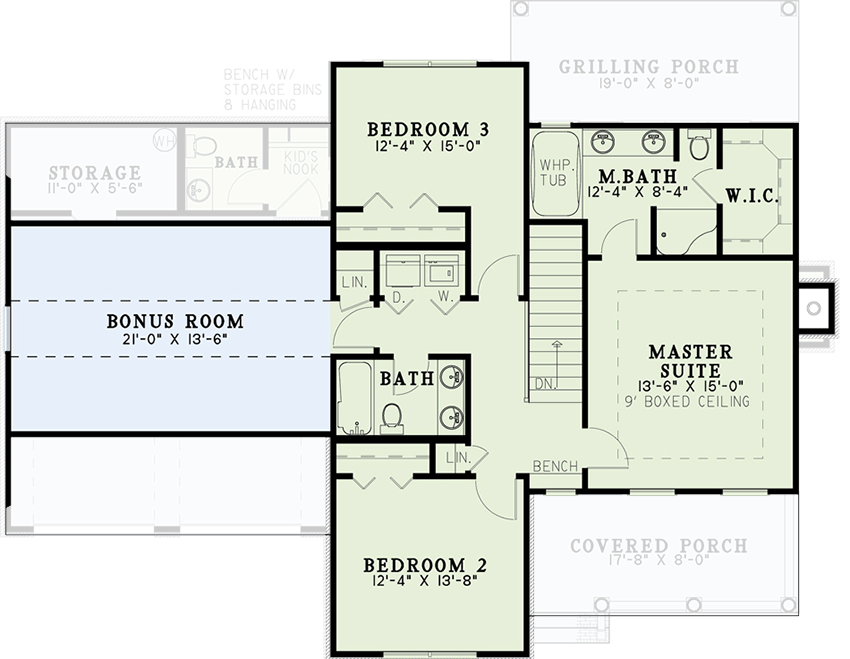

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 3 bed, 2.5 bath house plan gives you 1,894 square feet of heated living and a 2-car 514 square foot garage.
  • Architectural Designs primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,894 sq. ft.

1st Floor

998 sq. ft.

2nd Floor

896 sq. ft.

Bonus

300 sq. ft.

Porch, Combined

292 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 4"

Depth

43' 0"

Max Ridge Height

29' 4"

Garage

Type

Attached

Area

514 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bonus Room

Breakfast Nook

Formal Dining

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,894 sq. ft.

1st Floor

998 sq. ft.

2nd Floor

896 sq. ft.

Bonus

300 sq. ft.

Porch, Combined

292 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 4"

Depth

43' 0"

Max Ridge Height

29' 4"

Garage

Type

Attached

Area

514 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bonus Room

Breakfast Nook

Formal Dining

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom
