Traditional 3-Car Garage - 900 Sq Ft
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
3
Floor Plan

Plan 420146WNT

Main Level
slide image 0

Plan 420146WNT

1-800-854-7852

1-262-521-4596

Main Level

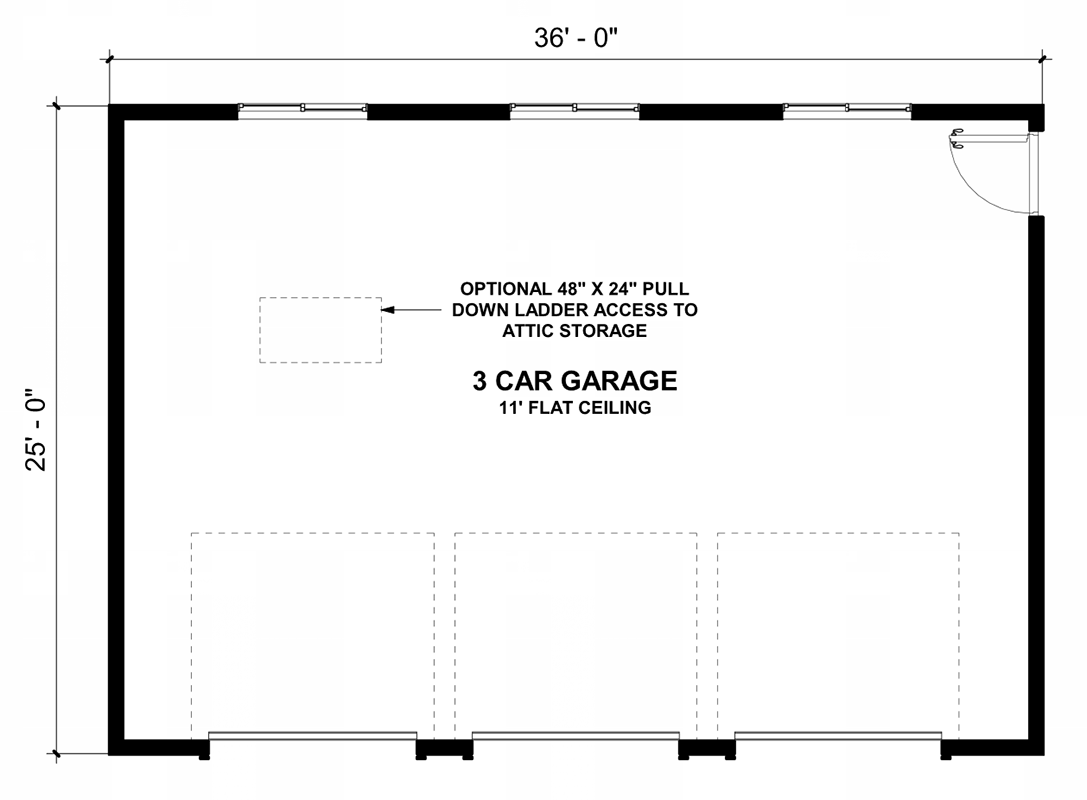

floor plan image Main Level
Plan Details
  • This 3-car detached garage has three bays giving you a combined 900 square feet of space inside.
  • Architectural Designs' primary focus is to make the process of finding and buying plans more convenient for those interested in new constructing.
  • Our website offers a vast collection of garage plans, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best garage plans available.
  • We can modify any garage plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

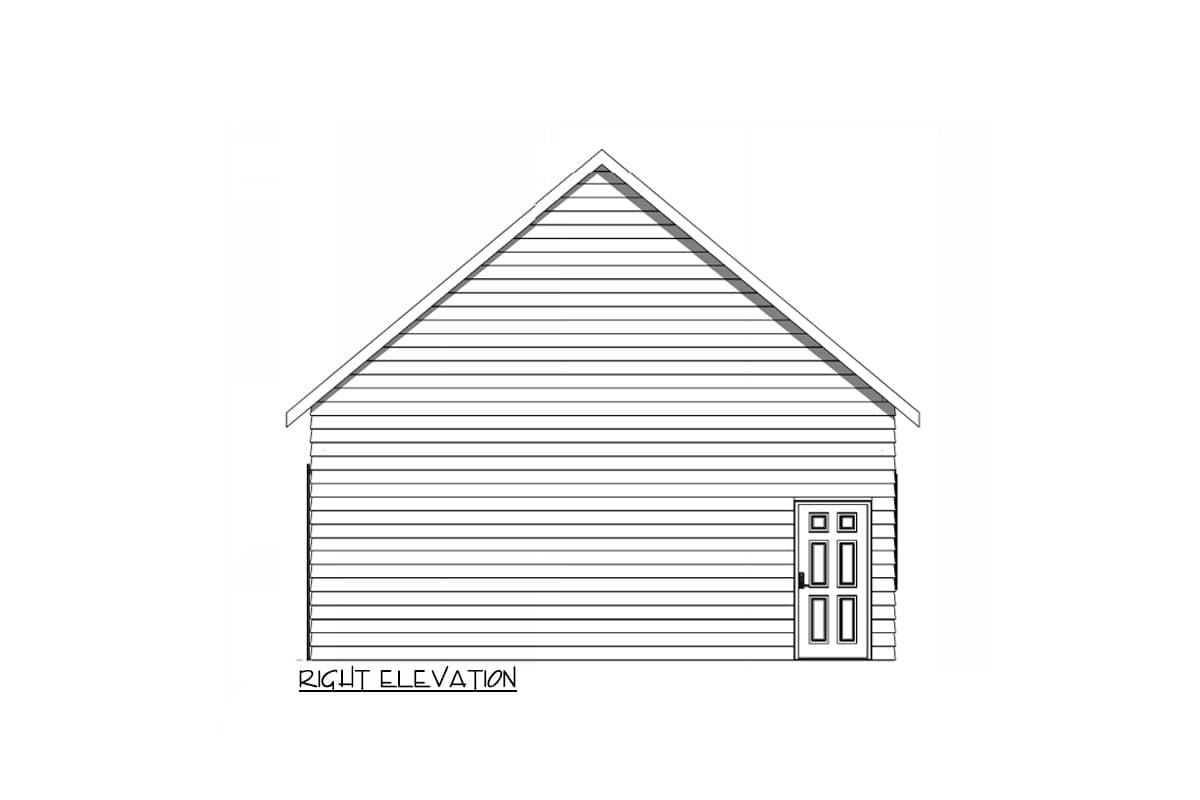

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

25' 0"

Max Ridge Height

22' 0"

Garage

Type

Detached

Area

900 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Plan Collections

Exclusive
