Plan 710155BTZ
Traditional 4-Bed House Plan with Brick Exterior and Shingle Accents
Heated S.F.
3,454
Beds
4
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 710155BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710155BTZ

1-800-854-7852

1-262-521-4596

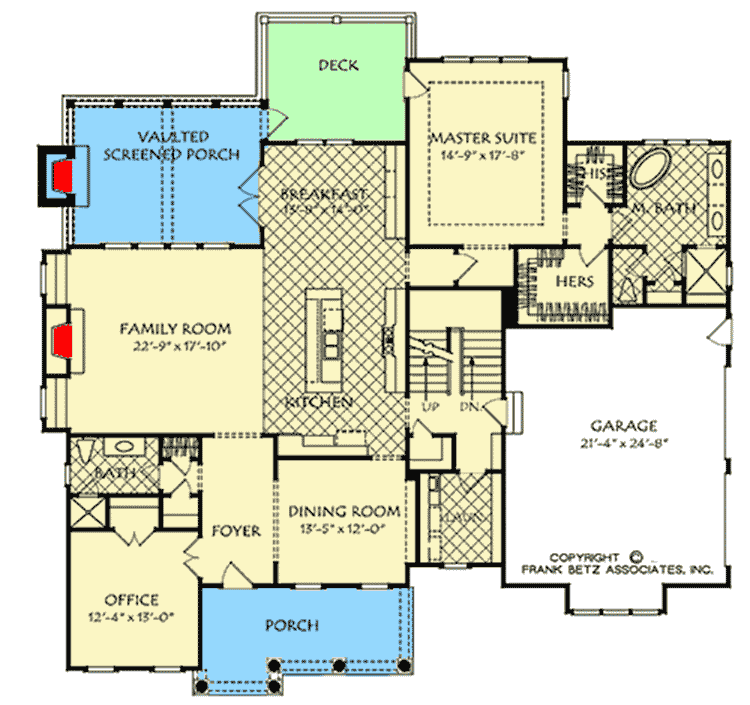

Main Level
floor plan image Main Level

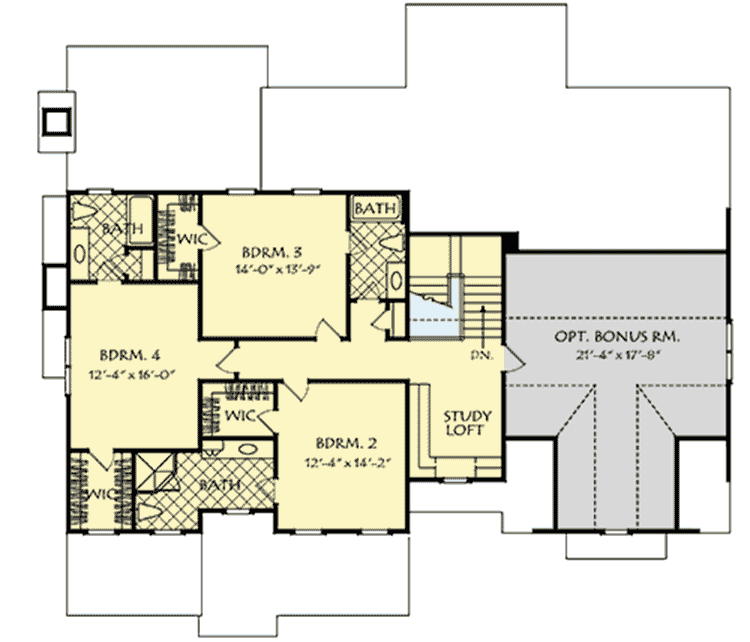

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Elegant brick, high-pitched gables and plenty of windows make up the exterior of this classic European styled cottage. An abundance of square footage makes this an ideal home for entertaining guests and housing large family gatherings.

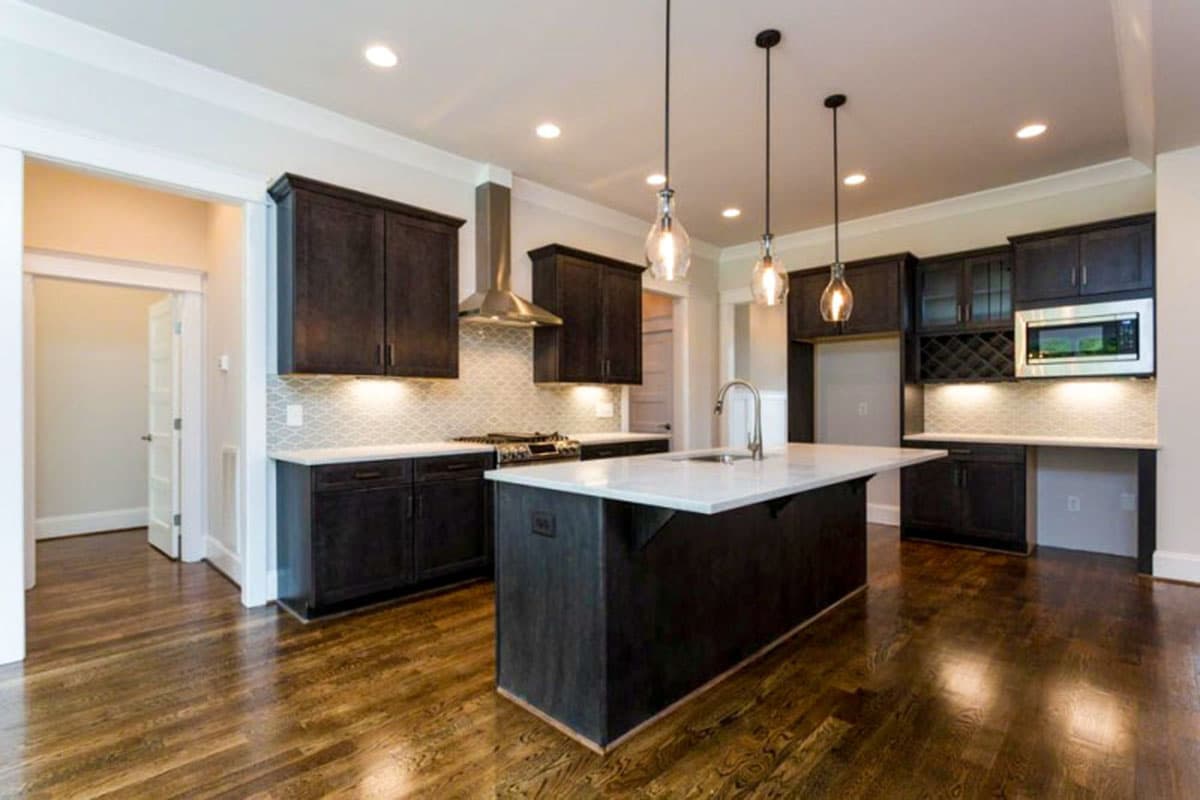

  • The open floor plan combines the spacious family room, breakfast area and eat-in kitchen, complete with a workhorse island and access to the vaulted screened back porch.
  • The master suite is found on the right wing of the main floor giving homeowners a private retreat with his-and-her closets and spacious bath.
  • Upstairs, a study loft and three additional bedrooms can be found, each with their own private baths and walk-in closets.
  • An optional bonus room is just off the top of the stairway, and creates a flexible space ideal for an additional guest suite, home fitness center or family game room.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,454 sq. ft.

1st Floor

2,250 sq. ft.

2nd Floor

1,204 sq. ft.

Basement Unfinished

2,196 sq. ft.

Bonus

505 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

66' 4"

Depth

61' 0"

Max Ridge Height

34' 3"

Garage

Type

Attached

Area

590 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor
