Traditional 4-Bedroom Home Plan with Den and Rec Room
Heated S.F.
2,435
Beds
3 - 4
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 280017JWD

Main Level
slide image 0

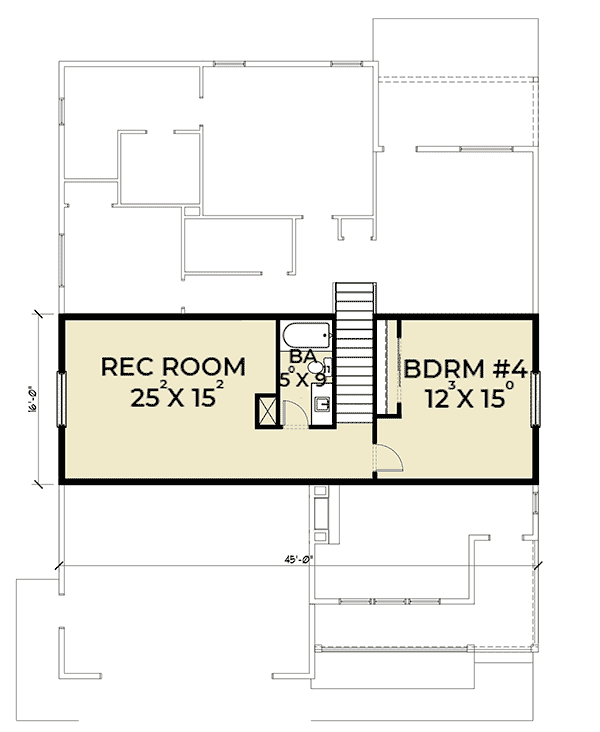

2nd Floor
slide image 1

Plan 280017JWD

1-800-854-7852

1-262-521-4596

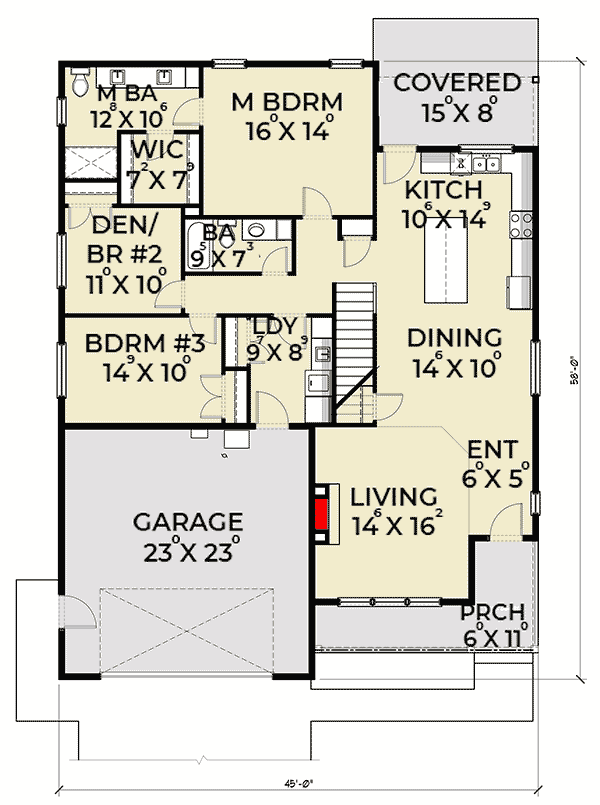

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

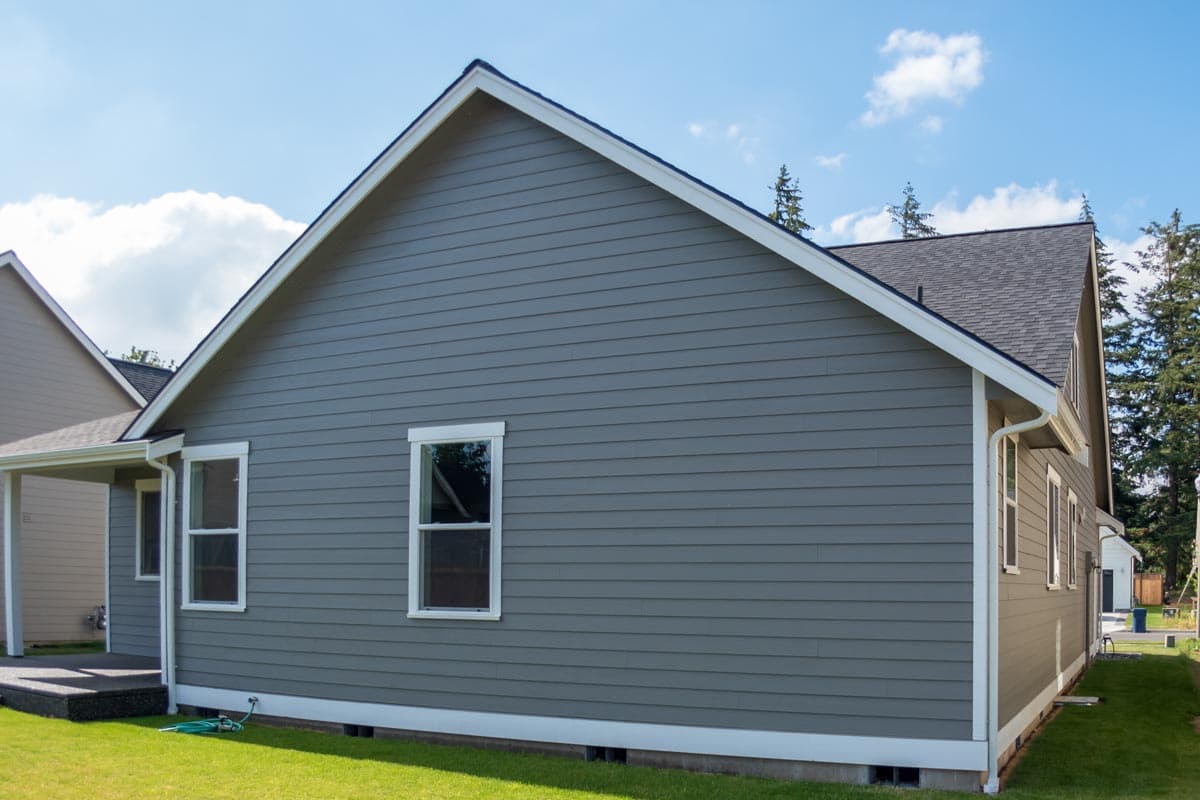

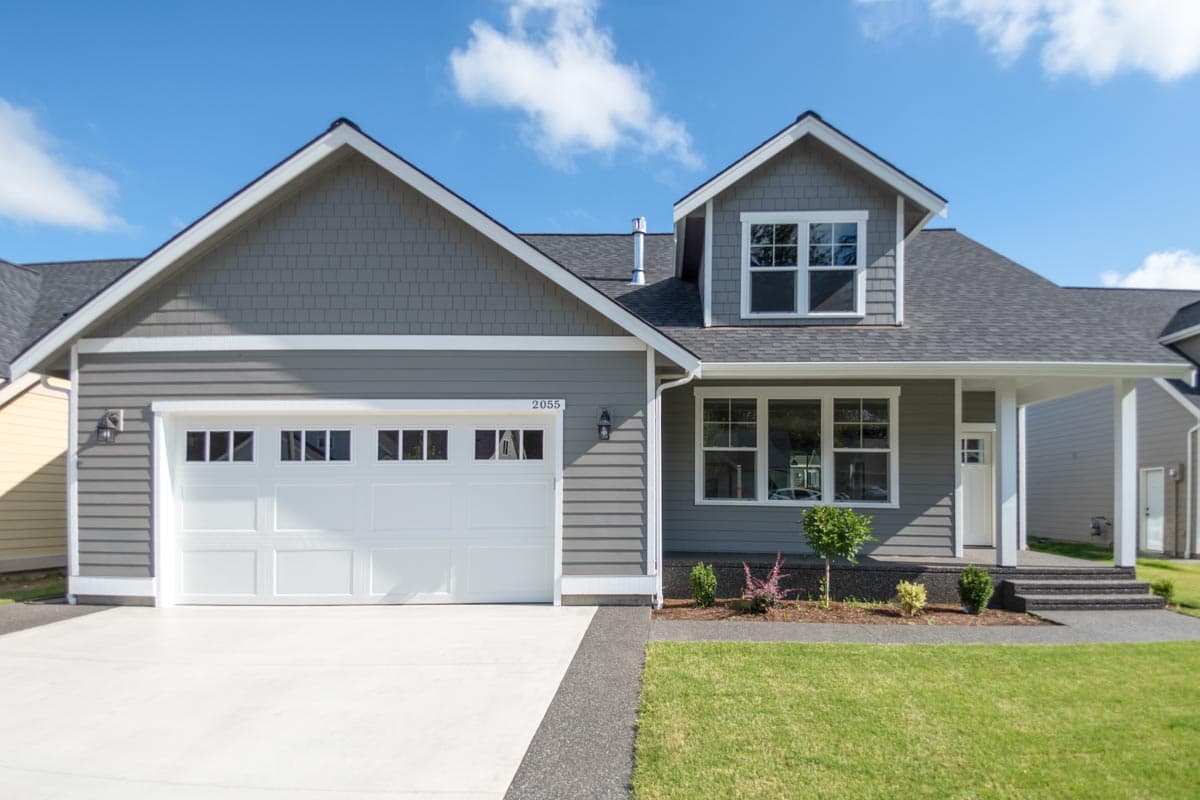

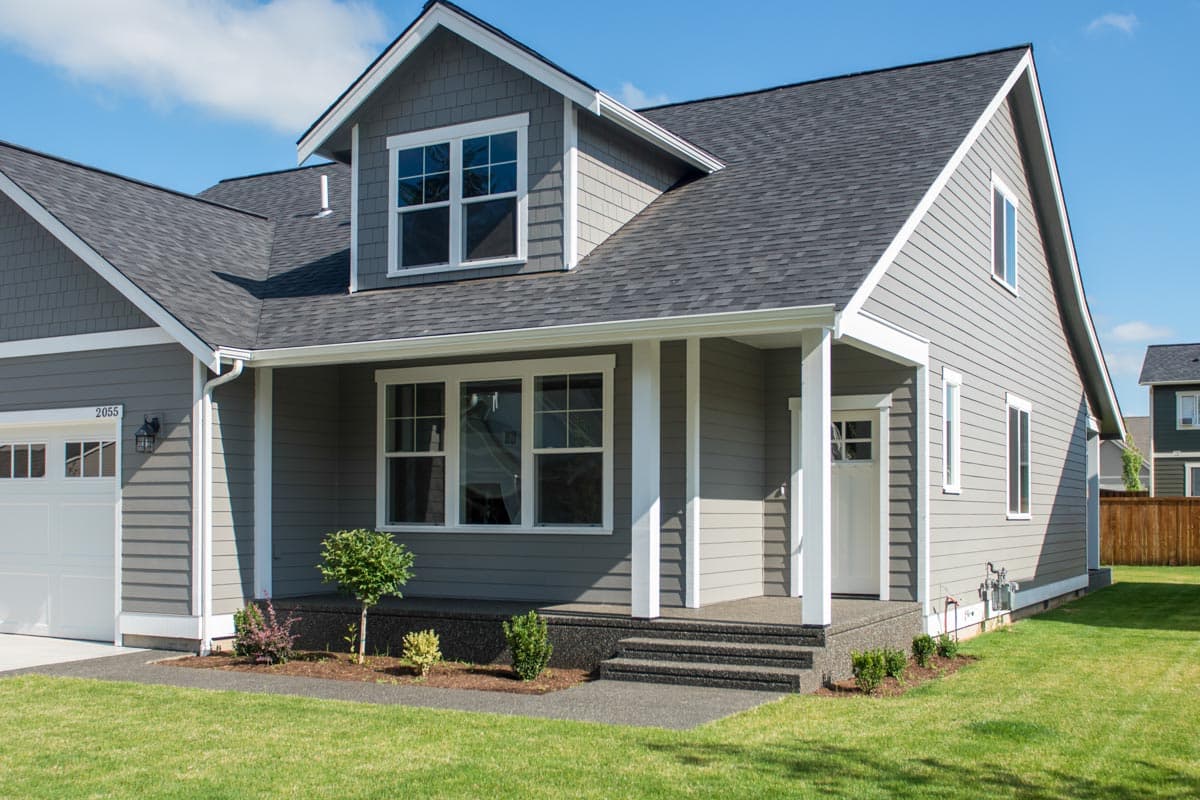

  • This appealing 3- or 4- bedroom home plan features an eye-catching clapboard and shake exterior, covered front entry, and 2-car garage.
  • A main-floor den (or bedroom) offers privacy and versatility.

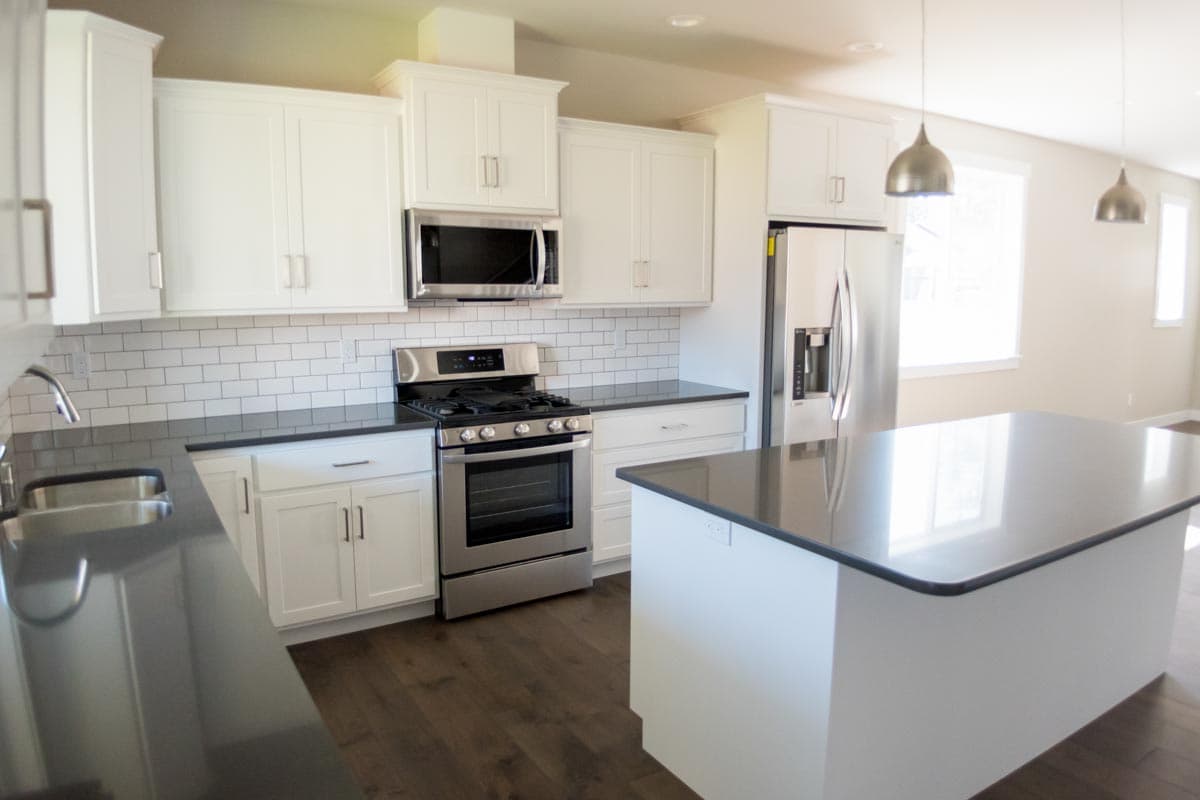

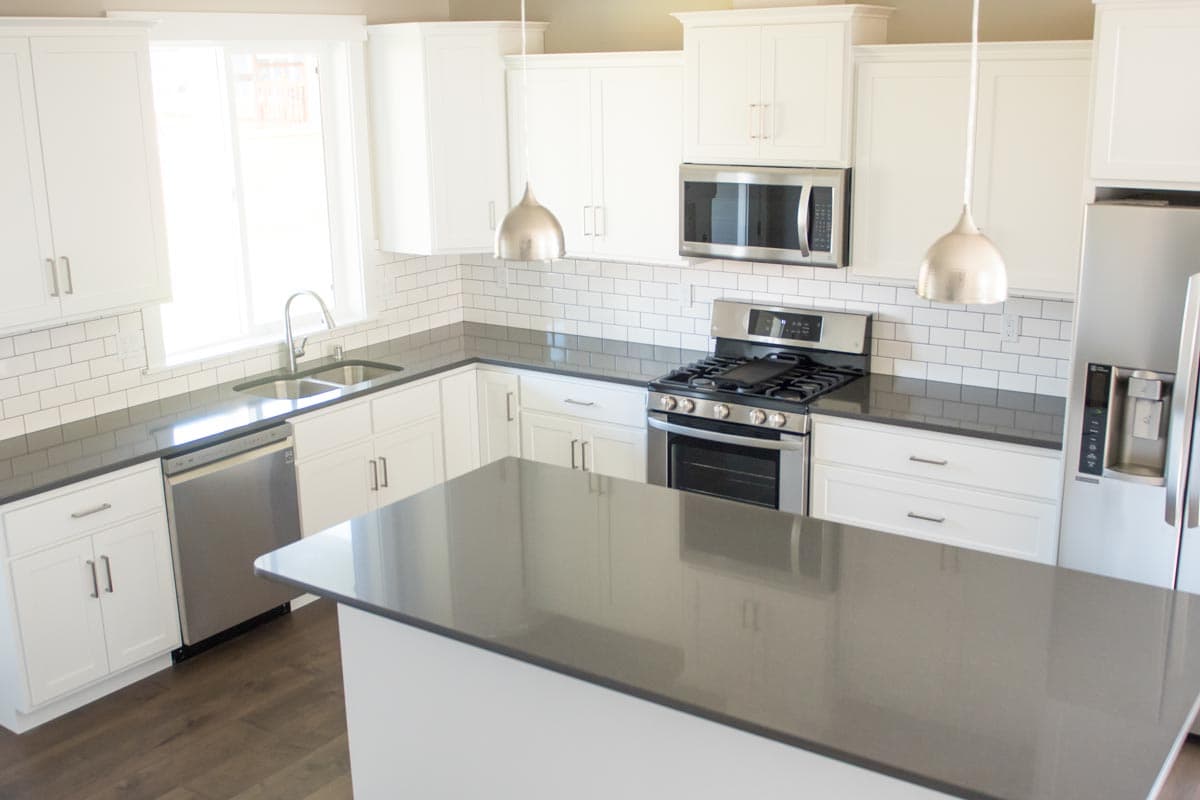

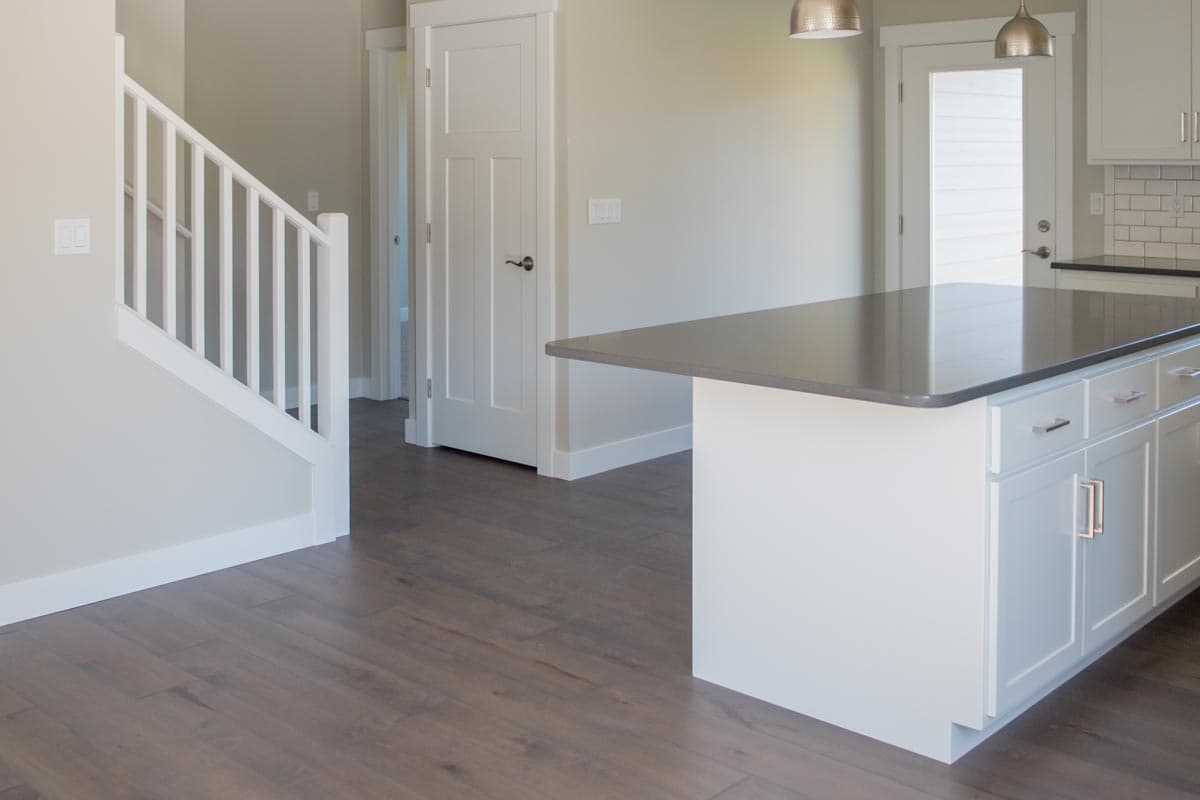

  • The wraparound kitchen offers multiple casual eating options, with an oversized island and large open dining area.

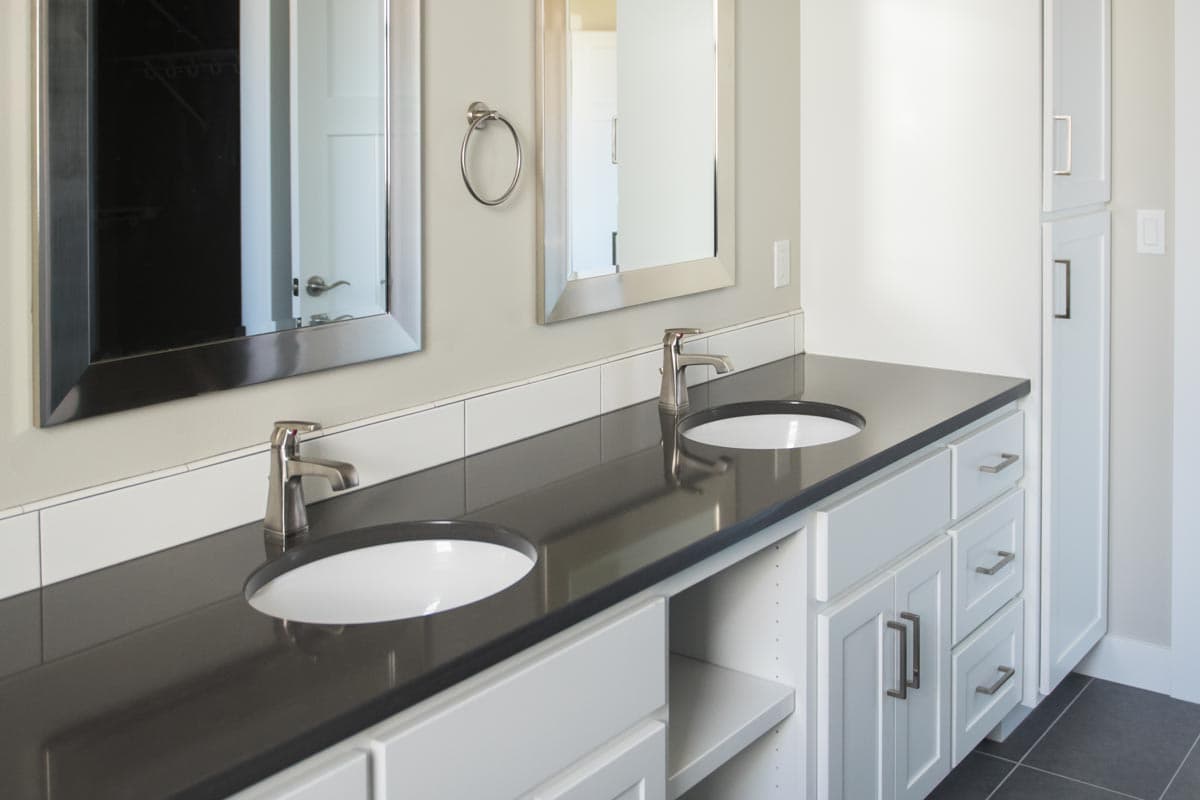

  • The main-floor master suite boasts a generously sized walk-in closet and 4-piece master bath.

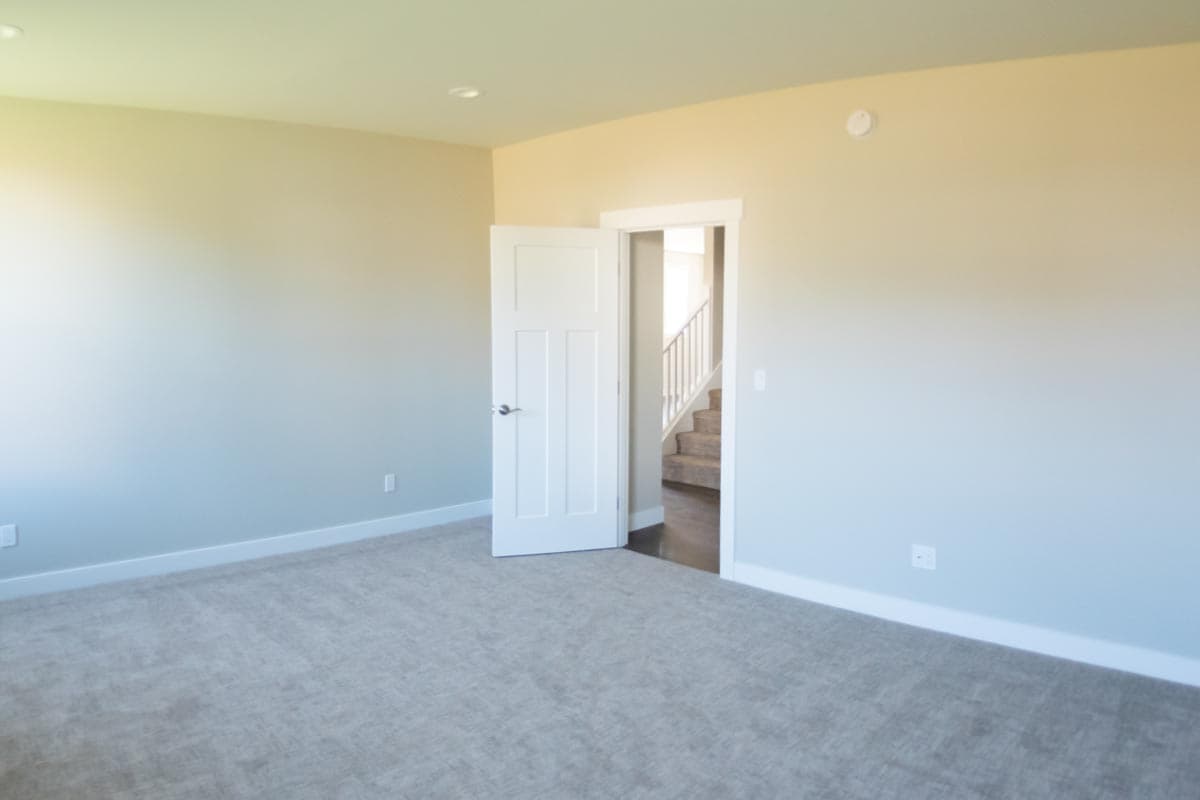

  • On the upper level, discover a secluded bedroom, a full bath, and a spacious rec room.

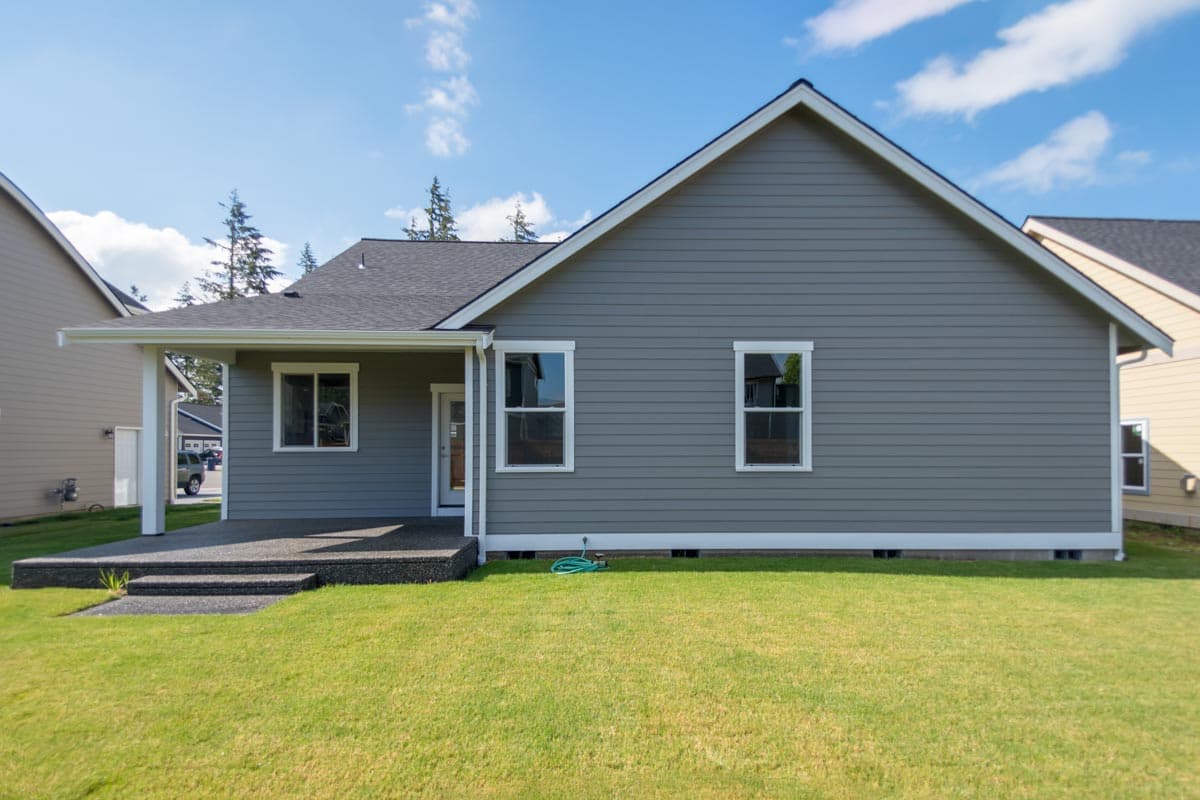

  • Enjoy the fresh air and views on the covered back porch.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,435 sq. ft.

1st Floor

1,751 sq. ft.

2nd Floor

684 sq. ft.

Porch, Combined

131 sq. ft.

Covered Patio

98 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

58' 0"

Max Ridge Height

25' 1"

Garage

Type

Attached

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Northwest

Traditional

Special Features

Den

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,435 sq. ft.

1st Floor

1,751 sq. ft.

2nd Floor

684 sq. ft.

Porch, Combined

131 sq. ft.

Covered Patio

98 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

45' 0"

Depth

58' 0"

Max Ridge Height

25' 1"

Garage

Type

Attached

Area

555 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Northwest

Traditional

Special Features

Den

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
