Plan 67042GL
Traditional Charm
Heated S.F.
3,804
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 67042GL

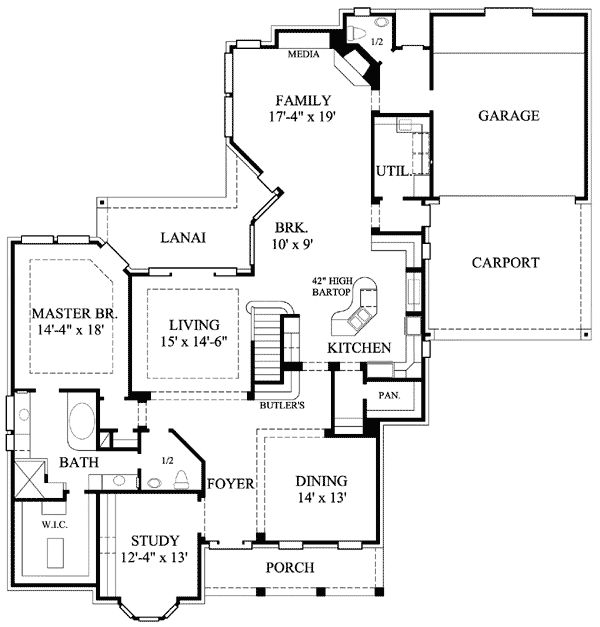

Main Level
slide image 0

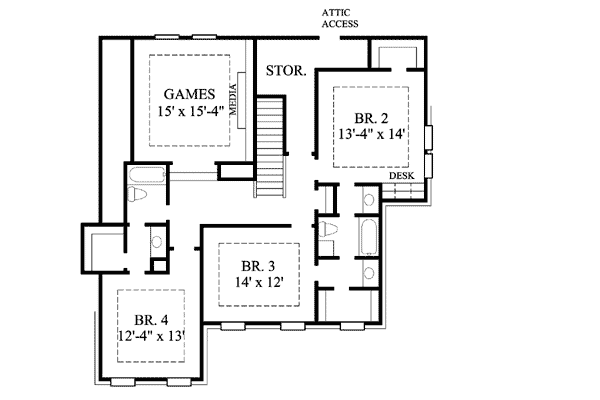

2nd Floor
slide image 1

Plan 67042GL

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

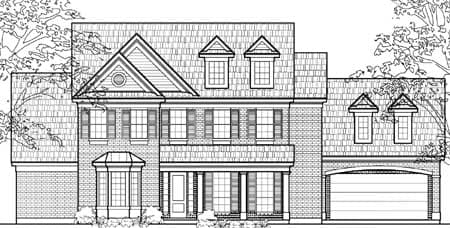

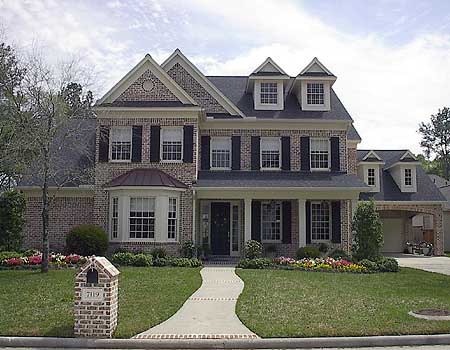

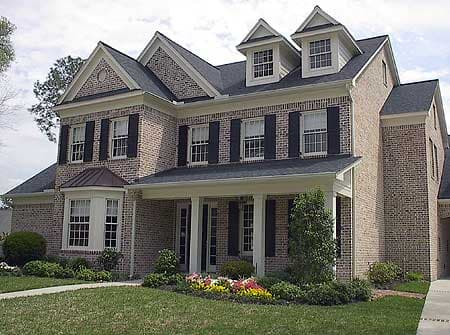

  • This stately brick home plan will stand proud in any neighborhood, thanks to its gracious curb appeal.
  • An open dining room lies close to a butler's pantry for ease in serving. Tray ceilings grace the formal living room with sliding glass doors opening to the covered lanai.
  • In the informal area of the house, the large gourmet kitchen with walk-in pantry is open to the breakfast nook and family room, enhanced by a warming fireplace and built-in media center.
  • Homeowners won't have to go far to reach their spacious first floor master suite with tray ceiling and extra large walk-in closet.
  • Every room on the second floor sports a tray ceiling including the game room with built-in media center. All bedrooms have a walk-in closet for added storage.
What's Included
  • Cover sheet
  • Table of Contents
  • Exterior Elevations (noted and dimensioned)
  • Floor Plan(s) (noted and dimensioned)
  • Electrical Plan(s)
  • Framing Plan(s)
  • Joist Layout Plan(s),
  • Foundation Footprint
  • At least one cross-section, and any other relevant details, including, but not limited to, a typical detail sheet showing common construction methods.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,804 sq. ft.

1st Floor

2,550 sq. ft.

2nd Floor

1,254 sq. ft.

Porch, Combined

357 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

73' 0"

Depth

77' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

953 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Traditional

Special Features

Breakfast Nook

Butler Walk-in Pantry

Game/Rec Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
