Plan 14917RK
Traditional Craftsman Duplex Plan with Symmetrical Layouts - 1502 Sq Ft Per Unit
Heated S.F.
3,004
Units
2
Width
Depth
Floor Plan

Plan 14917RK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 14917RK

1-800-854-7852

1-262-521-4596

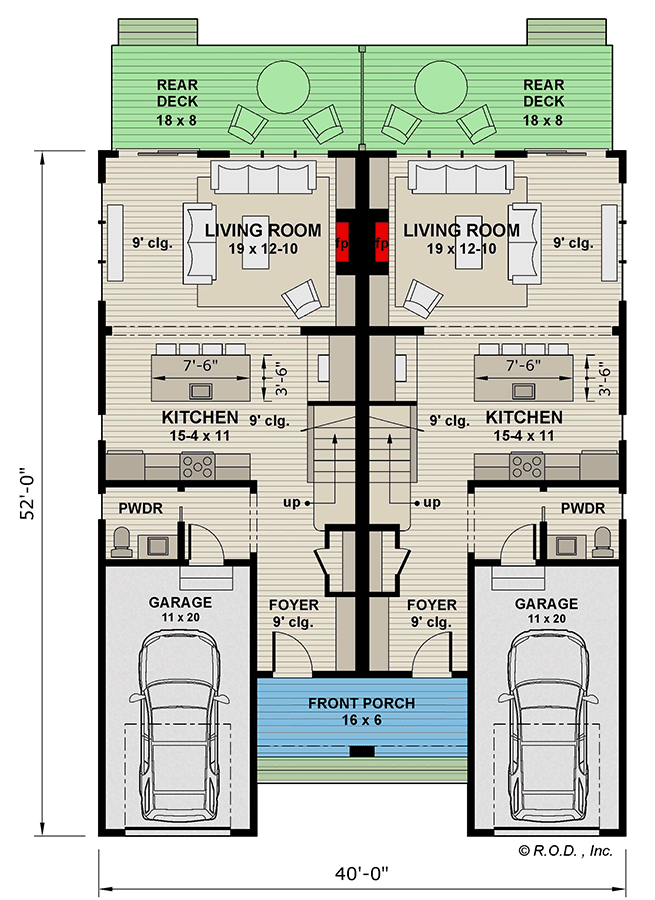

Main Level
floor plan image Main Level

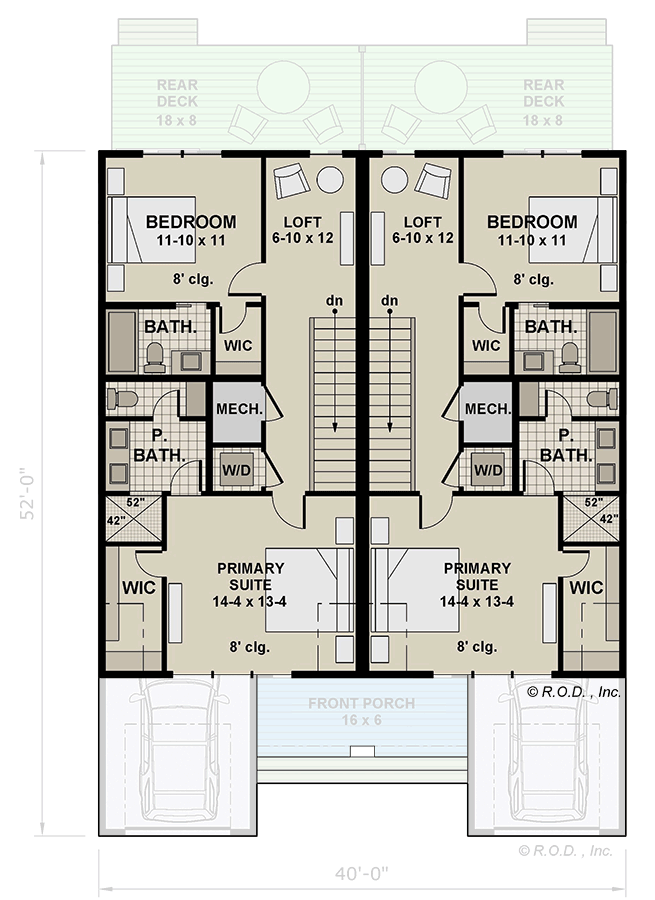

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This side-by-side twin Craftsman home offers 3,004 sq. ft. total, with each unit spanning 1,502 sq. ft. over two stories.

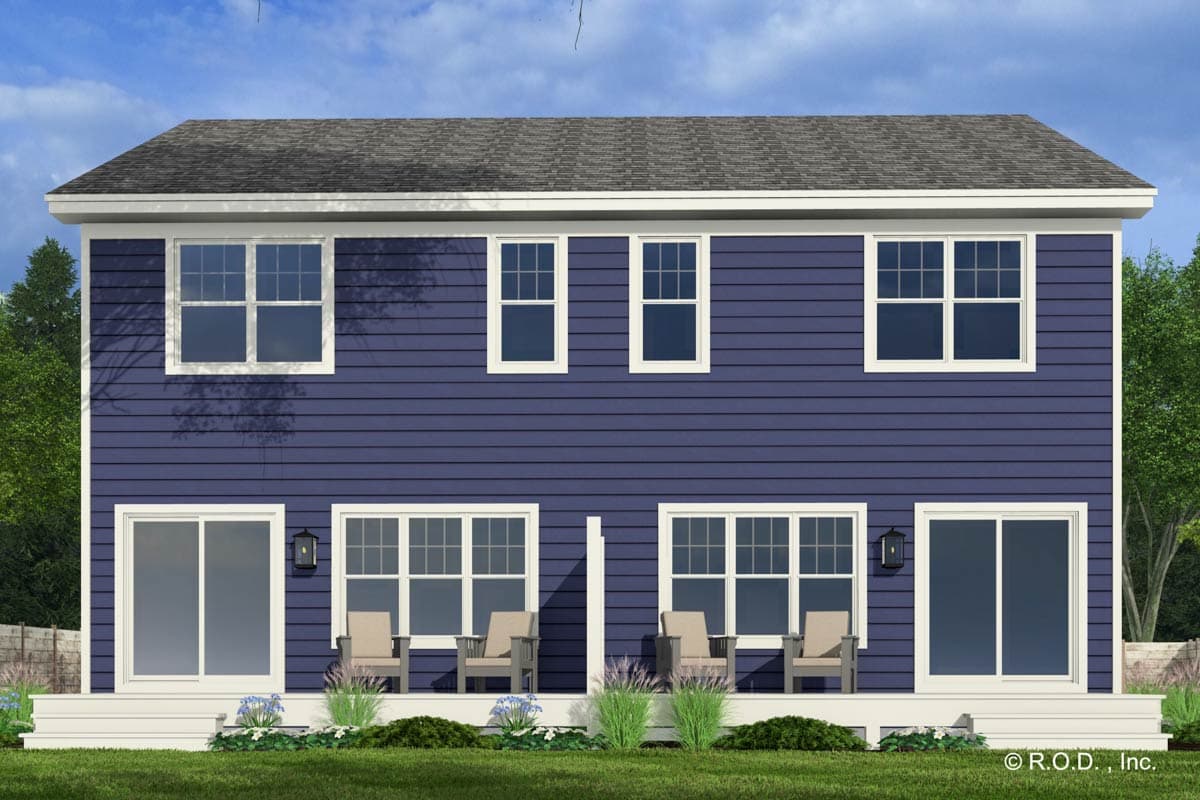

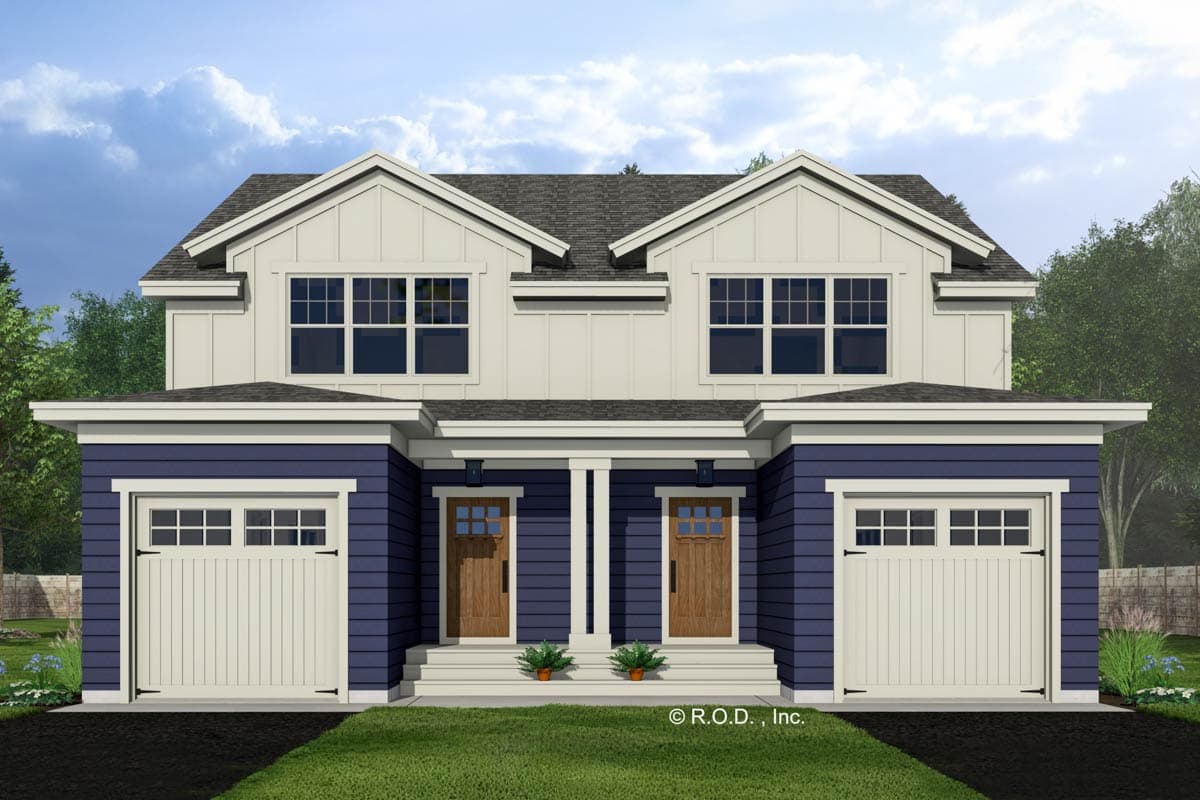

  • A shared front porch leads into an open floor plan filled with natural light. The kitchen, featuring an island for four and ample storage, flows into the living room with a fireplace. Sliding doors open to a private rear deck for outdoor living.
  • Upstairs, the primary suite includes a sitting area, private bath, and walk-in closet. The second bedroom also has a private bath and walk-in closet. A loft provides flexible space for work or relaxation.
  • Each unit includes a one-car garage, blending classic Craftsman charm with modern convenience for a functional and inviting home.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 7 to 10 business days for delivery.
Unit A
1,502Sq. Ft.
702 Sq. Ft.
1st Floor
800 Sq. Ft.
2nd Floor
2Beds
2Full Baths
1Half Bath
1Vehicle
Attached
220 Sq. Ft.
20'width
52'depth
Unit B
1,502Sq. Ft.
1404 Sq. Ft.
1st Floor
800 Sq. Ft.
2nd Floor
2Beds
2Full Baths
1Half Bath
1Vehicle
Attached
220 Sq. Ft.
20'width
52'depth
What's Included
  • Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
  • Elevations: Four completed elevations with dimensions and notes.
  • Floor Plan(s): Complete with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Building Sections
  • General Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy Calculations - handled locally when required
IMPORTANT NOTE:  Not all plans come with a lighting layout.  Please contact us to check for availability.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,004 sq. ft.

1st Floor

1,404 sq. ft.

2nd Floor

1,600 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

52' 0"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

3,004 sq. ft.

1st Floor

1,404 sq. ft.

2nd Floor

1,600 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

52' 0"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Laundry - Upstairs

Loft

Master Suite - 2nd Floor
