Plan 710102BTZ
Traditional Exterior Paired with an Open Interior
Heated S.F.
2,717
Beds
4 - 5
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 710102BTZ

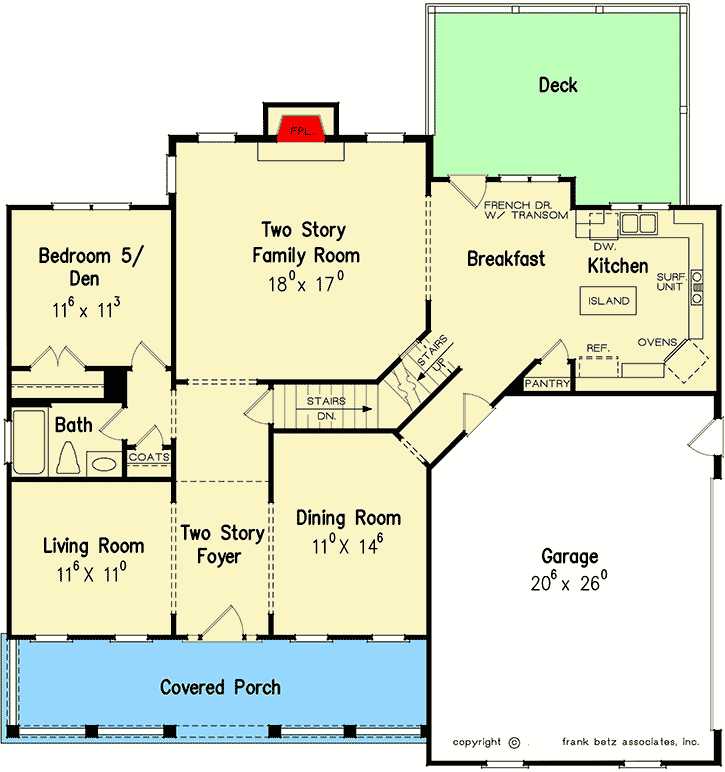

Main Level
slide image 0

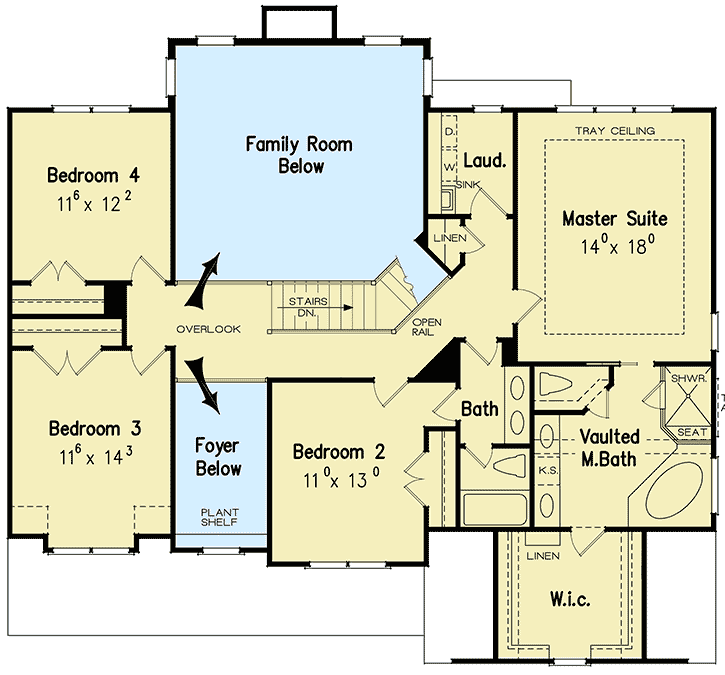

2nd Floor
slide image 1

Plan 710102BTZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Here is the perfect home for a family that seeks both a traditional exterior and the openness of modern design. The foyer is flanked by formal living and dining rooms, but its two-story height prevents it from feeling enclosed. It leads to a similarly lofty family room, whose grand fireplace will likely become the focal point of family gatherings.
  • An informal breakfast room adjoins an up-to-date island kitchen. The first floor includes an additional room with a closet and nearby full bath, perfect for a guest suite, study, or exercise room.
  • The master bedroom and bath are upstairs, conveniently adjacent to the laundry room. Three family bedrooms share a bath.
  • Related Plan: Get a front-facing garage with house plan 710202BTZ.
What's Included

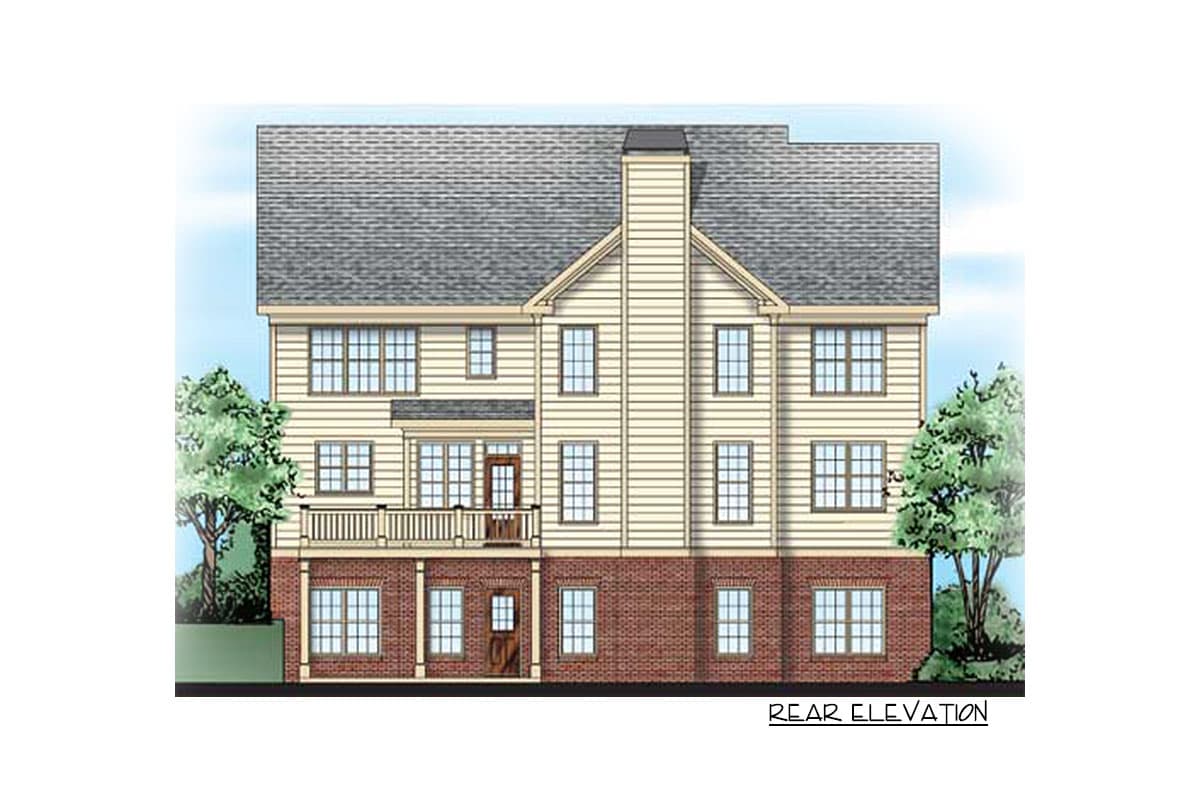

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,717 sq. ft.

1st Floor

1,349 sq. ft.

2nd Floor

1,368 sq. ft.

Basement Unfinished

1,349 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

51' 0"

Depth

47' 4"

Max Ridge Height

32' 8"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry - Upstairs

Library/Study

Master Suite - 2nd Floor
