Plan 16847WG
Traditional Family Home Plan with Circular Stair and Upstairs Expansion - 3349 Sq Ft
Heated S.F.
3,349
Beds
3 - 4
Baths
4
Stories
2
Cars
3

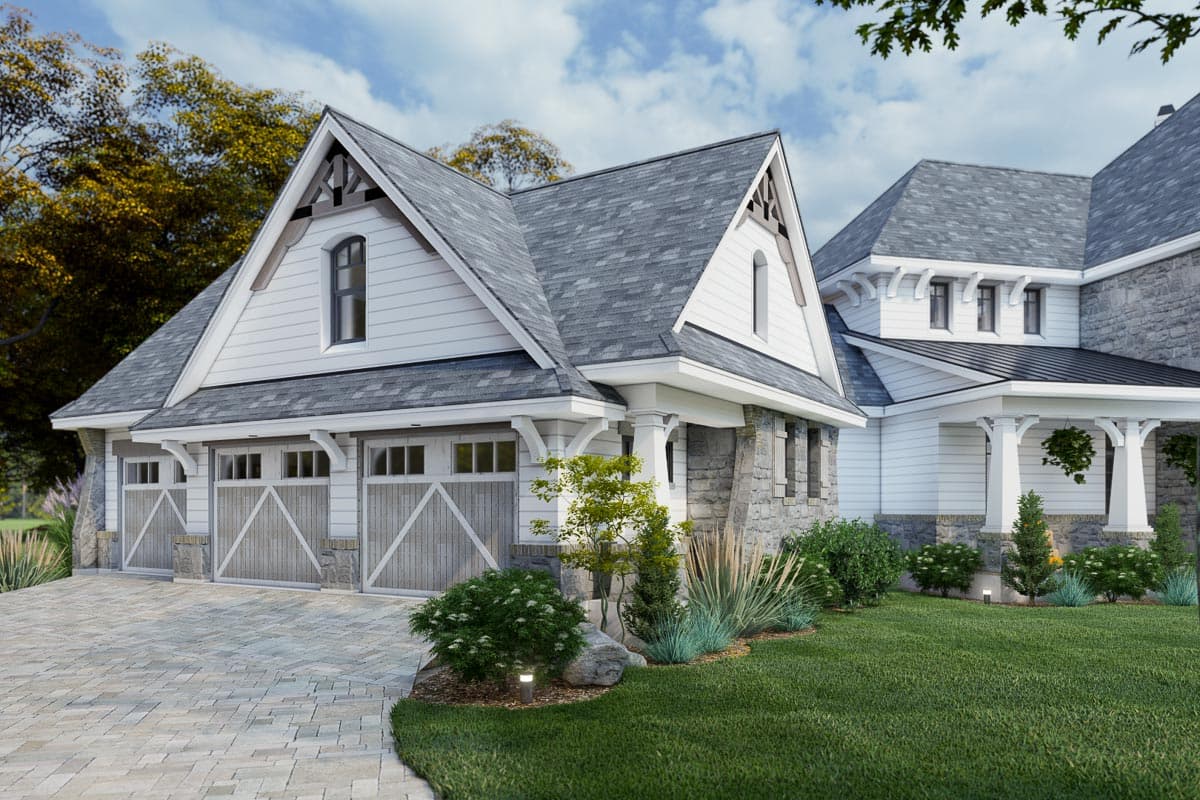

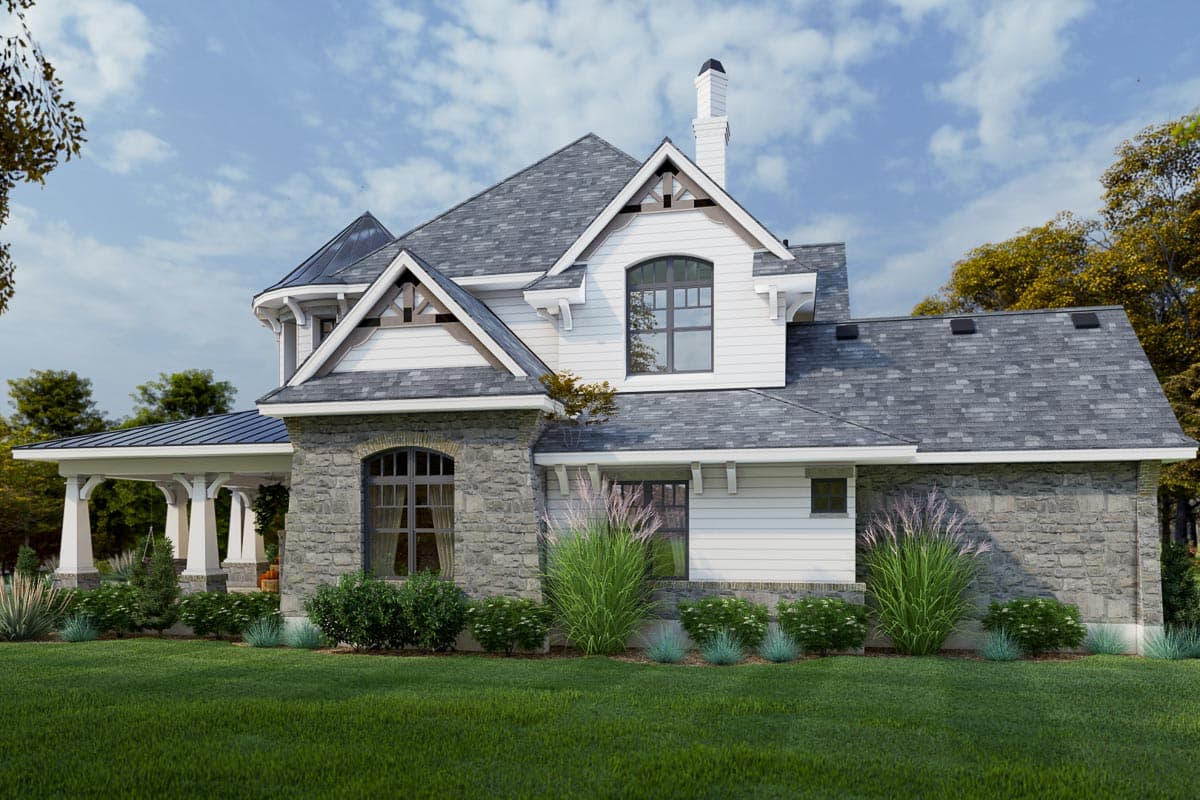

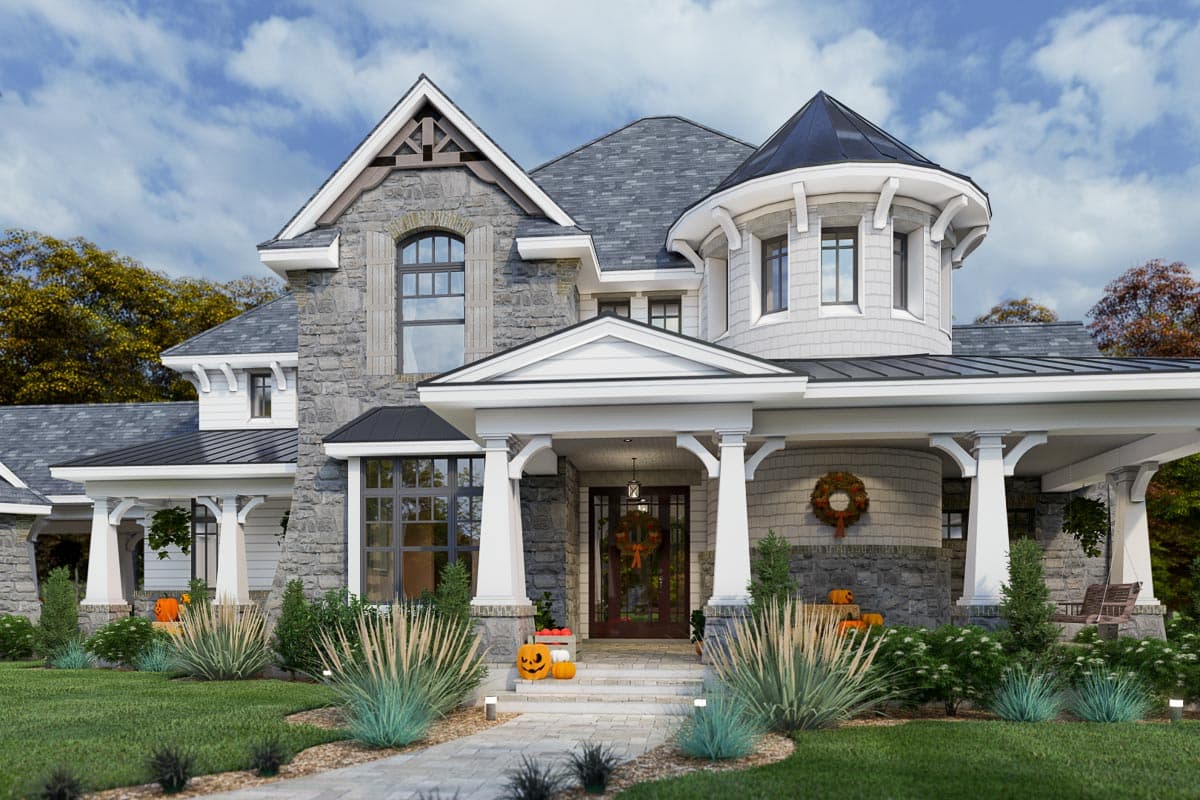

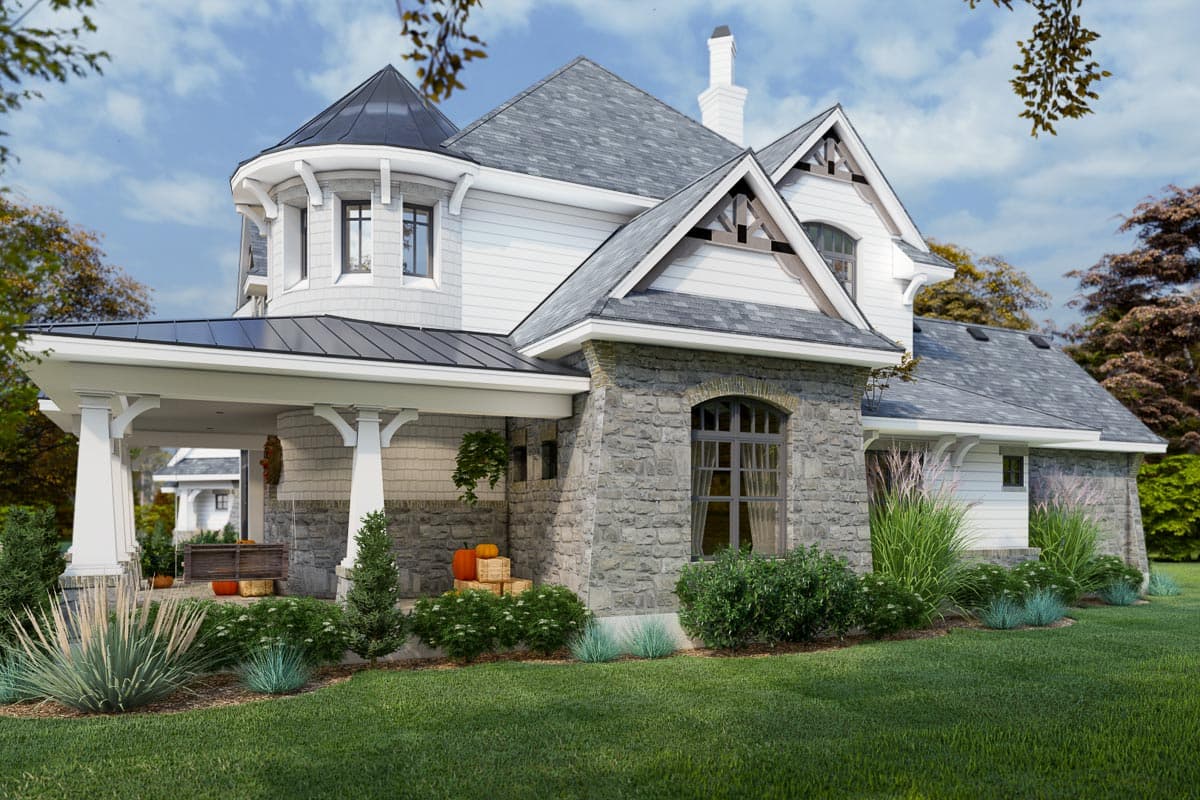

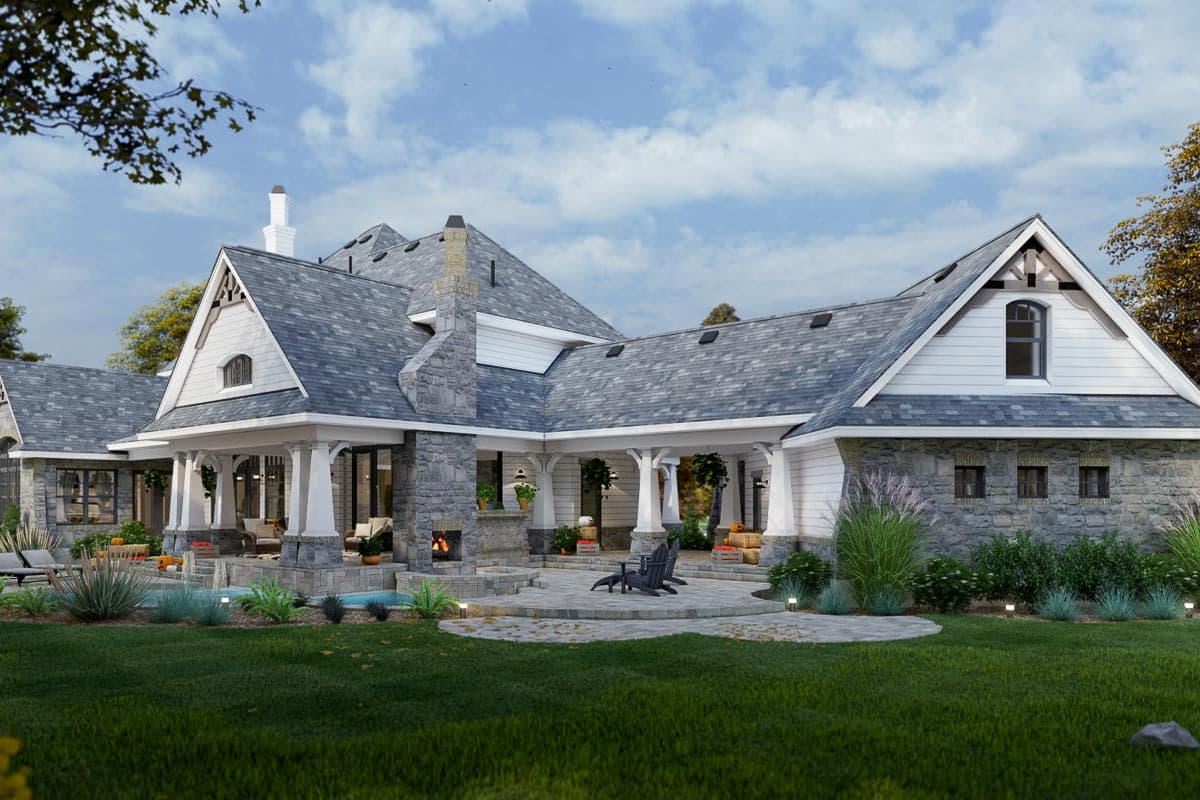

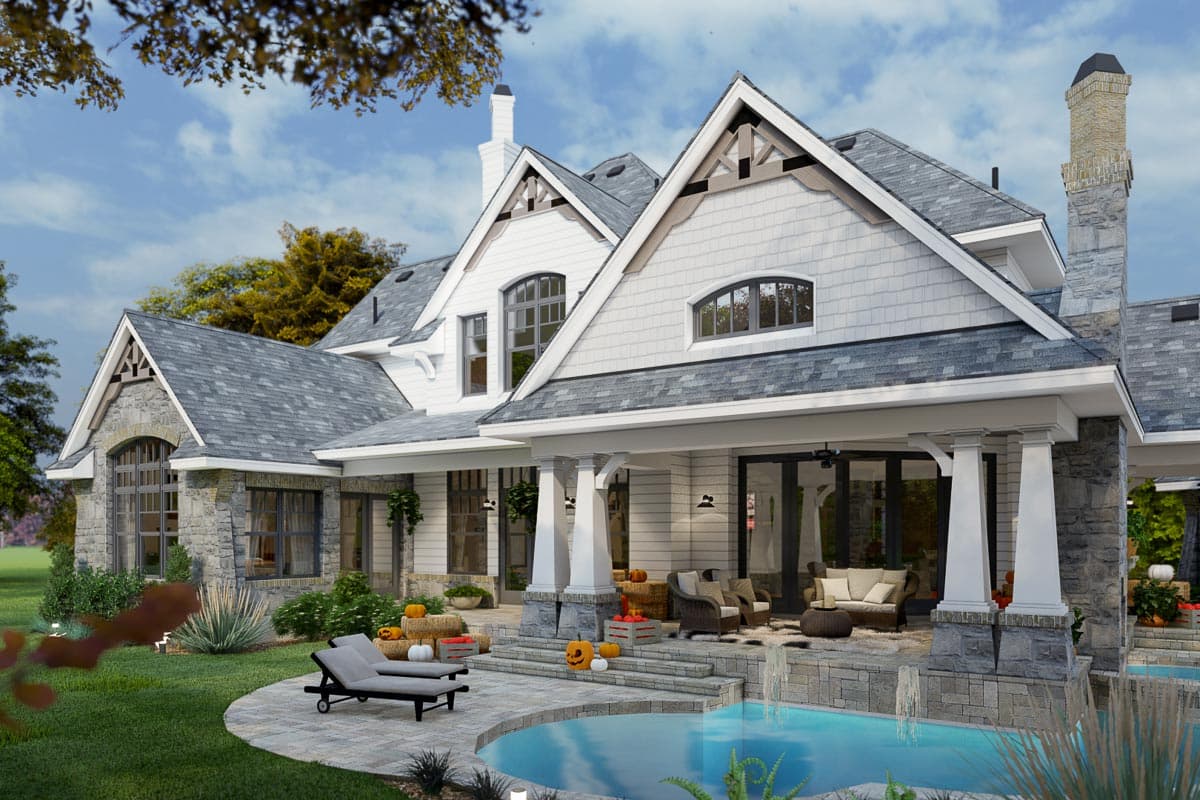

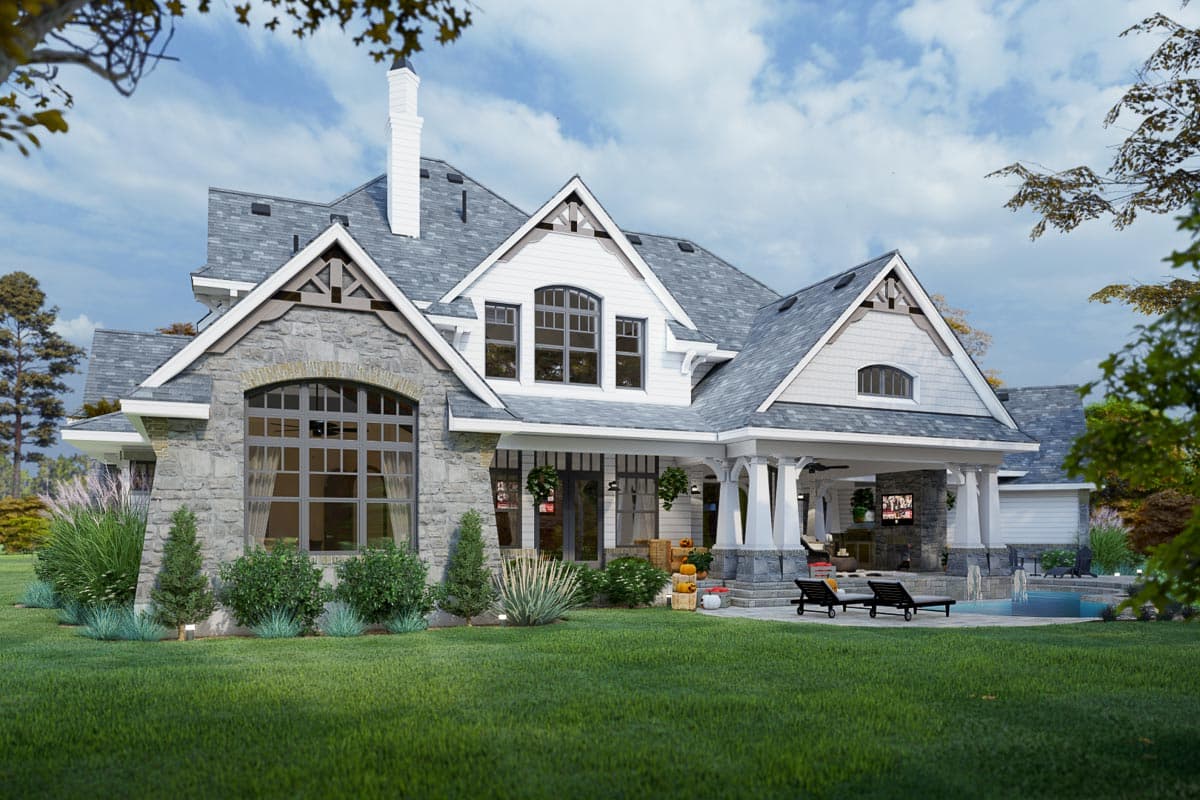

Photos
Floor Plan

Plan 16847WG

Main Level
slide image 0
2nd Floor
slide image 1

Plan 16847WG

1-800-854-7852

1-262-521-4596

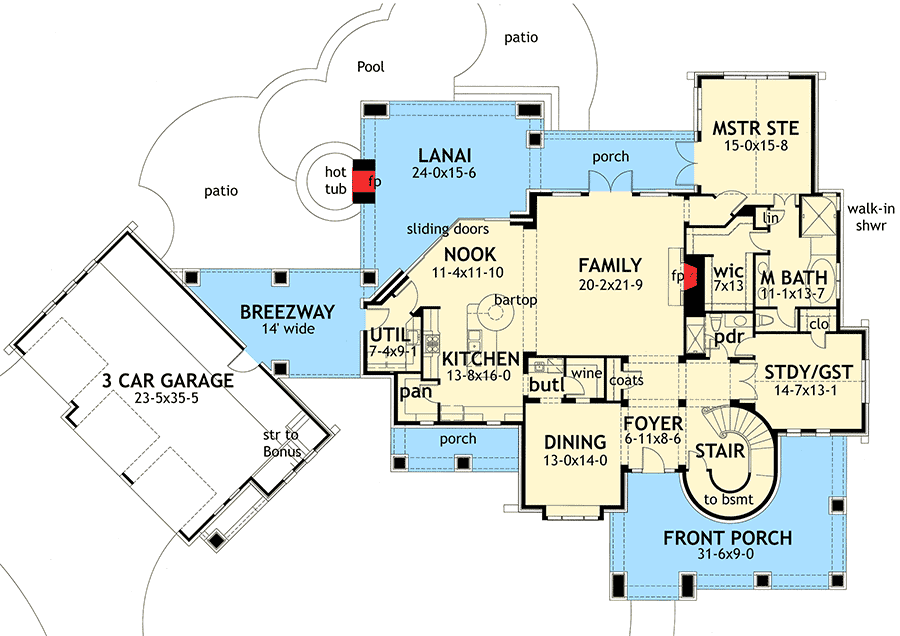

Main Level
floor plan image Main Level

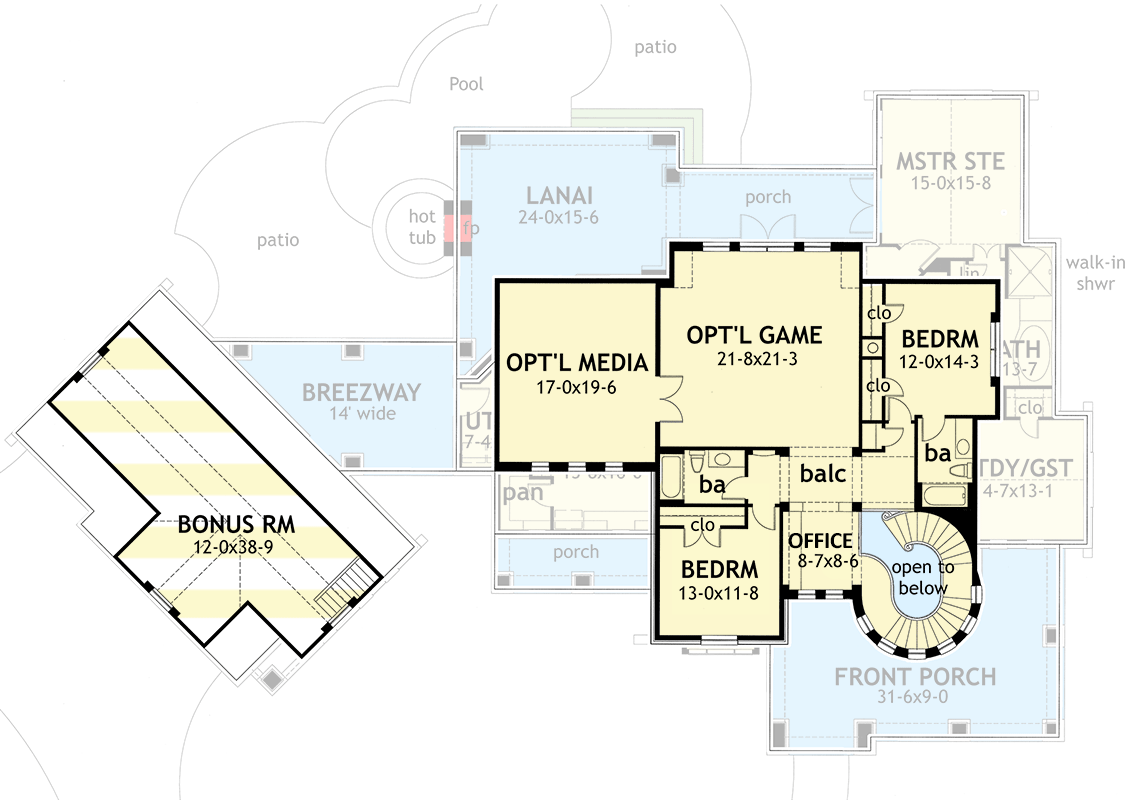

2nd Floor
floor plan image 2nd Floor
Plan Details

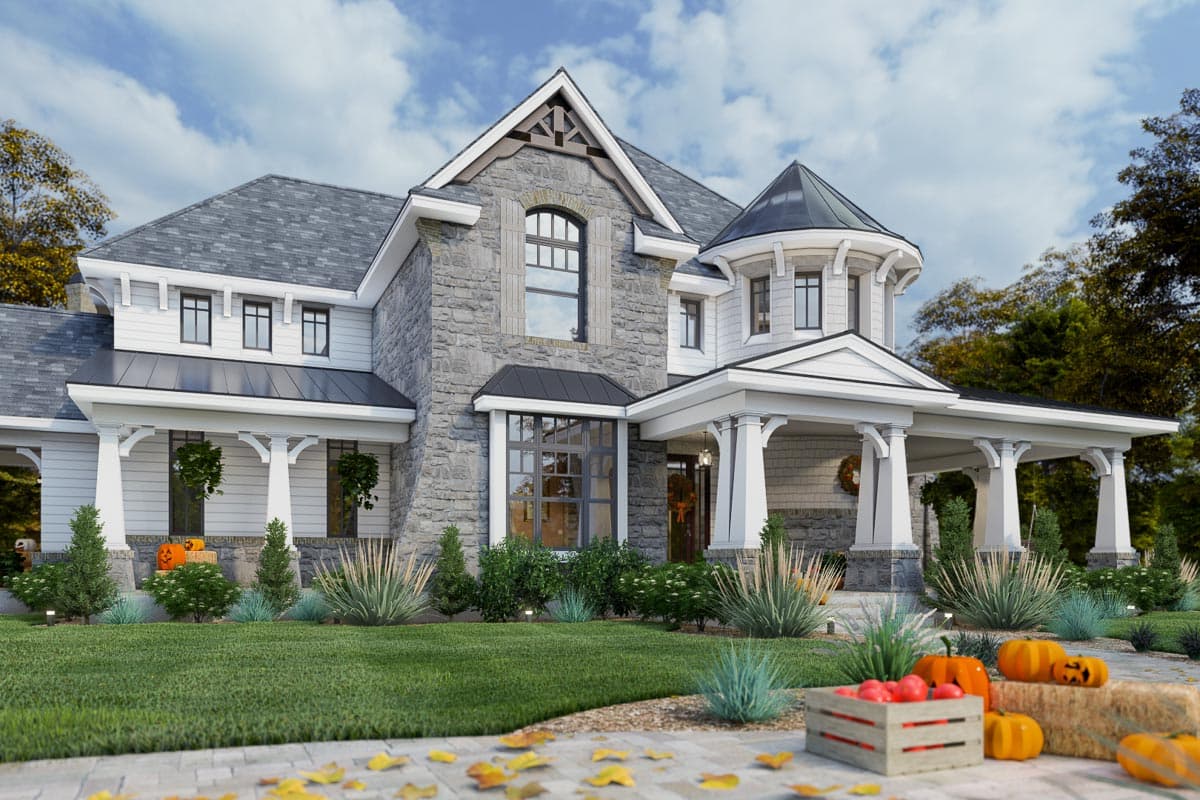

  • Porches, lanai and breezeway all beckon you to spend time outdoors in this remarkable family home plan with impressive curb appeal.
  • Curved stairs create a grand impression in the foyer and a butler's pantry and wine cellar aid in entertaining.
  • A circular bartop is great for casual dining in the spacious kitchen. It has great views into the family room and the angled nook.
  • The butler's pantry makes serving guests a breeze while helping cut down noise from the kitchen.
  • The first floor master suite has an extra large closet and access to the rear porch.
  • The second floor holds two bedrooms and an array of optional spaces such as the game room and media room (835 square feet combined).
  • Bonus space over the garage can be developed to suit your needs and adds 565 square feet to the home when built as shown.
  • The roof pitches are 12:12 with the exception of the porches which are 4:12. The roof section over the master bath is 6:12.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 16847WG comes to life in New York

House Plan 16847WG comes to life in New York

16

Photos

What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,349 sq. ft.

1st Floor

2,541 sq. ft.

2nd Floor

808 sq. ft.

Bonus

565 sq. ft.

Porch, Combined

491 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

118' 5"

Depth

72' 2"

Max Ridge Height

40' 4"

Garage

Type

Attached

Area

880 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

9'

Room

Ceiling Type

Height

Foyer

12' 0''

Family Room

12' 0''

Dining Room

12' 0''

Study

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Coastal
