Plan 72539DA
Traditional Farm-Style Home Plan
Heated S.F.
1,604
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 72539DA

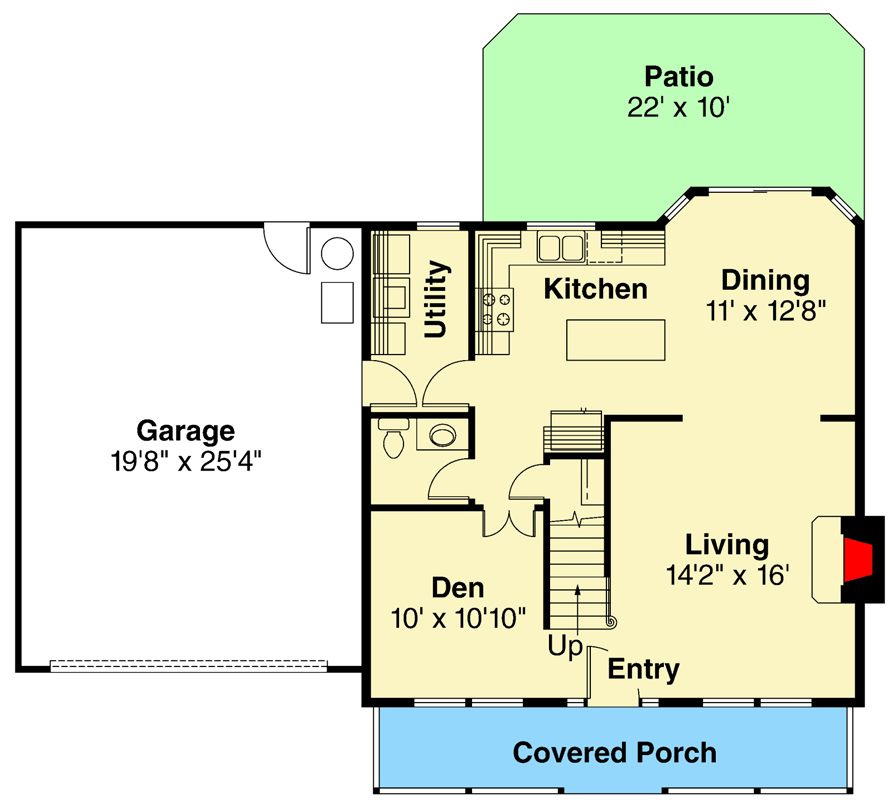

Main Level
slide image 0

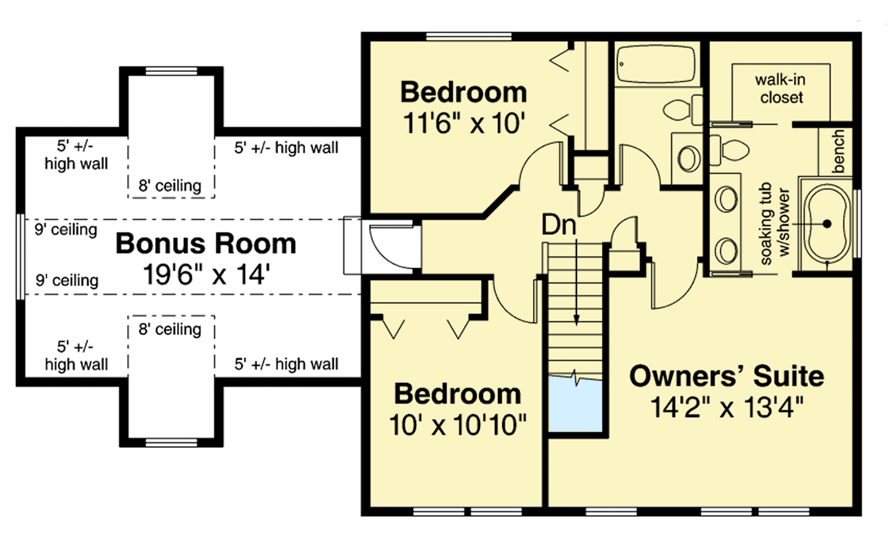

2nd Floor
slide image 1

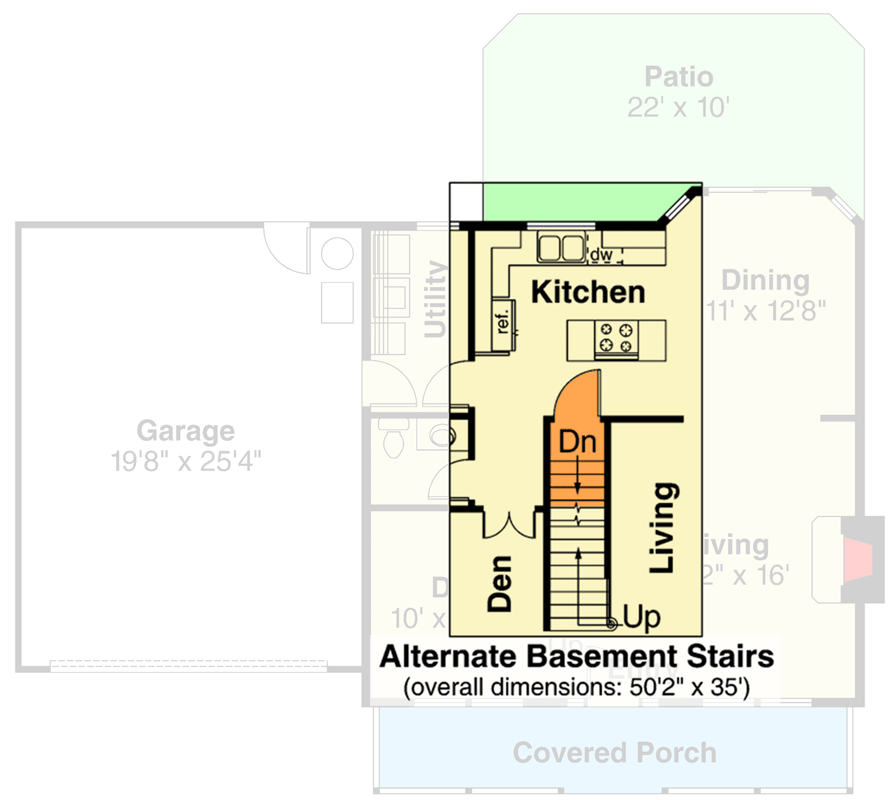

Basement Stair Location
slide image 2

Plan 72539DA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Basement Stair Location
floor plan image Basement Stair Location
Plan Details
  • Its covered porch and shutters give this compact house plan the look of a traditional farm-style home, but the interior is entirely up to date. Kitchen, dining room and living room flow together, creating a feeling of openness, with nine-foot ceilings adding to the sense of volume.
  • An arched opening sets the boundary between living room and dining room. To the left of the central stairway is a den.
  • Bedrooms and a large bonus room are upstairs.
  • The master suite has a walk-in closet and private bathroom. Amenities include a glass-enclosed soaking tub with shower, double vanity, and built-in bench.
  • This home plan's bonus room has a cross-shaped central space with a 9-foot ceiling that slopes down toward the corners. Dormer windows on two sides could be outfitted with cozy window seats.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

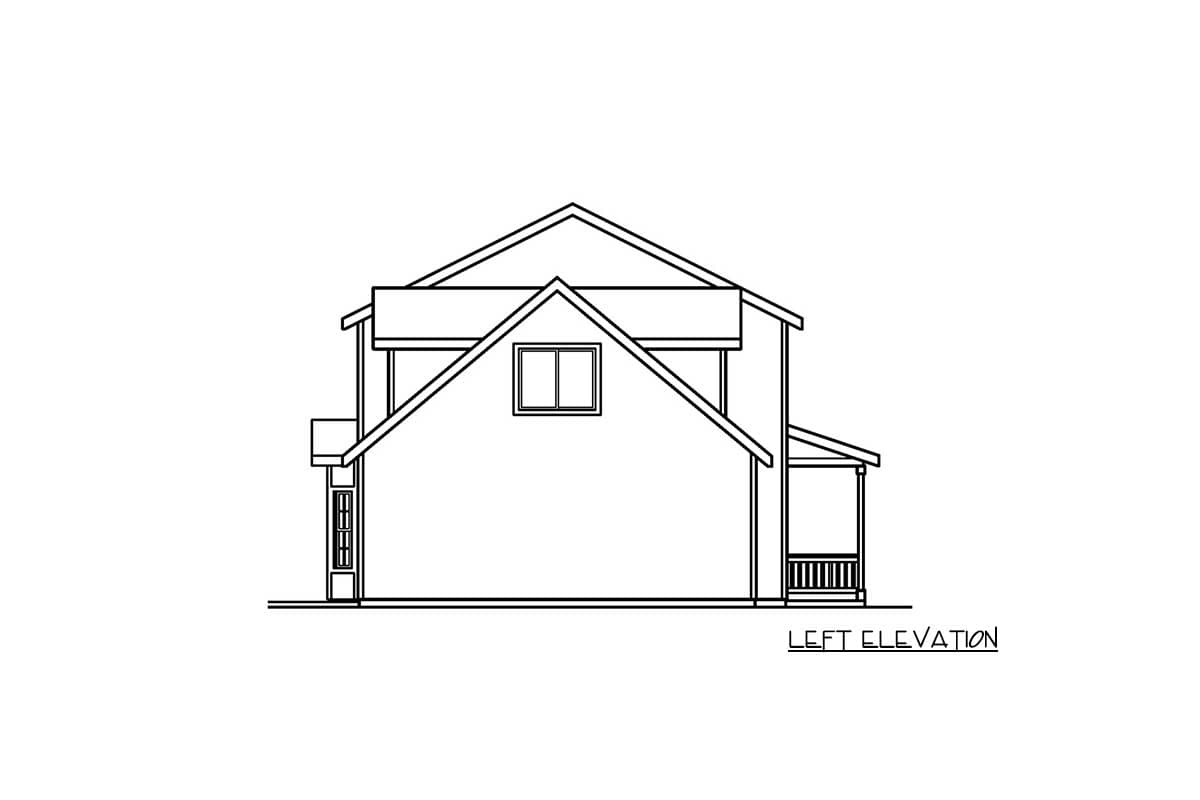

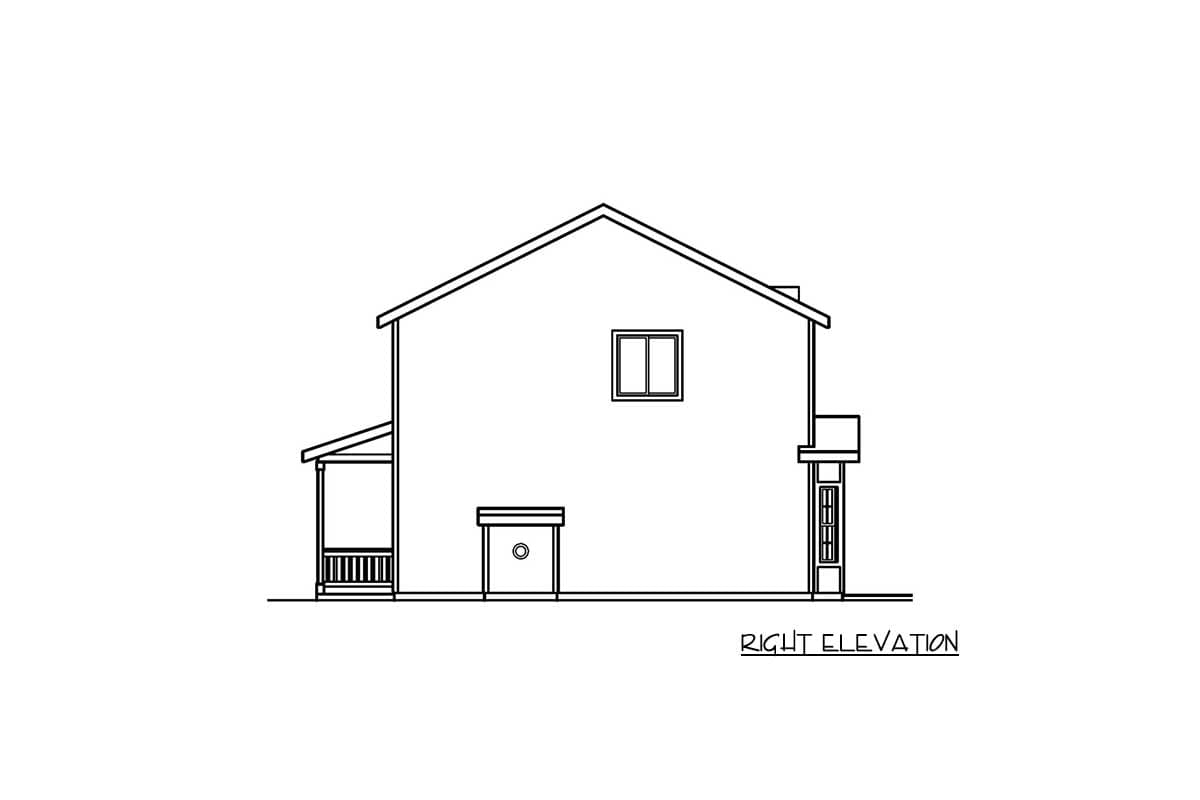

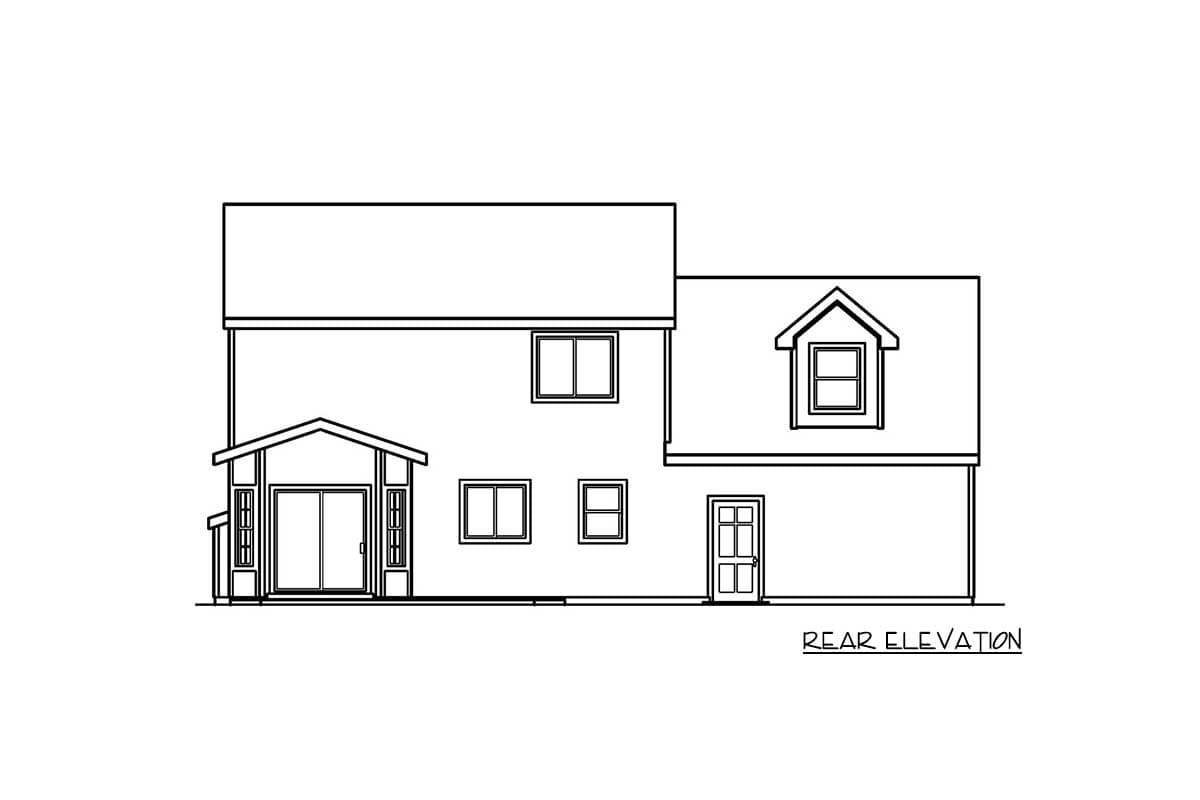

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,604 sq. ft.

1st Floor

838 sq. ft.

2nd Floor

766 sq. ft.

Bonus

353 sq. ft.

Porch, Front

123 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 2"

Depth

35' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

520 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Traditional

Special Features

Bonus Room

Den

Master Suite - 2nd Floor

Plan Collections

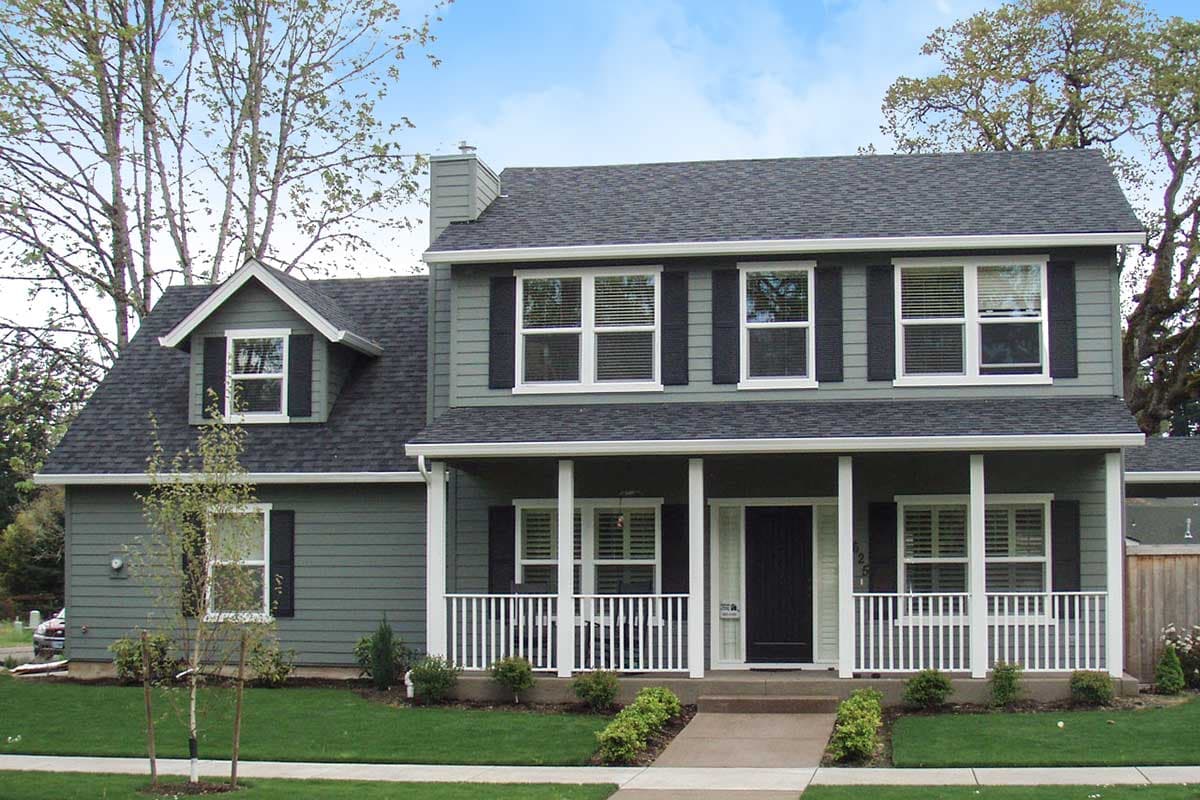

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,604 sq. ft.

1st Floor

838 sq. ft.

2nd Floor

766 sq. ft.

Bonus

353 sq. ft.

Porch, Front

123 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 2"

Depth

35' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

520 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Traditional

Special Features

Bonus Room

Den

Master Suite - 2nd Floor
