Plan 70912MK
Traditional Four-Plex House Plan with 2-Bed Under 750 Sq ft Per Unit
Heated S.F.
2,940
Units
4
Width
Depth
Floor Plan

Plan 70912MK

Main Level
slide image 0

Plan 70912MK

1-800-854-7852

1-262-521-4596

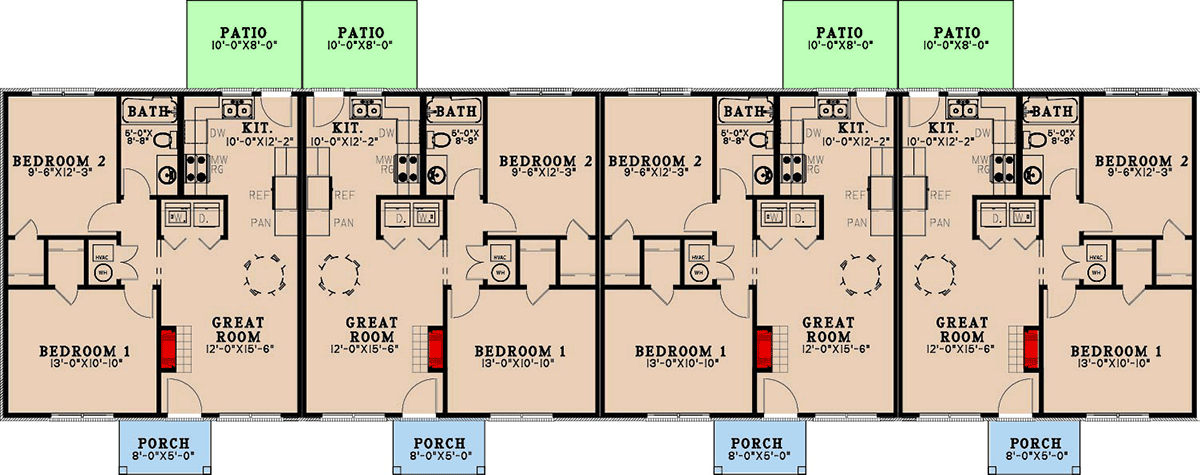

Main Level
floor plan image Main Level
Plan Details
  • This four-plex house plan features four units, each with 735 square feet of heated living space, including 2 bedrooms, 1 bathroom, and a front porch.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A,B,C,D
735Sq. Ft.
735 Sq. Ft.
1st Floor
2Beds
None
26'width
33'depth
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,940 sq. ft.

1st Floor

2,940 sq. ft.

Porch, Front

160 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

104' 0"

Depth

33' 4"

Max Ridge Height

18' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,940 sq. ft.

1st Floor

2,940 sq. ft.

Porch, Front

160 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

104' 0"

Depth

33' 4"

Max Ridge Height

18' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor
