Plan 21469DR
Traditional Home Plan with 3 Upstairs Beds and Laundry - 1656 Sq Ft
Heated S.F.
1,656
Beds
3
Baths
2
Stories
2
Cars
1
Floor Plan

Plan 21469DR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 21469DR

1-800-854-7852

1-262-521-4596

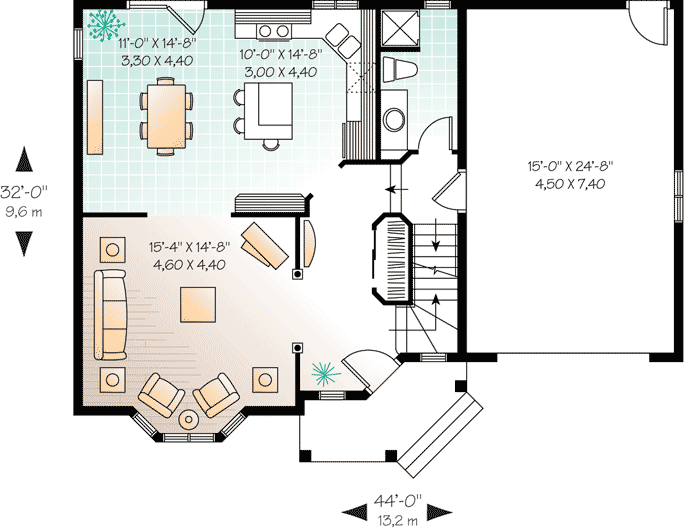

Main Level
floor plan image Main Level

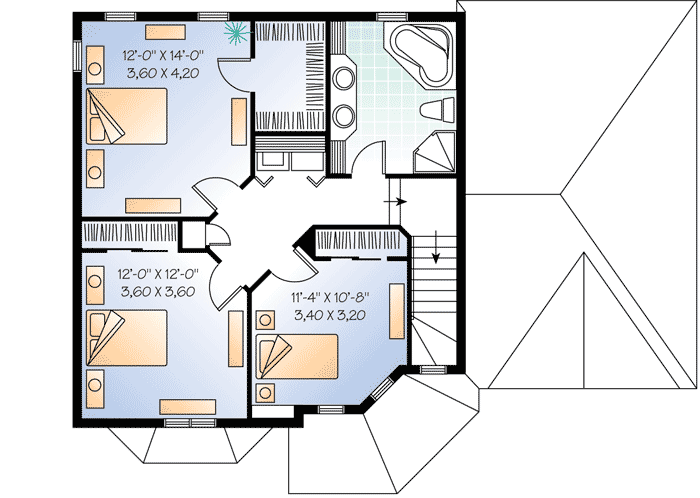

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This traditional home plan gives you 3 beds, 2 baths and 1,656 square feet of heated living space with a 407 square foot 1 car garage.
  • Architectural Designs primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

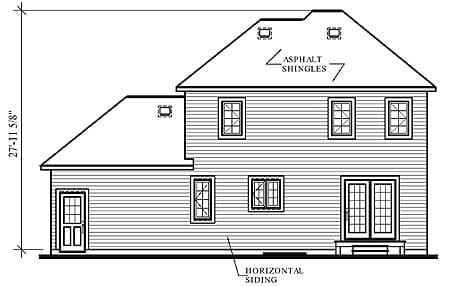

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,656 sq. ft.

1st Floor

835 sq. ft.

2nd Floor

821 sq. ft.

Basement Unfinished

835 sq. ft.

Entry

57 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

32' 0"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

407 sq. ft.

Count

1 Cars

Entry Location

Front

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric
