Traditional Home Plan with Dual Master Suites - 1808 Sq Ft

Heated S.F.

1,808

Beds

Baths

2.5

Stories

Cars

Floor Plan

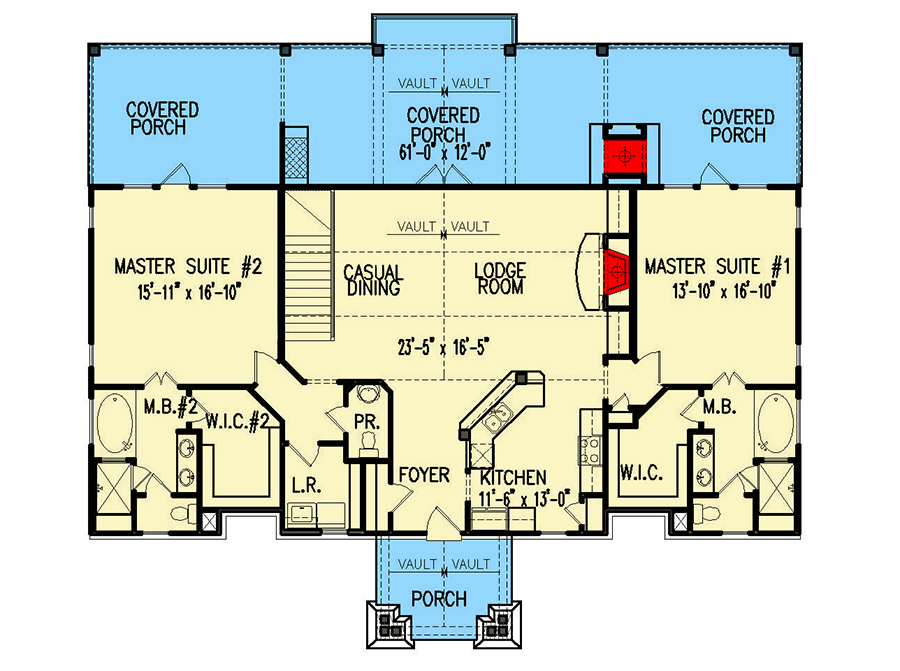

Main Level

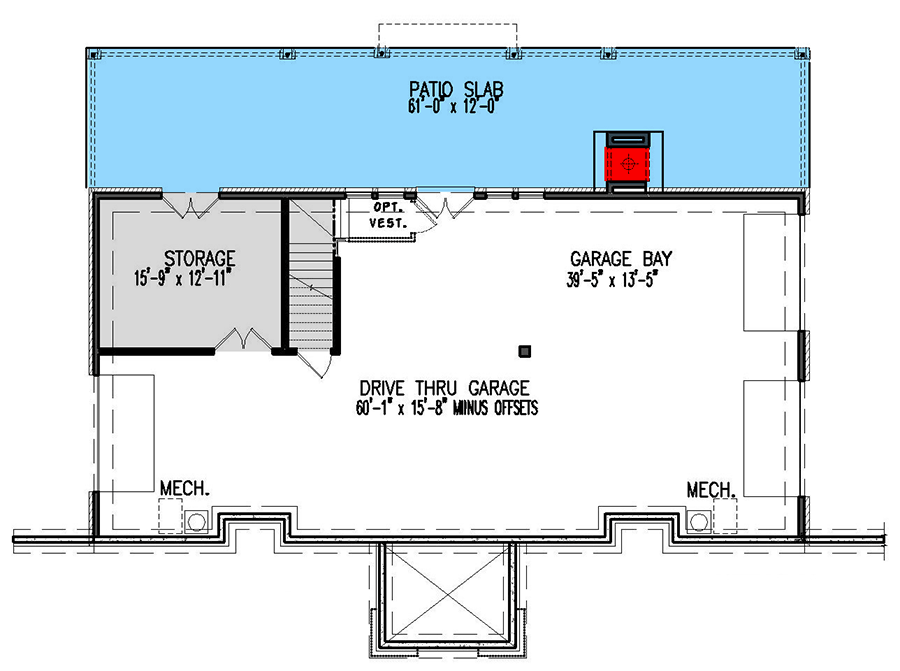

Lower Level

Plan Details

This unique home plan features a brick exterior, vaulted front entry, and is ideal for your sloping lot with its 3-car drive-under garage.
A vaulted casual dining area and lodge room with a fireplace at the center of the home offer easy access to the expansive vaulted back porch.
The adjacent kitchen offers additional seating at the breakfast bar.
On either side of the common space, you’ll discover twin master suites, each of which features a large walk-in closet and 5-piece bath with a walk-in shower.
A walk-out garage on the lower level includes a convenient enclosed storage area.

What's Included

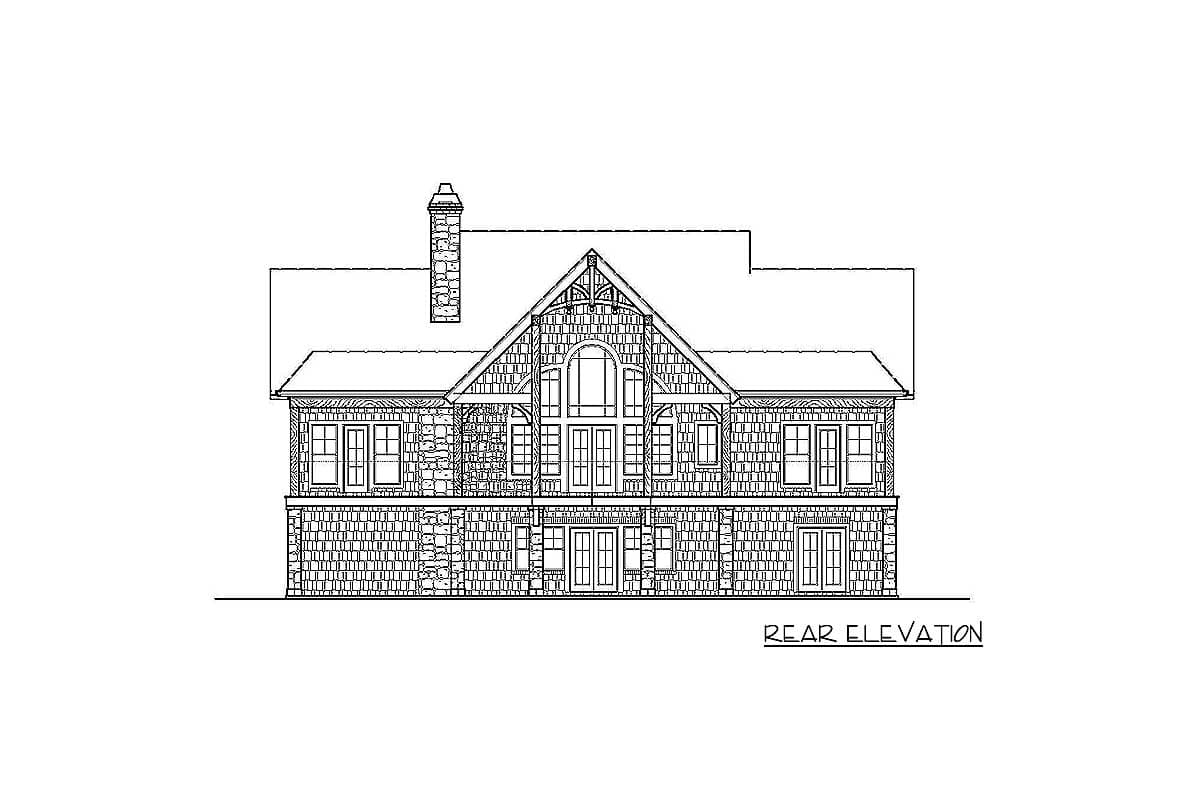

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
