Plan 83800JW
Traditional Home Plan with Split Bedrooms
Heated S.F.
2,160
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 83800JW

Main Level
slide image 0
Bonus
slide image 1

Plan 83800JW

1-800-854-7852

1-262-521-4596

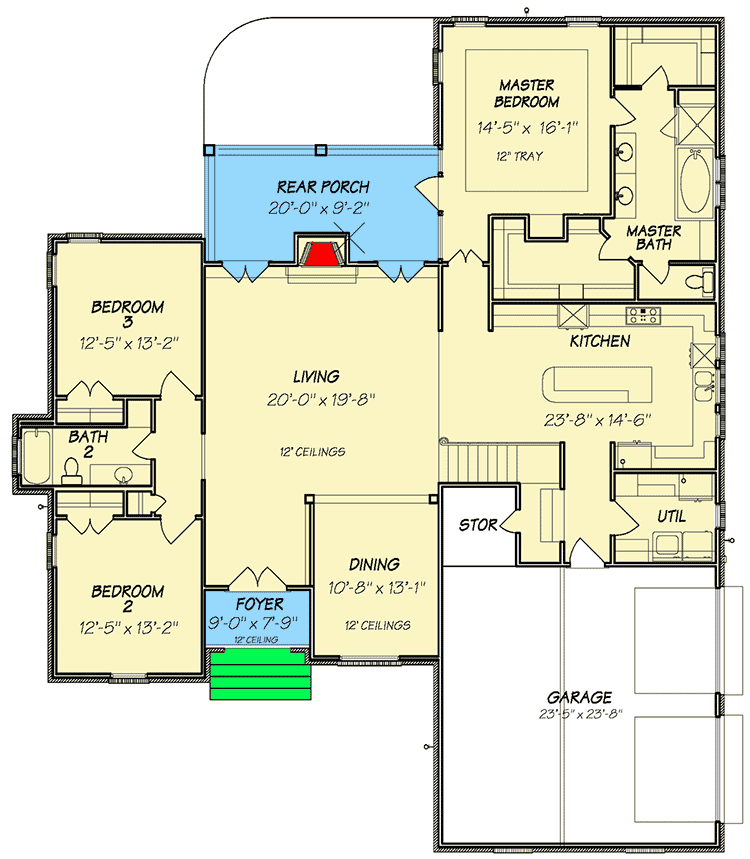

Main Level
floor plan image Main Level
Bonus
floor plan image Bonus
Plan Details
  • This 2,160 square foot Home & Garden > House Plans > Traditional house plan gives you 3 Beds 2 Baths and a 663 square foot 2 Cars garage
  • Architectural Designs primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,160 sq. ft.

1st Floor

2,160 sq. ft.

Bonus

340 sq. ft.

Storage

129 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 11"

Depth

71' 4"

Max Ridge Height

27' 11"

Garage

Type

Attached

Area

663 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,160 sq. ft.

1st Floor

2,160 sq. ft.

Bonus

340 sq. ft.

Storage

129 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 11"

Depth

71' 4"

Max Ridge Height

27' 11"

Garage

Type

Attached

Area

663 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
