Plan 970042VC
Traditional House Plan for a Sloping Lot
Heated S.F.
3,150
Beds
3
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 970042VC

Main Level
slide image 0
2nd Floor
slide image 1

Plan 970042VC

1-800-854-7852

1-262-521-4596

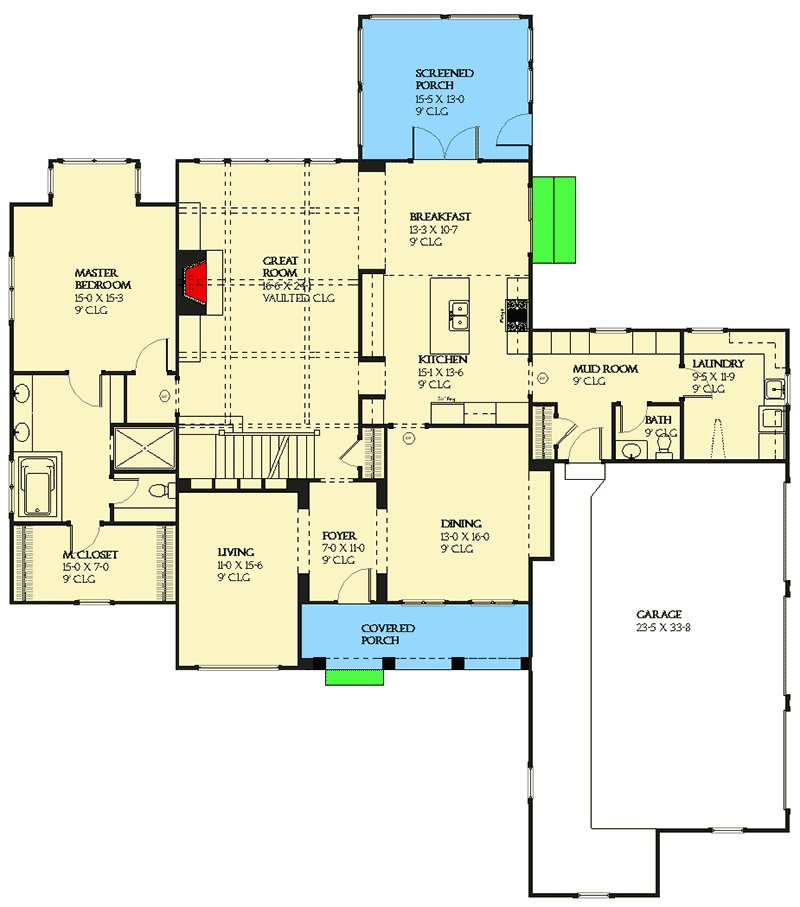

Main Level
floor plan image Main Level

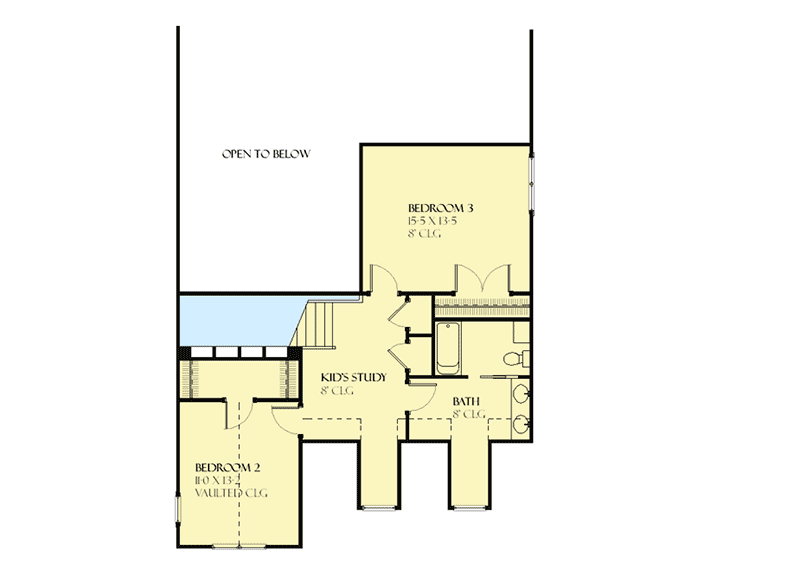

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Beautiful from all sides, this Traditional house plan offers large, comfortable rooms and a screened porch for your family to enjoy.
  • The formal dining room and living room are set off by themselves so you can entertain, leaving the kids to play in the great room.
  • The kitchen and breakfast nook form one large space with double doors to the screened porch.
  • Notice the well-designed mud room with its wall of built-ins to keep you organized.
  • The master suite is the only bedroom on this floor so you gain privacy and the benefit of no stairs to climb.
  • Bedrooms 2 and 3 are on the second floor with their own kid's study to play or do homework.
What's Included
  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

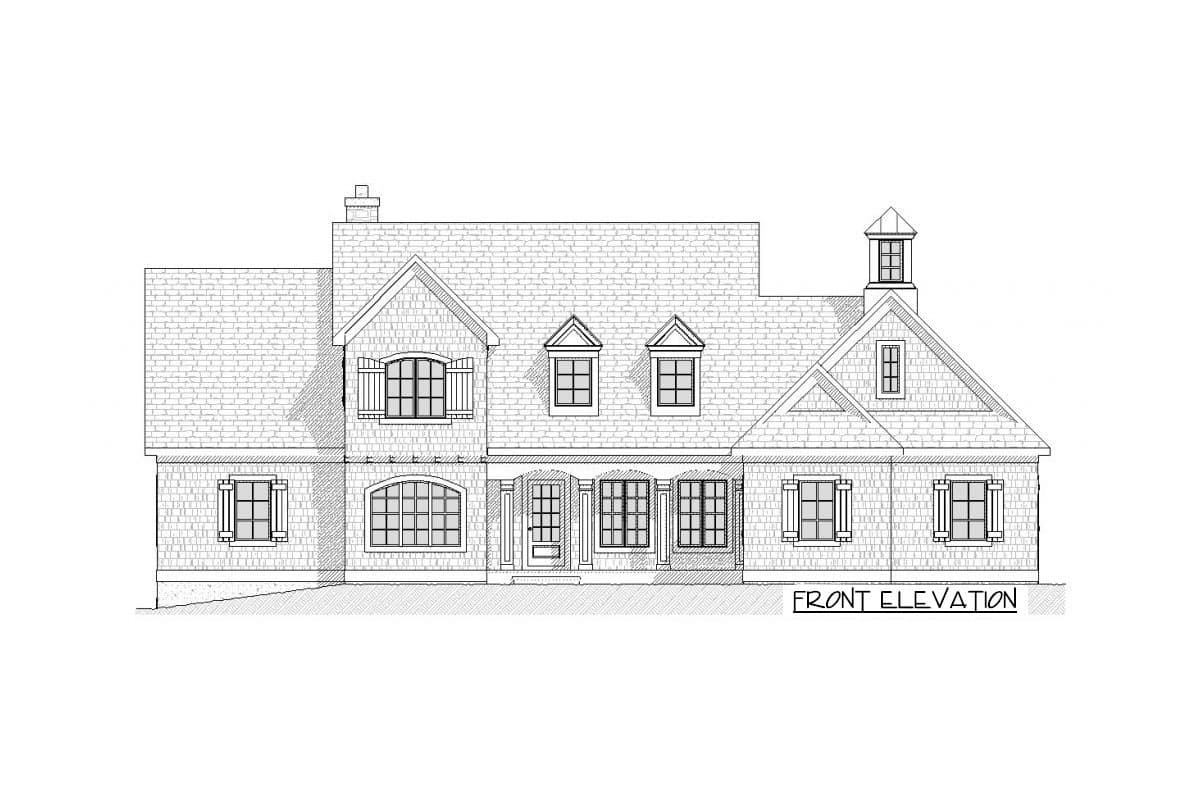

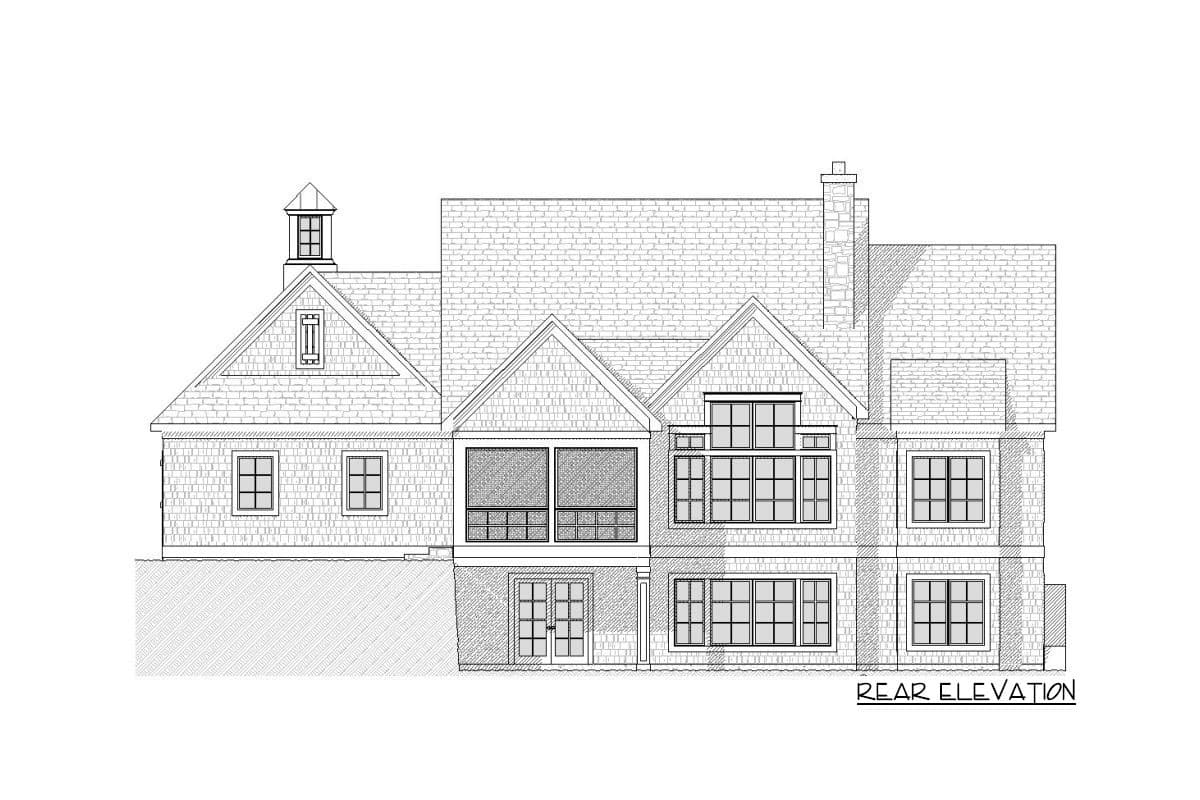

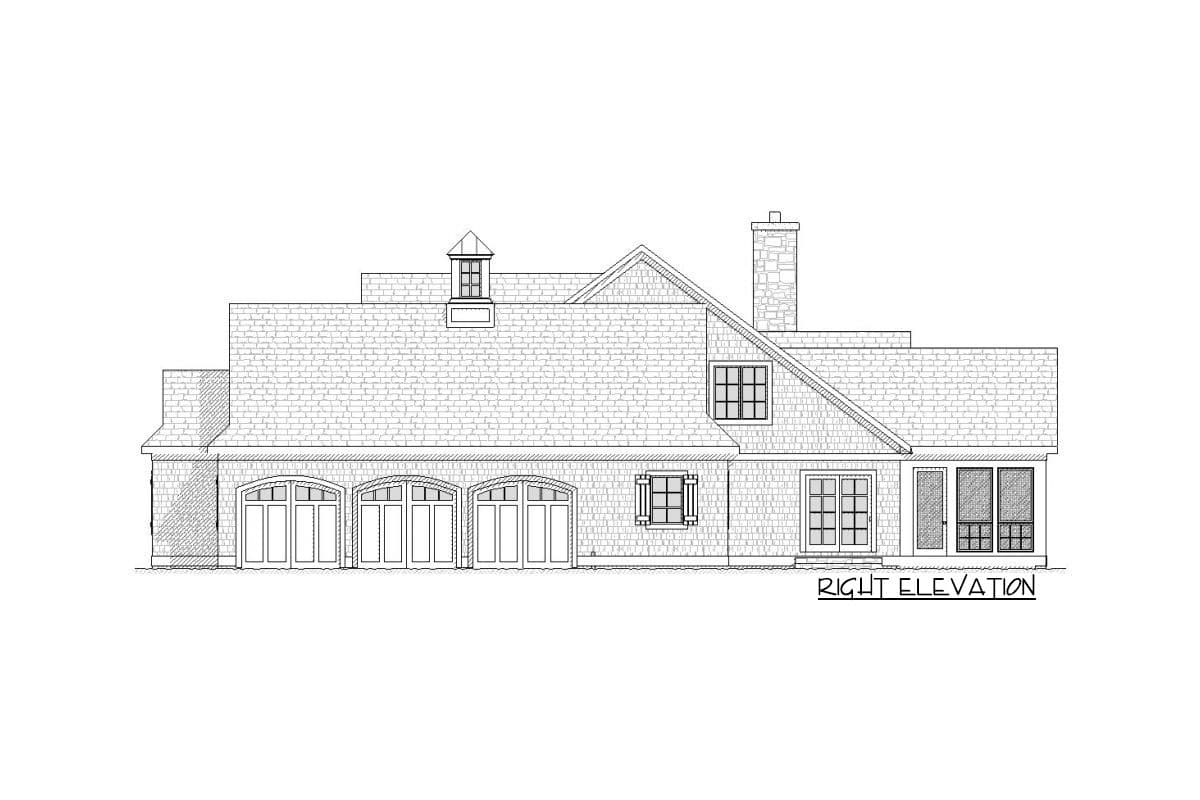

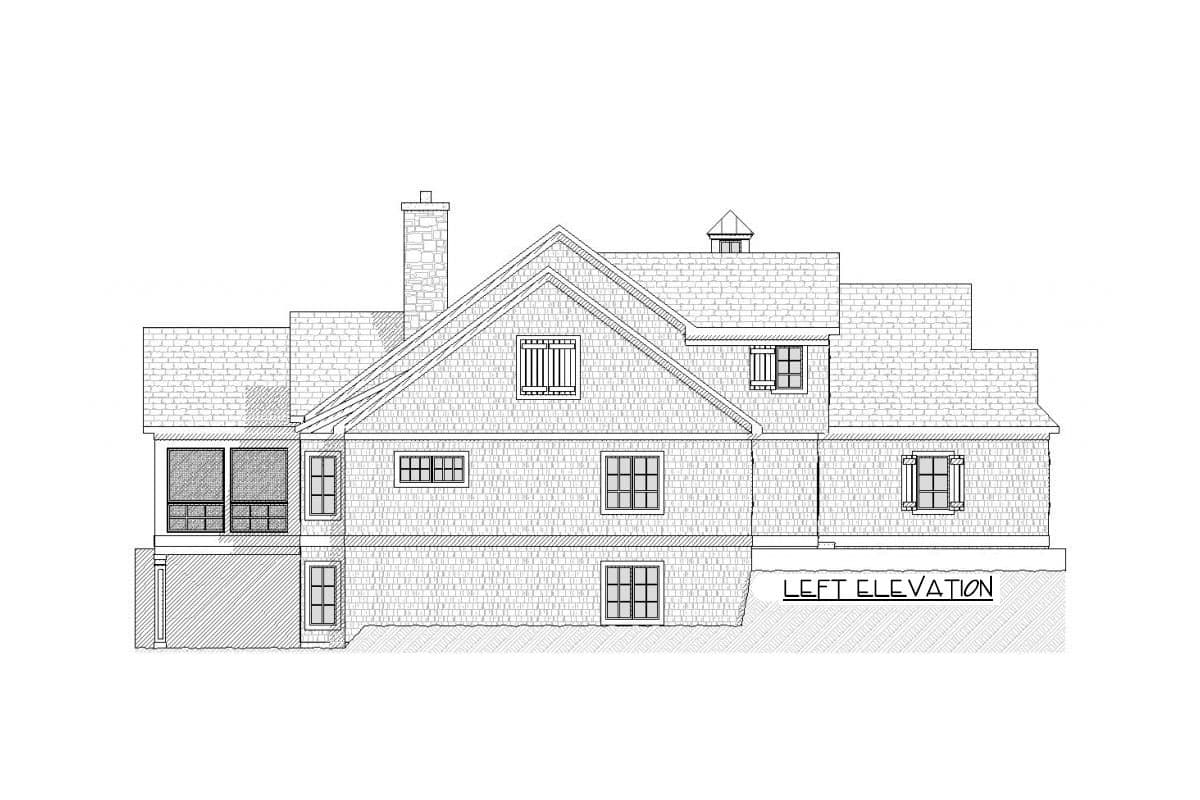

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,150 sq. ft.

1st Floor

2,326 sq. ft.

2nd Floor

824 sq. ft.

Screened Porch

200 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

82' 0"

Garage

Type

Attached

Area

790 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Architectural Style

Traditional

Special Features

Breakfast Nook

Formal Dining

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Square Footage Breakdown

Total Heated Area

3,150 sq. ft.

1st Floor

2,326 sq. ft.

2nd Floor

824 sq. ft.

Screened Porch

200 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

82' 0"

Garage

Type

Attached

Area

790 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Architectural Style

Traditional

Special Features

Breakfast Nook

Formal Dining

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom
