Plan 80406PM
Traditional House Plan with Finished Lower Level
Heated S.F.
4,273
Beds
4
Baths
3.5+
Stories
2
Cars
2
Floor Plan

Plan 80406PM

Basement
slide image 0
Basement
slide image 1
Main Level
slide image 2
Main Level
slide image 3
2nd Floor
slide image 4
2nd Floor
slide image 5

Plan 80406PM

1-800-854-7852

1-262-521-4596

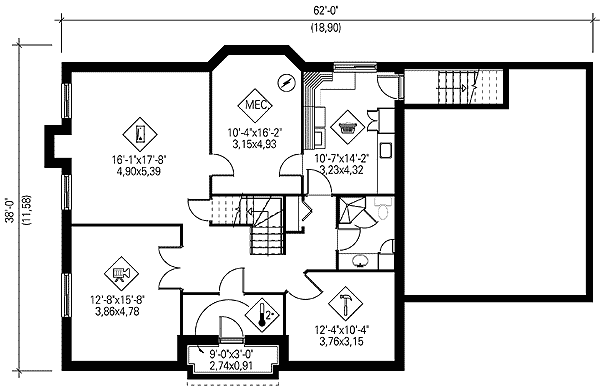

Basement
floor plan image Basement
Basement
floor plan image Basement
Main Level
floor plan image Main Level
Main Level
floor plan image Main Level

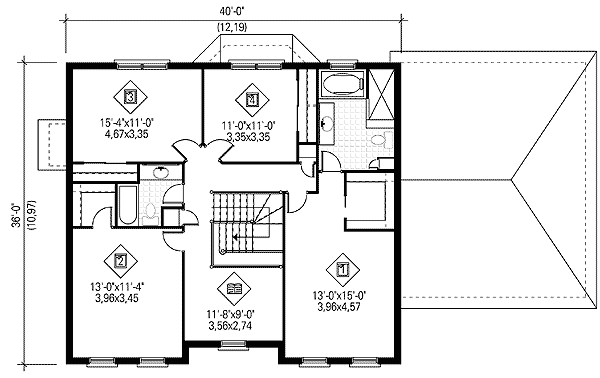

2nd Floor
floor plan image 2nd Floor
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Enjoy all the benefits that come with this spacious Traditional house plan.
  • Large comfortable rooms are meant for your family to spread out easily.
  • Two linear closets in the foyer give you room for family and guests' coats.
  • From the kitchen you have wonderful sightlines to the family room and the backyard through a wall of windows.
  • On the second floor, there's a lovely reading nook in close proximity to all four bedrooms.
  • A full kitchen on the finished lower level makes an in-law suite a possibility.
  • Use one of the rooms as a workshop, yoga studio or craft room.



What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,273 sq. ft.

Lower Level

1,427 sq. ft.

1st Floor

1,427 sq. ft.

2nd Floor

1,419 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

38' 0"

Max Ridge Height

33' 7"

Garage

Type

Attached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

In-Law Suite

Master Suite - 2nd Floor

Workshop

Plan Collections

Canadian House Plans

Luxury

Metric

Square Footage Breakdown

Total Heated Area

4,273 sq. ft.

Lower Level

1,427 sq. ft.

1st Floor

1,427 sq. ft.

2nd Floor

1,419 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

38' 0"

Max Ridge Height

33' 7"

Garage

Type

Attached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

In-Law Suite

Master Suite - 2nd Floor

Workshop

Plan Collections

Canadian House Plans

Luxury

Metric
