Plan 62617DJ
Traditional House Plan with Open Layout
Heated S.F.
1,977
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 62617DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 62617DJ

1-800-854-7852

1-262-521-4596

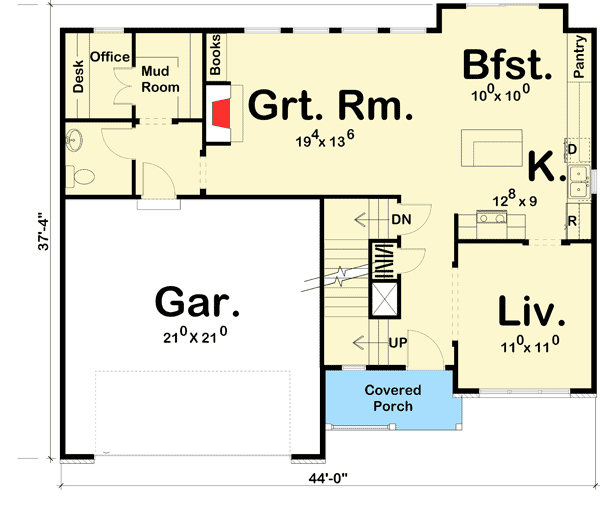

Main Level
floor plan image Main Level

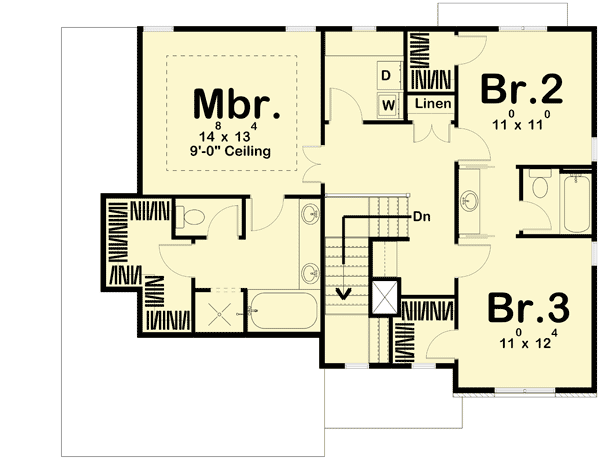

2nd Floor
floor plan image 2nd Floor
Plan Details

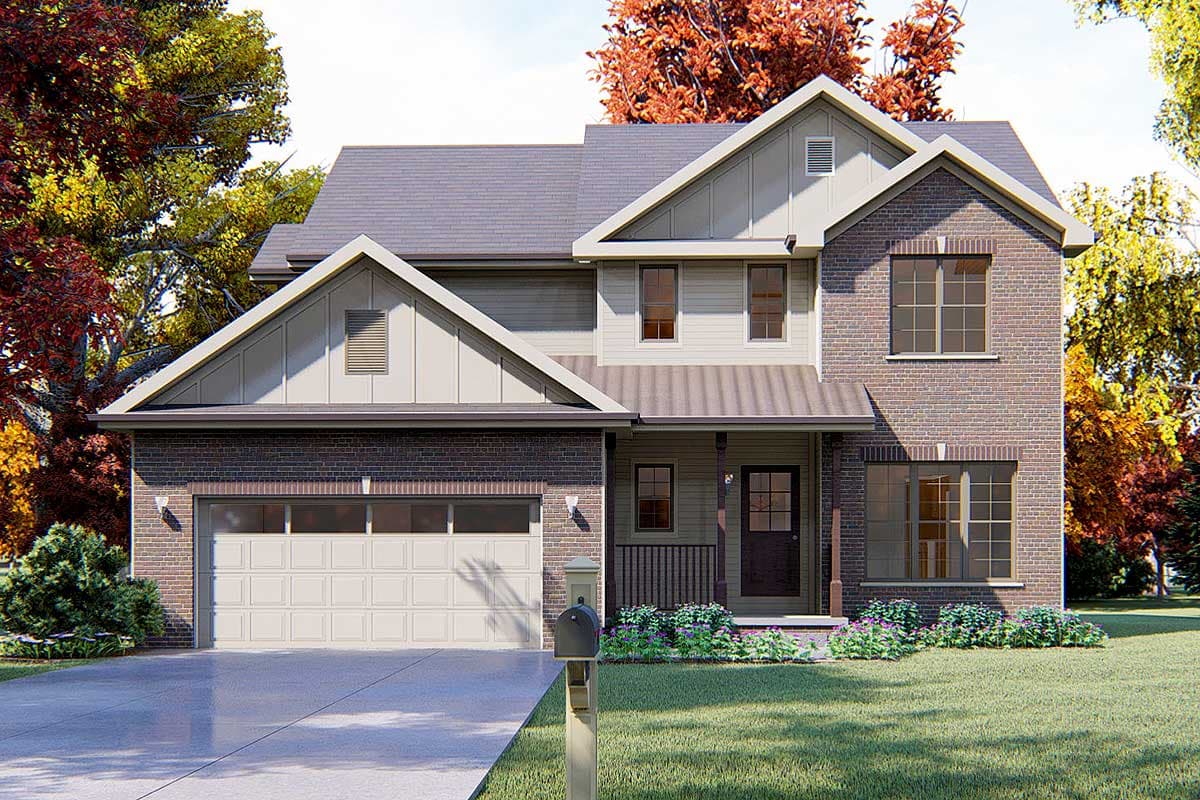

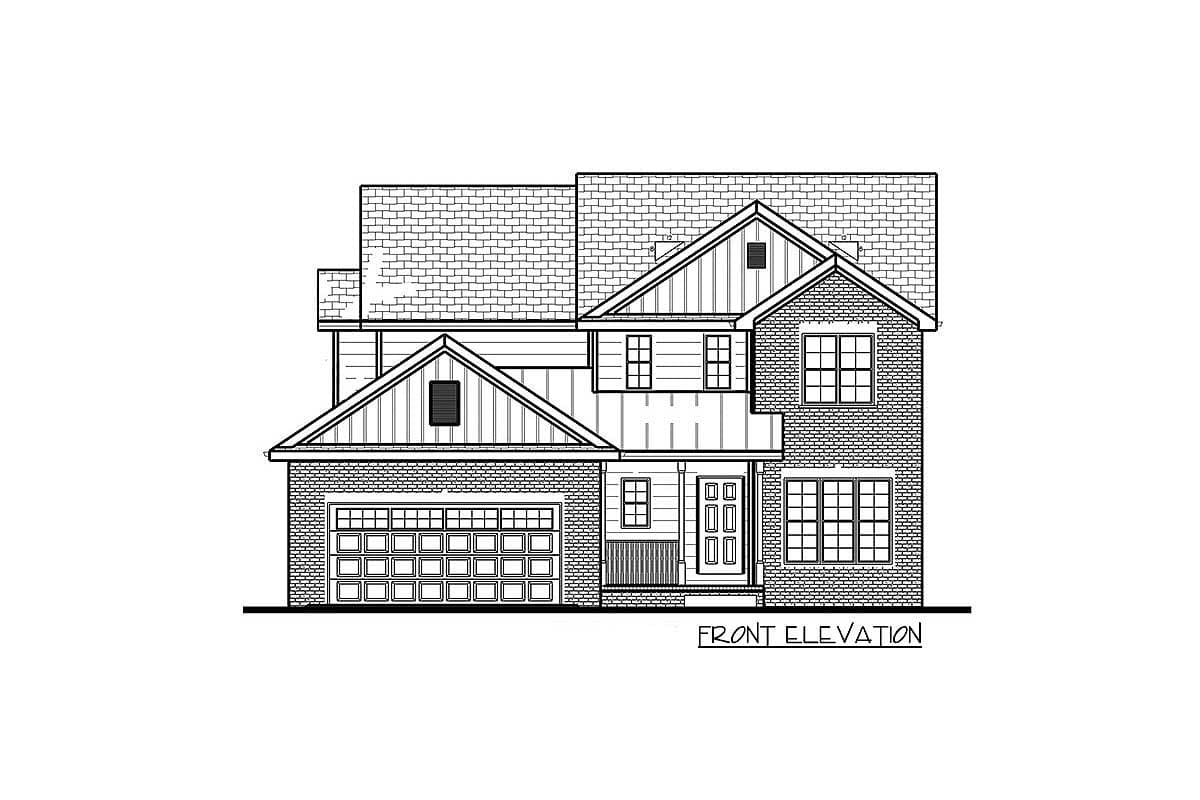

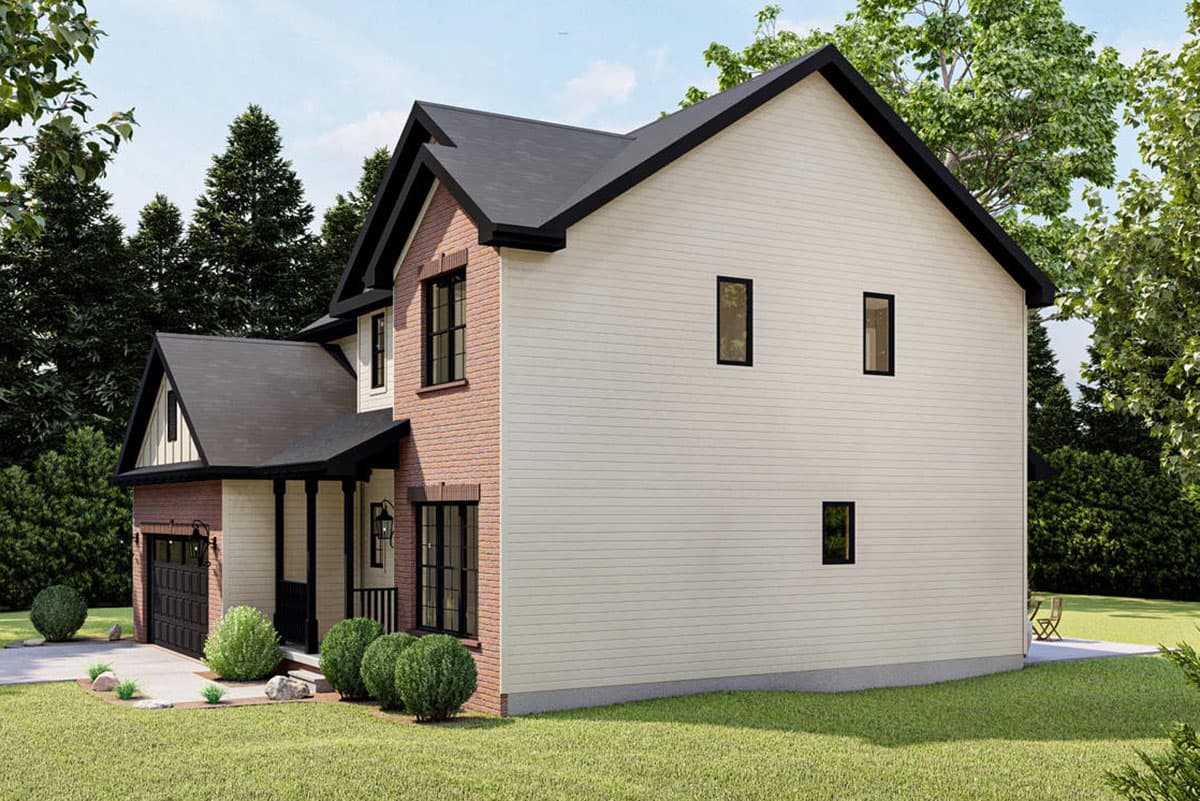

  • The use of mixed materials on the outside of this Traditional house plan gives it an interesting look.
  • Metal roofing accents the front porch.
  • A formal living room lies off the foyer or use it as a formal dining room.

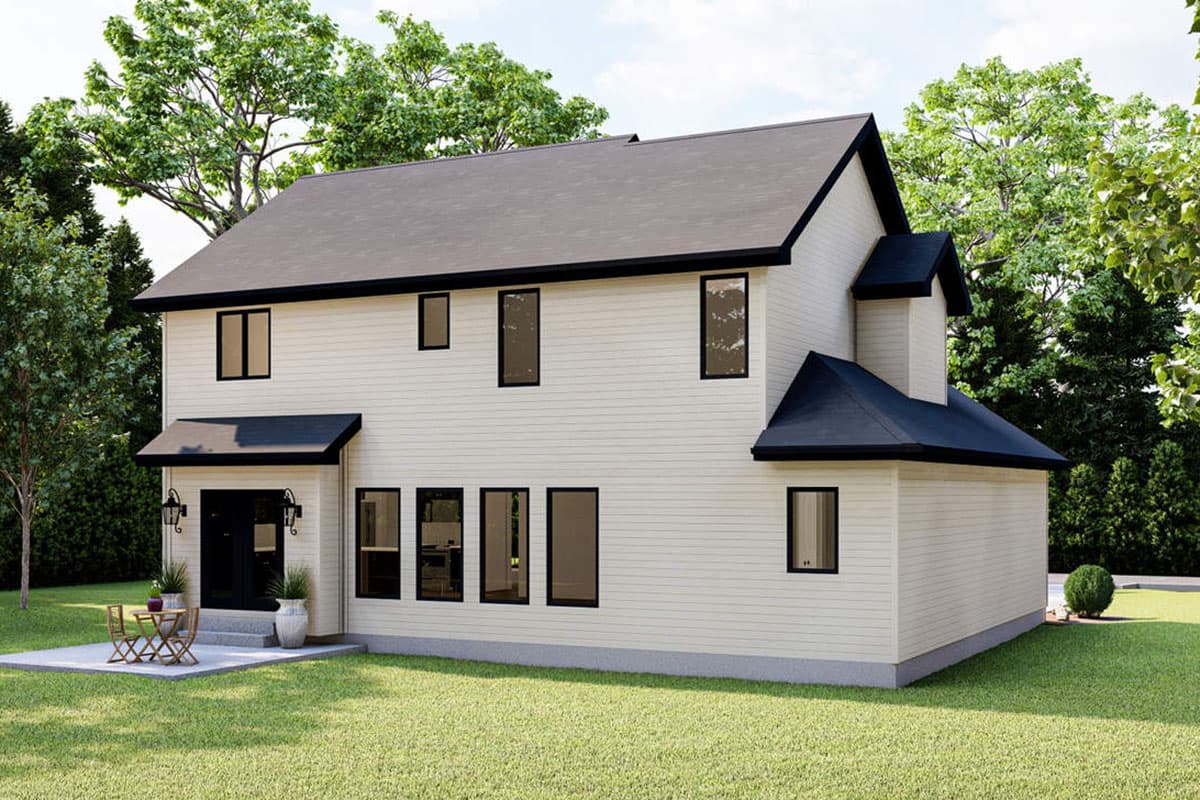

  • Wide open views can be found in the informal living area in back.
  • All the bedrooms are upstairs along with a second floor laundry room, right where most of the laundry is generated.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,977 sq. ft.

1st Floor

979 sq. ft.

2nd Floor

998 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

38' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Home Office

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Plan Collections

Home Office
