Plan 40509WM
Traditional House Plan with Optional Game Room - 2171 Sq Ft
Heated S.F.
2,171
Beds
3
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 40509WM

Main Level
slide image 0
Optional
slide image 1

Plan 40509WM

1-800-854-7852

1-262-521-4596

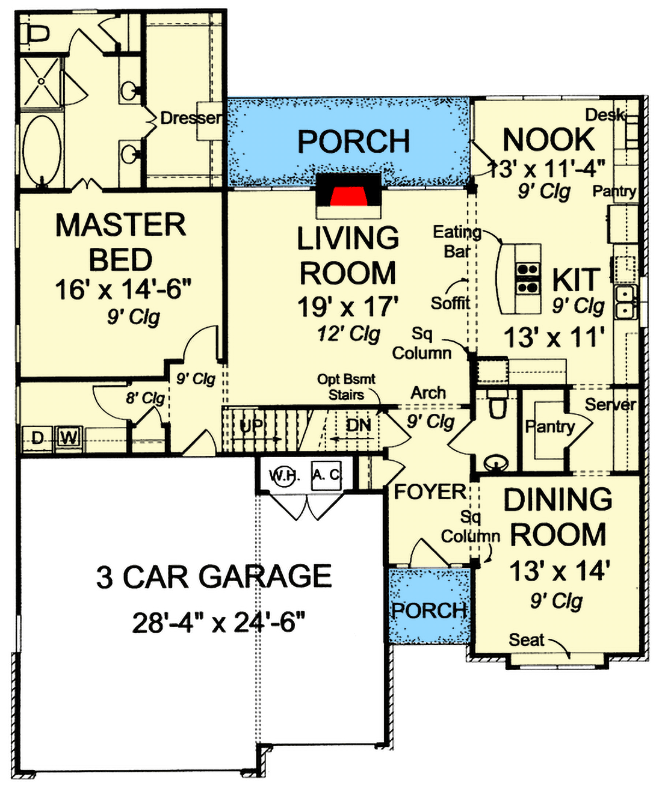

Main Level
floor plan image Main Level

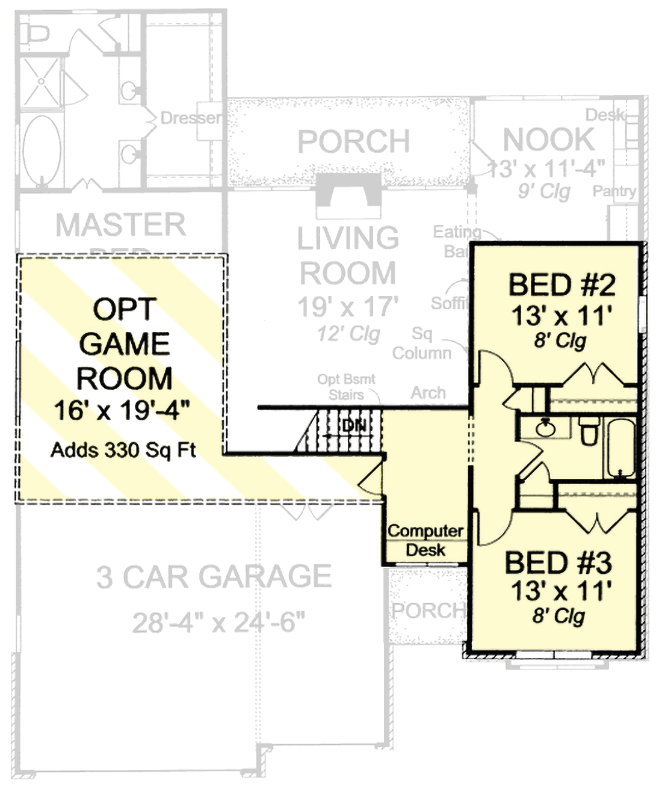

Optional
floor plan image Optional
Plan Details
  • All sorts of amenities come with this Traditional house plan such as a butler's pantry, a walk-in pantry, a charming window seat in the dining room and a built-in desk up on the second floor that's perfect for homework for the kids.
  • A 12' high ceiling in the living room makes the room feel much larger and the sight lines sweep around to the kitchen and informal nook where you will find another built-in desk.
  • The master suite is the only bedroom on this floor and it features a giant walk-in closet with built-in dresser.
  • Two additional bedrooms lie on the upper floor with a shared hall bathroom between them.
  • Finish the optional game room to gain an extra 330 square feet of living space that the whole family will enjoy.
What's Included

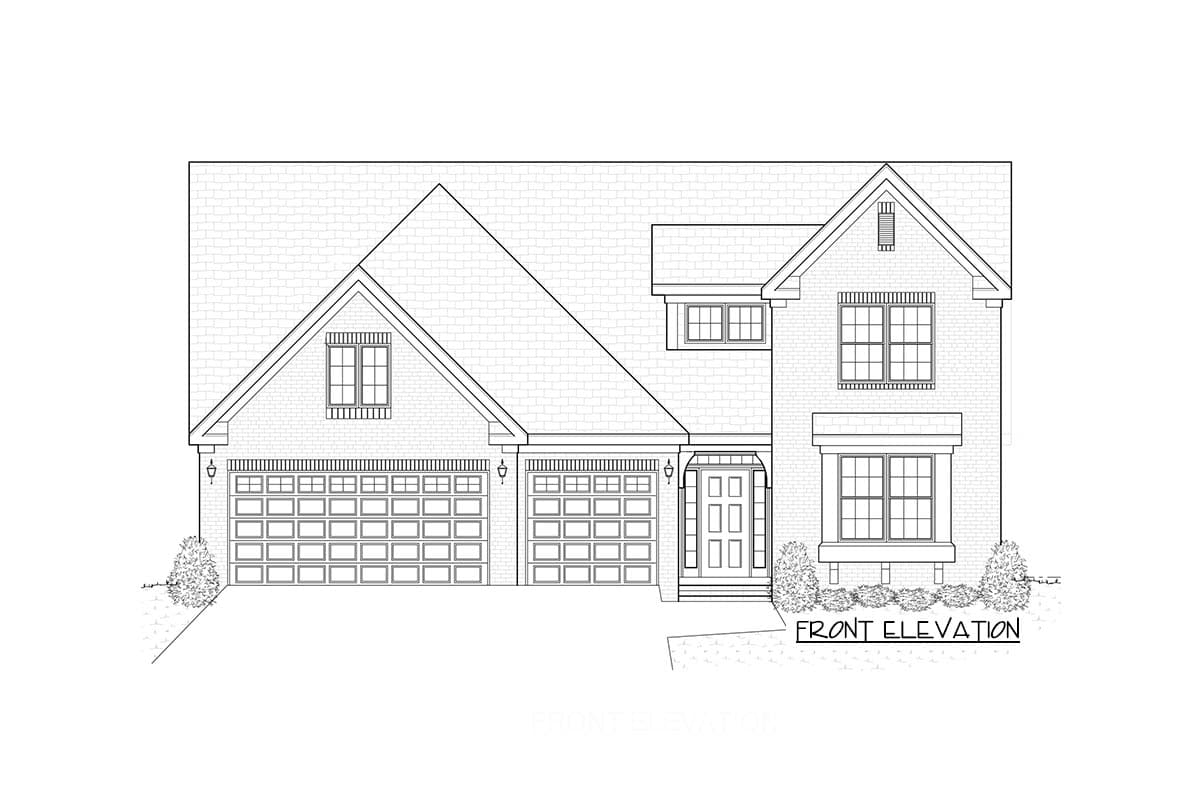

  • Front elevation and construction notes

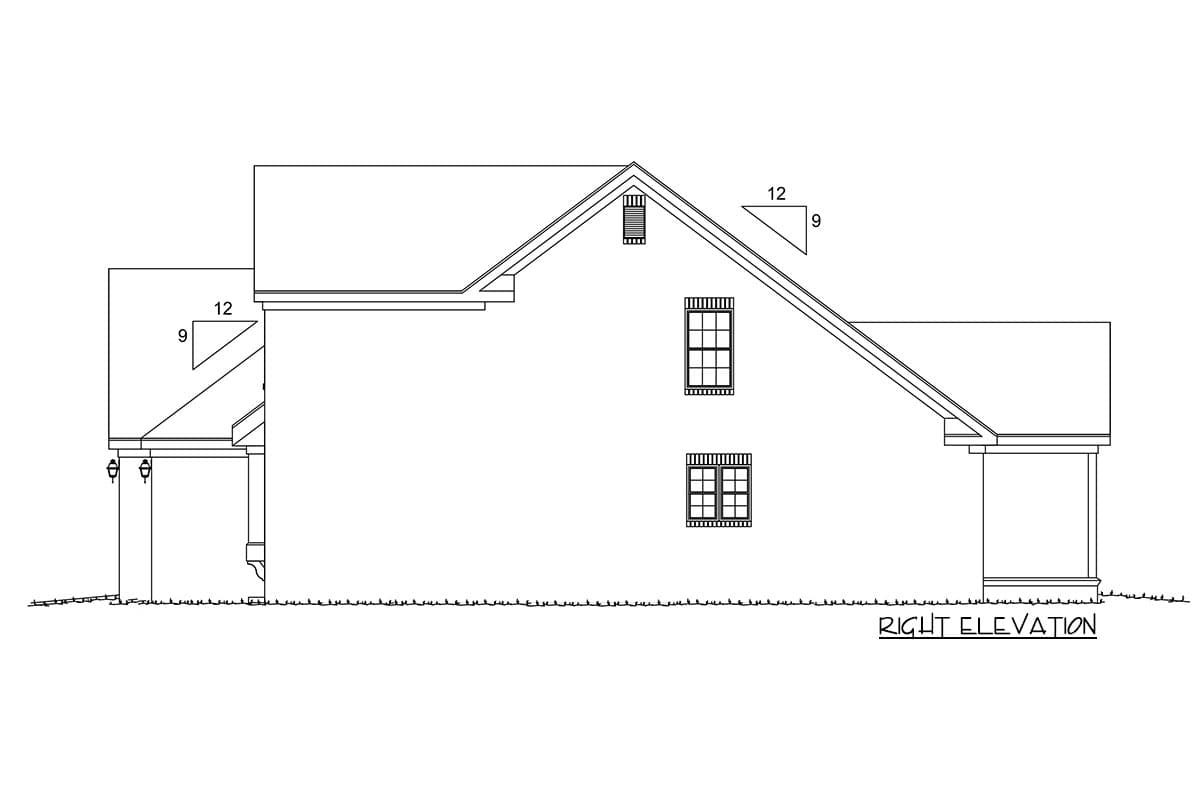

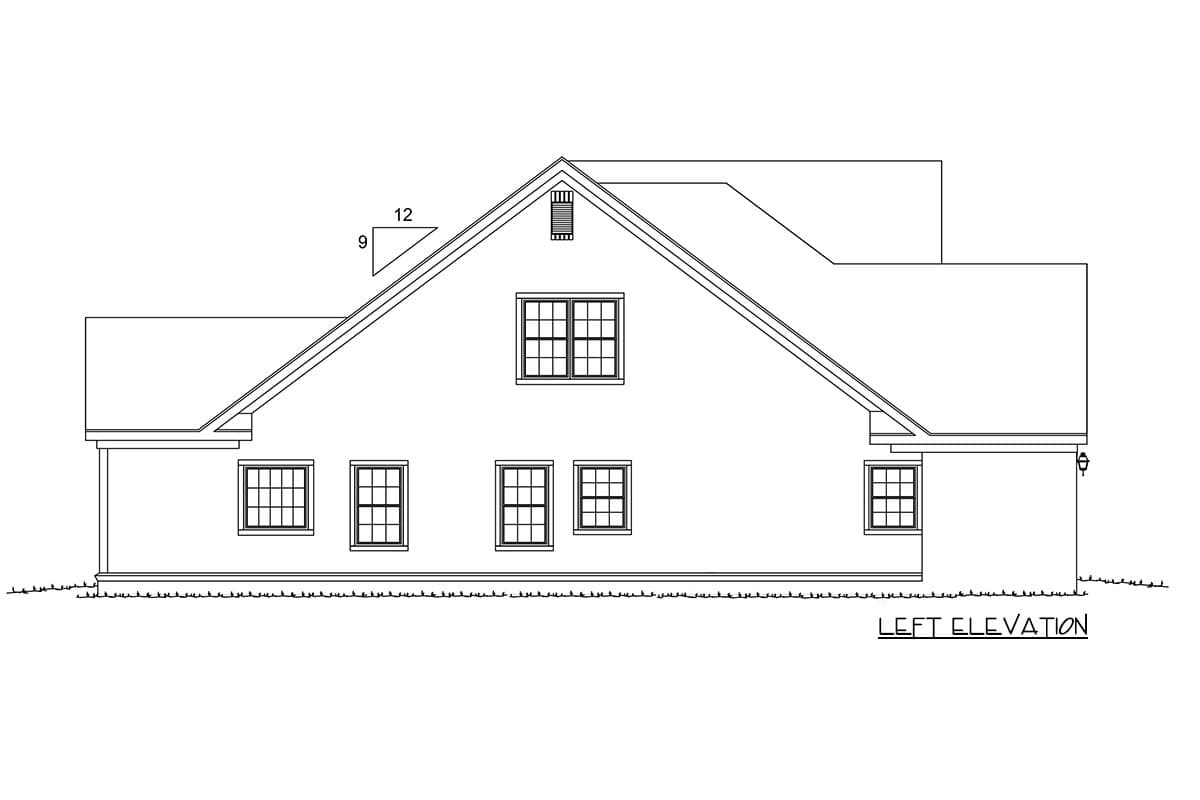

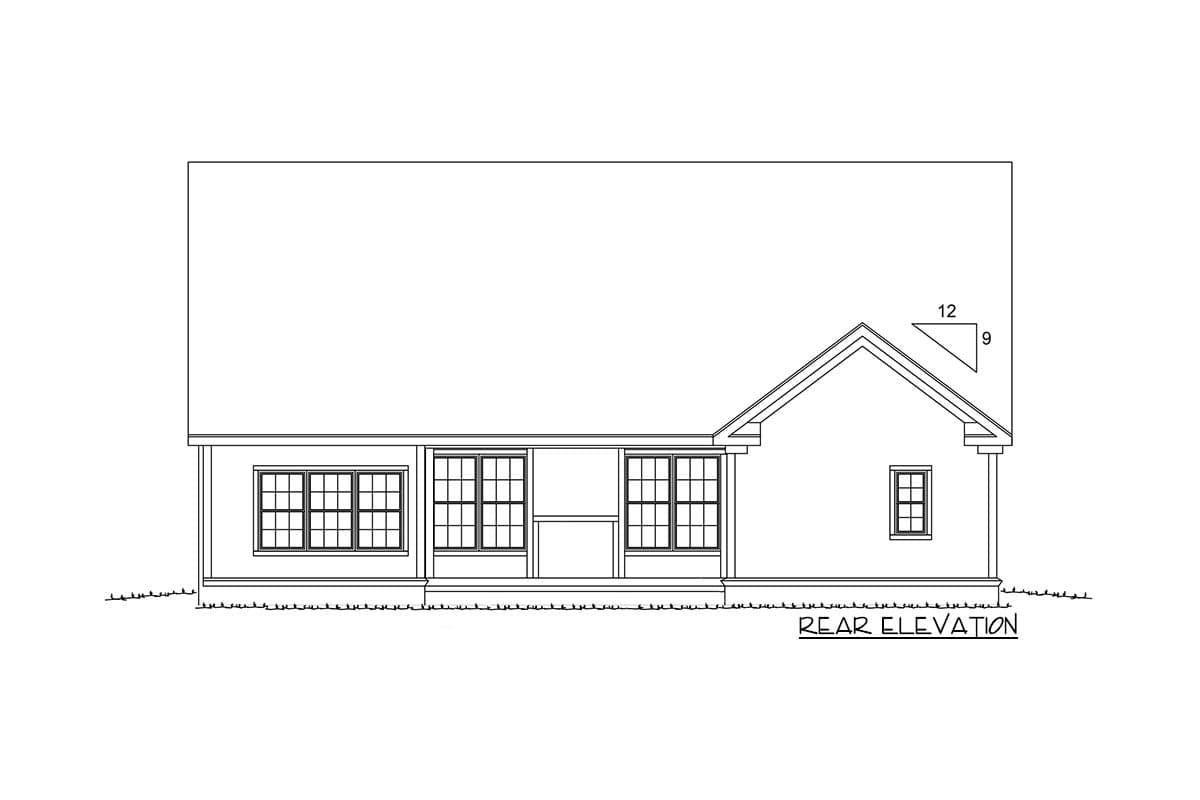

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,171 sq. ft.

1st Floor

1,639 sq. ft.

2nd Floor

532 sq. ft.

Bonus

330 sq. ft.

Porch, Front

330 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

60' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

698 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Architectural Style

Traditional

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,171 sq. ft.

1st Floor

1,639 sq. ft.

2nd Floor

532 sq. ft.

Bonus

330 sq. ft.

Porch, Front

330 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

60' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

698 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Architectural Style

Traditional

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
