Plan 36039DK
Traditional House Plan with Vaulted Family Room - 2283 Sq Ft
Heated S.F.
2,283
Beds
4
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 36039DK

Main Level
slide image 0
2nd Floor
slide image 1

Plan 36039DK

1-800-854-7852

1-262-521-4596

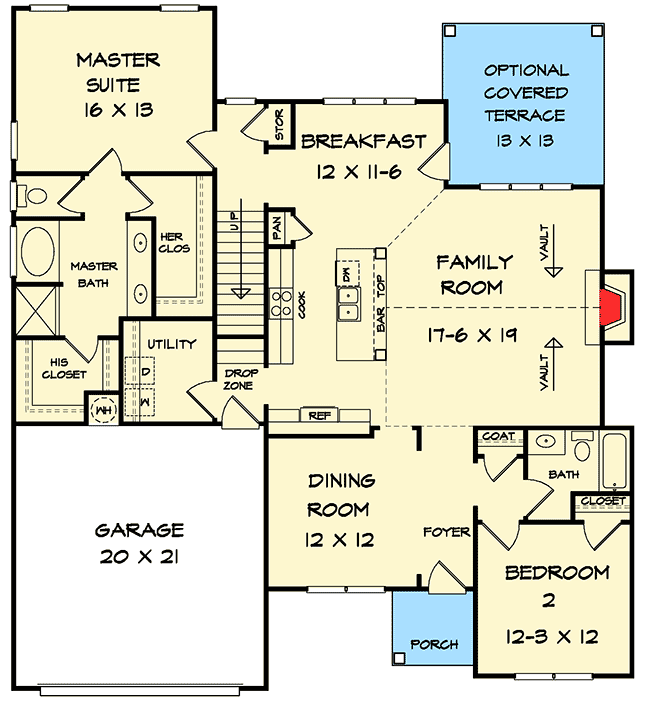

Main Level
floor plan image Main Level

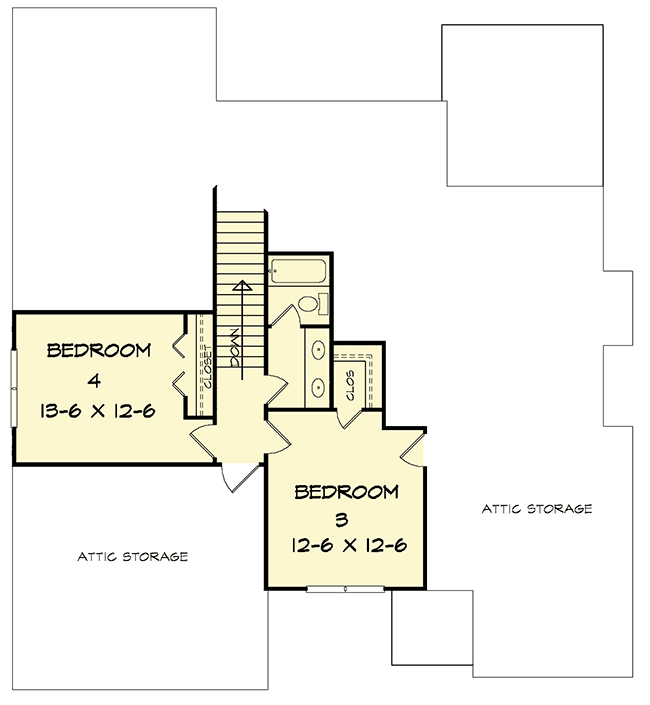

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A charming center gable gives this Traditional house plan lots of curb appeal as well as brings light into bedroom 3.
  • The formal dining room is open to the foyer, making it feel larger.
  • In back, the heart of the home is the huge vaulted family room that has a big fireplace that can be seen all the way from the kitchen.
  • A bar top island lets people sit and chat while dinner is cooking.
  • The breakfast nook opens to an optional covered terrace where you can grill or just relax in the shade.
  • The two bedrooms on the main floor are on opposite sides of the home, giving privacy to the master suite.
  • An additional two bedrooms can be found on the upper floor.
  • Related Plans: Get alternate exteriors with house plans 36037DK and 36038DK. Get 3-beds with house plan 36042DK.
What's Included
  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,283 sq. ft.

1st Floor

1,764 sq. ft.

2nd Floor

519 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

50' 0"

Depth

55' 0"

Max Ridge Height

27' 3"

Garage

Type

Attached

Area

420 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

New American

Traditional

Special Features

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
