Plan 710123BTZ
Traditional House Plan with Vaulted Keeping Room
Heated S.F.
3,230
Beds
3 - 4
Baths
4.5
Stories
2
Cars
2
Floor Plan

Plan 710123BTZ

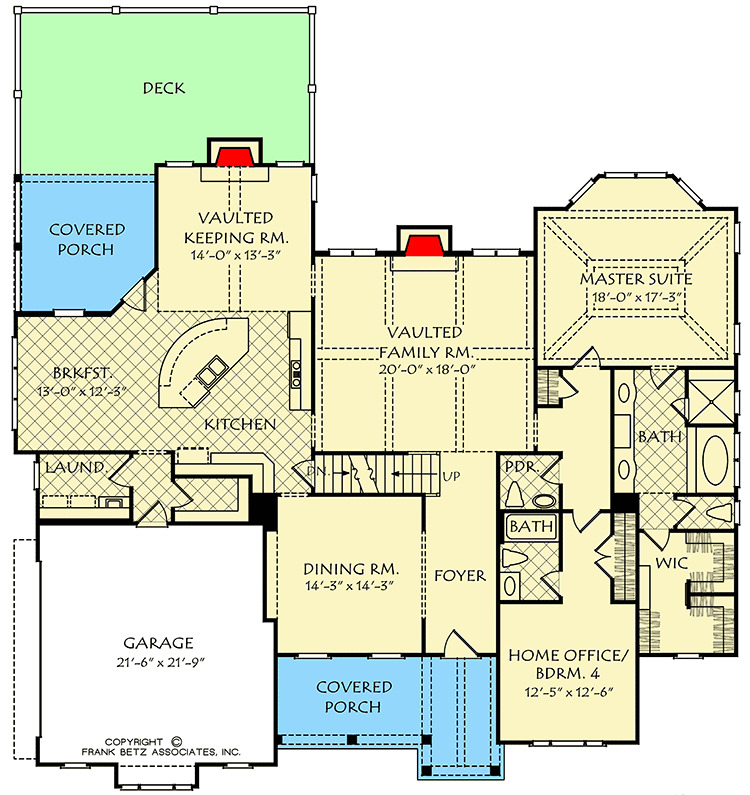

Main Level
slide image 0

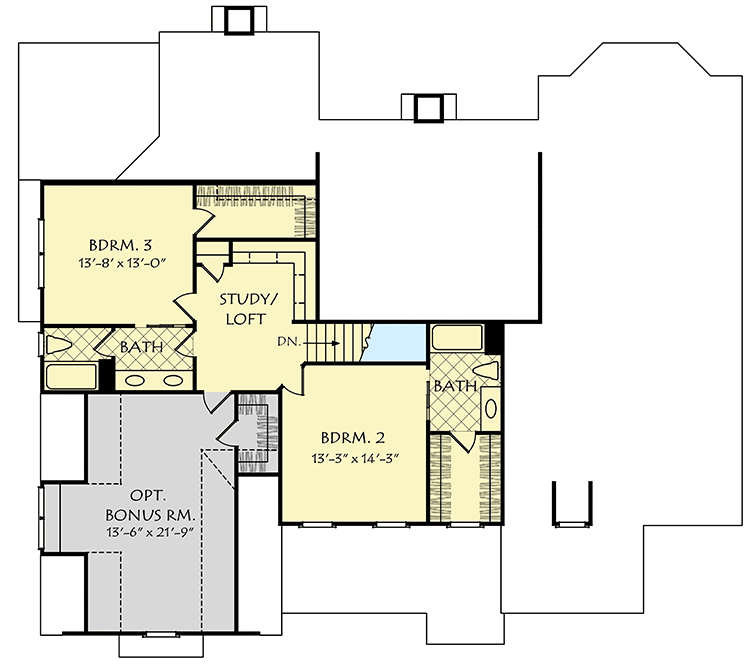

2nd Floor
slide image 1

Plan 710123BTZ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A covered front porch gives a warm welcome to guests as they enter this 4-bed house plan.
  • A vaulted family room and separate keeping room - both with fireplaces - provide cozy rooms to visit.
  • The large kitchen is adorned with a curved island and breakfast area looking onto the covered back porch and extended deck.
  • A main level master bedroom is found across the home, and comes with a lovely en suite and generous walk-in closet.
  • Upstairs, a study loft with a built-in desk area is waiting to be used. Two additional bedrooms, each with their own full bath, are located on either side of the hall.
  • An optional bonus room is available on this floor as well for a fourth bedroom or possible game area.
  • Related Plans: Get an alternate exterior with house plan 710124BTZ and 710125BTZ.
What's Included

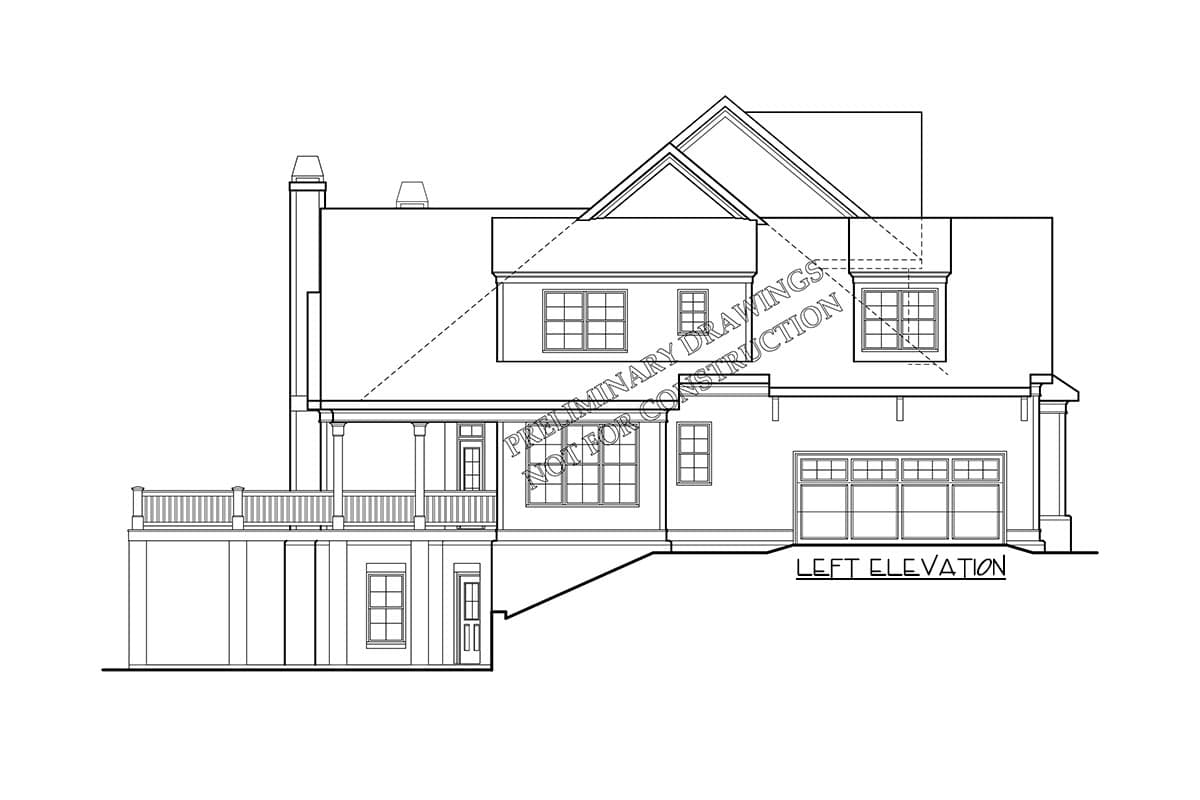

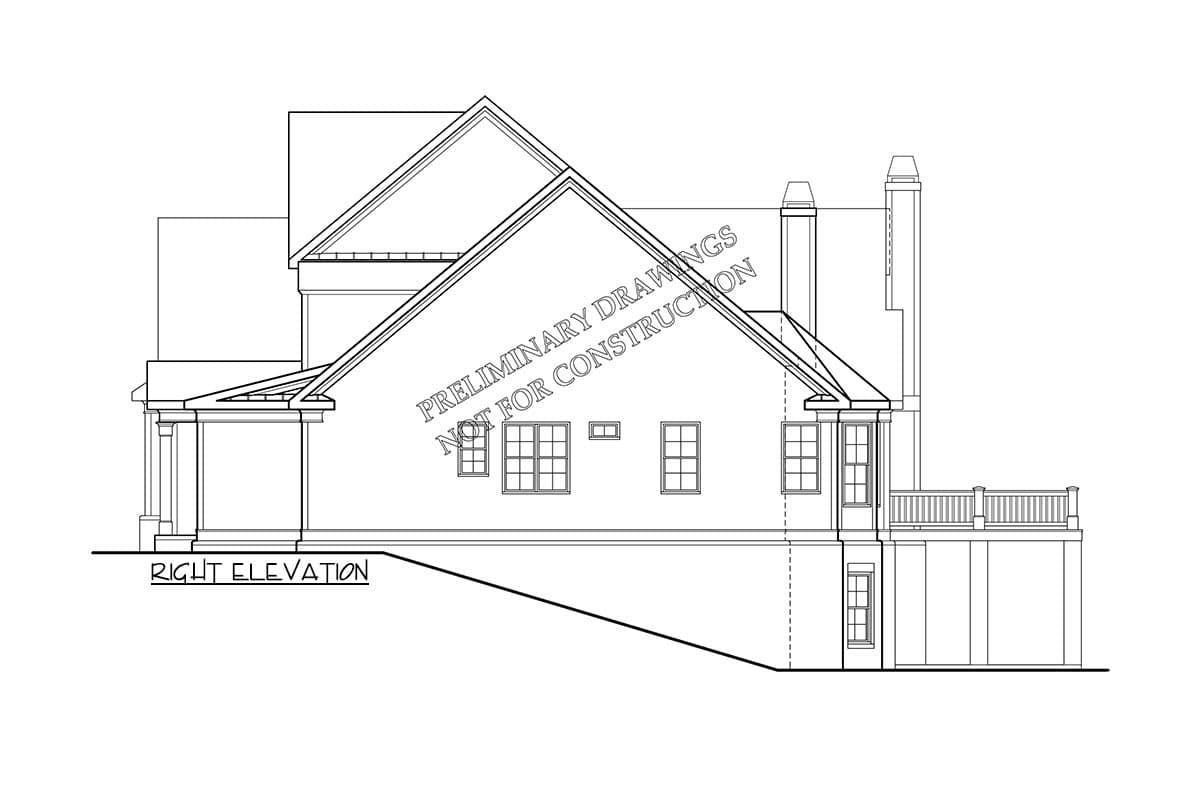

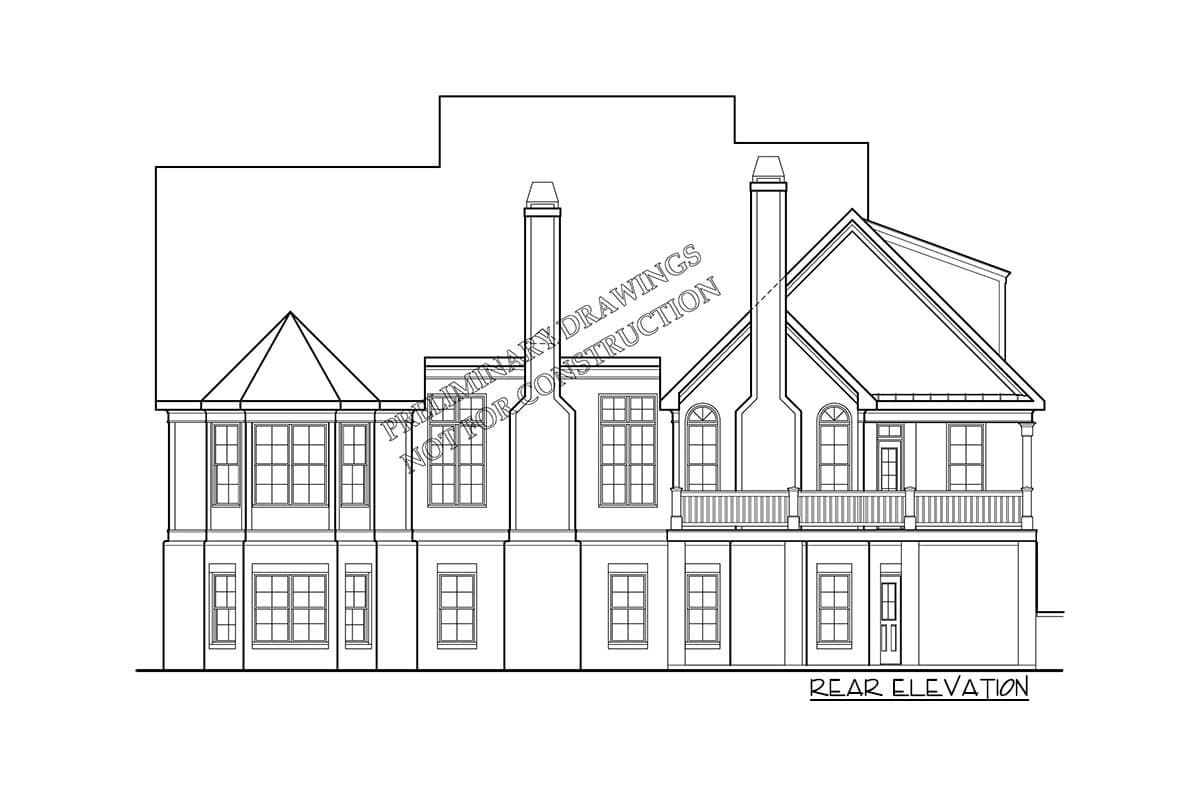

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,230 sq. ft.

1st Floor

2,415 sq. ft.

2nd Floor

815 sq. ft.

Basement Unfinished

2,415 sq. ft.

Bonus

363 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

66' 0"

Depth

59' 4"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

487 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Keeping Room

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,230 sq. ft.

1st Floor

2,415 sq. ft.

2nd Floor

815 sq. ft.

Basement Unfinished

2,415 sq. ft.

Bonus

363 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

66' 0"

Depth

59' 4"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

487 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Keeping Room

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery
