Plan 710165BTZ
Traditional House Plan with Welcoming Front Porch
Heated S.F.
2,426
Beds
4 - 5
Baths
0
Stories
1
Cars
2
Floor Plan

Plan 710165BTZ

Main Level
slide image 0
Bonus Level
slide image 1

Plan 710165BTZ

1-800-854-7852

1-262-521-4596

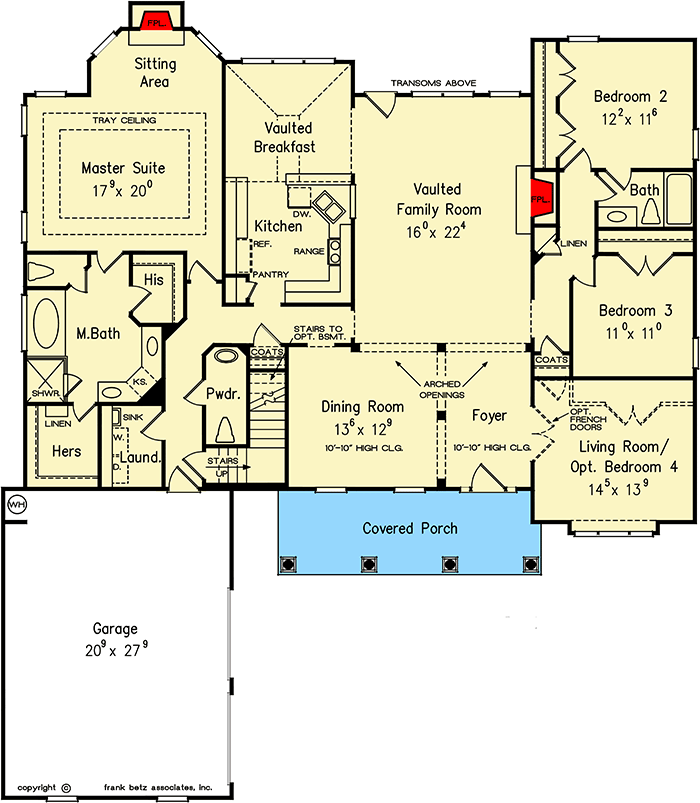

Main Level
floor plan image Main Level

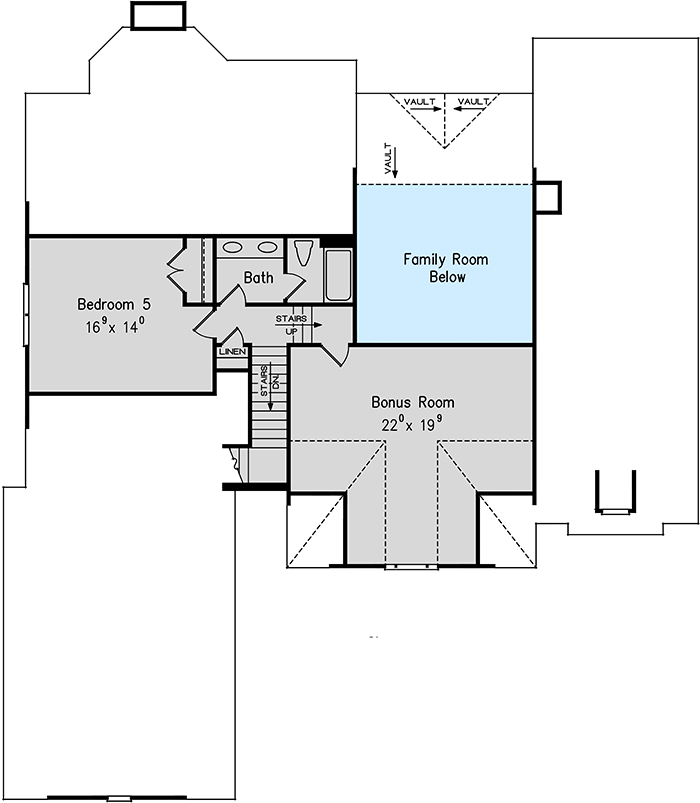

Bonus Level
floor plan image Bonus Level
Plan Details
  • Stately brick and European stucco are a likely and familiar combination that creates Old World charm. A smart and functional split-bedroom design, this house plan is made extra special in its details.
  • A vaulted ceiling keeps the breakfast room feeling open and bright. Decorating just got easier with plant shelves, arched openings and decorative columns placed throughout the home.
  • The master suite has a private sitting area with a fireplace that gives owners a peaceful place to spend time reading or relaxing.
  • The laundry room, a coat closet and a powder room are all situated near the garage entry adding convenience for the entire family.
  • A bonus room upstairs has a full bath.
  • Related Plan: Get an alternate exterior with 710151BTZ.
What's Included

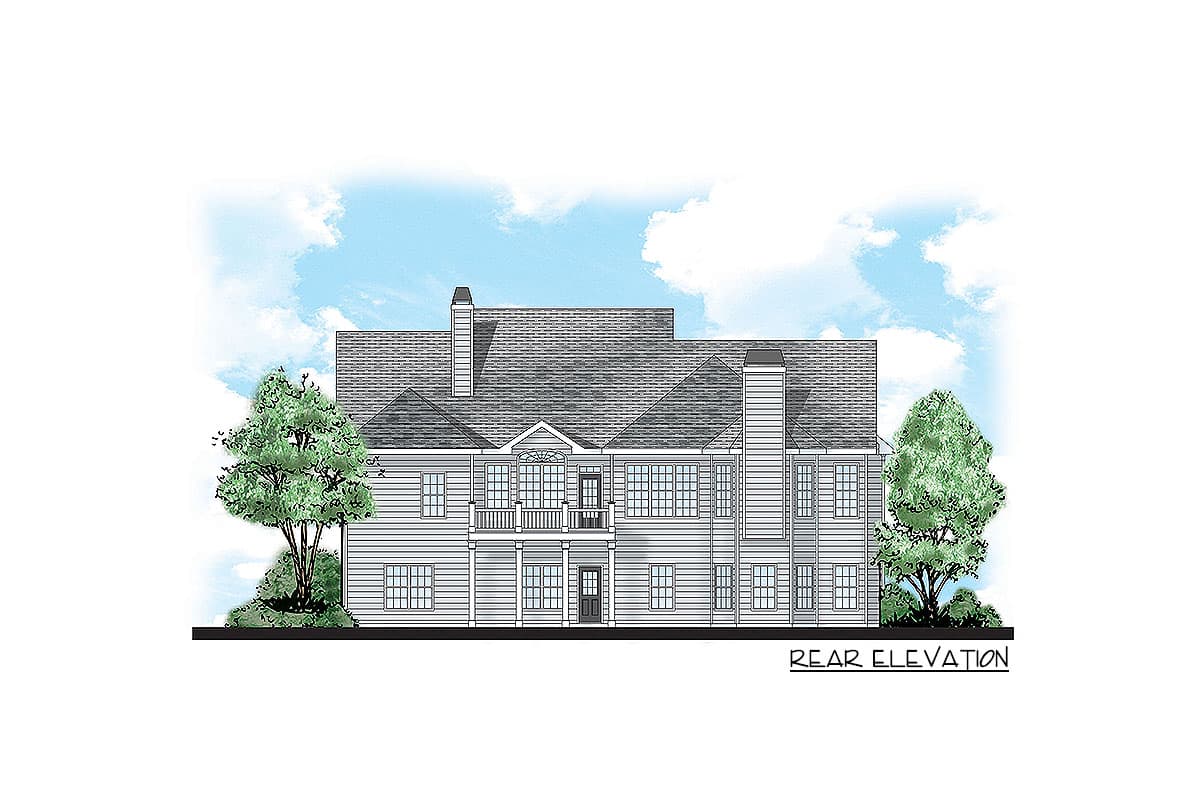

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,426 sq. ft.

1st Floor

2,426 sq. ft.

Bonus

767 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 0"

Depth

72' 4"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Square Footage Breakdown

Total Heated Area

2,426 sq. ft.

1st Floor

2,426 sq. ft.

Bonus

767 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

63' 0"

Depth

72' 4"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area
