Plan 80572PM
Traditional Multi-Family Home Plan
Heated S.F.
2,998
Units
2
Width
Depth
Floor Plan

Plan 80572PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80572PM

1-800-854-7852

1-262-521-4596

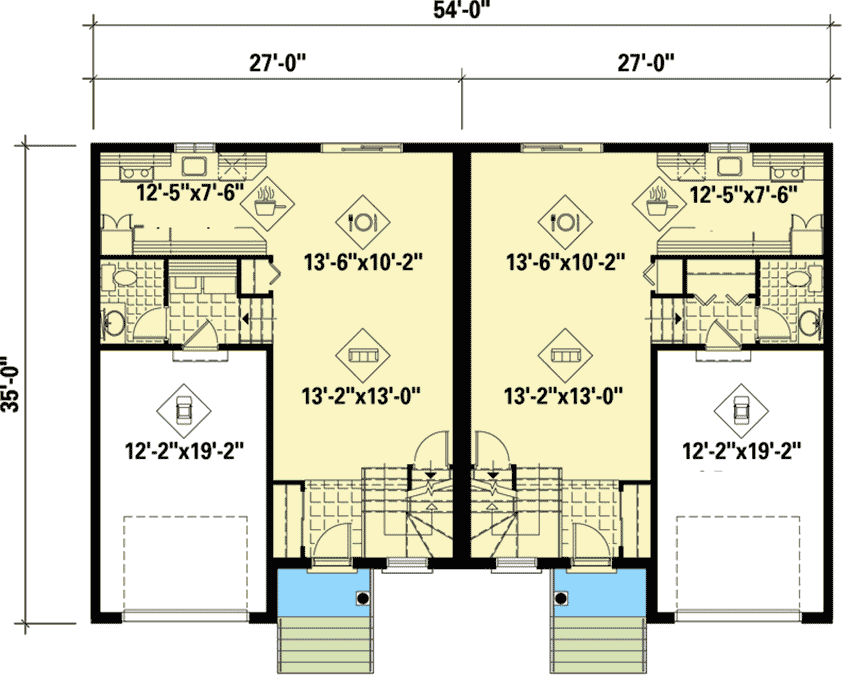

Main Level
floor plan image Main Level

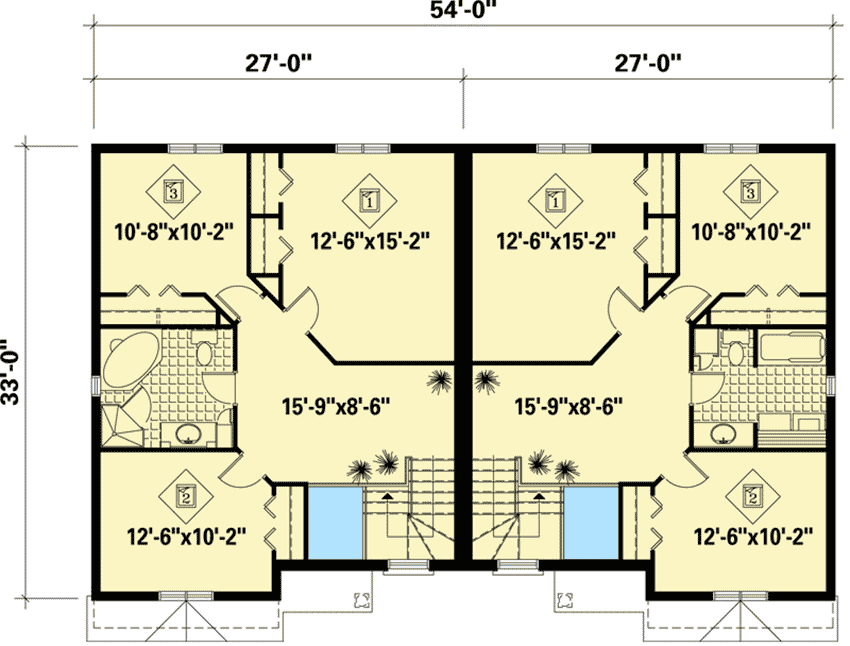

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The traditional multi-family home plan gives you matching side-by-side 3 bed, 1.5 bath units.
  • Each units has 1,499 square feet of heated living space (634 sq. ft. on the main floor, 864 sq. ft. on the upper floor) and 256 square feet for the garage.
Unit A
1,499Sq. Ft.
634 Sq. Ft.
1st Floor
864 Sq. Ft.
2nd Floor
3Beds
1Full Bath
1Half Bath
1Vehicle
Attached
256 Sq. Ft.
27'width
35'depth
30'height
Unit B
149Sq. Ft.
634 Sq. Ft.
1st Floor
864 Sq. Ft.
2nd Floor
3Beds
1Full Bath
1Half Bath
1Vehicle
Attached
256 Sq. Ft.
27'width
35'depth
30'height
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area
