Plan 80368PM
Traditional Southern Home Plan
Heated S.F.
1,100
Beds
2
Baths
2
Stories
1
Cars
1
Photos
Floor Plan

Plan 80368PM

Main Level
slide image 0
3D View - Main Level
slide image 1

Plan 80368PM

1-800-854-7852

1-262-521-4596

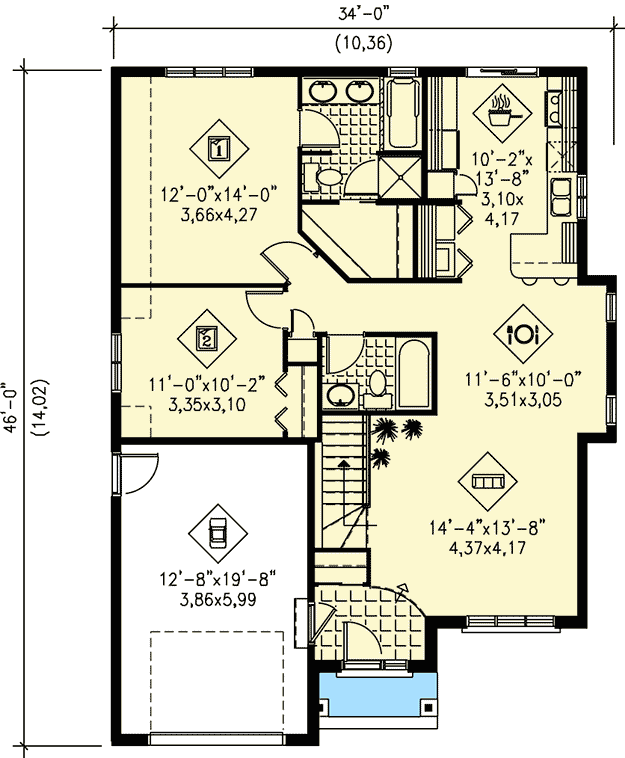

Main Level
floor plan image Main Level

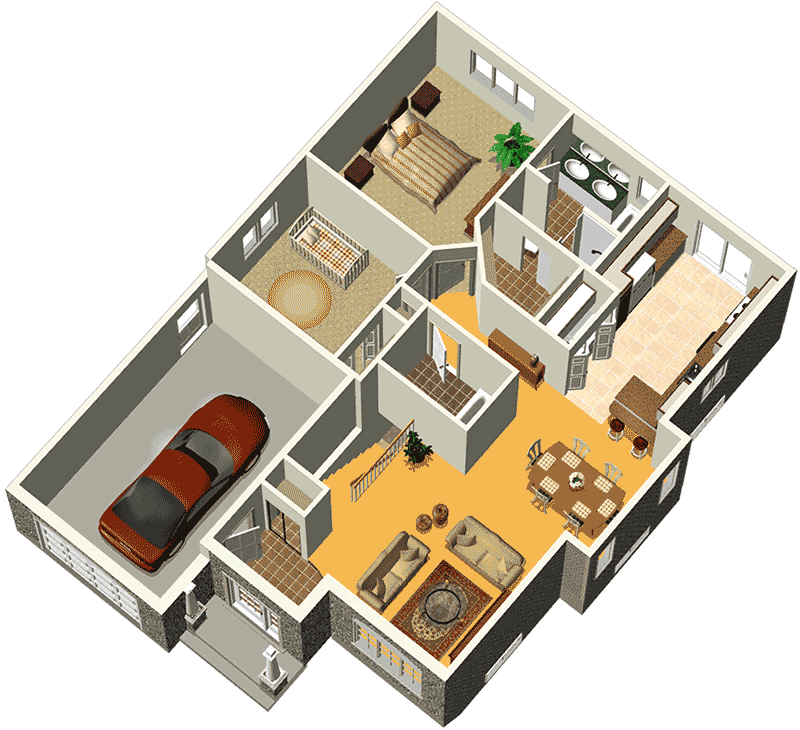

3D View - Main Level
floor plan image 3D View - Main Level
Plan Details
  • This bungalow will catch your eye with its lovely front porch, gables and large transom window.
  • The house is 34 feet wide by 46 feet deep and provides 1,100 square feet of living space in addition to a 274 square foot one-car garage.
  • The home features nine-foot ceilings.
  • It has a living room, a dining room, a kitchen with a laundry area, a family bathroom, and two bedrooms with slanted ceilings including a master bedroom with a large walk-in closet and a private bathroom.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 80368PM comes to life in Missouri

House Plan 80368PM comes to life in Missouri

18

Photos

What's Included
Please note this plan is designed to the National Building Code of Canada.

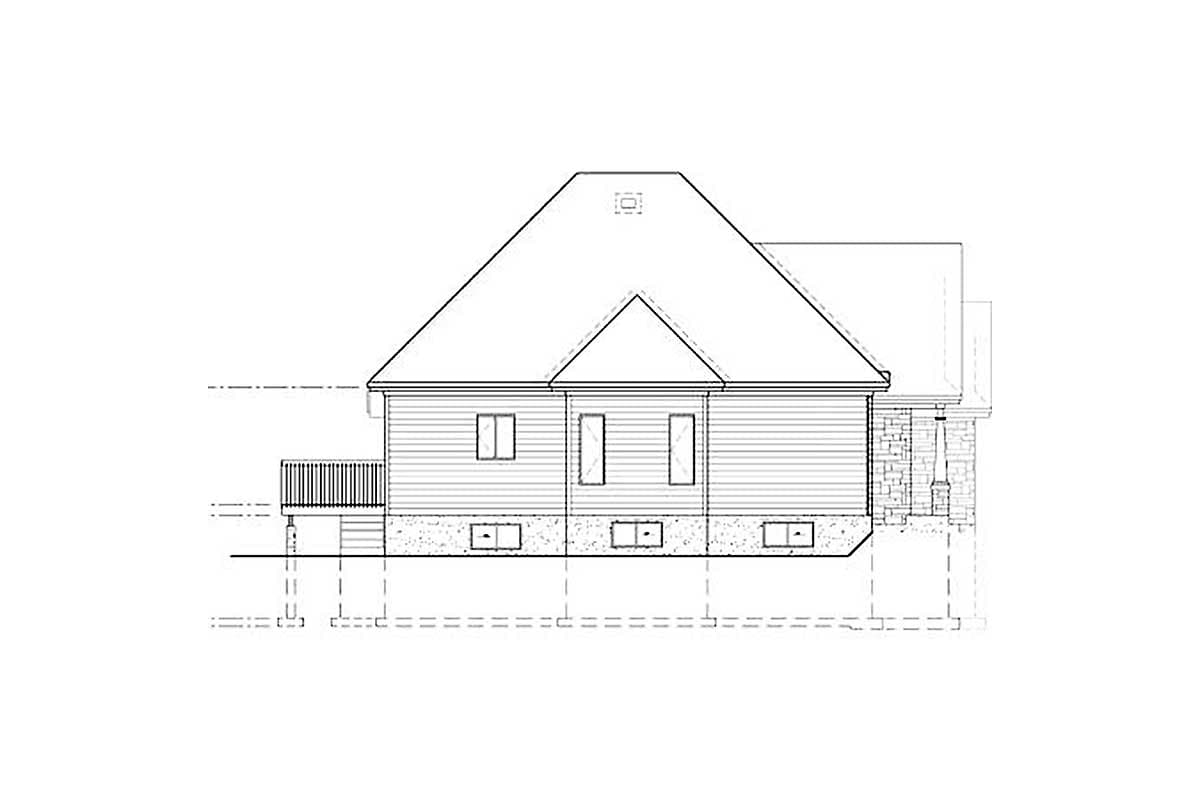

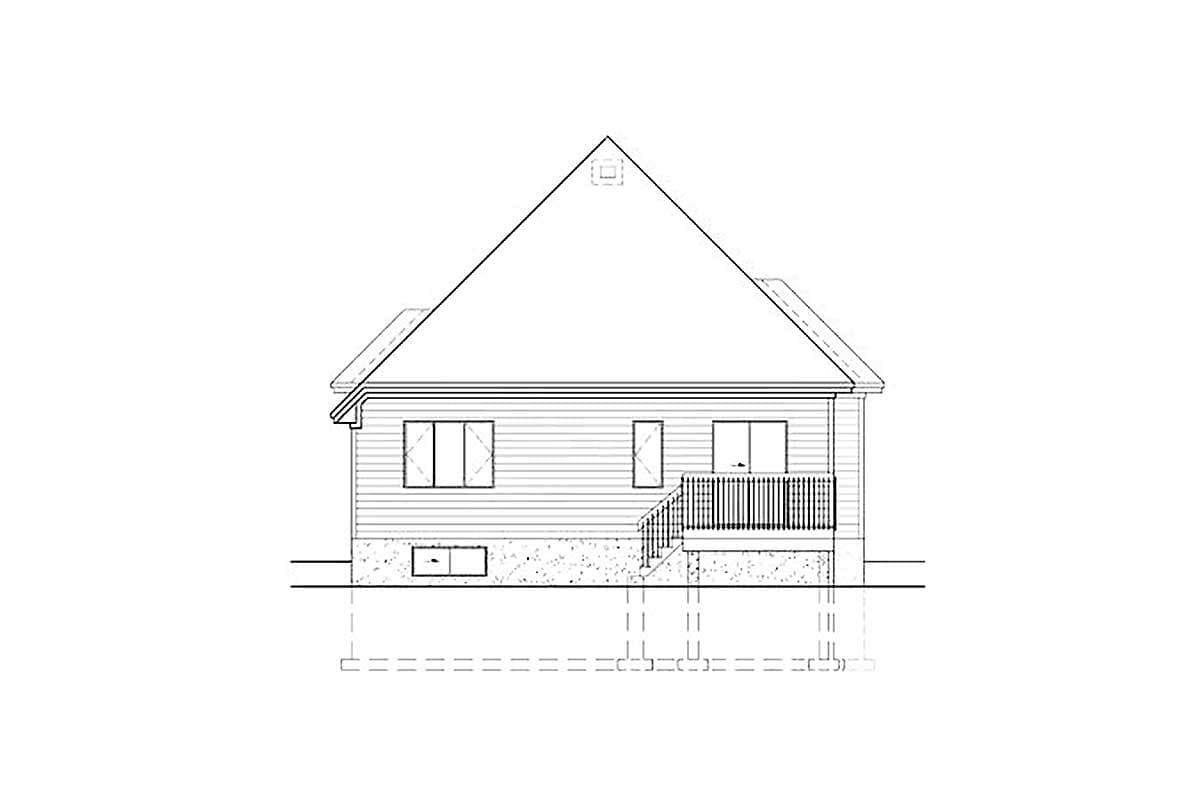

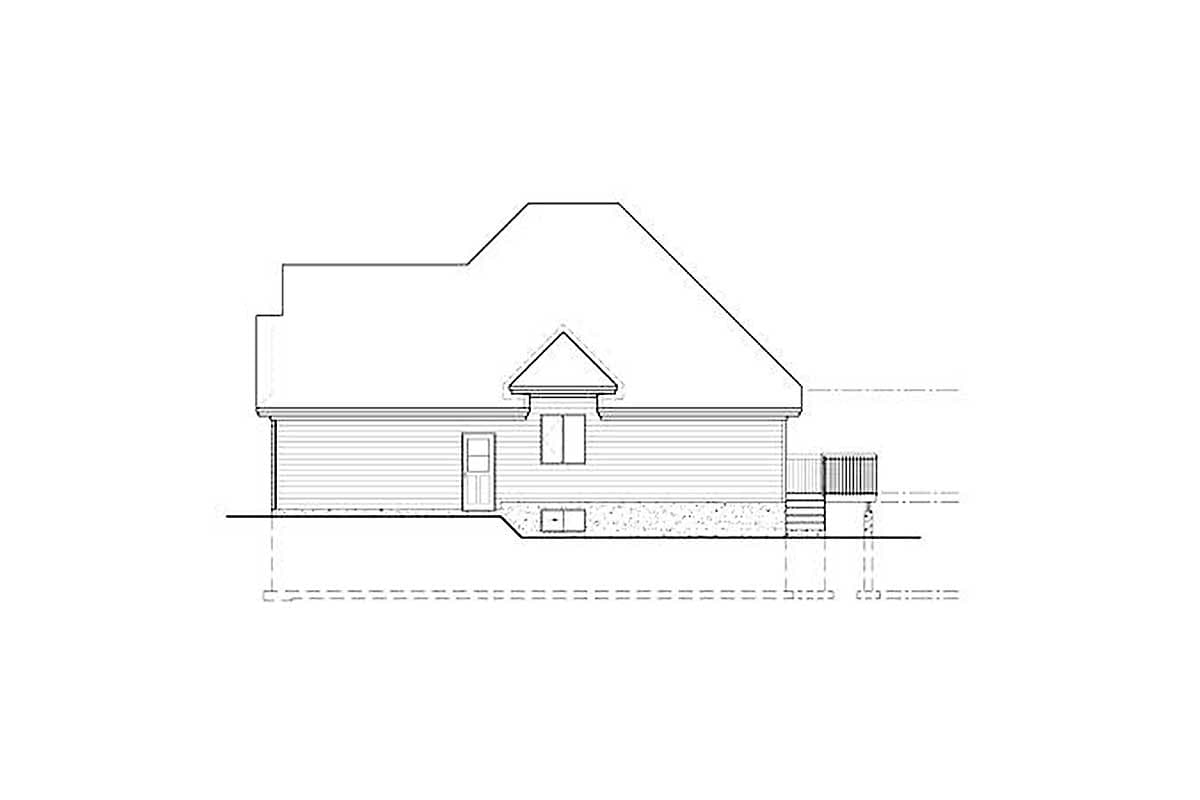

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,100 sq. ft.

1st Floor

1,100 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

46' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

274 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Southern

Traditional

Special Features

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Photo Gallery
