Plan 623263DJ
Traditional Style Carport Plan
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
1
Floor Plan

Plan 623263DJ

Main Level
slide image 0

Plan 623263DJ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

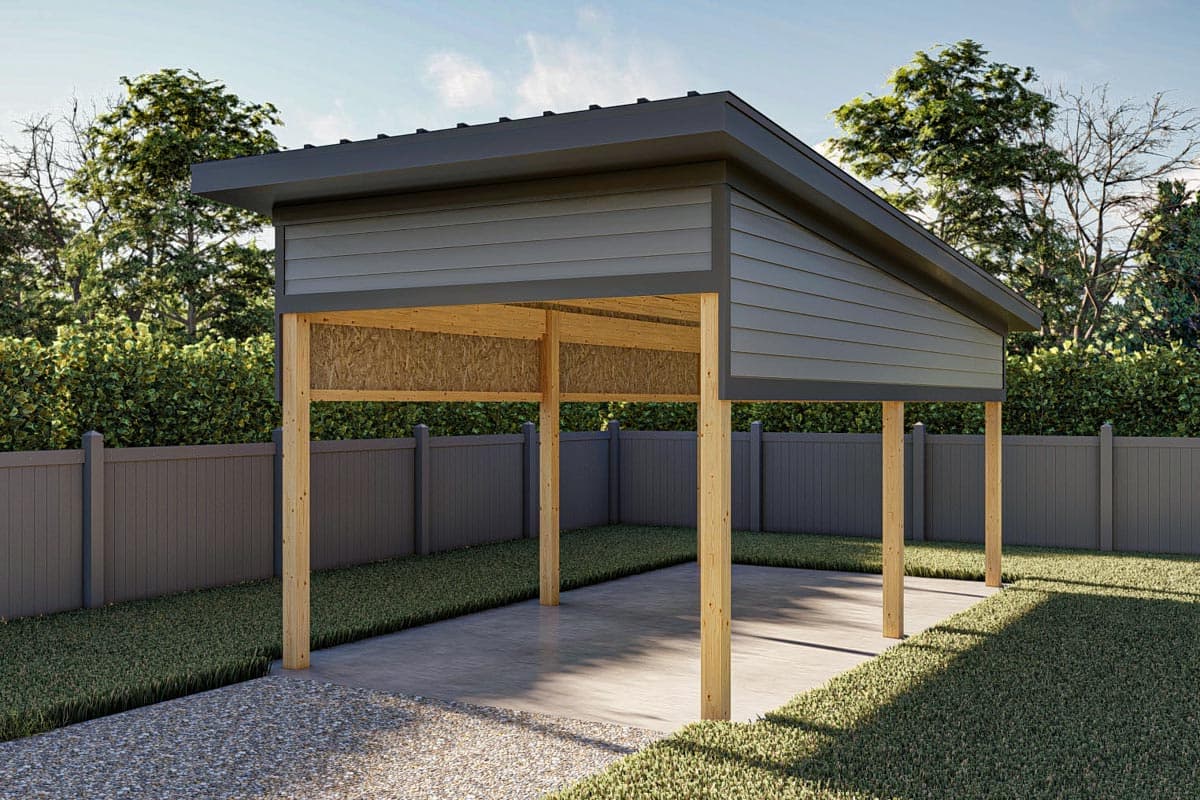

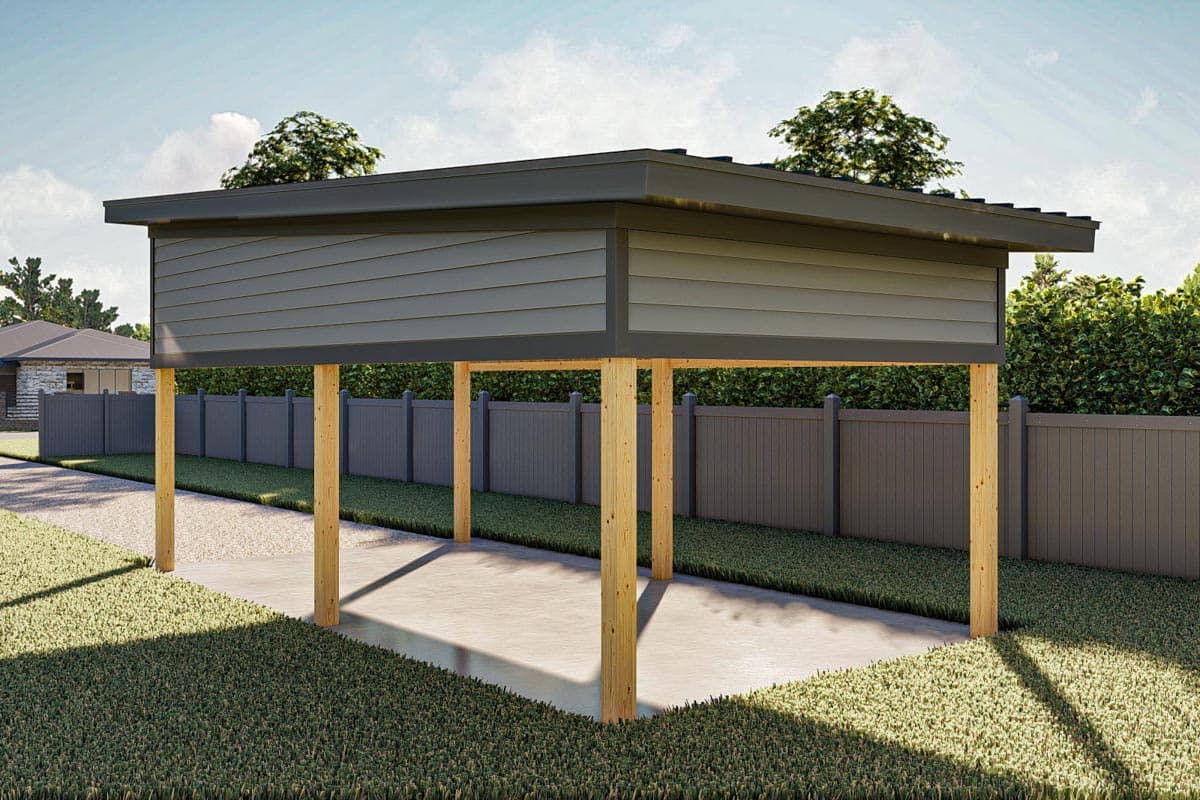

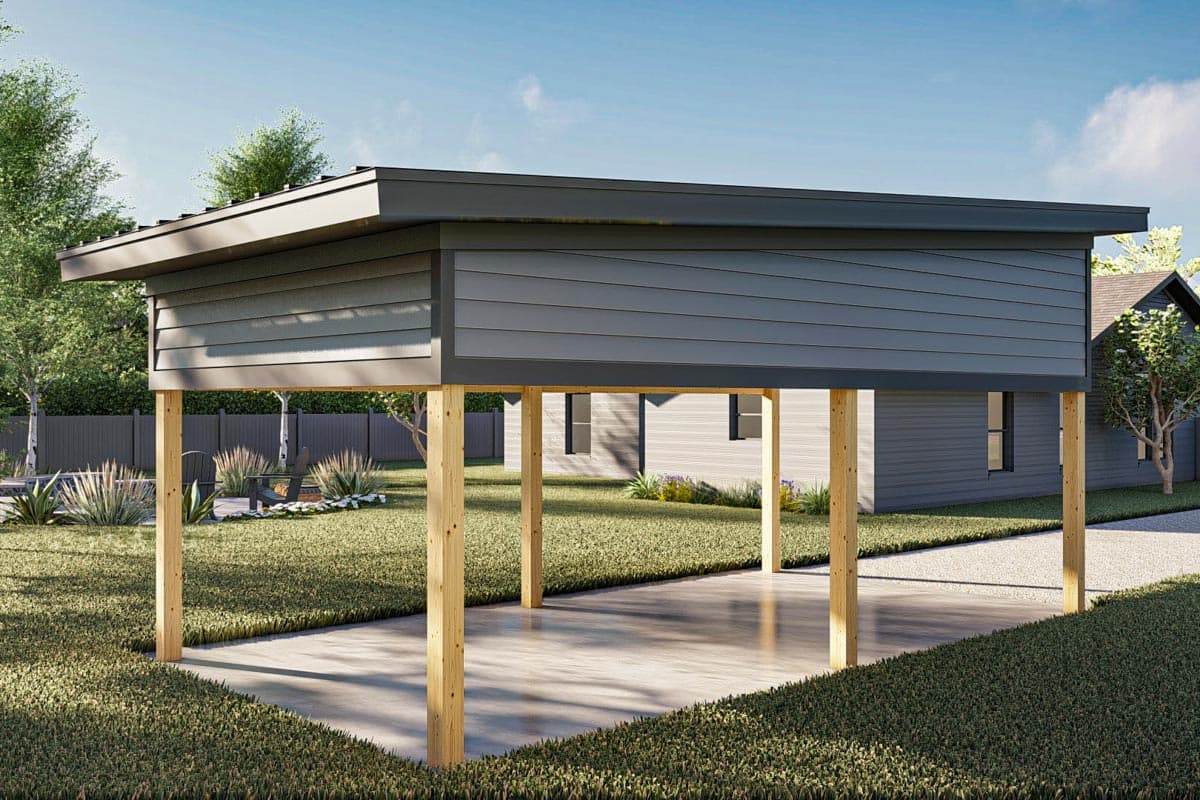

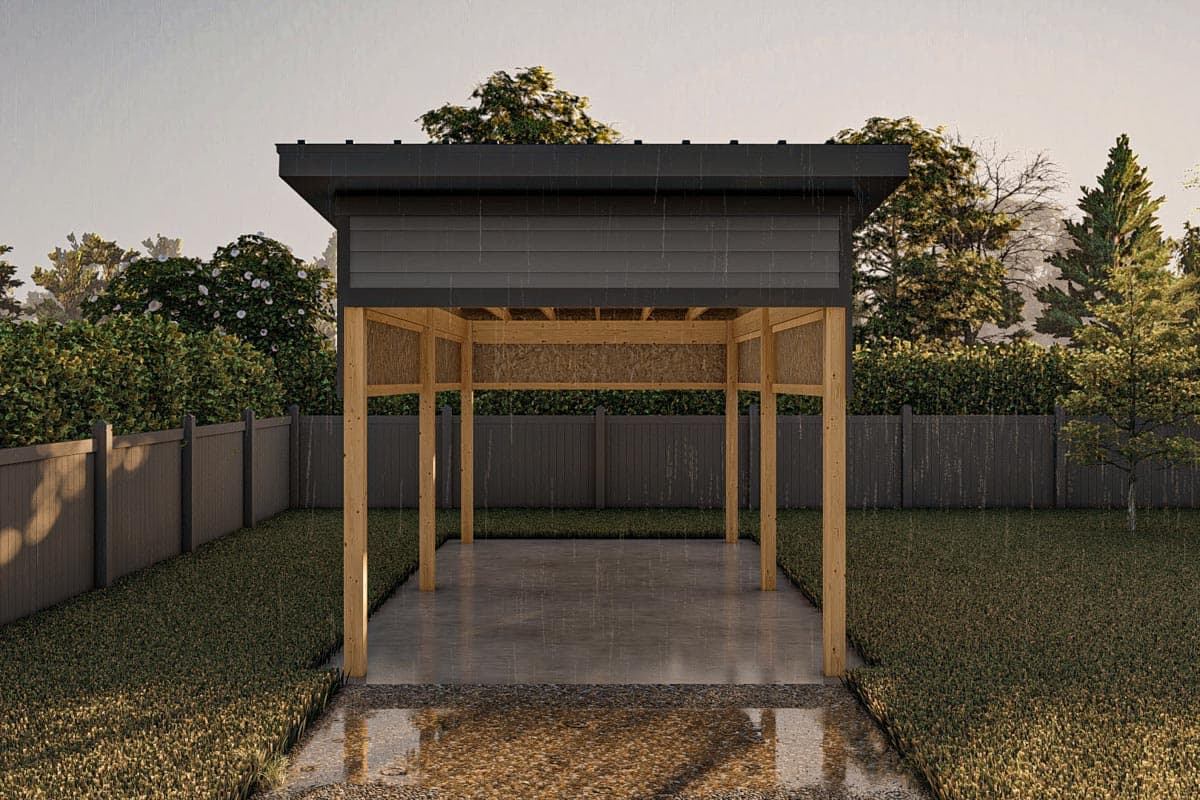

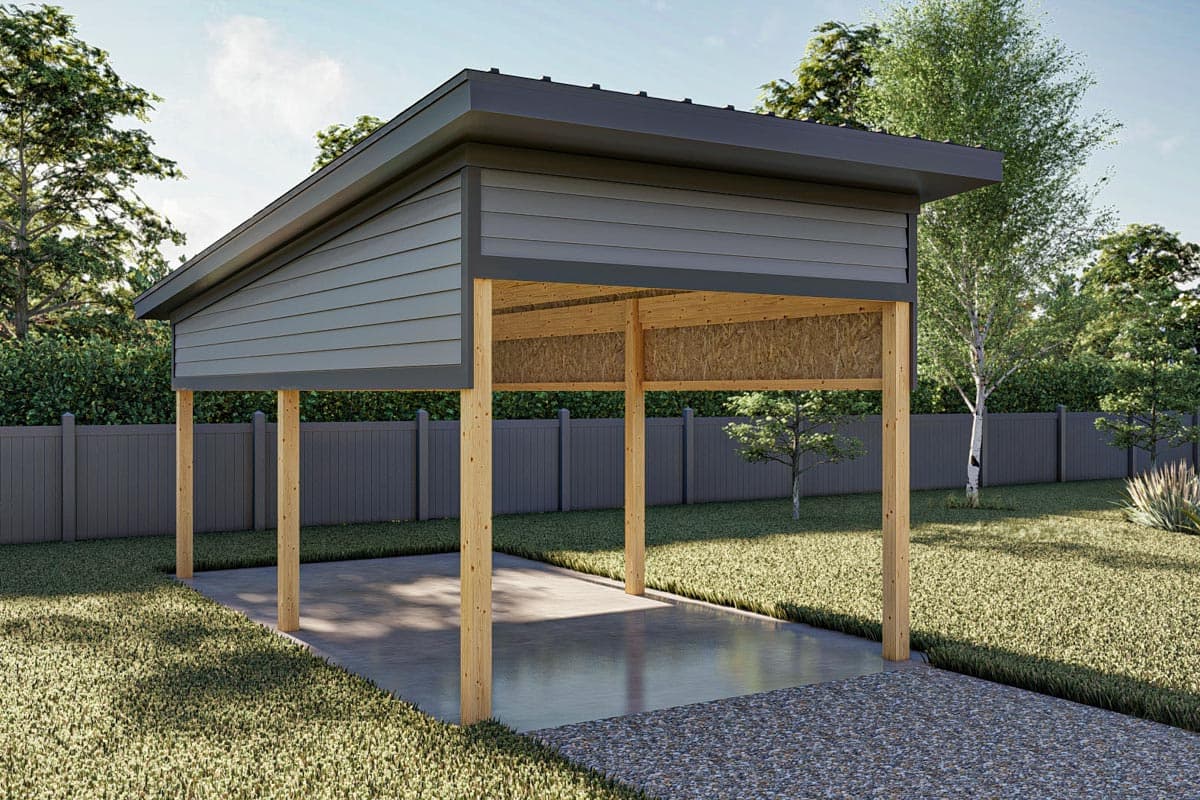

  • This carport is the perfect addition to any residence. There are walls on 3 sides to safeguard your recreational vehicle from the elements while providing a stylish and functional space.
  • The single slope roof and lap siding give this carport excellent curb appeal while still providing shelter. The structure is a post & pier system.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Carport

288 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Post/Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

12' 0"

Depth

24' 0"

Max Ridge Height

12' 11"

Garage

Type

Carport

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

1 on 12

Architectural Style

Traditional

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Carport

288 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Post/Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

12' 0"

Depth

24' 0"

Max Ridge Height

12' 11"

Garage

Type

Carport

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

1 on 12

Architectural Style

Traditional
