Plan 570005LEF
Transitional 3-Bed Scandinavian-Style House Plan with Home Office and Open Layout
Heated S.F.
2,618
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 570005LEF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 570005LEF

1-800-854-7852

1-262-521-4596

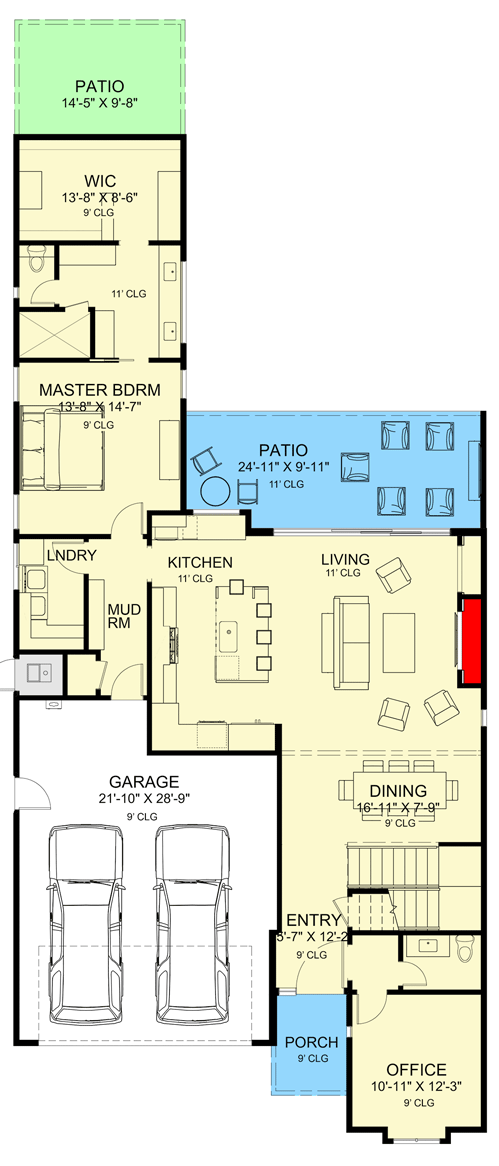

Main Level
floor plan image Main Level

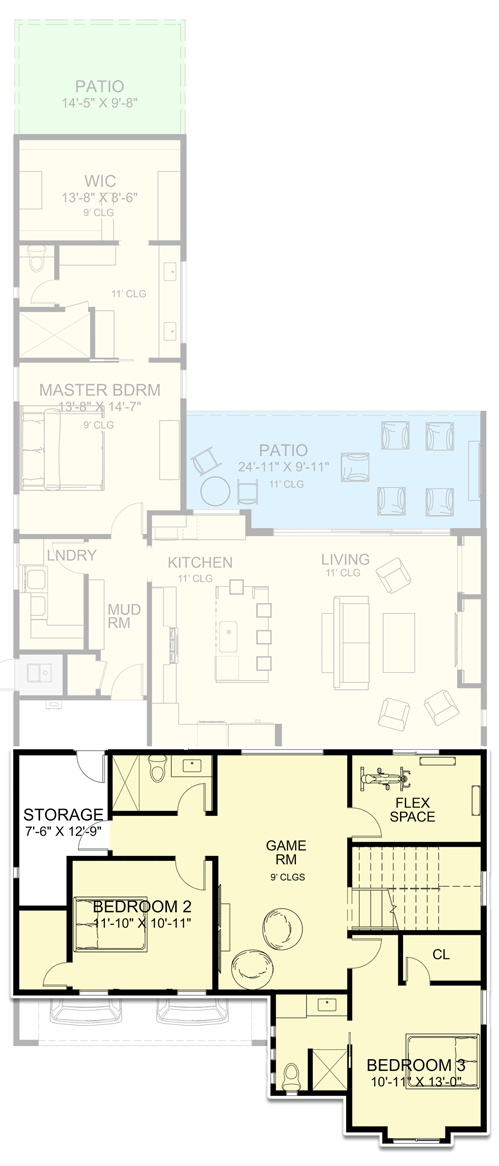

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2,650 square foot transitional Scandinavian-inspired house plan gives you 3 bedrooms, 3.5 baths and a 2-car (571 square foot) garage all in a 40' wide and 95' deep footprint.

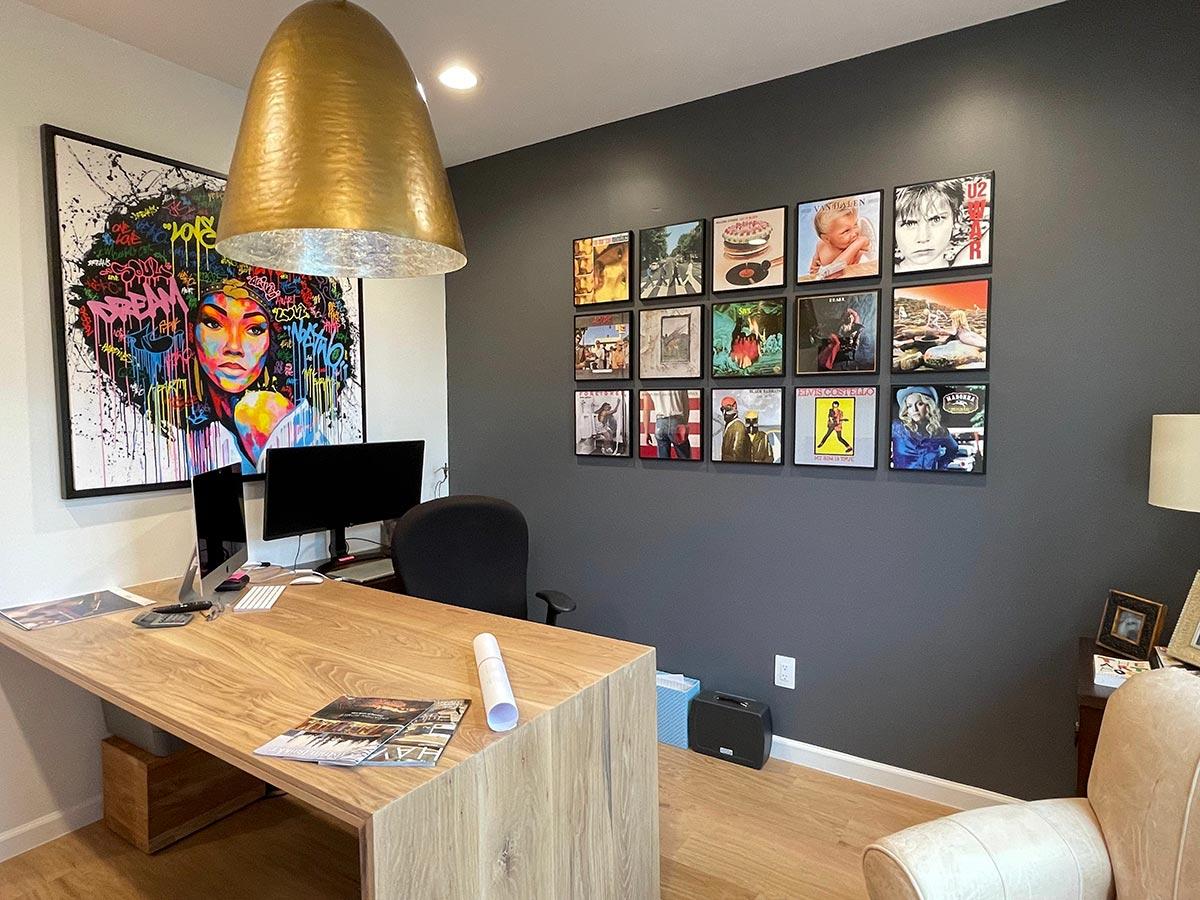

  • A home office is located just inside the foyer, as is a powder room. Past the stairs, an open floor plan unfolds.

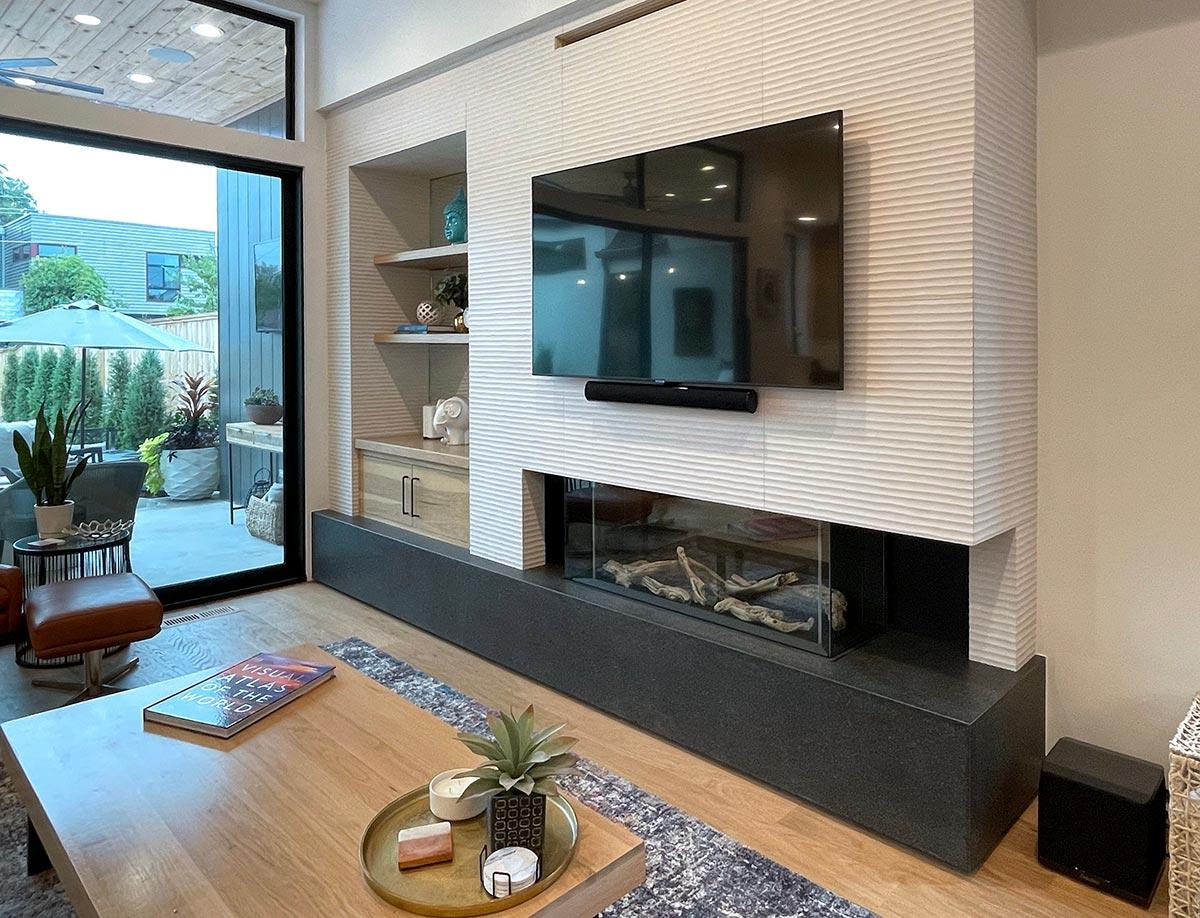

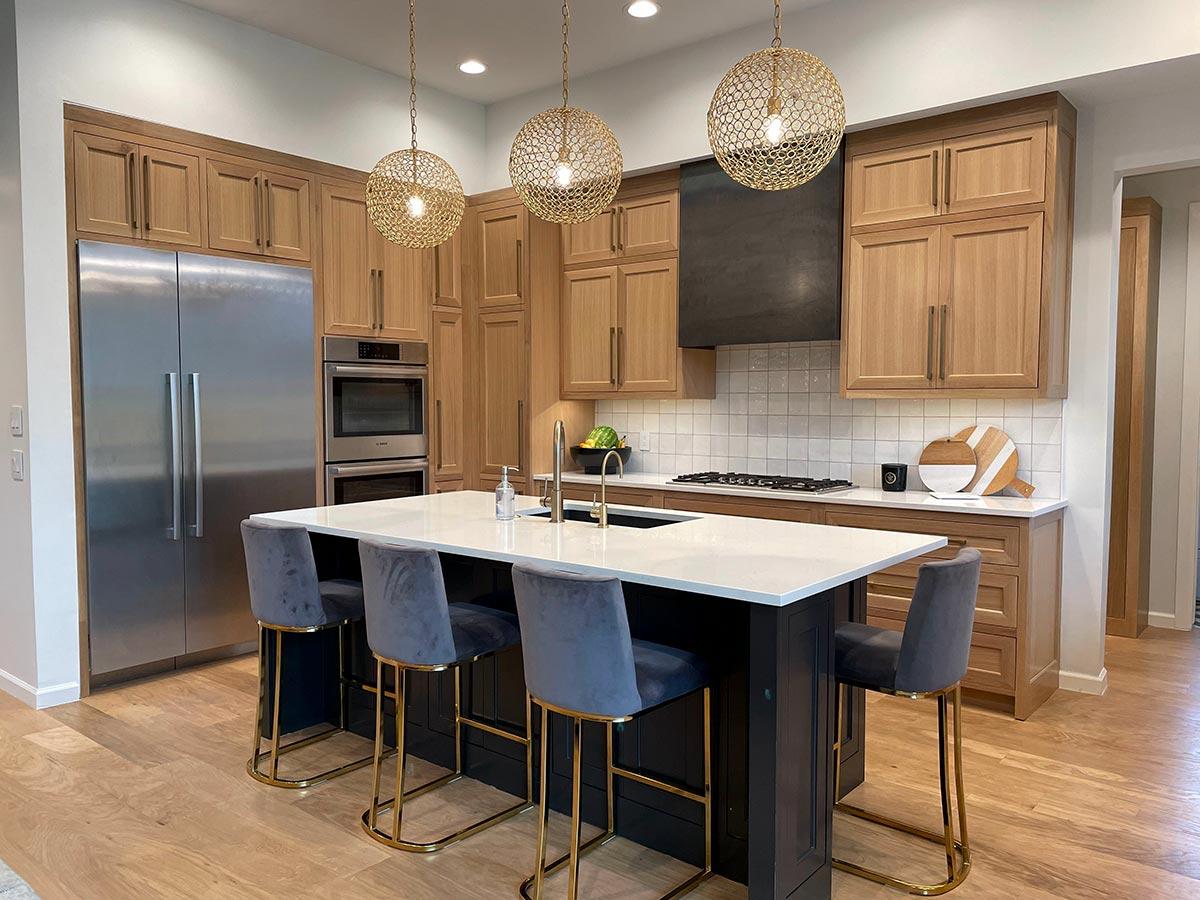

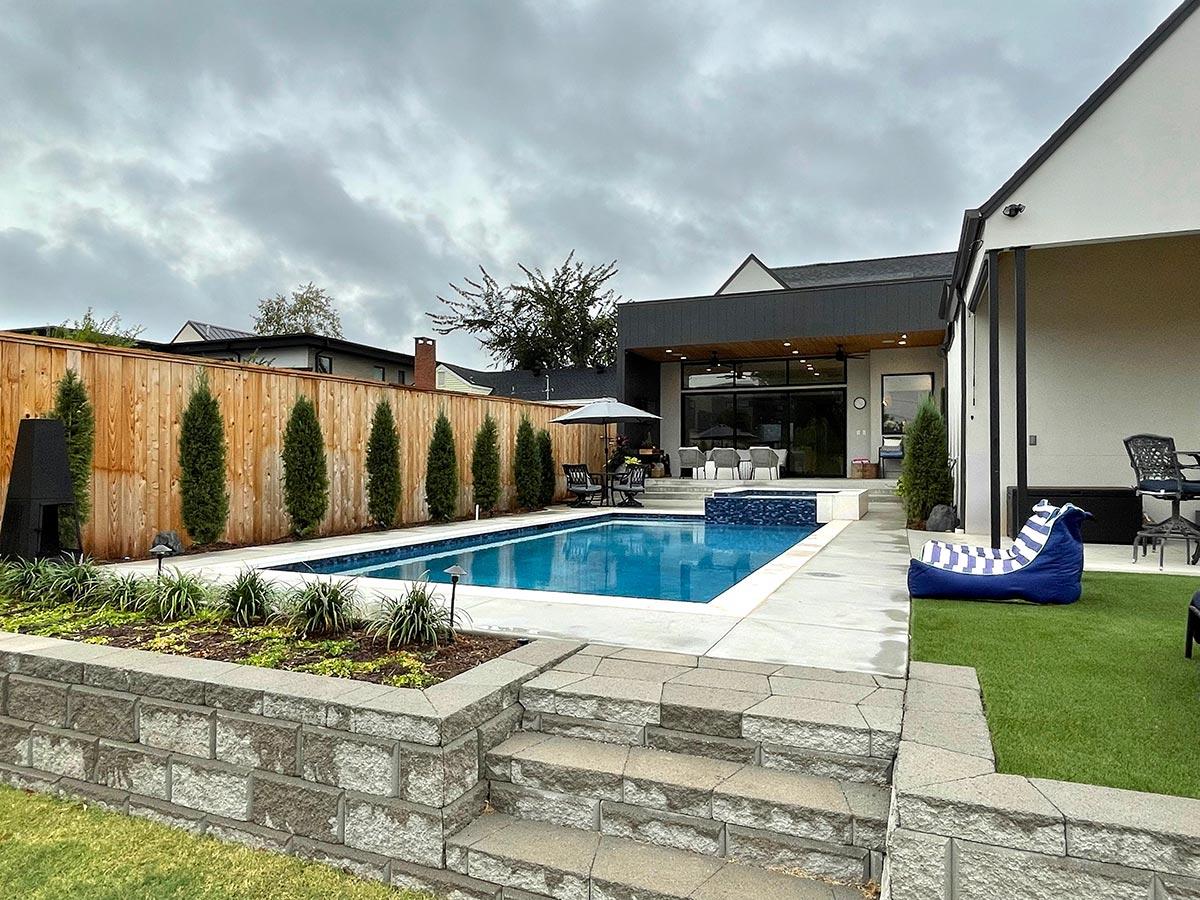

  • An open plan with high ceilings and lots of daylight provide seamless flow from living to outdoor living.
  • The master suite is located in back and has a five-fixture bath and huge walk-in closet. The suite is conveniently located by the laundry room.

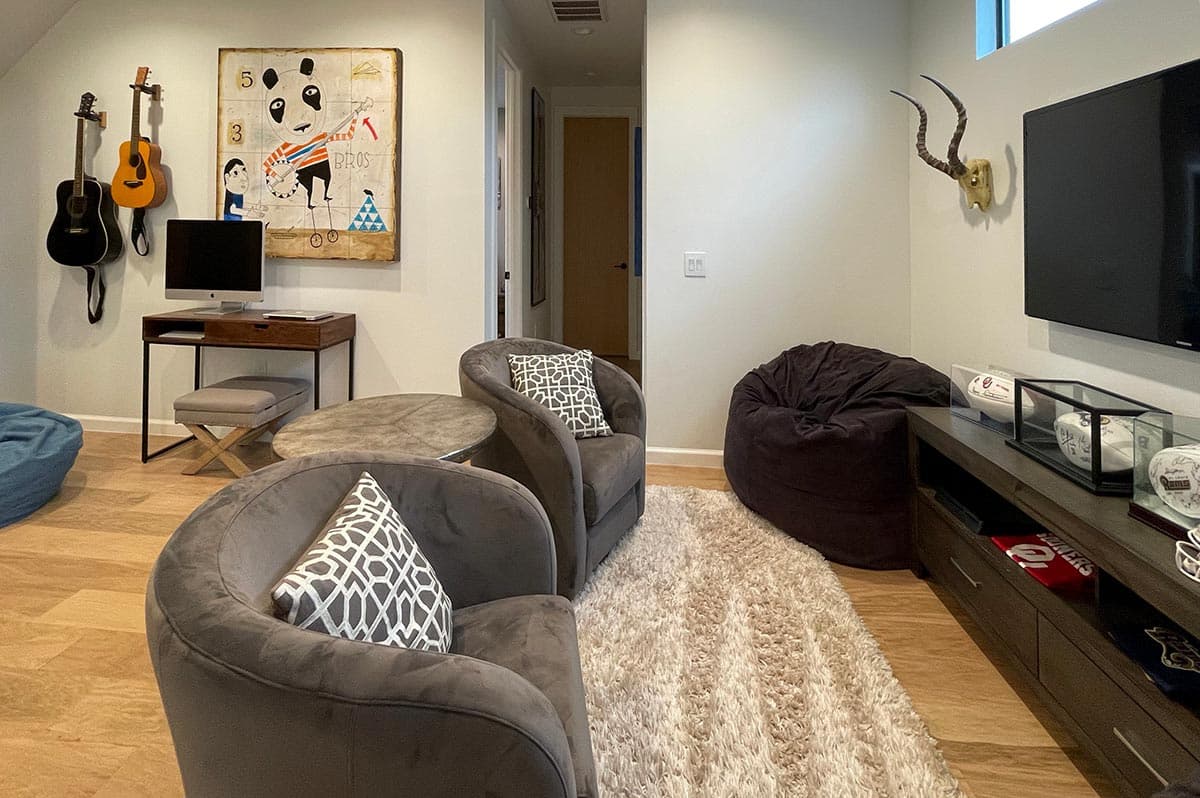

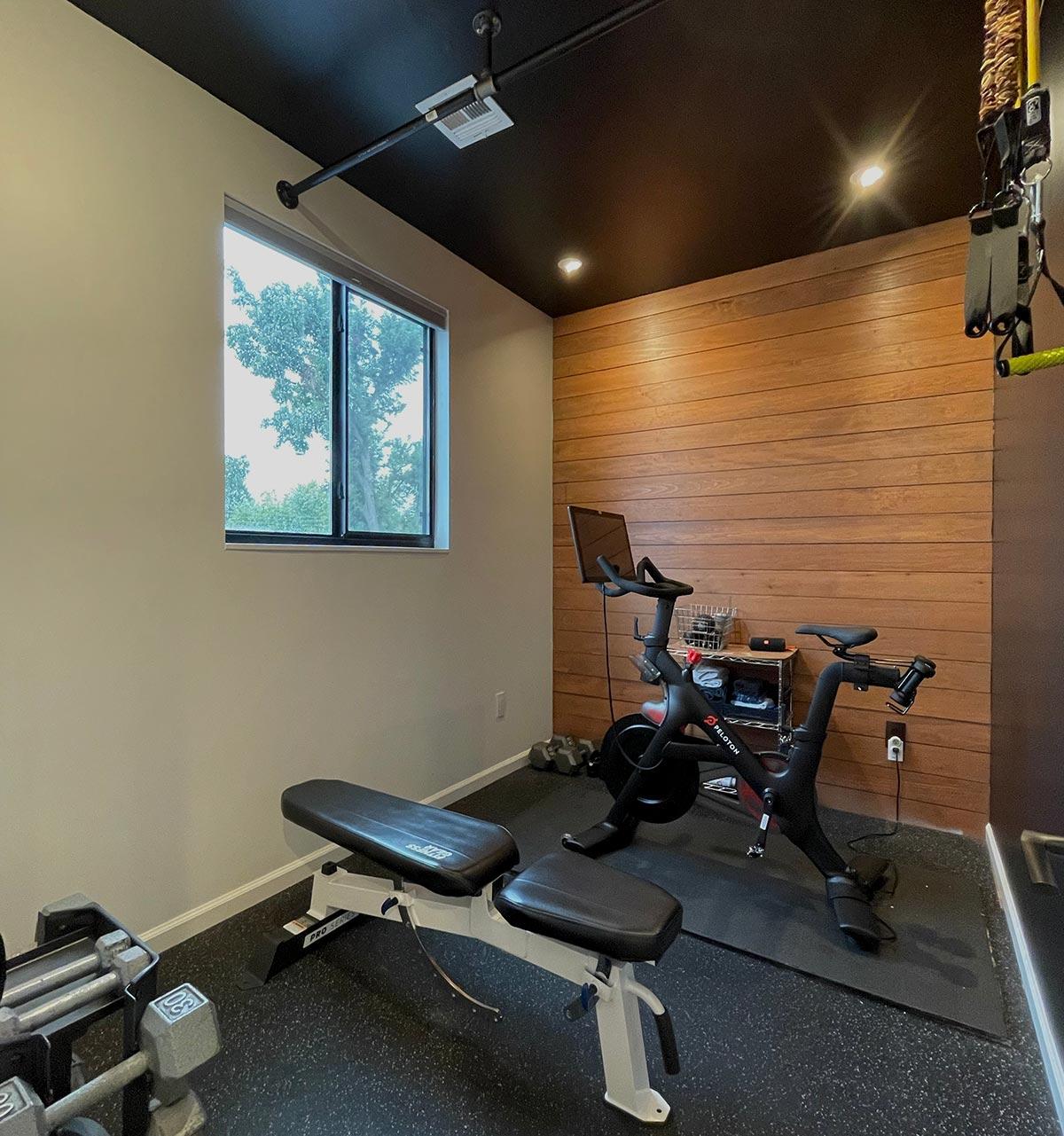

  • Upstairs you'll find a kids' loft, fitness/flex room and two bedrooms and two baths.
What's Included
  • Exterior elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical plans
  • Typical Wall Section
  • Typical Stair Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,618 sq. ft.

1st Floor

1,688 sq. ft.

2nd Floor

930 sq. ft.

Porch, Front

44 sq. ft.

Porch, Rear

244 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab, Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 9"

Depth

95' 0"

Max Ridge Height

27' 1"

Garage

Type

Attached

Area

571 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Living

11' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Modern

New American

Transitional

Special Features

Bedrooms - Split

Bonus Room

Flex Room

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor
