Plan 51947HZ
Transitional 4-Bedroom Modern Farmhouse with Vaulted Master Suite - 1800 Sq Ft
Heated S.F.
1,800
Beds
4
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 51947HZ

Main Level
slide image 0

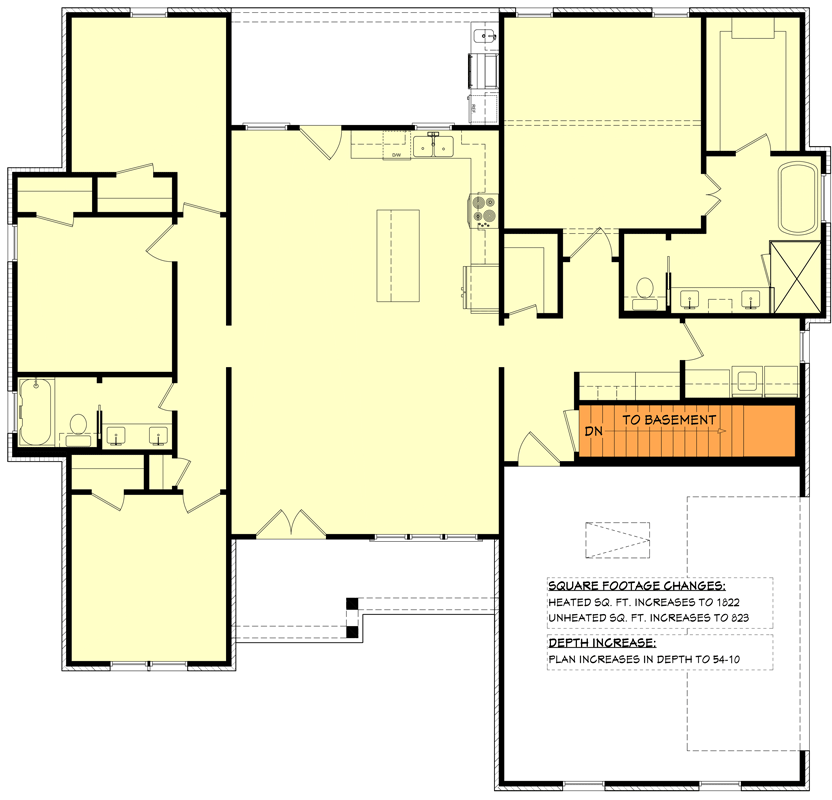

Optional Basement Stairs Location
slide image 1

Plan 51947HZ

1-800-854-7852

1-262-521-4596

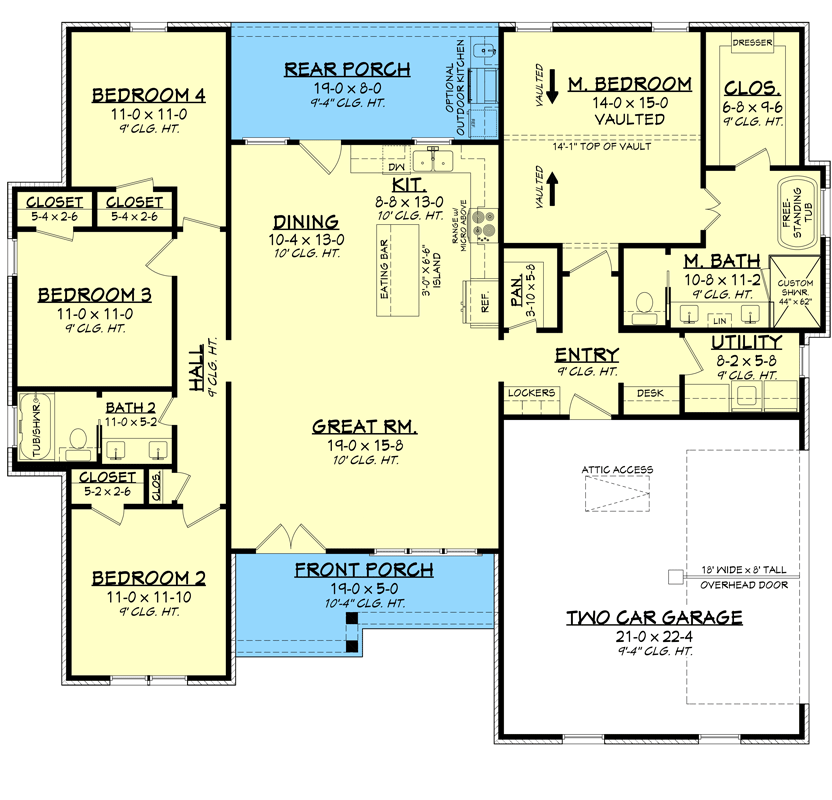

Main Level
floor plan image Main Level
Optional Basement Stairs Location
floor plan image Optional Basement Stairs Location
Plan Details
  • This 1800 square foot Transitional style Modern Farmhouse house plan gives you 4 bedrooms, 2 baths and a 2-car 488 square foot garage.
  • Inside, the home plan has an open split plan the vaulted master suite (14'1" ceiling) on the right and the three remaining bedrooms on the left. Laundry is tucked away behind the garage off the family entry.
  • French doors open to the great room from the 5'-deep front porch and a door on the back wall opens to the 8'-deep rear porch with optional outdoor kitchen.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate 3-bedroom version in reverse layout with house plan 51971HZ (1,690 sq. ft.).
What's Included
This house plan includes the following details:
  • Page 1  Cover Sheet with abbreviations, rendering, sheet index
  • Page 2  Foundation plan and details
  • Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Page 4  Exterior views with additional notes and details
  • Page 5  Exterior views with additional notes and details
  • Page 6  Roof plan and span charts with additional notes
  • Page 7  Cross Section & kitchen cabinet views
  • Page 8  Electrical plan with notes and legend
  • Page N1 Code Information
  • Page N2 Code Information
  • Page N3 Code Information
  • Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
