Name: Plan 350010GH: Transitional Craftsman Home Plan with 4500 Square Feet Spread Across Three Levels
SKU: 350010GH
Price: 1865.75 USD
Availability: InStock

Plan 350010GH

Transitional Craftsman Home Plan with 4500 Square Feet Spread Across Three Levels

Heated S.F.

4,553

Beds

Baths

Stories

Floor Plan

Main Level

2nd Floor

Lower Level

Plan Details

This contemporary Craftsman home plan gives you 4,553 square feet of heated living spread across two levels above grade and a walkout basement.
The front door is centered on the entry porch. Inside, the foyer has views around a fireplace to the great room with a 21'6" ceiling and views to the back.
Kitchen and dining are clustered together and there's outdoor access to both the rear deck and the side covered deck with fireplace.

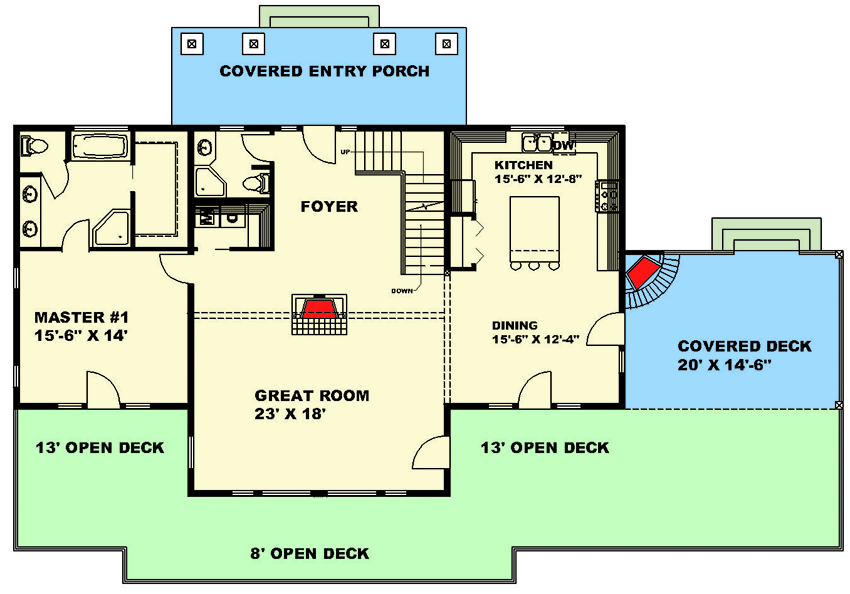

The master suite is on the main floor and enjoys deck access. Laundry is steps away.

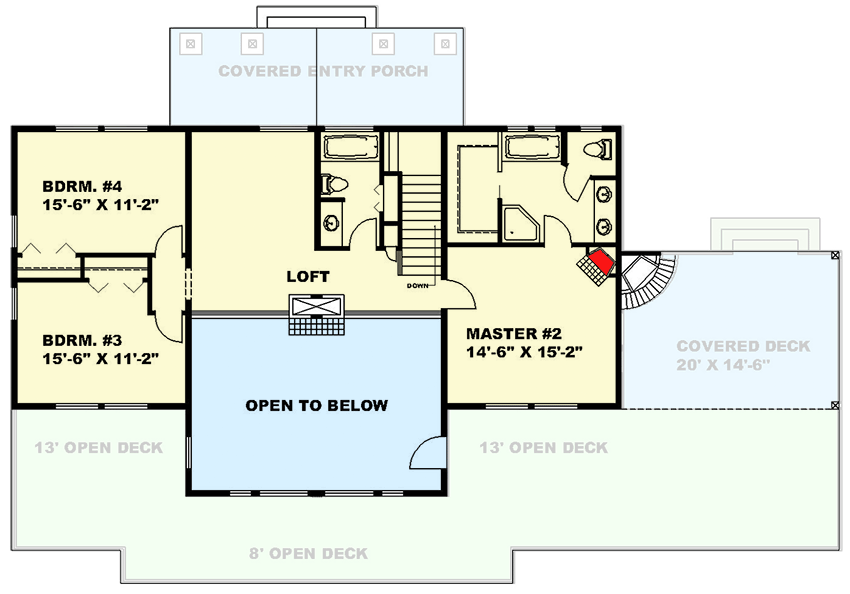

A second master suite with fireplace and two more bedrooms plus a loft overlooking the great room below are on the second floor. The ceilings rise from 8'3" to 10'11".

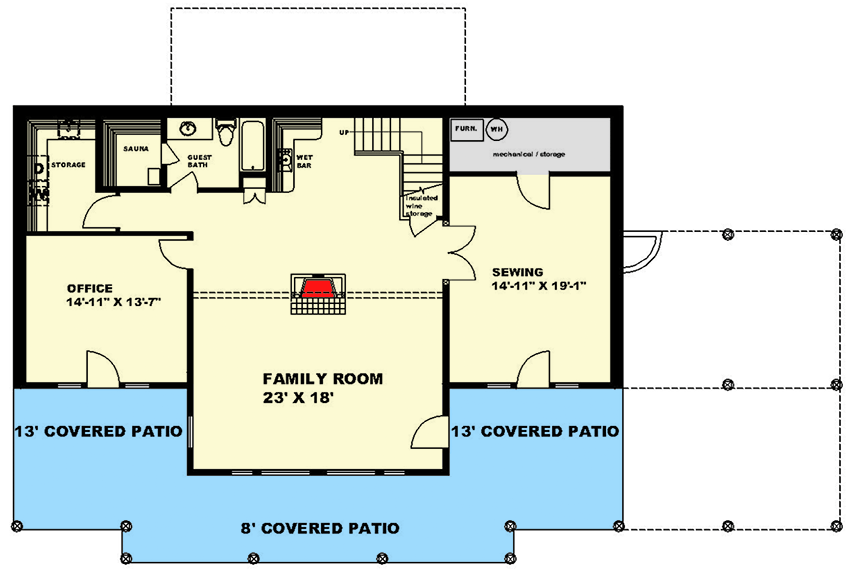

A home office, family room and a hobby room- all with outdoor access, are in the finished lower level.

What's Included

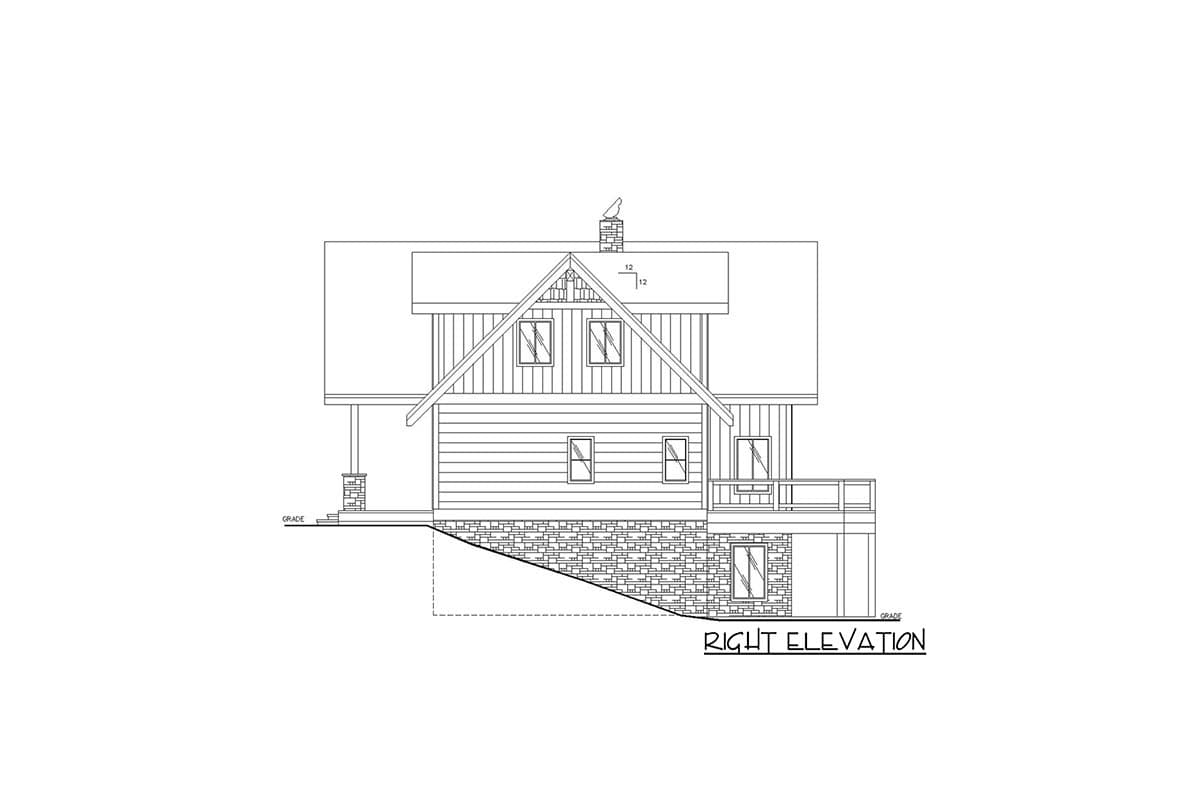

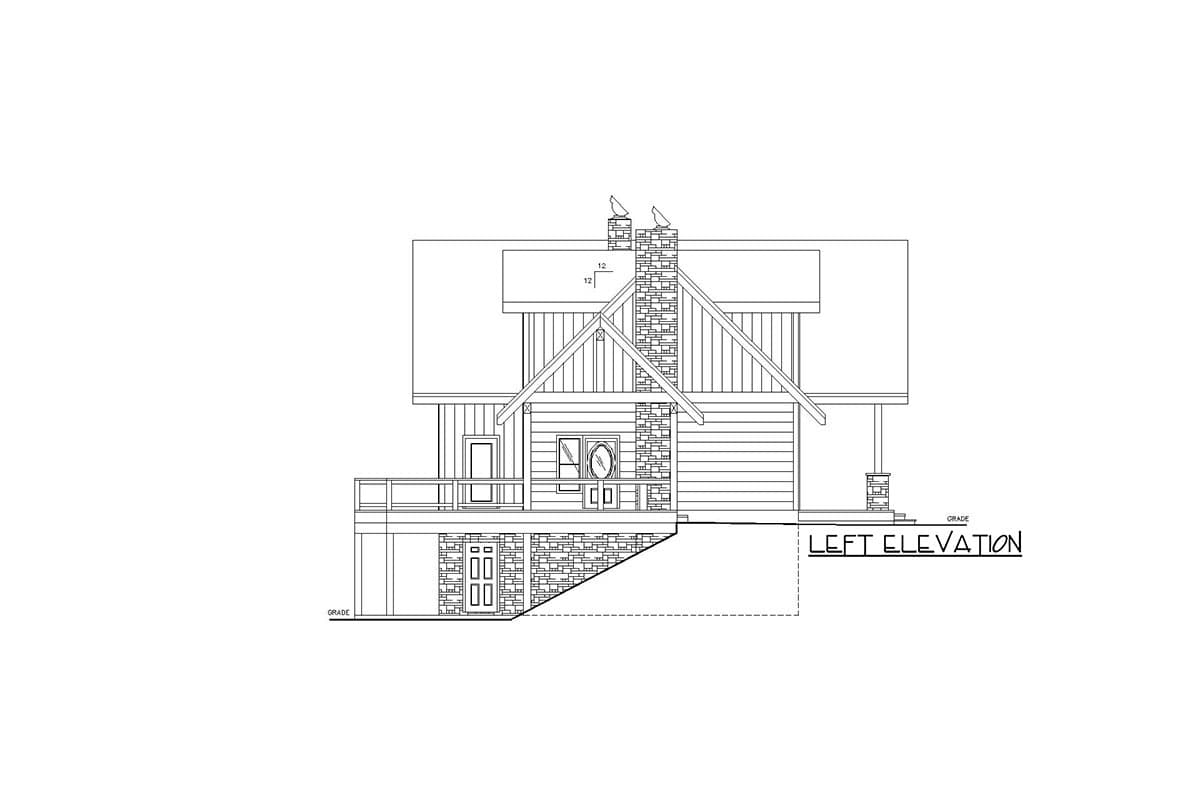

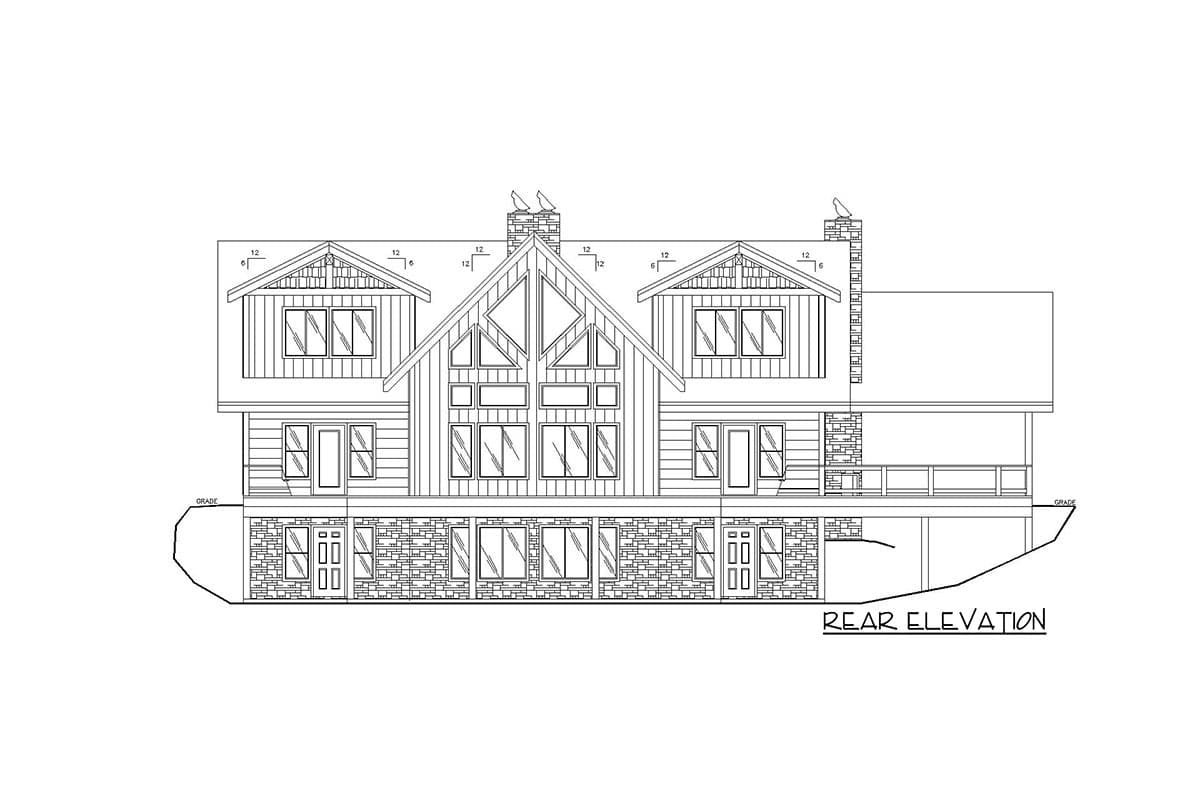

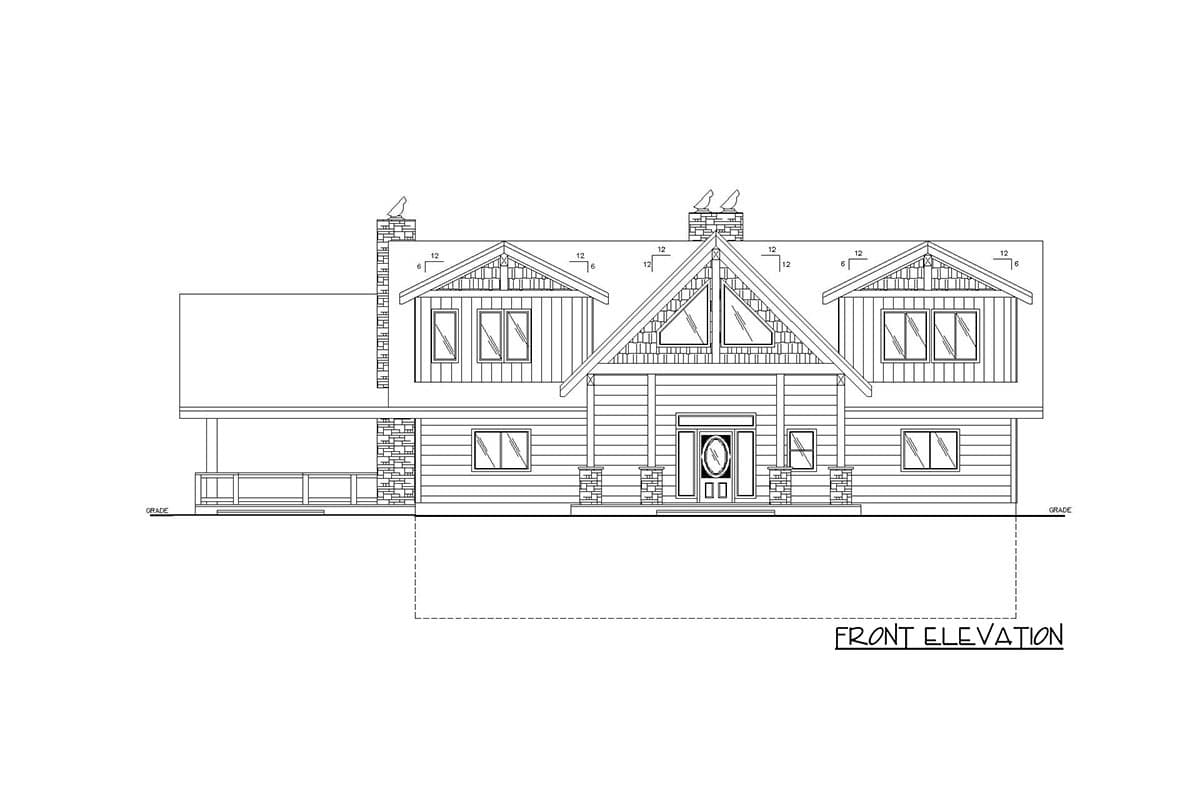

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
