Plan 81785AB
Transitional European Home Plan with Rooftop Deck and Option to Finish Basement - 3265 Sq Ft
Heated S.F.
3,265
Beds
3 - 5
Baths
3.5 - 4.5
Stories
2
Cars
2
Floor Plan

Plan 81785AB

Main Level
slide image 0
2nd Floor
slide image 1
Rooftop Deck
slide image 2
Optionally Finished Lower Level
slide image 3

Plan 81785AB

1-800-854-7852

1-262-521-4596

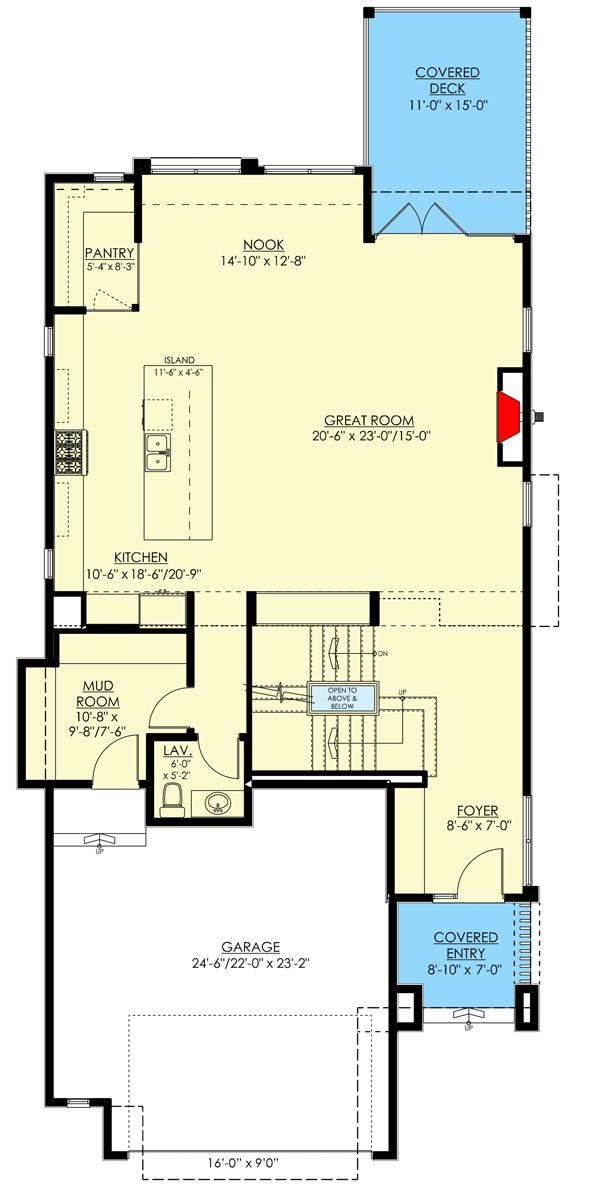

Main Level
floor plan image Main Level

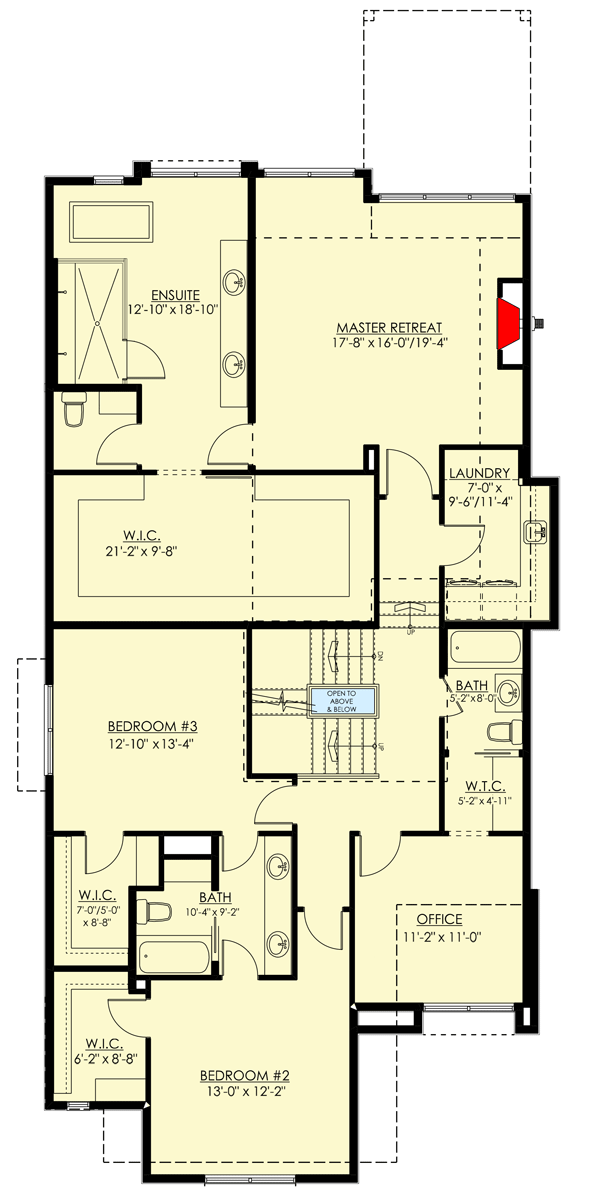

2nd Floor
floor plan image 2nd Floor

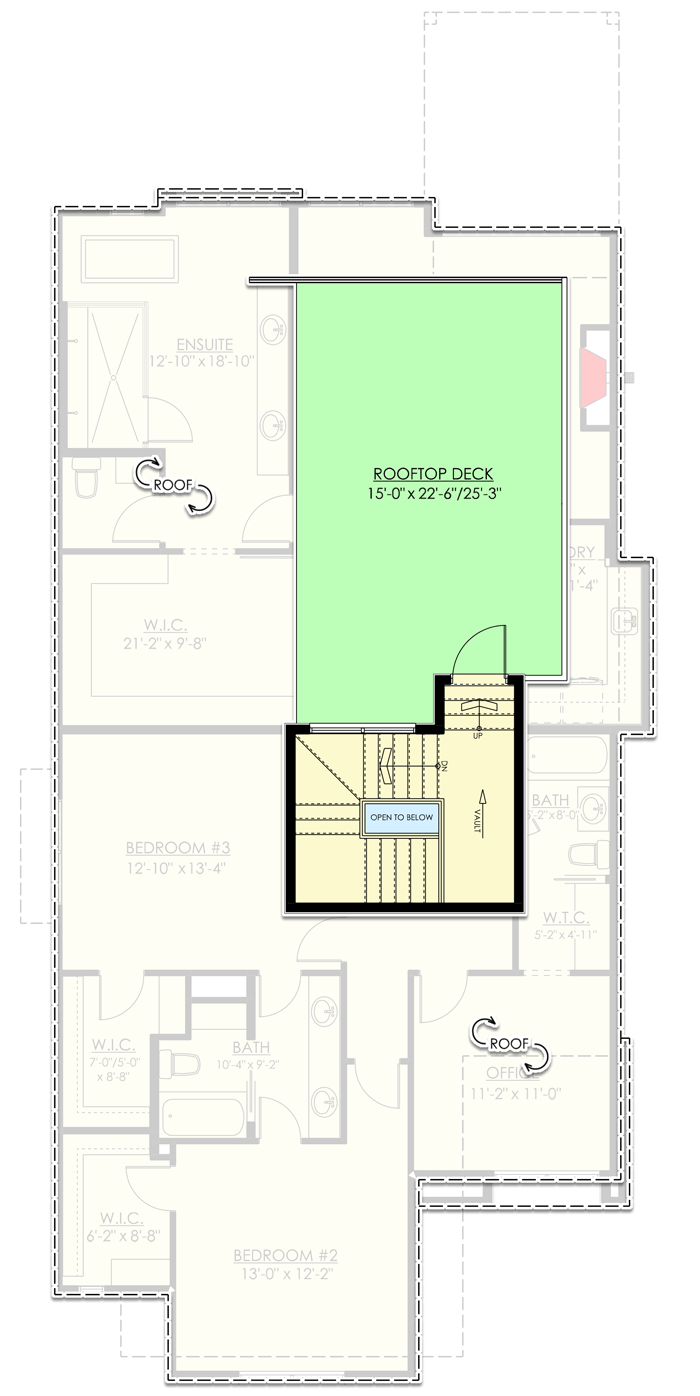

Rooftop Deck
floor plan image Rooftop Deck

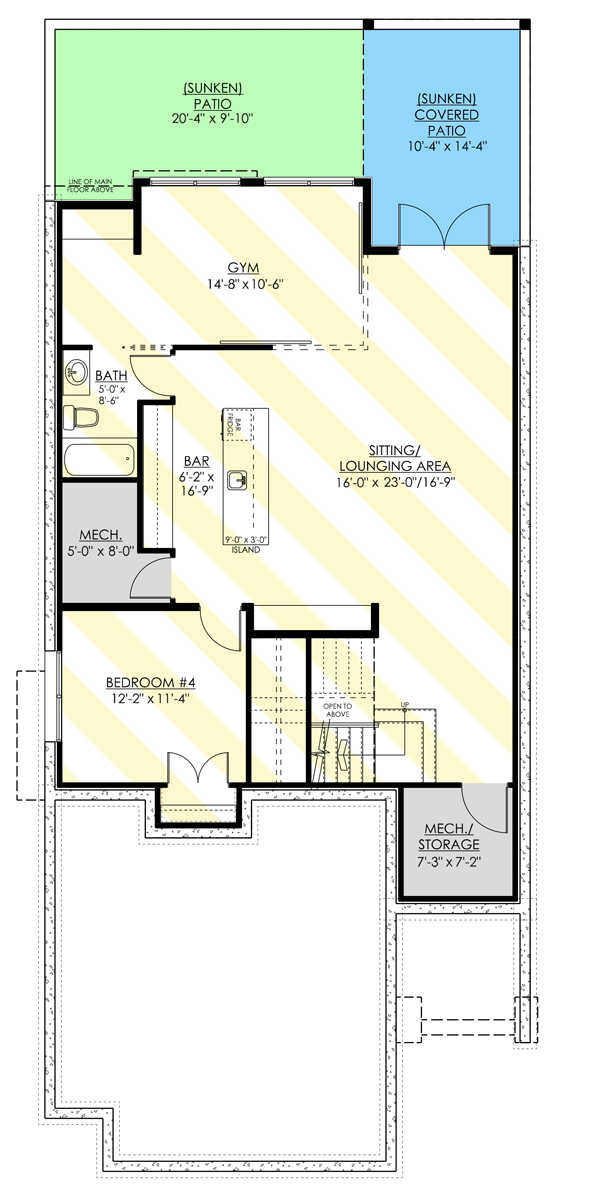

Optionally Finished Lower Level
floor plan image Optionally Finished Lower Level
Plan Details
  • Bold contrasting colors and steeply-pitched gables add to the jaw-dropping features presented by this Transitional European home plan, complete with a rooftop deck for your next summer evening soiree.
  • The main level consists of an open great room, kitchen, and dining nook that expands onto an 11' by 15' covered deck. The walk-in pantry is an extension of the island kitchen and includes a window for natural light.
  • Three bedrooms, a home office, and laundry room can be found upstairs. The master retreat is rear facing and enjoys a 5-fixture bathroom and large walk-in closet.
  • Two of the upstairs bedrooms share a Jack-and-Jill bath and each of the bedrooms include walk-in closets.
  • Another 1,092 square feet of living space can be gained by finishing the lower level that is designed with a wet bar in the lounge / sitting area, home gym, fourth bedroom, and covered patio.
What's Included

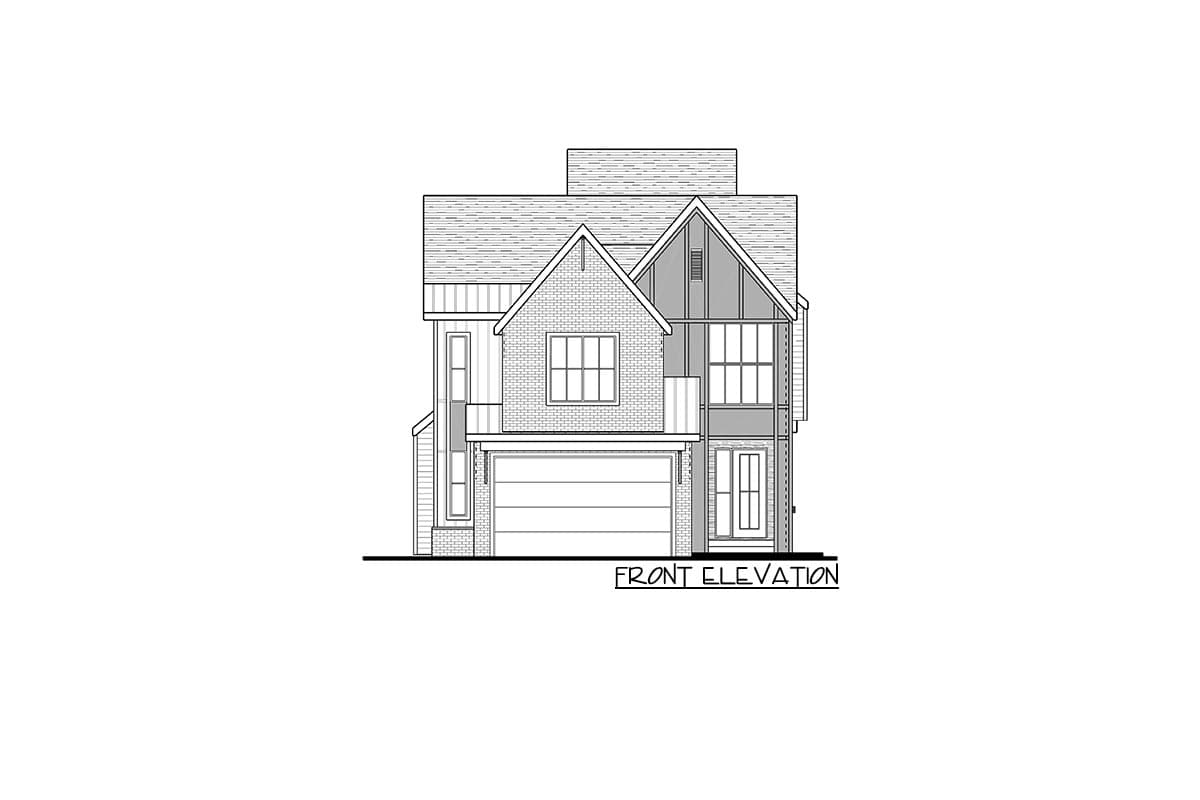

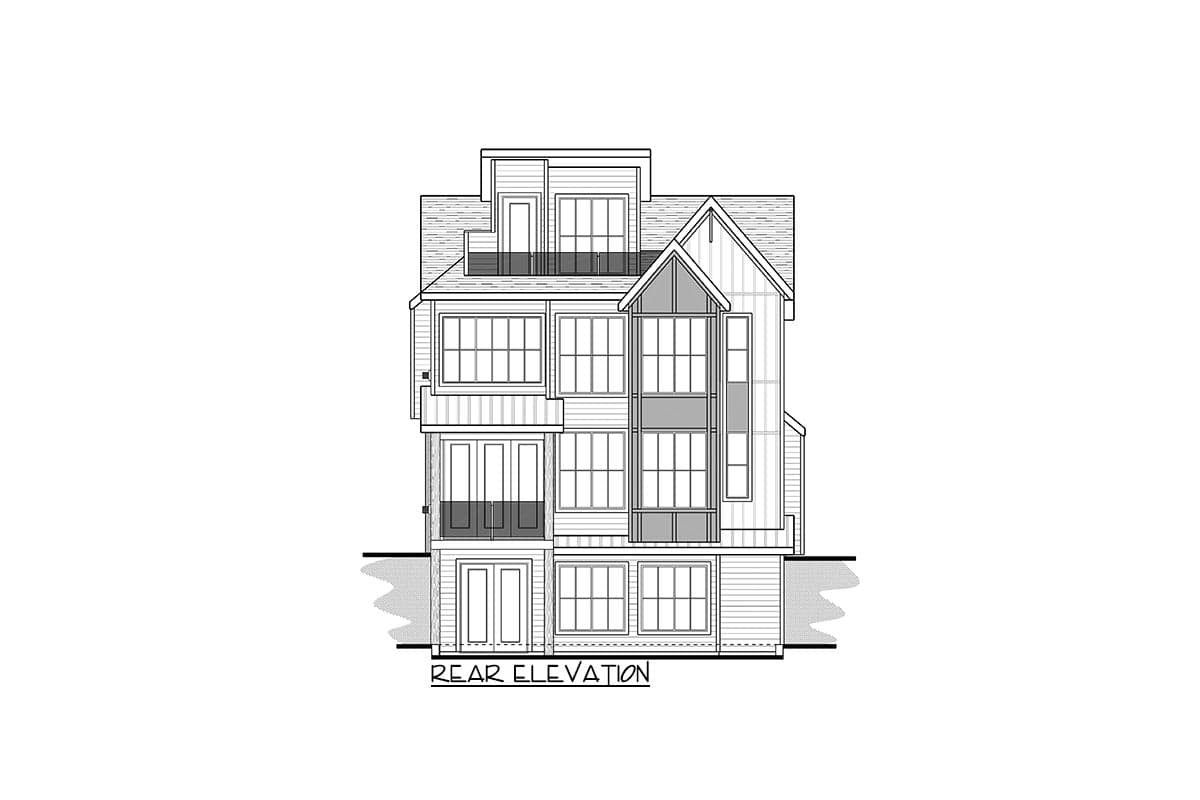

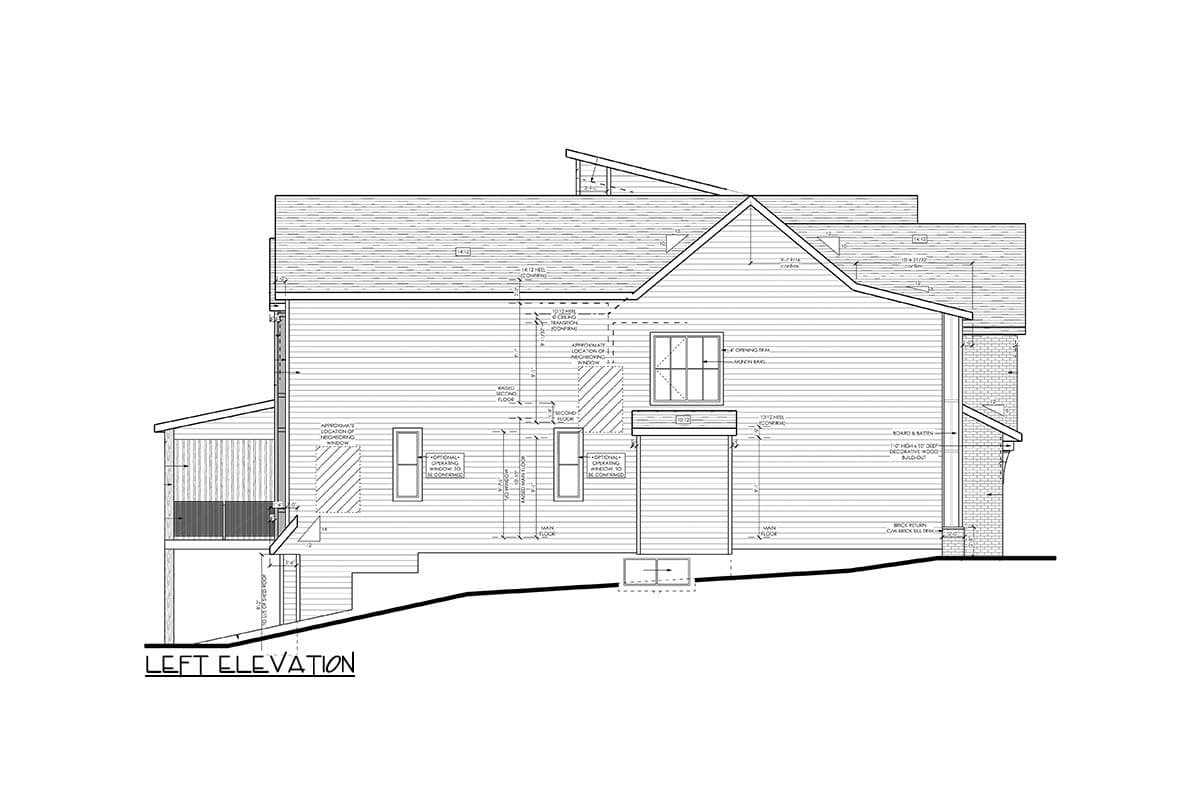

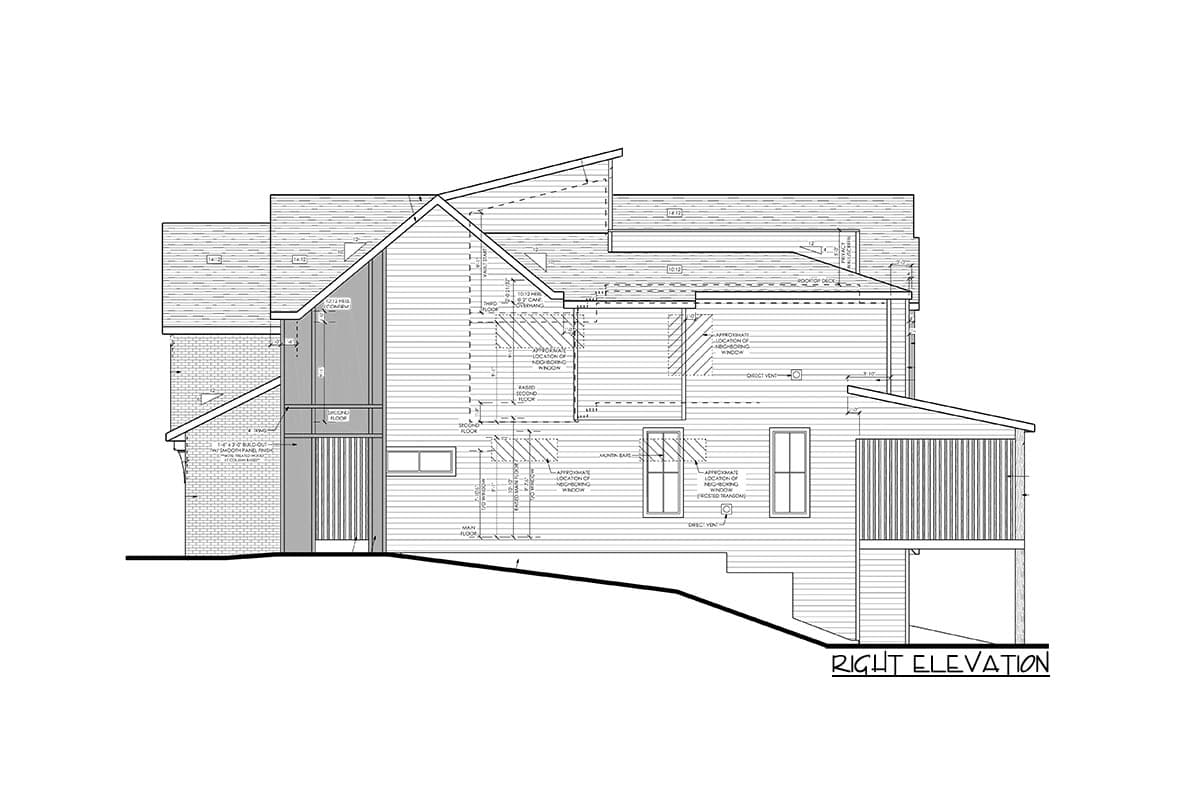

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,265 sq. ft.

1st Floor

1,368 sq. ft.

2nd Floor

1,898 sq. ft.

Optional Lower Level

1,092 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

76' 0"

Max Ridge Height

31' 1"

Garage

Type

Attached

Area

532 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

European

Transitional

Special Features

Breakfast Nook

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Mudroom

Wet Bar

Plan Collections

Canadian House Plans
