Plan 56517SM
Transitional Home Plan with Split-Bed Layout and Bonus Room
Heated S.F.
2,756
Beds
3 - 5
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan

Plan 56517SM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 56517SM

1-800-854-7852

1-262-521-4596

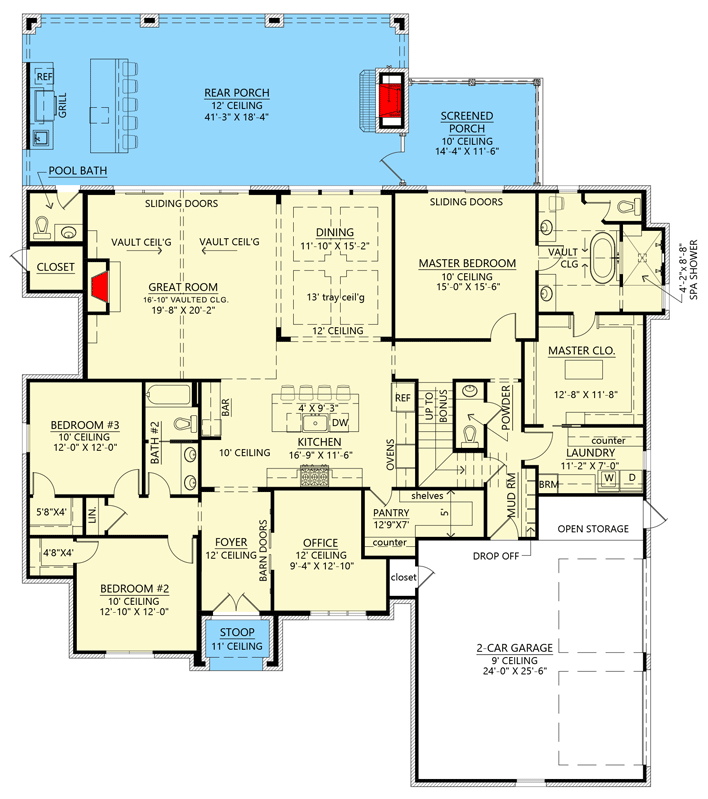

Main Level
floor plan image Main Level

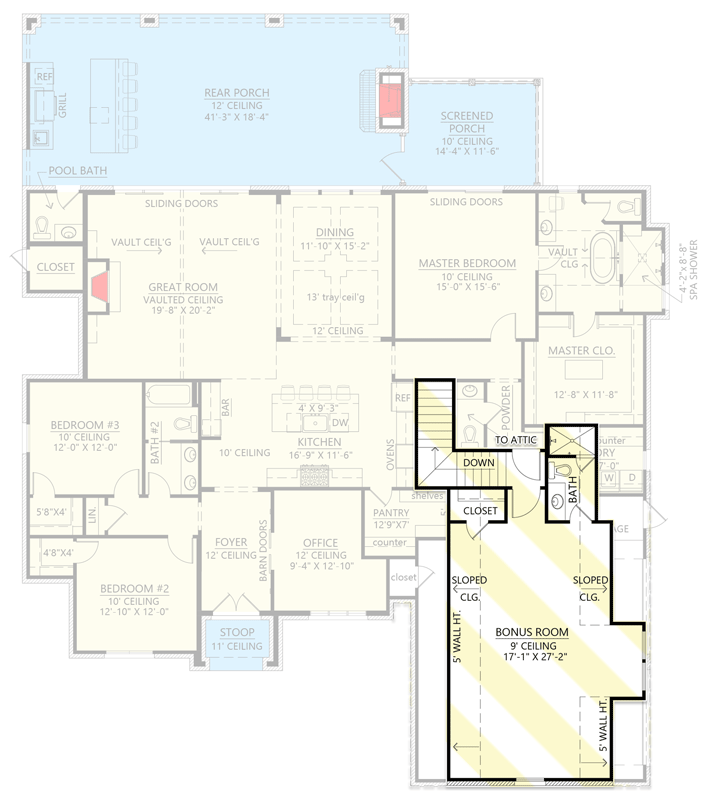

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Steeply-pitched gables with flared eaves add a dramatic edge to the exterior of this Transitional home plan.
  • This design prioritizes outdoor living with its large rear porch that includes a summer kitchen and fireplace, and is accessible from the vaulted great room (the highest point of the ceiling is 16'10").
  • The gourmet kitchen features an eating bar at the island, double ovens, a coffee bar, and expansive walk-in pantry. The neighboring dining room is defined by its elegant tray ceiling.
  • The master bedroom is set apart from the secondary bedrooms for the utmost privacy and offers access to a screened porch, deluxe ensuite with a spa shower, and a walk-in closet that connects to the laundry room.
  • Bedrooms 2 and 3 can be found off the foyer, across from a home office. Discover a staircase in the mudroom that leads to a 633 sq ft bonus room with a full bath.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

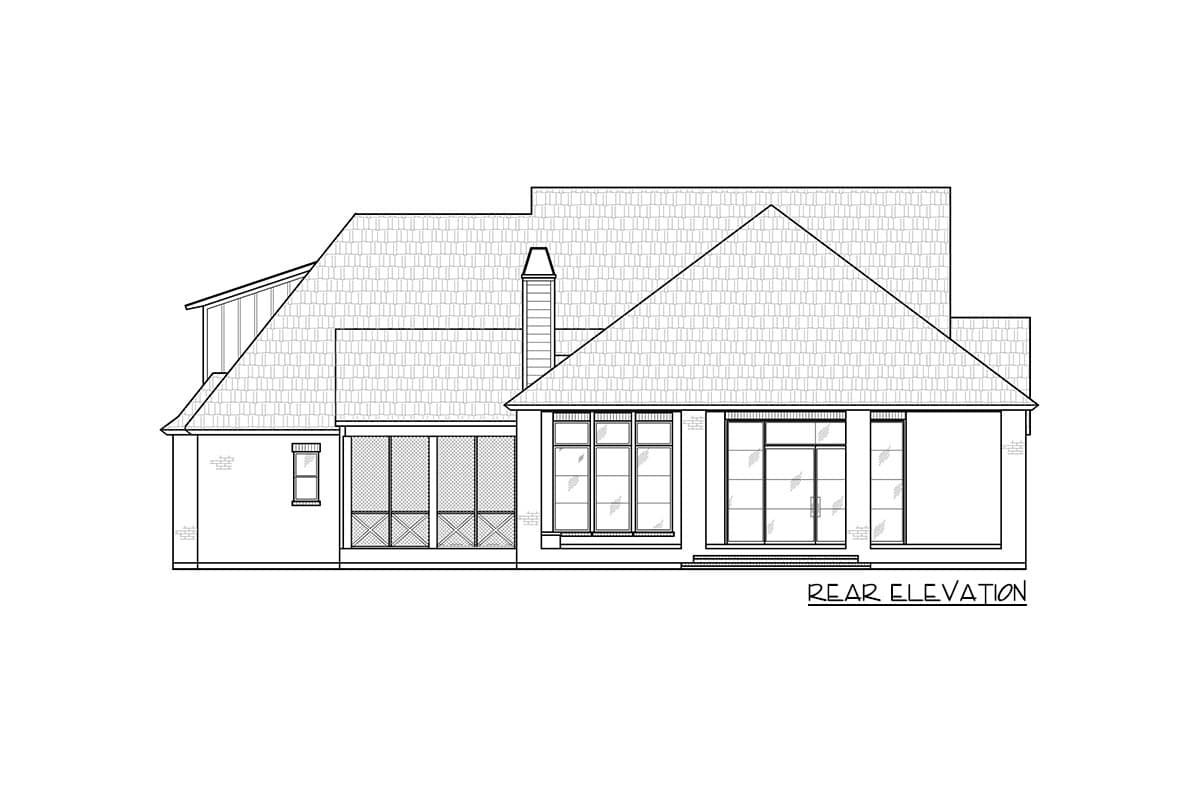

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,756 sq. ft.

1st Floor

2,756 sq. ft.

Bonus

633 sq. ft.

Porch, Rear

756 sq. ft.

Screened Porch

164 sq. ft.

Storage

35 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 1"

Depth

82' 5"

Max Ridge Height

28' 11"

Garage

Type

Attached

Area

738 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Bonus

9' 0''

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

15 on 12

Framing Type

Stick

Architectural Style

European

Ranch

Southern

Transitional

Special Features

Bedrooms - Split

Bonus Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,756 sq. ft.

1st Floor

2,756 sq. ft.

Bonus

633 sq. ft.

Porch, Rear

756 sq. ft.

Screened Porch

164 sq. ft.

Storage

35 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 1"

Depth

82' 5"

Max Ridge Height

28' 11"

Garage

Type

Attached

Area

738 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Bonus

9' 0''

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

15 on 12

Framing Type

Stick

Architectural Style

European

Ranch

Southern

Transitional

Special Features

Bedrooms - Split

Bonus Room

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room
