Plan 70837MK
Transitional House Plan Under 3000 Square Feet with Angled Porte-Cochere Garage
Heated S.F.
2,826
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1
Cars
1- 3
Floor Plan

Plan 70837MK

Main Level
slide image 0

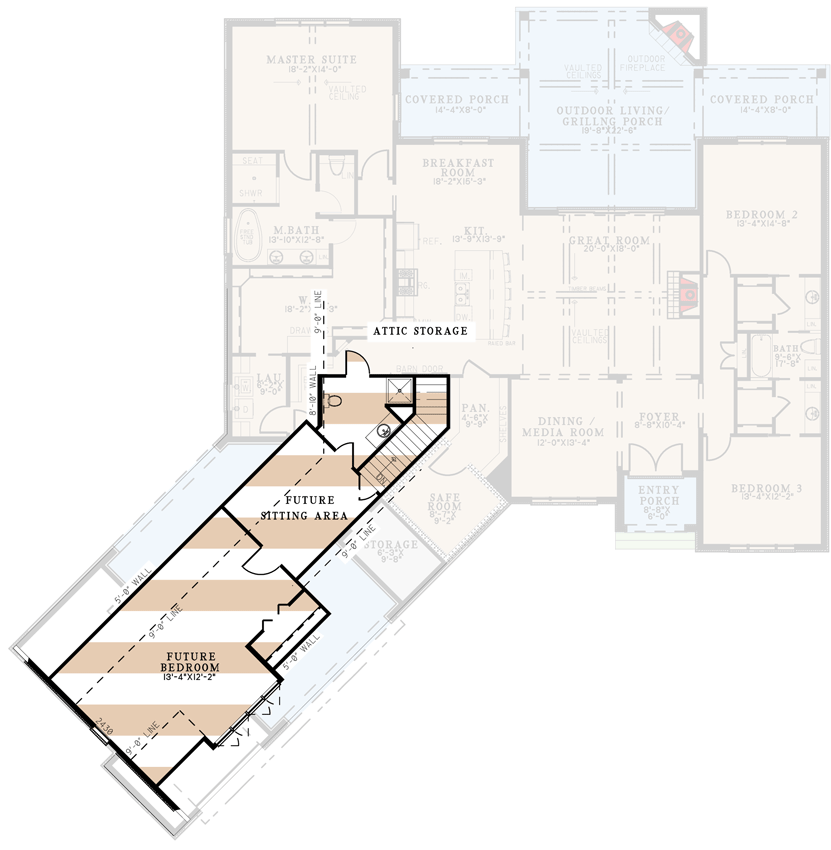

2nd Floor
slide image 1

Plan 70837MK

1-800-854-7852

1-262-521-4596

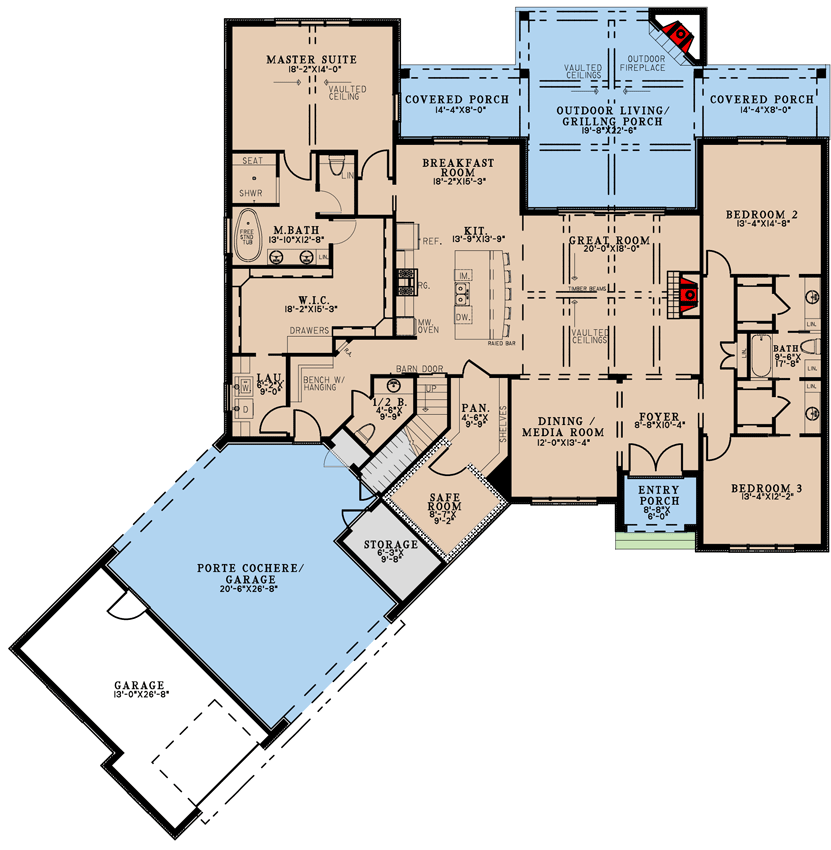

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

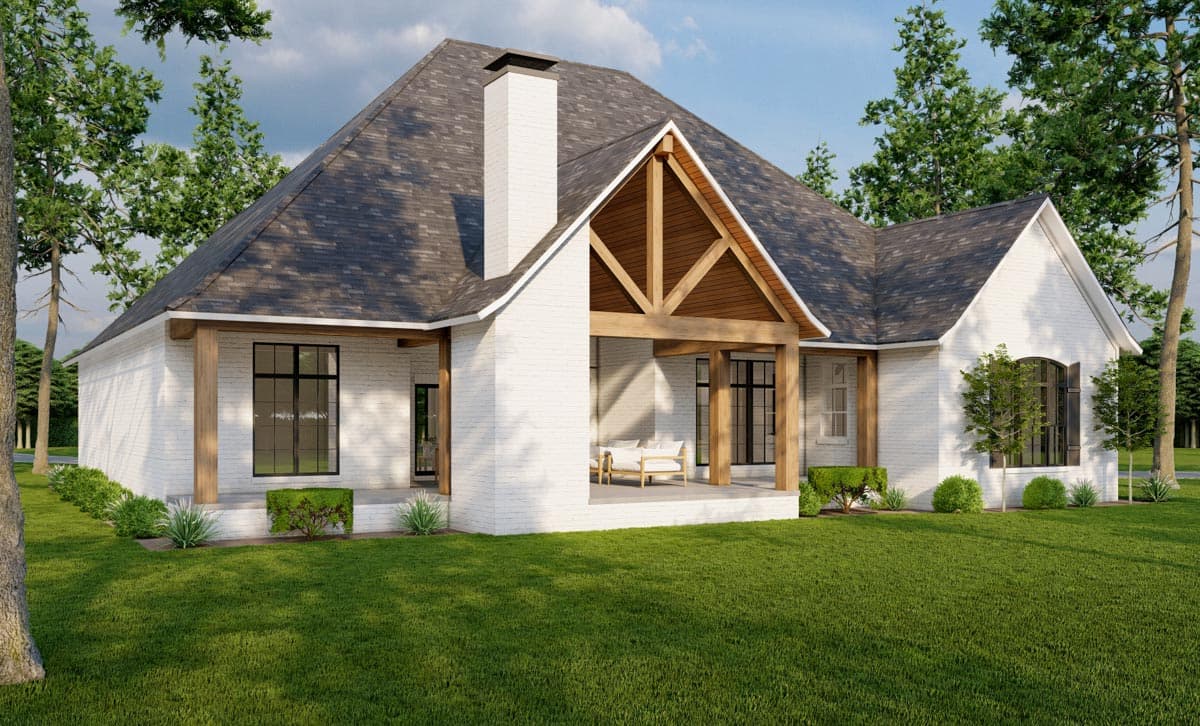

  • This 2826 square foot Transitional house plan has an angled garage with porte-cochere a and bonus expansion above giving the flexibility to get 4 bedrooms. A charming arched stone entry leads you to the foyer which has views extending to the back of the home.
  • The elegant great room features vaulted ceilings with timber beam accents, a fireplace and doors opening to the outdoor living room with fireplace. The room is open to the kitchen and the eat-at island bar. The cook will enjoy having the large walk-in pantry.
  • The master suite features a vaulted ceiling as well and a wonderful bathroom with a shower, dual vanities, a whirlpool tub, and a large walk-in closet with direct laundry access. Across the home, Beds 2 and 3 each have walk-in closets and share a Jack and Jill bathroom.
  • Expand above the garage and get an additional 760 square feet of heated living space when you do.
  • Related Plans: Get alternate versions with house plans 70636MK (3,068 sq. ft.), 60617ND (2,408 sq. ft.) and 60618ND (2,631 sq. ft.).
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,826 sq. ft.

1st Floor

2,826 sq. ft.

Bonus

760 sq. ft.

Porch, Combined

733 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

91' 8"

Depth

93' 0"

Max Ridge Height

35' 6"

Garage

Type

Attached, Carport

Area

1170 sq. ft.

Count

1, 2, or 3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Southern

Transitional

Special Features

Angled Garage

Bedrooms - Split

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Outdoor Fireplace

Porte Cochere

Safe Room

Square Footage Breakdown

Total Heated Area

2,826 sq. ft.

1st Floor

2,826 sq. ft.

Bonus

760 sq. ft.

Porch, Combined

733 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

91' 8"

Depth

93' 0"

Max Ridge Height

35' 6"

Garage

Type

Attached, Carport

Area

1170 sq. ft.

Count

1, 2, or 3 Cars

Entry Location

Front, Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Southern

Transitional

Special Features

Angled Garage

Bedrooms - Split

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Outdoor Fireplace

Porte Cochere

Safe Room
